52dB Electret Condenser Microphone 6×5mm
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

52dB Electret Condenser Microphone 6×5mm

Available:In Stock
  • Product SKU: MIC003
Wishlist
₹ 29 ₹ 39
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • High sensitivity: -56dB
  • Wide range: 20Hz–16kHz
  • Low power: ≤ 0.5mA
  • Compact: 6×5mm, 0.5g
  • Voltage: Up to 10V
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-156M

Secure

Specification

Description

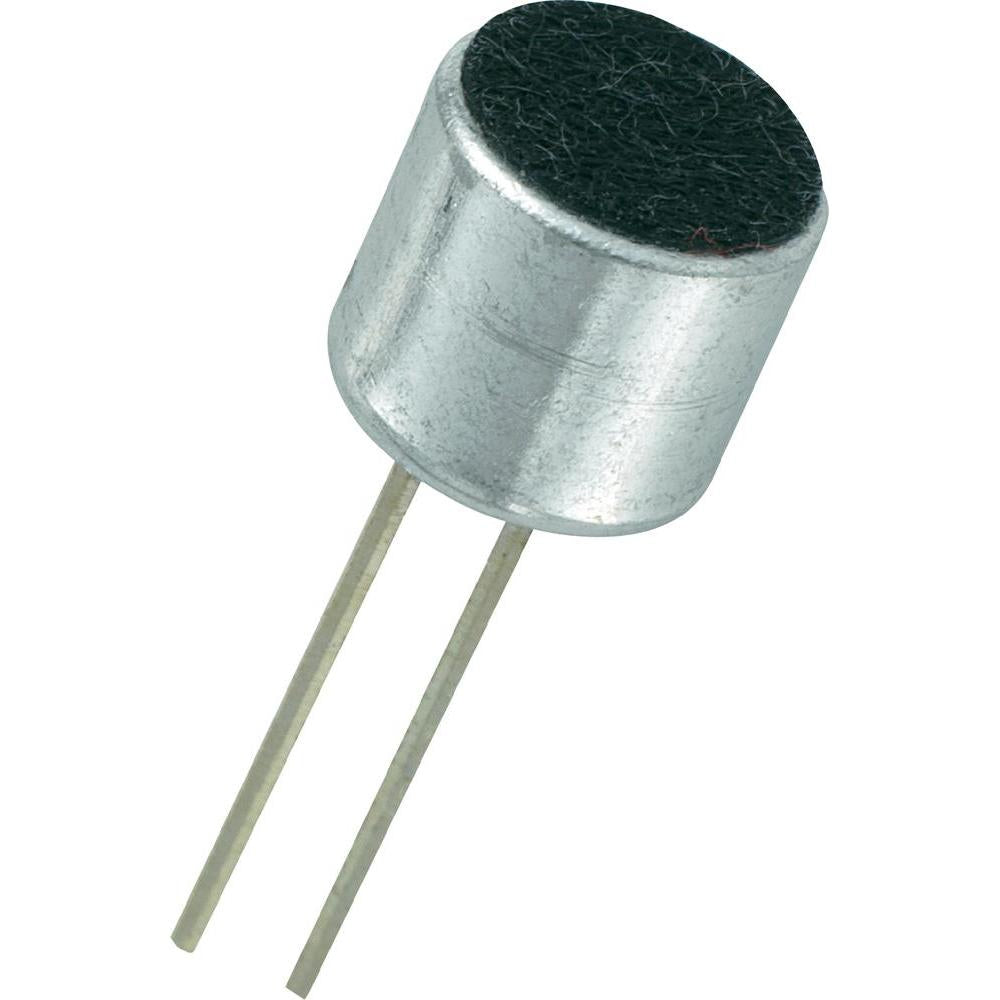

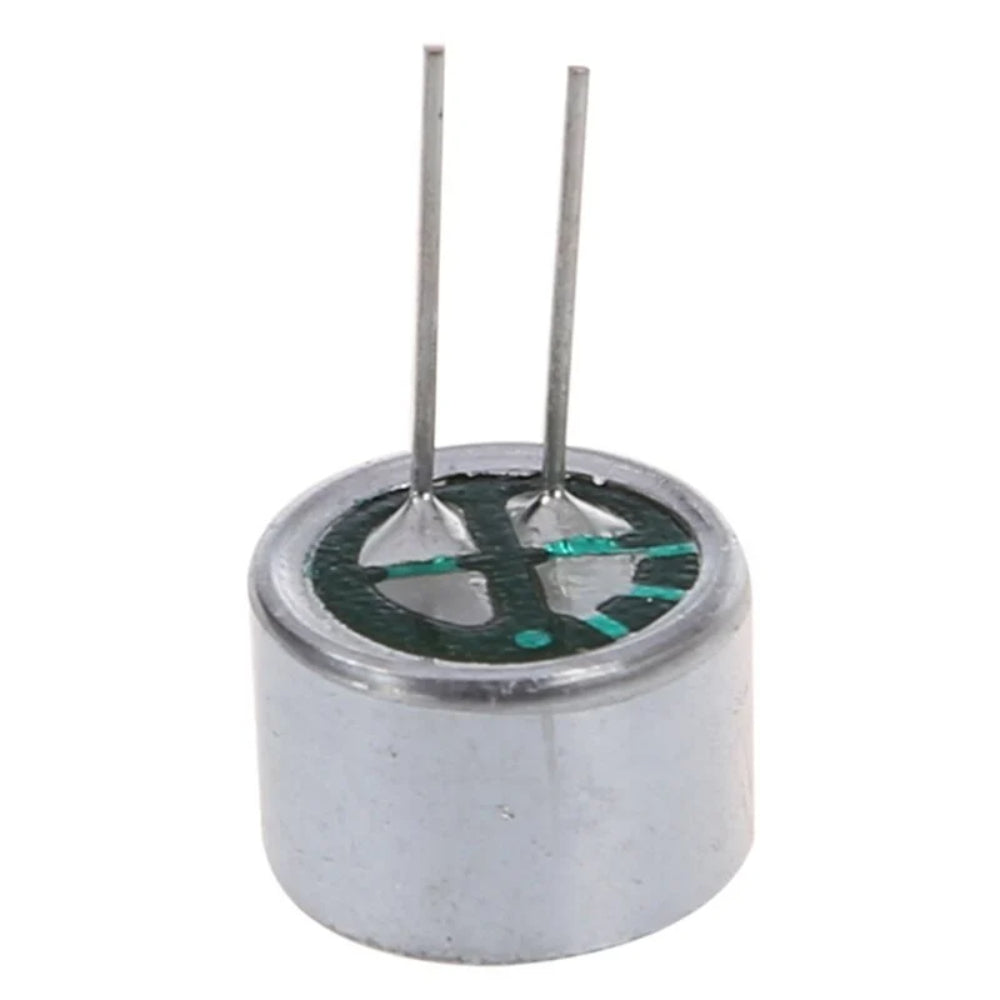

52dB Electret Condenser Microphone 6×5mm

The 52dB Electret Condenser Microphone (6×5mm) is a compact, high-sensitivity audio input component designed for a variety of sound detection and voice recording applications. With a diameter of 6mm and height of 5mm, this miniature microphone is perfect for integration into small electronic devices where space is limited. It operates using electret technology, which ensures stable performance and a reliable signal-to-noise ratio. The 52dB sensitivity rating makes it ideal for capturing low-level audio signals clearly, even in moderately noisy environments.

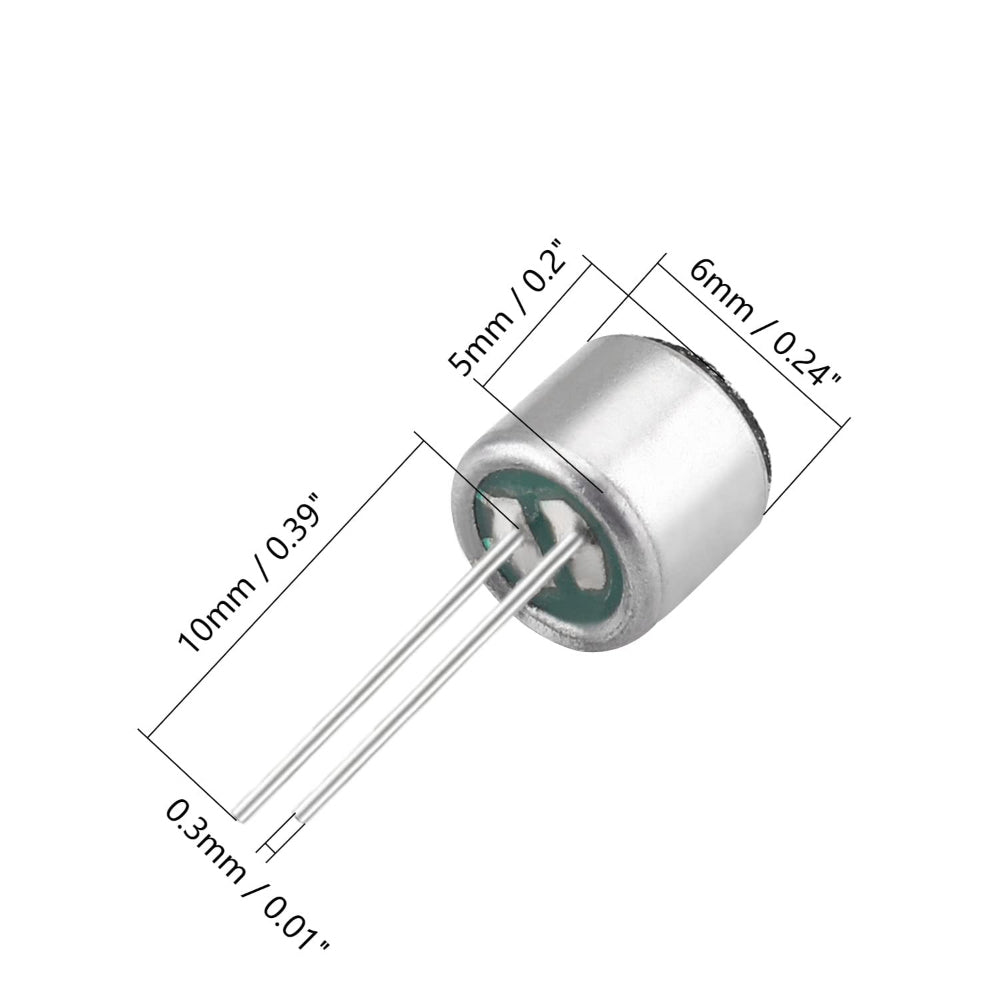

This microphone features dual pin leads with a diameter of 0.3mm, and a lead length of 10mm, making it easy to mount on PCBs and breadboards. It is commonly used in voice recognition systems, audio surveillance equipment, portable recording devices, intercoms, and consumer electronics. The metal housing provides protection and EMI shielding, enhancing durability and clarity of captured sound. Whether for DIY audio projects or professional applications, this microphone offers dependable performance in a compact form factor.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Type: Electret Condenser Microphone
  • Sensitivity: -56 ± 2dB
  • Impedance: 2.2 KΩ ± 30%
  • Frequency Response: 20Hz ~ 16,000Hz
  • Operating Voltage: 10V (TVU)
  • Reference Voltage: 4.5V
  • Current Consumption: ≤ 0.5mA
  • Sensitivity Attenuation: ≤ -3dB at 2V ~ 1.5V
  • Size: 6mm × 5mm
  • Weight: 0.5g

Features

  • High sensitivity (-56 ±2dB)
  • Compact size (6mm × 5mm) for space-constrained applications
  • Wide frequency response: 20Hz to 16kHz
  • Low power consumption (≤0.5mA)
  • Stable performance across voltage variations
  • Ideal for voice and sound detection
  • Lightweight and easy to mount

Applications :

  • Voice recognition systems
  • Sound-activated devices
  • Audio recording equipment
  • Security and surveillance systems
  • Smart home automation
  • Hearing aids and medical instruments
  • Portable audio devices

Physical Attributes

  • Size: 6mm × 5mm
  • Weight: 0.5g

Package Includes

  • 1 x 52dB Electret Condenser Microphone 6×5mm
