5K Ohm B502 Dual Dial Linear Potentiometer Dial Type 5-Pin 16x2mm
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

5K Ohm B502 Dual Dial Linear Potentiometer Dial Type 5-Pin 16x2mm

Available:In Stock
  • Product SKU: PRESE070
Wishlist
₹ 10 ₹ 19
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 5KΩ Dual Dial, 5-Pin Potentiometer
  • 16×2mm, Linear Type
  • Rated 0.05W, AC 50V / DC 12V
  • Compact, Low Noise, Durable
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-156J

Secure

Specification

Description

5K Ohm B502 Dual Dial Linear Potentiometer Dial Type 5-Pin 16x2mm

The 5K Ohm B502 Dual Dial Linear Potentiometer is a high-precision, space-efficient variable resistor that allows for smooth, linear resistance control in electronic circuits. With a dual dial-type design, it offers enhanced adjustment accuracy and ease of use. Measuring just 16mm in diameter and 2mm in thickness, this potentiometer is ideal for applications where compact size and reliable tuning are critical — such as in audio equipment, instrument panels, and control interfaces.

This model features a 5-pin configuration, providing stable and flexible connectivity in complex circuit designs. Built with durable metal and plastic housing, it ensures long-lasting performance and consistent results. The B502 code signifies a 5K Ohm resistance value, and the linear taper ensures uniform resistance change across the rotation. Whether used for volume control, voltage adjustment, or signal modulation, this dual dial potentiometer delivers precision and dependability.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Product Name: Dual Dial Wheel Potentiometer
  • Model: B502
  • Resistance Value: 5K Ohm (B502 marking)
  • Resistance Tolerance: ±20%
  • Resistance Type: Linear (Single Turn)
  • Pin Count: 5 Pins (Dual-channel output)
  • Adjustment Method: Dual Dial / Wheel
  • Mounting Type: Through-Hole
  • Rated Power: 0.05W
  • Voltage Limit: AC 50V / DC 12V
  • Sliding Noise: < 47mV
  • Synchronous Distortion: -40dB ~ 0dB
  • Operating Voltage: Typically 5V
  • Body Material: Plastic housing with metal terminals

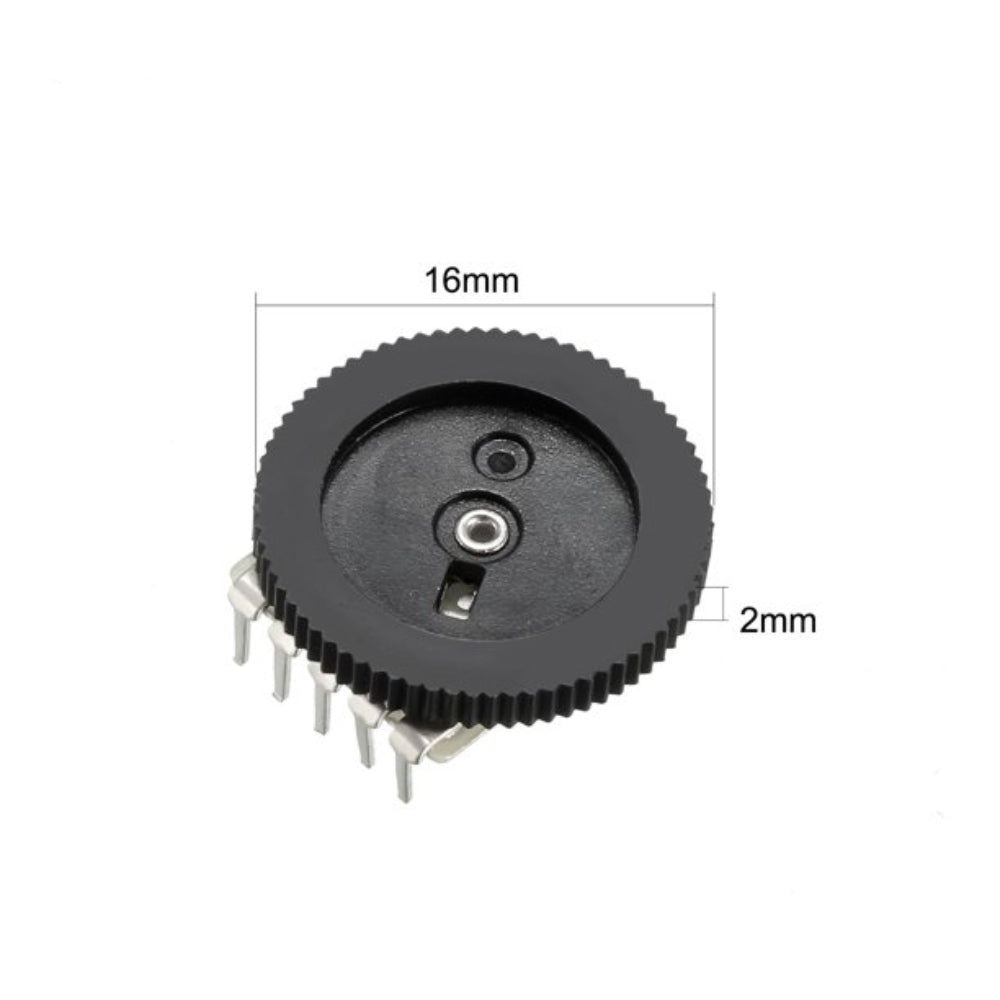

  • Wheel Size: 16 mm × 2 mm
  • Weight: 1g

Features

  • Dual dial design for independent or combined channel control
  • Linear resistance variation for smooth adjustment
  • Compact and lightweight, ideal for space-constrained circuits
  • High wear resistance for long operating life
  • Low sliding noise ensures stable performance
  • Supports high and low signal triggering
  • Easy to mount with standard through-hole pins

Applications :

  • Audio mixing and stereo volume balance control
  • Dual-axis joystick or interface tuning
  • Speed and brightness control in DIY electronics
  • Signal tuning in amplifier or sensor circuits
  • Prototyping and robotics projects
  • Educational electronics and training kits

Physical Attributes

  • Pin Count: 5 Pins
  • Wheel Size: 16 mm × 2 mm
  • Weight: 1g

Package Includes

  • 1 x 5K Ohm B502 Dual Dial Linear Potentiometer Dial Type 5-Pin 16x2mm
