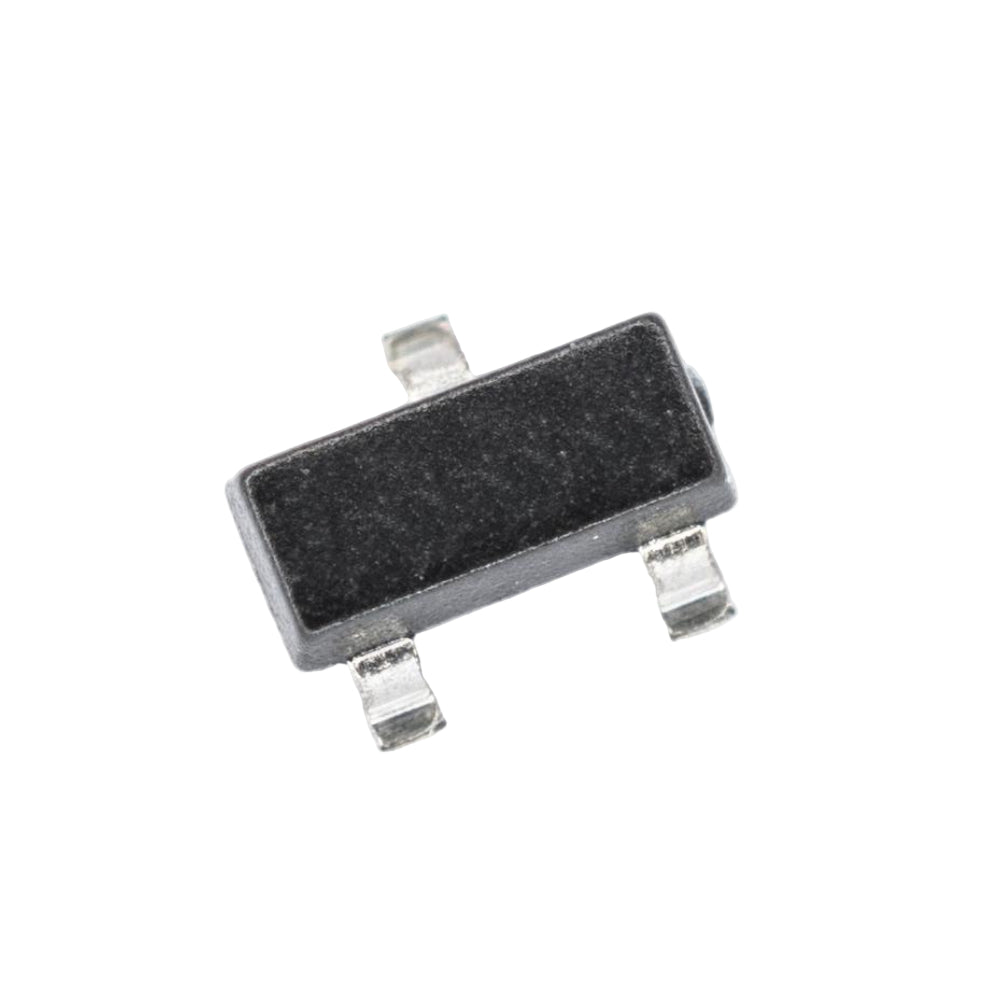

AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-1

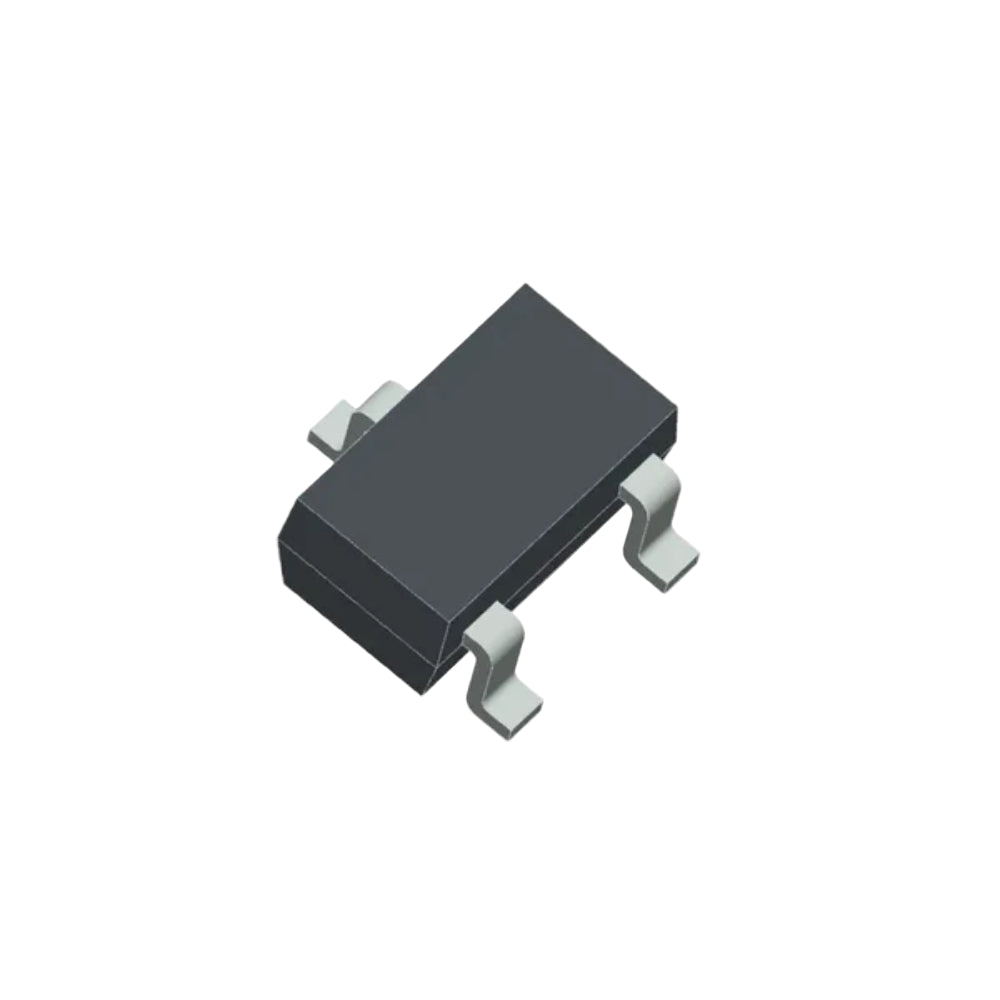

AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-2
AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-3
AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-1
AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-2
AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package-3

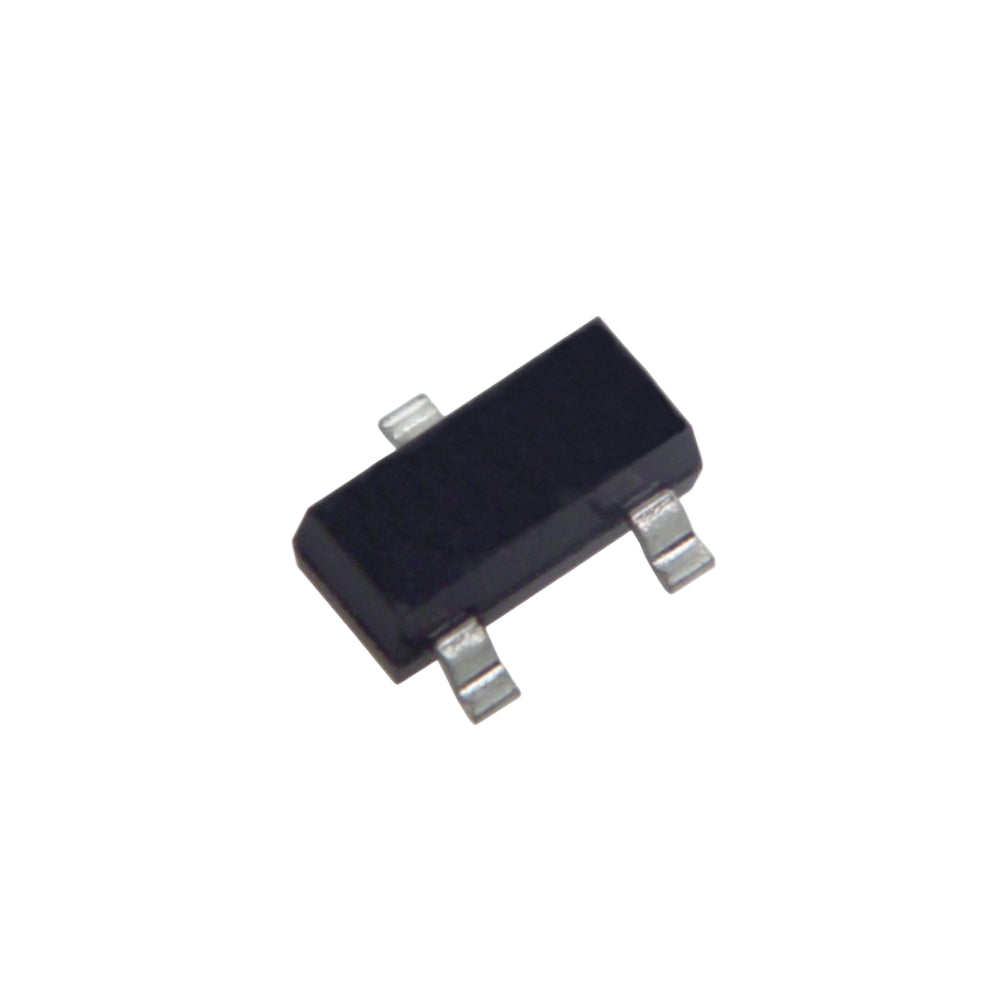

AO3416 N-Channel MOSFET – Imported Original, SOT-23 Package

Available:In Stock
  • Product SKU: INTEG293
Wishlist
₹ 7 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • AO3416 MOSFET
  • N-Channel, Logic Level
  • SOT-23 Package
  • Imported & Original
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-167M

Secure

Specification

Description

AO3416 N‑Channel MOSFET – SOT‑23, Original Imported, High‑Performance

The AO3416 is a compact, high-efficiency N-Channel MOSFET in a small SOT-23 surface-mount package. It is designed for low-voltage switching applications and offers very low on-resistance, high current handling (up to 6.5 A), and fast switching performance. This makes it ideal for battery-powered devices, LED drivers, motor control, and compact DC-DC converter circuits where efficiency and board space are critical.

Technical Details

  • Type: N-Channel Enhancement Mode MOSFET
  • Package: SOT-23, 3-Pin (Surface-Mount)
  • Drain-Source Voltage (VDS): 20 V
  • Continuous Drain Current (ID): 6.5 A @ 25 °C
  • On-Resistance (RDS(on)): ≤ 22 mΩ @ VGS = 4.5 V
  • Gate Threshold Voltage (VGS(th)): 0.4 V – 1.1 V
  • Maximum Gate-Source Voltage: ± 8 V
  • Power Dissipation: 1.4 W @ 25 °C
  • Operating Temperature: −55 °C to +150 °C

Applications

  • Switching of DC motors, relays, and LEDs
  • Logic-level low-voltage control circuits
  • Battery-powered circuits and power management
  • Low-side switching in DC-DC converters
  • Space-saving high-density PCB designs

Physical Attributes

  • Pins: 3 (Gate, Drain, Source)
  • Package: SOT‑23
  • Dimensions: ~2.9 mm × 1.6 mm × 1.25 mm
  • Weight: ~1 g

Package Includes

  • 1 × AO3416 N‑Channel MOSFET – SOT‑23 Through Hole
