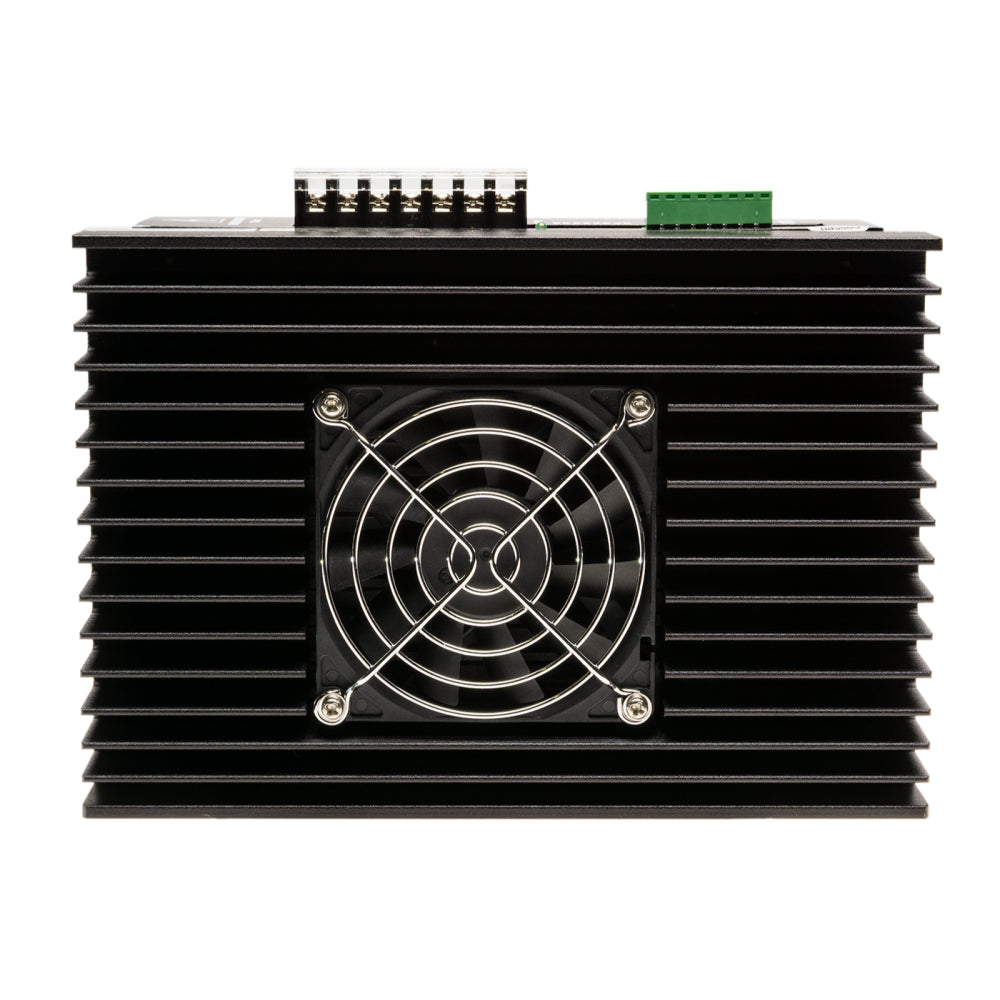

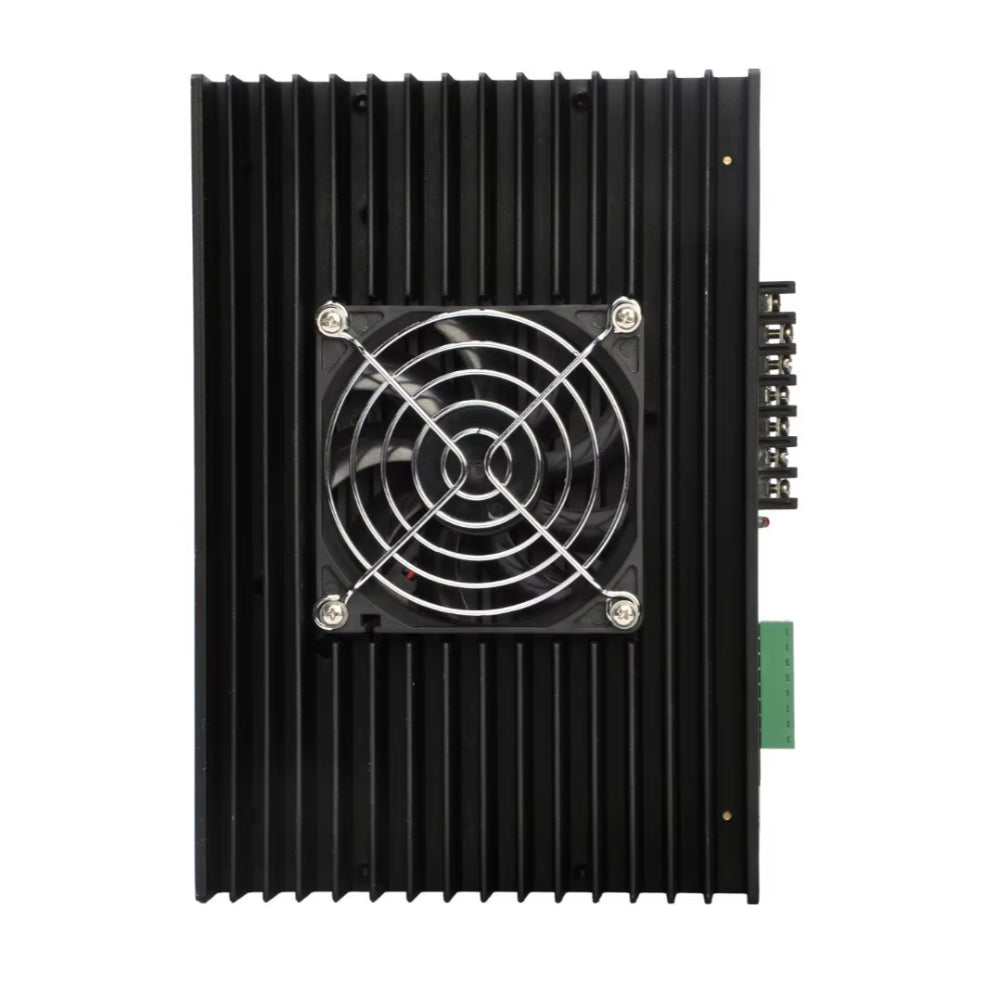

DM1182 Digital Stepper Motor Driver

DM1182 Digital Stepper Motor Driver is a high-performance digital microstep driver designed for precise and stable control of 2-phase bipolar stepper motors. Built using advanced DSP control technology, it delivers smooth motion, high torque, and low noise, making it suitable for both industrial and automation applications.

The driver supports direct 110–120V AC input and offers multiple current and microstep settings through DIP switches. With integrated protection features and reliable performance, the DM1182 is ideal for CNC machines, laser systems, and motion-control equipment.

Features

Digital DSP-based microstep control
Direct 110–120V AC power input
Adjustable output current up to 8.2A (peak)
Multiple microstep resolutions for smooth motor operation
Opto-isolated PUL / DIR / ENA control inputs
Low vibration, low noise, and stable torque output
Built-in fault detection and protection

Applications

CNC routers and milling machines
Laser engraving and cutting machines
Industrial automation and motion systems
Robotics and positioning equipment
Packaging, textile, and woodworking machines

Technical Details

Model: DM1182
Driver Type: Digital Microstep Stepper Driver
Motor Compatibility: 2-Phase Bipolar Stepper Motors
Input Voltage: 110–120V AC
Input Frequency: 50 / 60 Hz

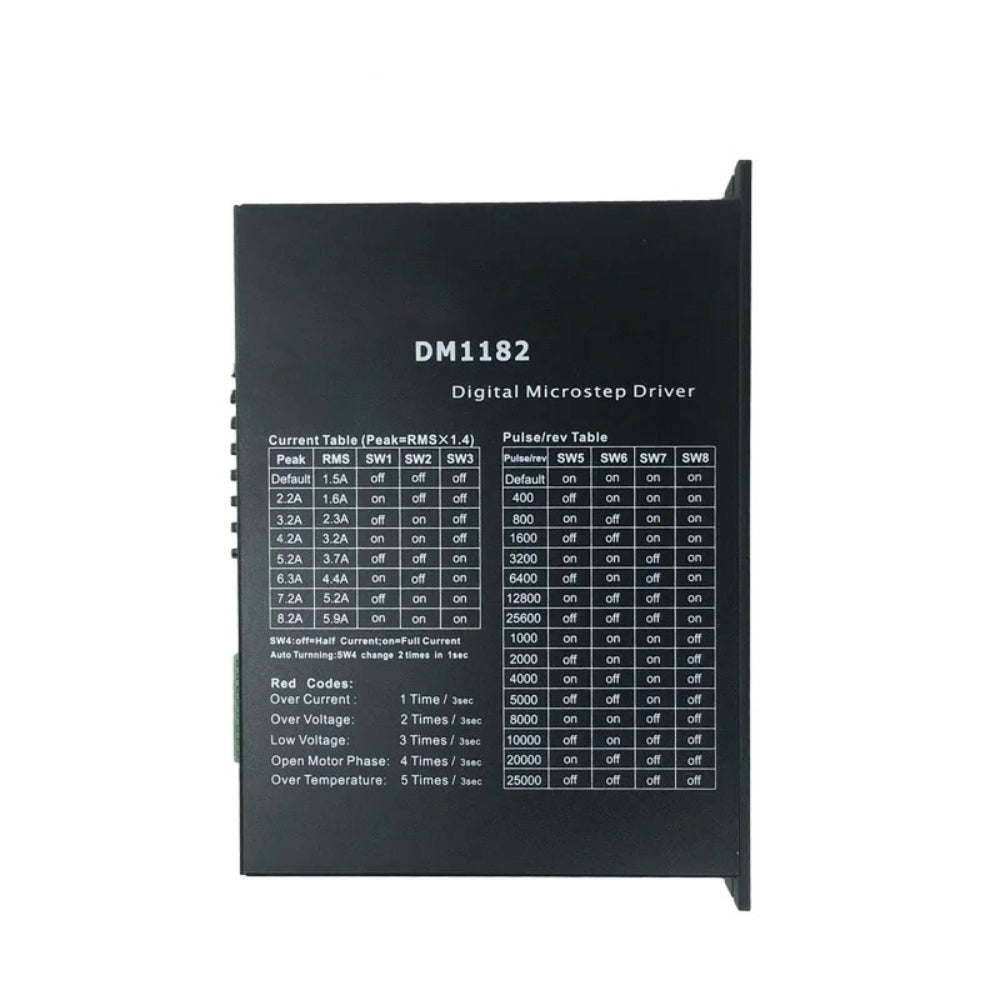

Output Current (Peak): 2.2A – 8.2A (selectable)
Output Current (RMS): Peak ÷ 1.4
Microstep Resolutions: 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 steps per revolution
Control Signals: PUL (Step), DIR (Direction), ENA (Enable)
Input Signal Voltage: 5–24V
Input Type: Opto-isolated
Protection Functions: Over-current, Over-voltage, Under-voltage, Open motor phase, Over-temperature
Status Indication: Red LED error codes
Auto Current Reduction: Enabled (half-current at idle)
