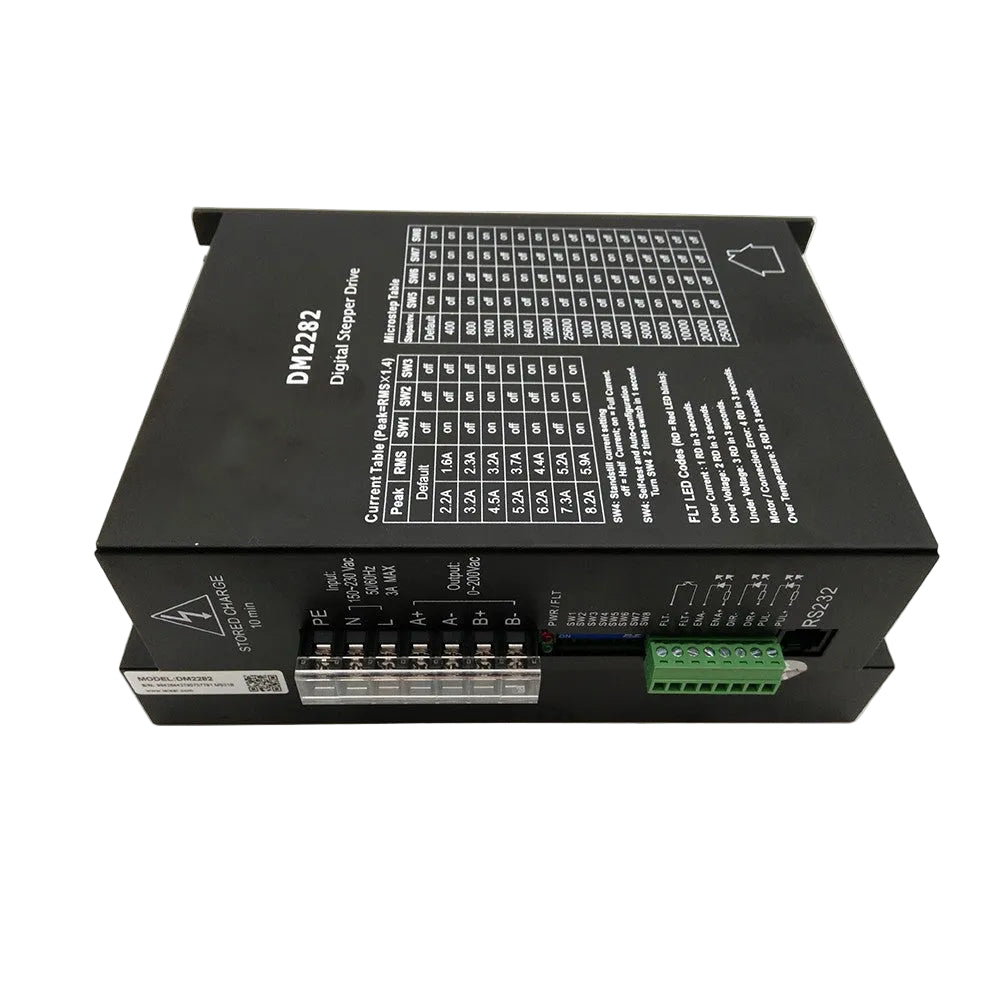

DM2282 Digital Stepper Motor Driver

DM2282 Digital Stepper Motor Driver is a high-power, DSP-based microstepping driver engineered for precise and smooth control of 2-phase bipolar stepper motors. Supporting direct 150–220V AC input, it eliminates the need for an external SMPS and delivers stable performance for industrial motion-control systems.

With adjustable current and microstep settings, opto-isolated control inputs, and comprehensive protection features, the DM2282 is ideal for demanding applications such as CNC routers, laser machines, and automation equipment.

Features

  • Digital DSP-based microstep control
  • Direct 150–220V AC input (no external power supply required)
  • Adjustable output current up to 8.2A (peak)
  • Multiple microstep resolutions up to 25,600 steps/rev
  • Opto-isolated PUL / DIR / ENA inputs for noise immunity
  • Low vibration, low noise, and high torque output
  • Built-in fault protection and diagnostic LED

Applications

  • CNC routers, milling machines, and plasma cutters
  • Laser engraving and laser cutting machines
  • Industrial automation and motion control systems
  • Robotics and positioning equipment
  • Packaging, textile, and woodworking machinery

Technical Details

  • Model: DM2282
  • Driver Type: Digital Microstep Stepper Driver
  • Motor Compatibility: 2-Phase Bipolar Stepper Motors
  • Input Voltage: 150–220V AC
  • Input Frequency: 50 / 60 Hz
  • Maximum Input Current: ≤ 3.8 A
  • Motor Output Voltage: Up to 200V DC

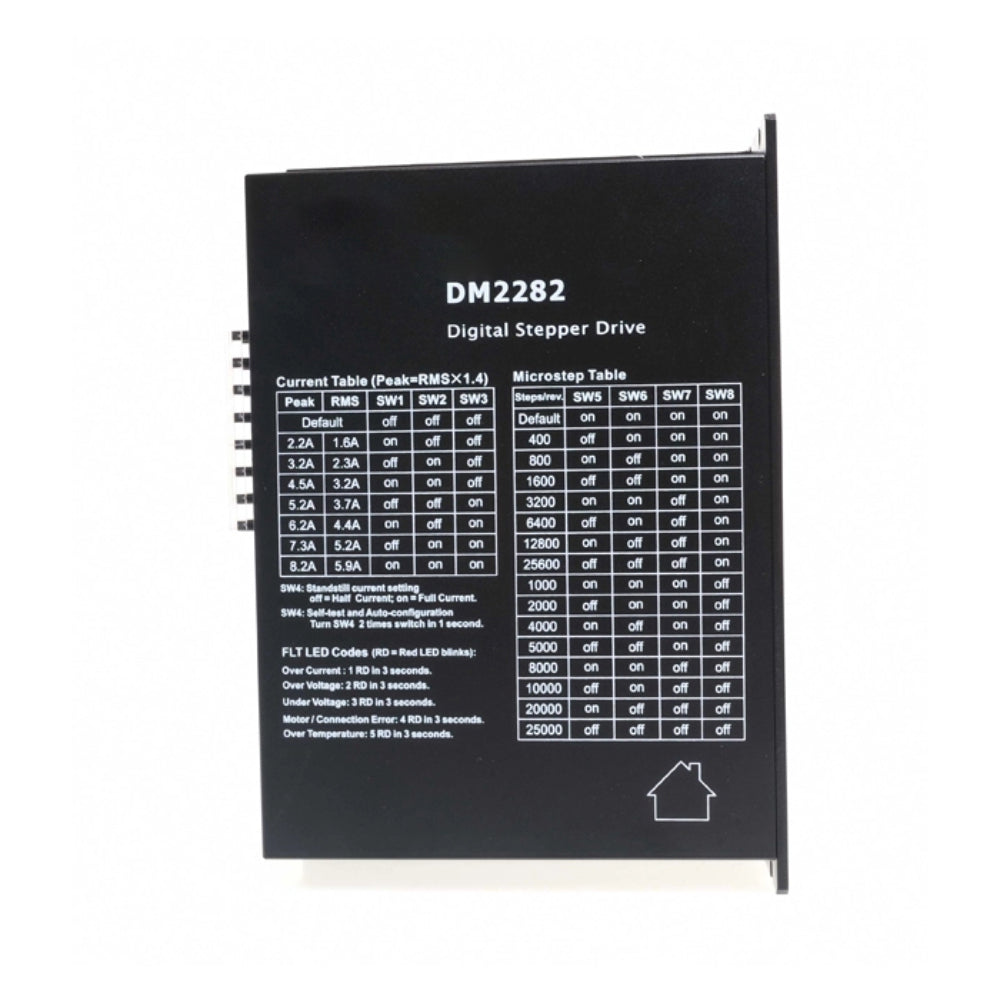

  • Output Current (Peak): 2.2A – 8.2A (selectable via DIP switch)
  • Output Current (RMS): Peak ÷ 1.4
  • Microstep Resolutions: 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600
  • Control Signals: PUL, DIR, ENA
  • Input Signal Voltage: 5–24V
  • Input Isolation: Opto-isolated
  • Communication Interface: RS232
  • Protections: Over-current, over-voltage, over-temperature
  • Status Indication: Fault (FLT) LED
  • Stored Charge Warning: Up to 10 minutes after power OFF

Physical attributes

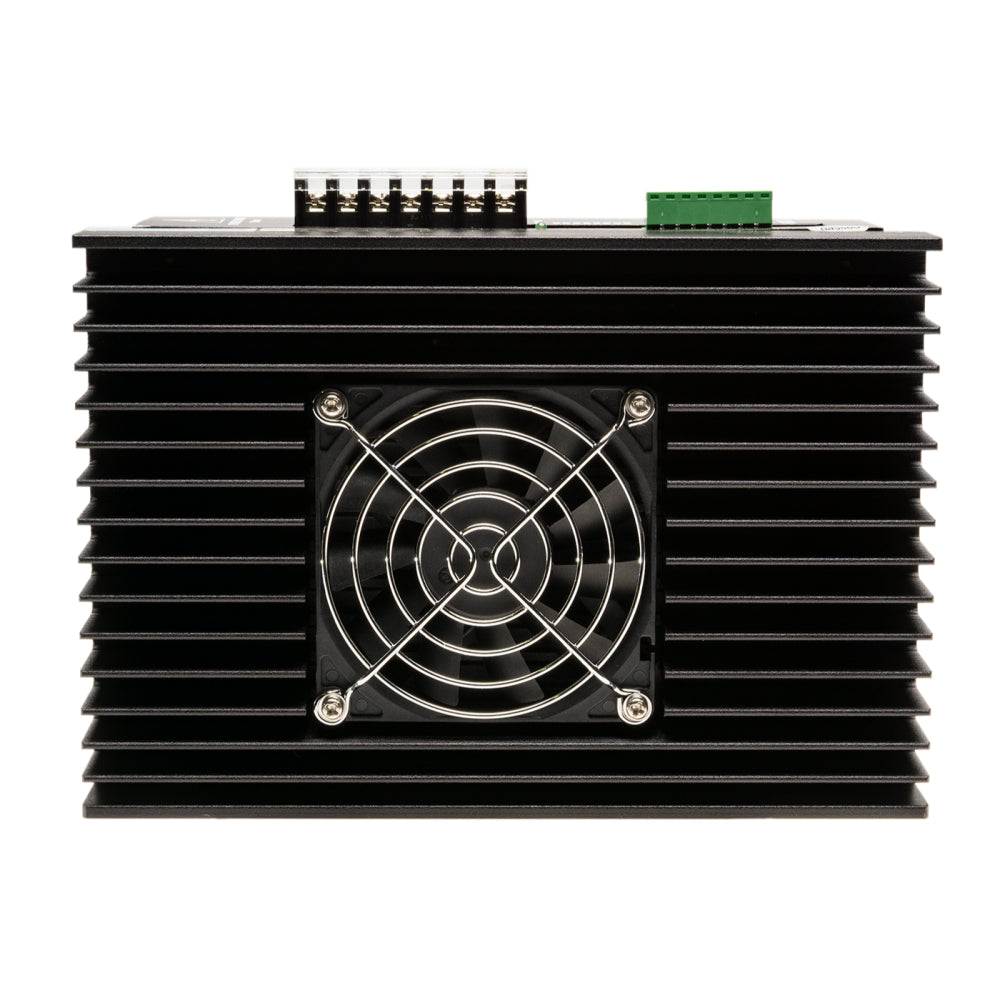

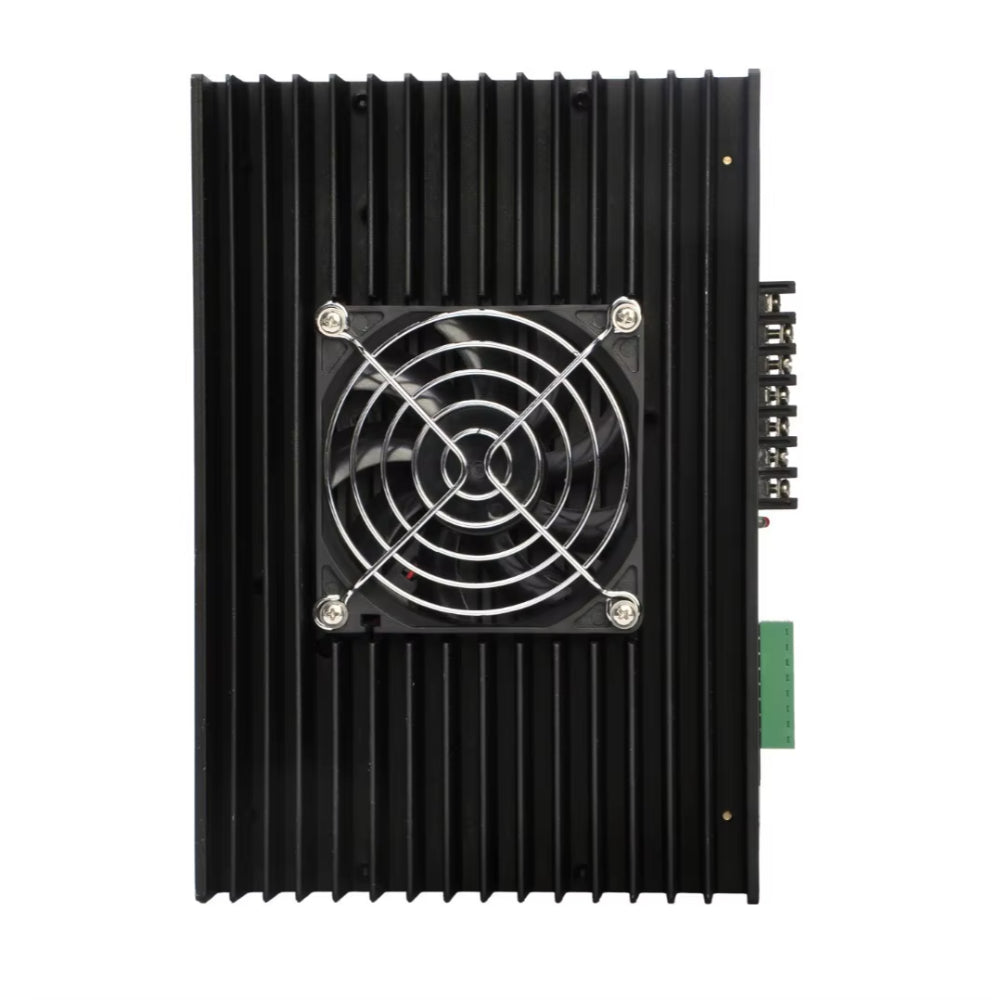

  • Cooling: Aluminium heat-sink body
  • Dimensions: 200 × 137 × 80 mm
  • Cooling Method: Natural air cooling
  • Weight: 1440g

Package includes

  • 1 × DM2282 Stepper Motor Driver 8.2A 220V/230V Supply Voltage
