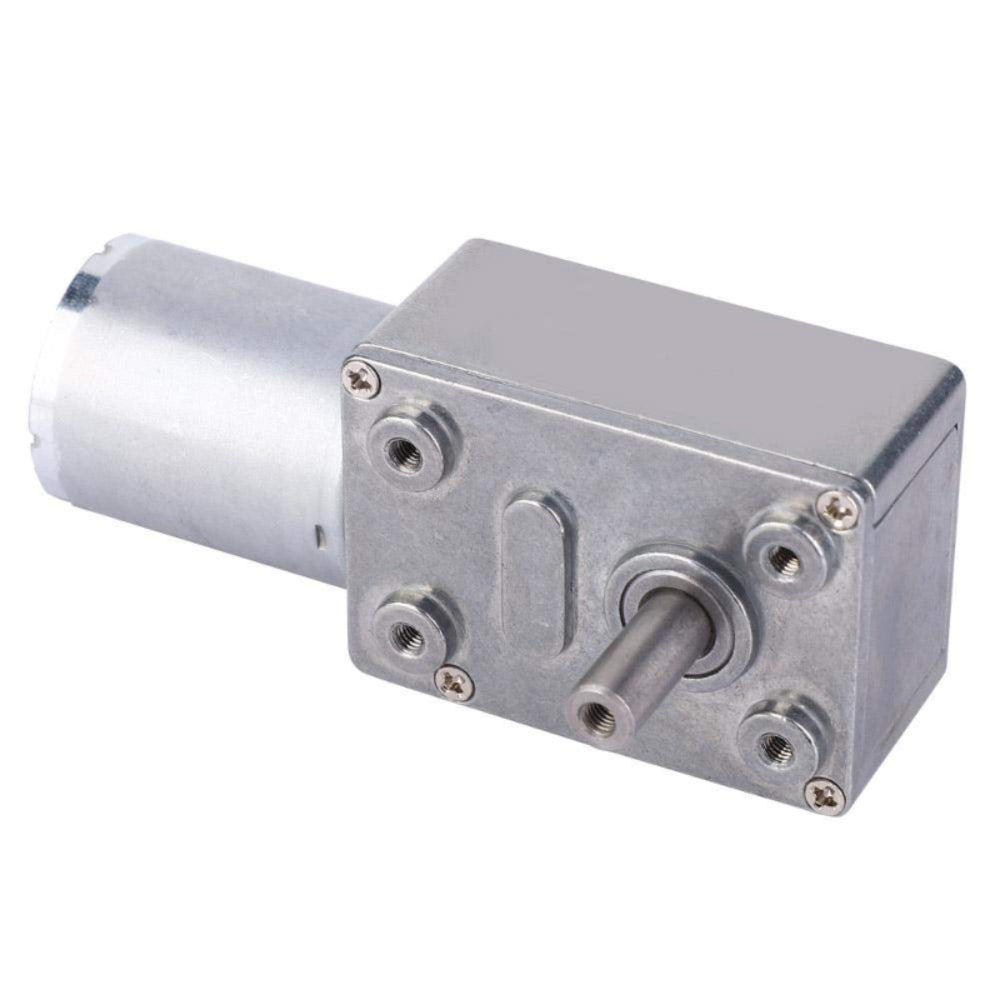

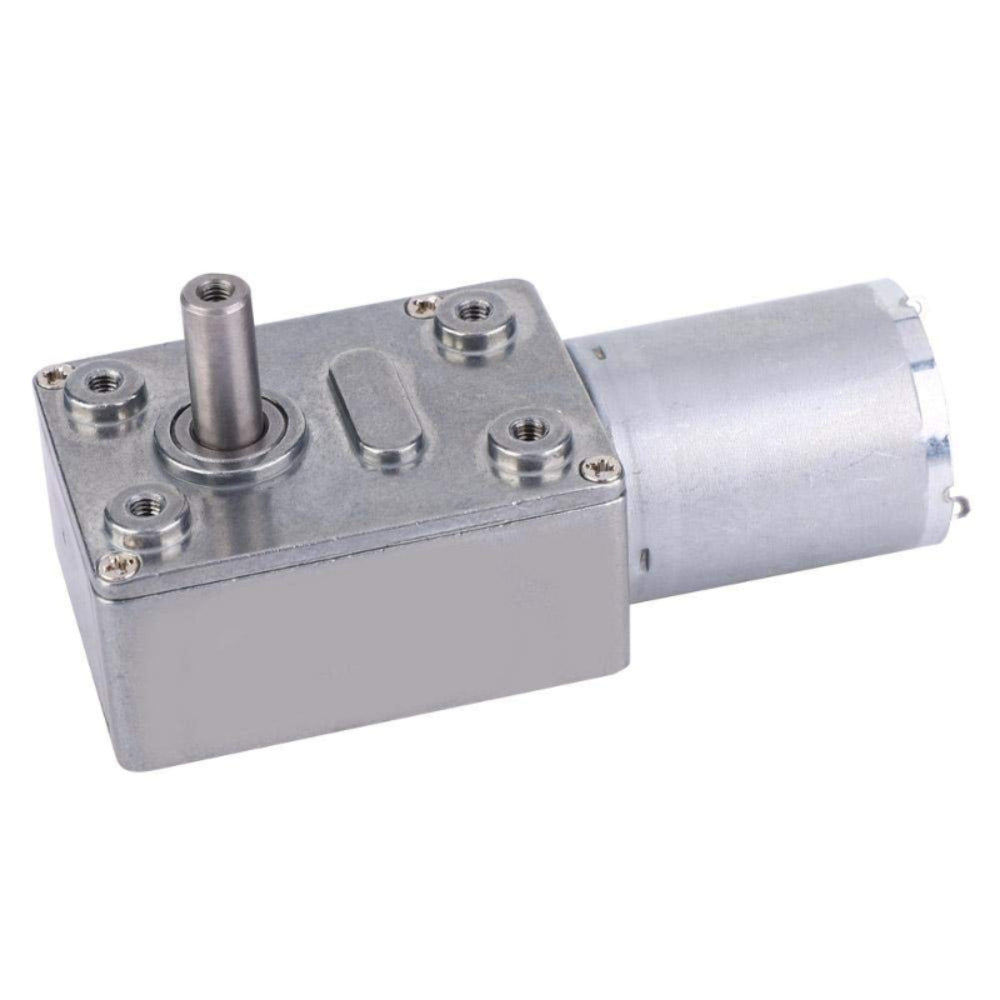

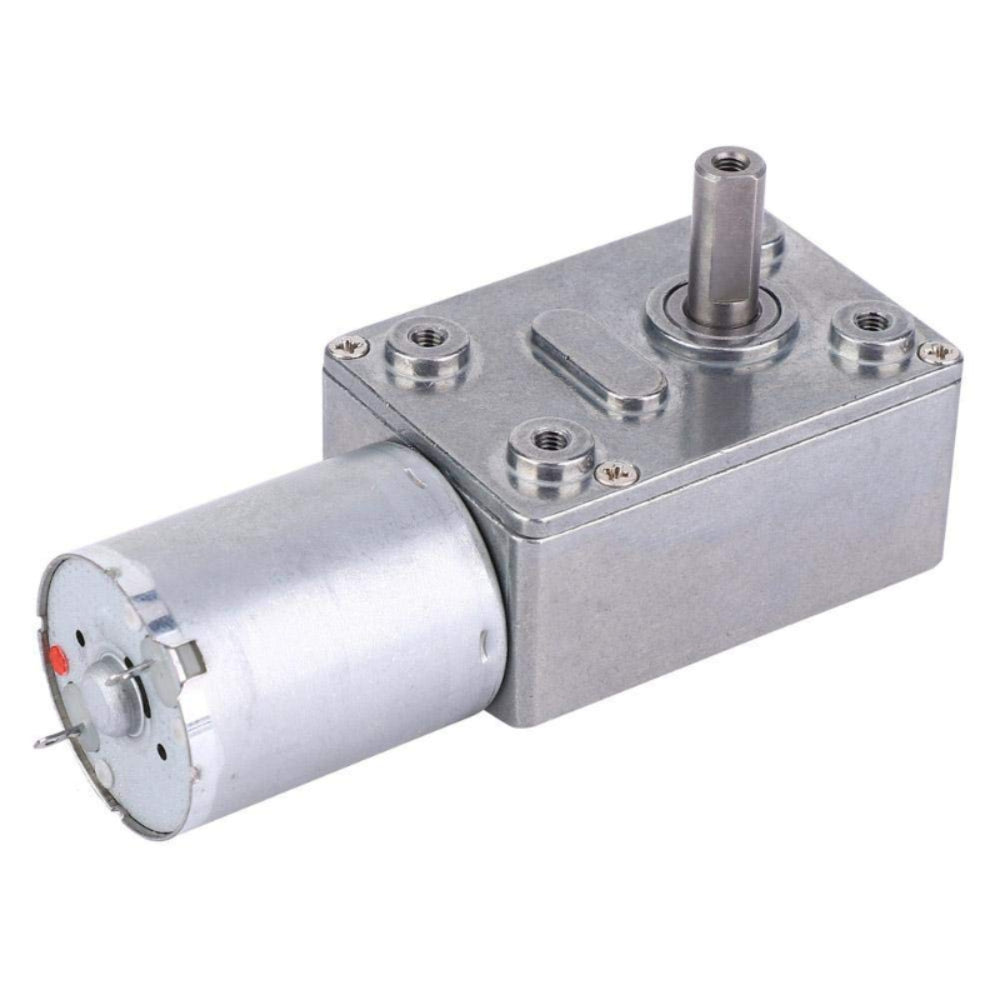

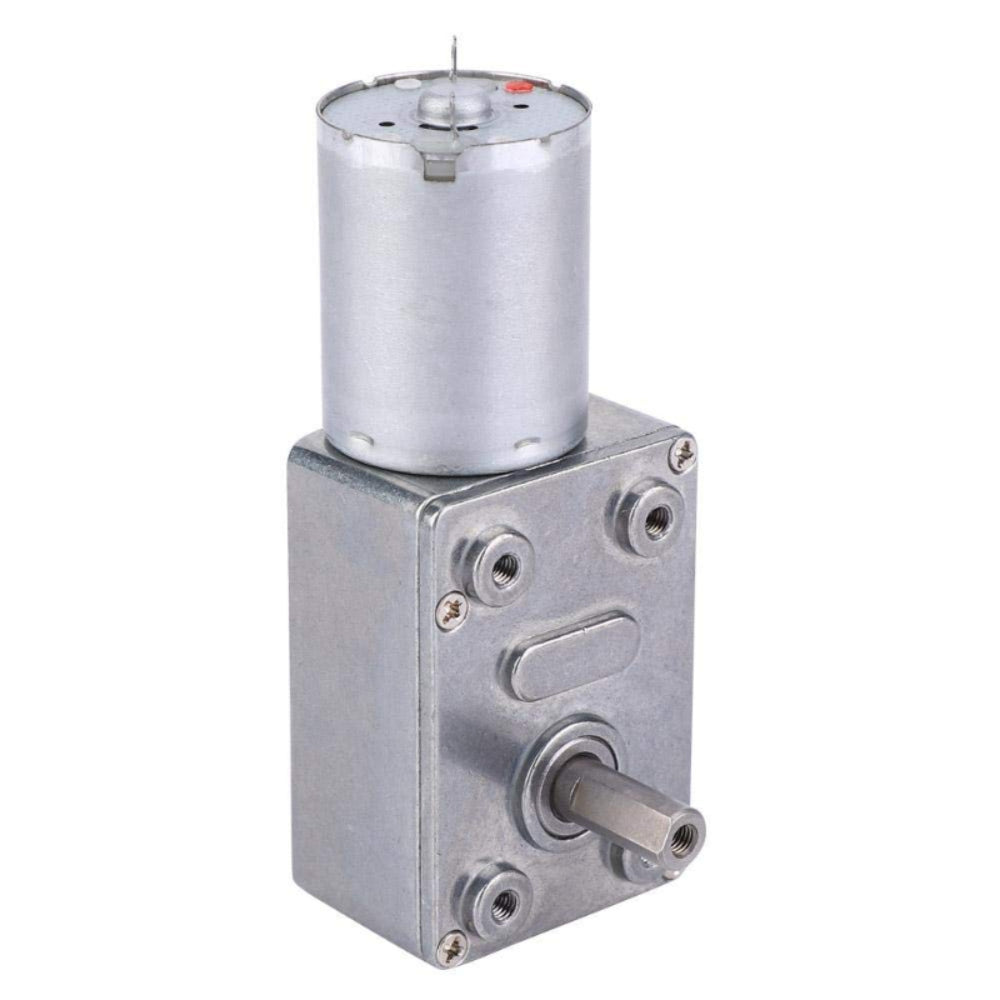

JGY370 DC 12V 23RPM 8kg-cm Metal Worm Gear Motor PWM Forward Reverse

The JGY370 DC 12V 23RPM 8kg-cm Metal Worm Gear Motor is a right-angle output worm gear reduction motor suitable for applications requiring controlled motion and a compact mounting layout. Its 23 RPM output and 8 kg.cm torque rating make it useful for smart mechanisms, rotating equipment, DIY automation, and model-making projects.

Featuring a metal gearbox, full metal gear material, and a permanent magnet DC motor, it provides practical performance for small mechanical assemblies. It also supports forward/reverse rotation and can be operated with compatible PWM speed control modules.

Technical Details

  • Product Name: JGY370 DC Worm Gear Motor
  • Motor Category: DC Gear Motor
  • Operating Voltage: 12V DC
  • Output Speed: 23 RPM
  • Output Torque: 8 kg.cm
  • Gearbox Type: Worm Gearbox
  • Gear Material: Full Metal
  • Excitation Method: Permanent Magnet Type
  • Power Input: DC Supply

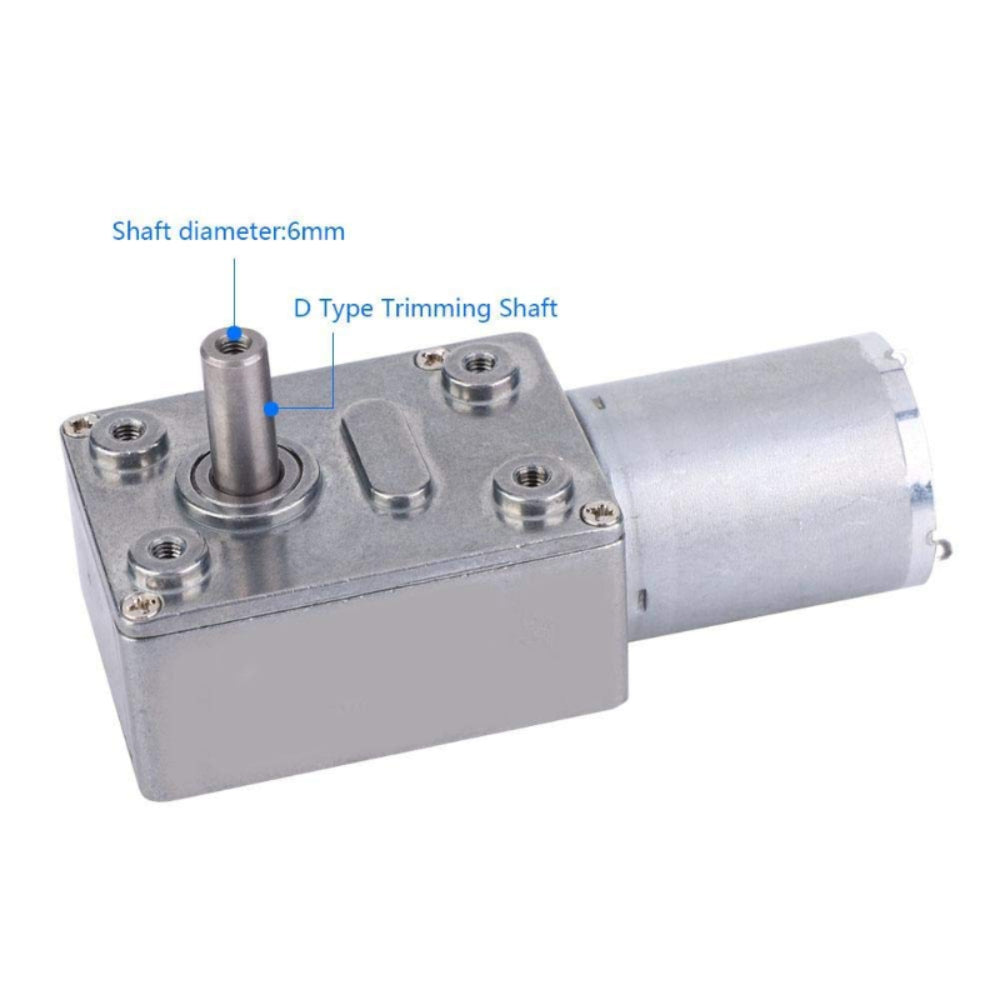

  • Shaft Type: D Type
  • Shaft Diameter: 6mm
  • Shaft Length: 14mm
  • Direction Control: Forward / Reverse Supported
  • Speed Control Method: PWM Compatible
  • Construction: Metal Gearbox with DC Motor

Features

  • Stable worm gear drive suitable for controlled rotation applications
  • Forward and reverse support allows flexible mechanical movement
  • Full metal gear material improves load handling and service life
  • Metal gearbox body helps protect the reduction mechanism
  • PWM speed control support makes it useful for variable-speed projects
  • Compact size is suitable for smart products and small equipment
  • Permanent magnet DC motor structure provides practical DC operation
  • Useful for rotating platforms, automation mechanisms, and model systems

Applications

  • Prototype movement systems
  • Low-speed drive assemblies
  • Electronic product mechanisms
  • Small automation machines
  • Robotic arm and wheel mechanisms
  • Rotating platforms and display models
  • Home appliance drive systems
  • Industrial experimental setups
  • DIY mechanical control projects
  • Compact DC motor applications

Drawing

JGY370 DC 12V 23RPM 8kg-cm Metal Worm Gear Motor Dimensions Drawing

Physical Attributes

  • Gearbox Body Size: 46mm x 32mm
  • Motor Diameter: 24mm
  • Motor Length: 30.8mm
  • Overall Height: 40.8mm
  • Output Shaft Diameter: 6mm
  • Output Shaft Length: 15.6mm
  • Mounting Holes: 4 x M3
  • Front Hole Spacing: 33mm x 18mm
  • Center Thread Hole: M3 x 10mm
  • Side Slot Size: 6mm x 10mm
  • Terminal Spacing: 18mm
  • Body Material: Metal gearbox with DC motor
  • Color: Silver-tone metal finish
  • Weight: 150g

Package Includes

  • 1 x JGY370 DC 12V 23RPM 8kg-cm Metal Worm Gear Motor
