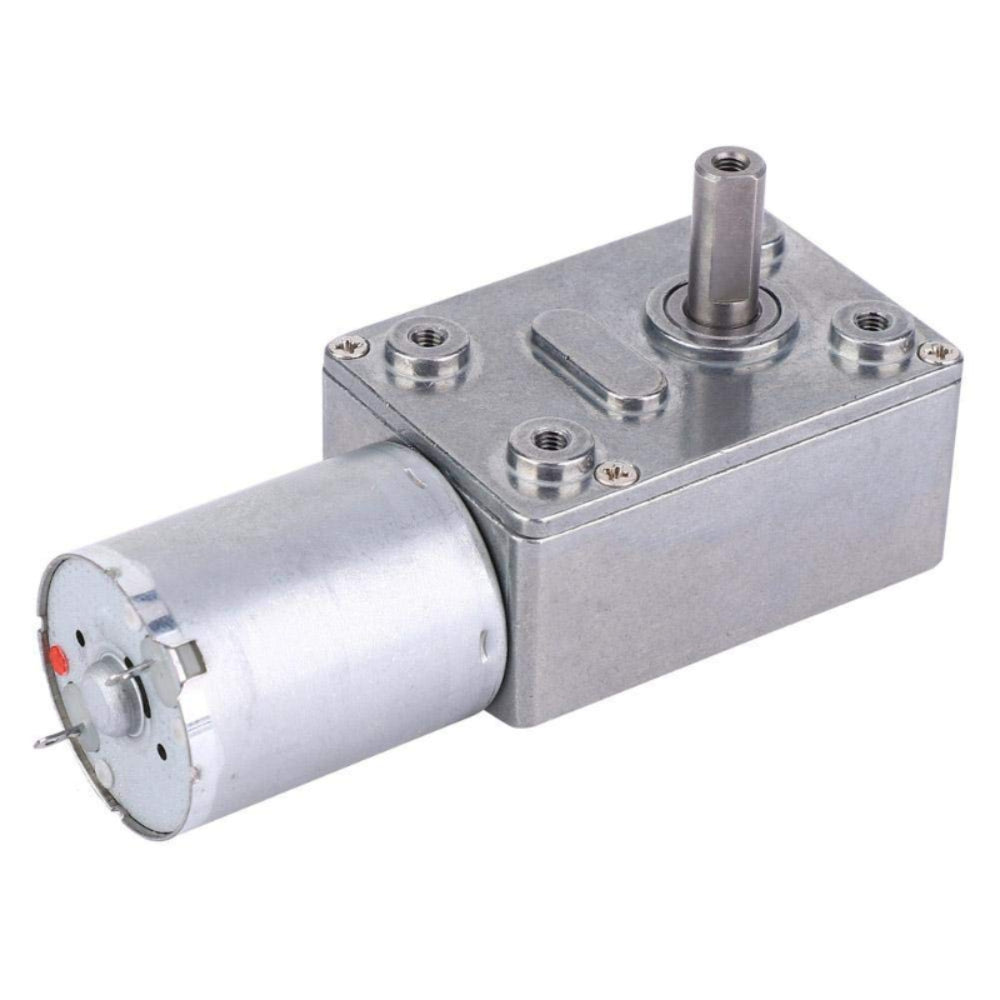

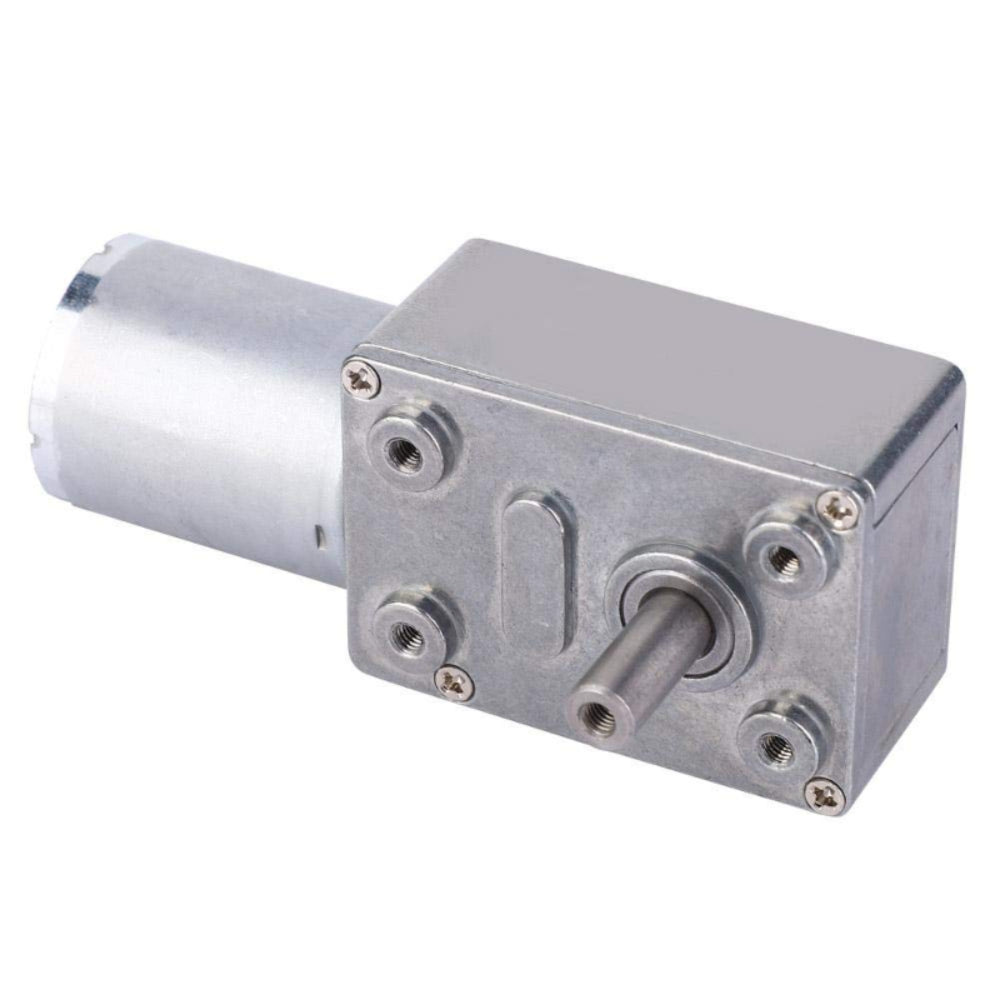

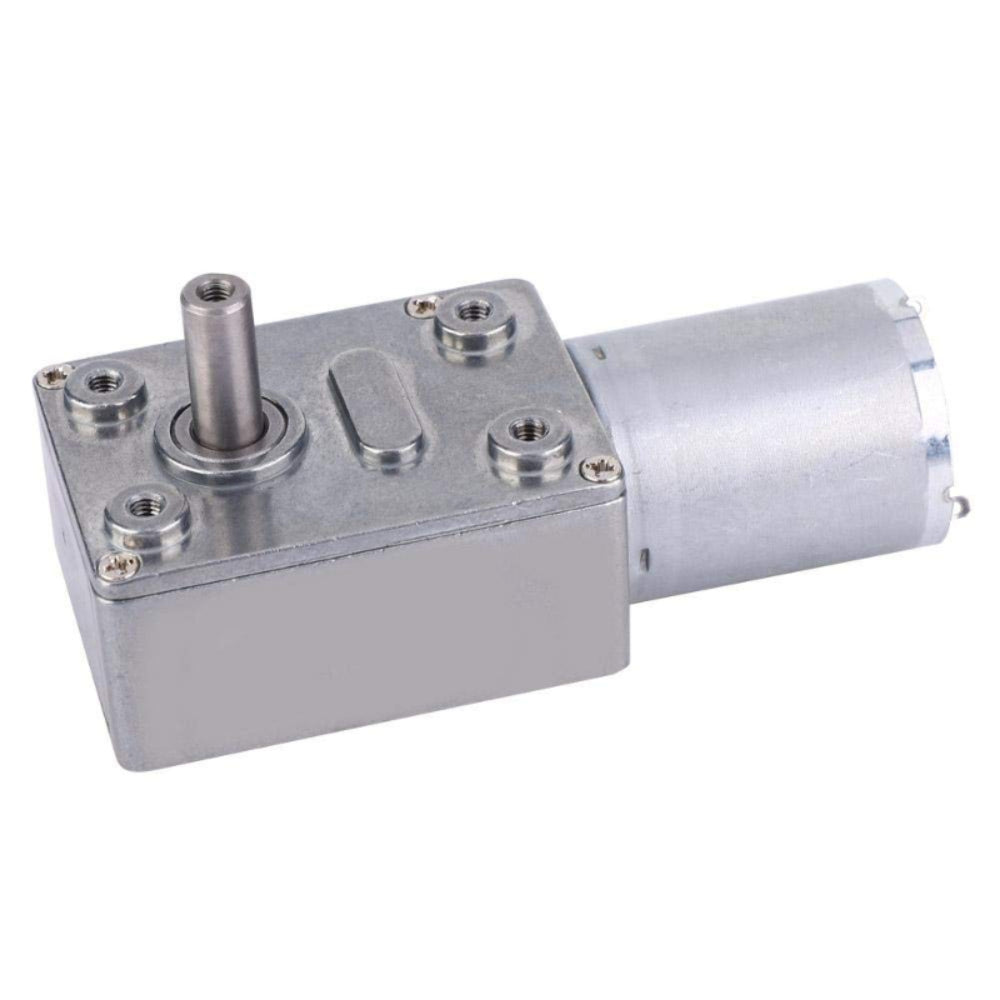

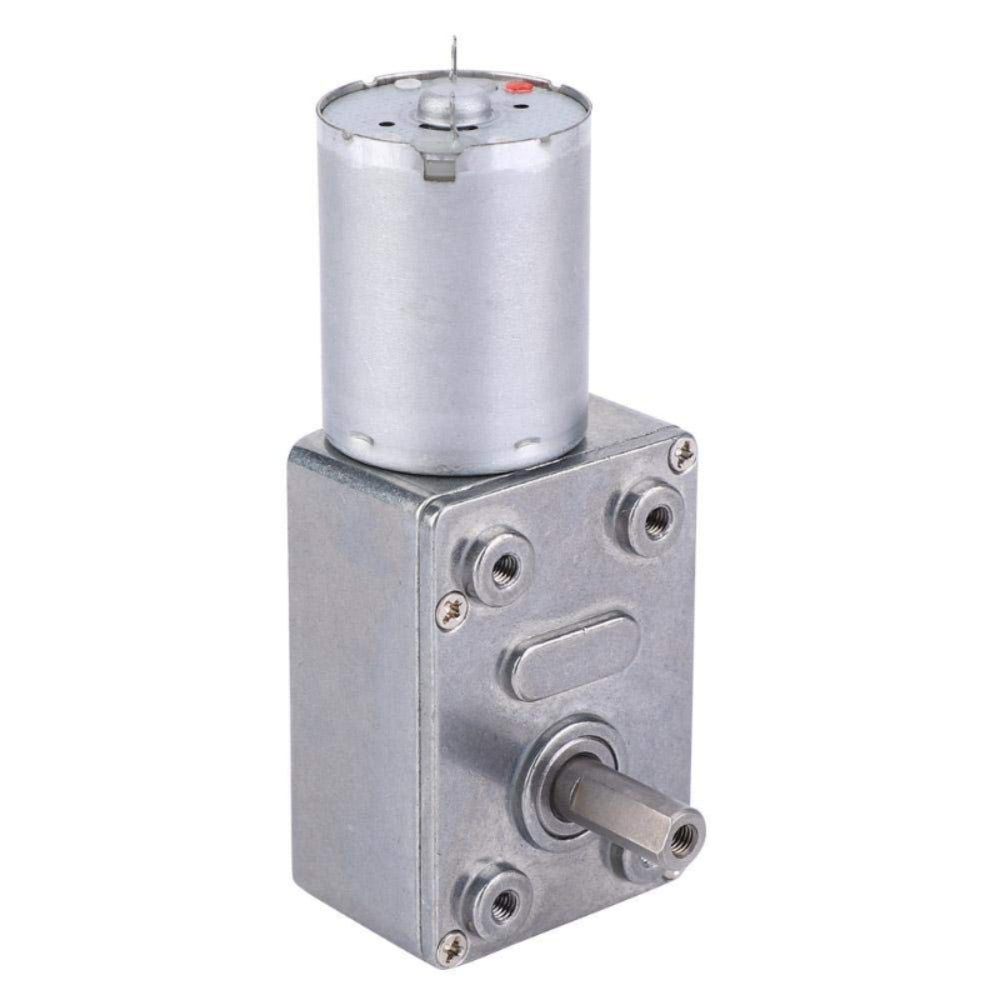

JGY370 DC 12V 30RPM 6kg-cm Metal Worm Gear Motor PWM Forward Reverse

The JGY370 DC 12V 30RPM 6kg-cm Metal Worm Gear Motor is a compact DC worm gear motor made for projects that need 30 RPM output speed, 6 kg.cm torque, and controlled forward/reverse movement. Its worm gear reduction design helps provide stable rotation for automation systems, small machinery, rotating platforms, robotics, and DIY prototype builds.

Built with a metal gearbox housing, full metal gears, and a pure copper coil, this motor is suitable for reliable mechanical drive applications. It can be used with compatible PWM speed controllers and motor driver circuits for speed and direction control.

Technical Details

  • Product Type: DC Worm Gear Reduction Motor
  • Model: JGY370 / 370 Worm Gear Reduction Motor
  • Rated Voltage: 12V DC
  • Speed: 30 RPM
  • Torque: 6 kg.cm
  • Gear Material: Full Metal
  • Shaft Length: 14mm

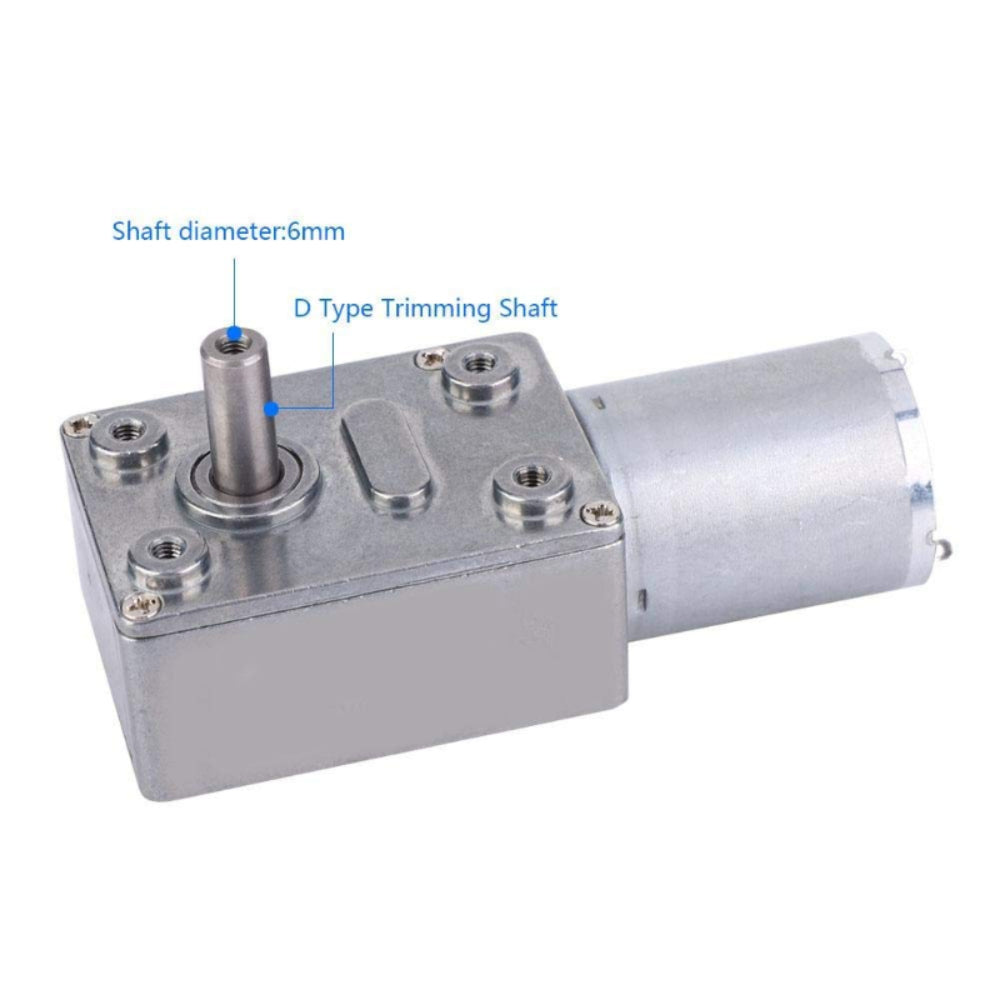

  • Shaft Diameter: 6mm
  • Shaft Type: D Type
  • Power Supply Type: DC Power
  • Rotation Direction: Forward and Reverse Supported
  • Speed Control: PWM Compatible
  • Motor Type: Permanent Magnet DC Motor
  • Gearbox Type: Worm Gear Reduction
  • Output Style: Right-Angle Shaft Output

Features

  • Worm gear reduction mechanism supports stable output movement
  • Forward and reverse rotation makes it suitable for directional control
  • PWM compatibility allows speed adjustment with suitable controller circuits
  • Full metal gear construction improves durability in mechanical use
  • Compact right-angle shaft output supports space-saving installation
  • Metal gearbox housing provides better strength for mounting
  • Pure copper coil helps improve motor conductivity and operating reliability
  • Suitable for small automation, robotics, and DIY drive systems

Applications

  • DIY automation projects
  • Small robotic systems
  • Smart product mechanisms
  • Rotating display platforms
  • Electric lock and latch mechanisms
  • Model making and prototype development
  • Small machinery movement control
  • Household appliance mechanisms
  • Industrial control equipment
  • Low-voltage DC drive applications

Drawing

JGY370 DC 12V 30RPM 6kg-cm Metal Worm Gear Motor Dimensions Drawing

Physical Attributes

  • Gearbox Body Size: 46mm x 32mm
  • Motor Diameter: 24mm
  • Motor Length: 30.8mm
  • Overall Height: 40.8mm
  • Output Shaft Diameter: 6mm
  • Output Shaft Length: 15.6mm
  • Mounting Holes: 4 x M3
  • Front Hole Spacing: 33mm x 18mm
  • Center Thread Hole: M3 x 10mm
  • Side Slot Size: 6mm x 10mm
  • Terminal Spacing: 18mm
  • Body Material: Metal gearbox with DC motor
  • Color: Silver-tone metal finish
  • Weight: 150g

Package Includes

  • 1 x JGY370 DC 12V 30RPM 6kg-cm Metal Worm Gear Motor
