Built with a metal gearbox, full metal gear structure, and pure copper coil, this motor is suitable for reliable operation in compact drive systems. It supports forward and reverse rotation and can be used with compatible PWM speed control circuits. The worm gear design also provides a self-locking effect under suitable load conditions, helping reduce unwanted reverse movement when the motor stops.
-18%
JGY370 DC 12V 3RPM 12kg-cm Metal Worm Gear Motor PWM Forward Reverse
Available:In Stock
- Product SKU: LGGE352
₹ 569
₹ 699
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
JGY370 DC 12V 3RPM 12kg-cm Metal Worm Gear Motor PWM Forward Reverse
The JGY370 DC 12V 3RPM Metal Worm Gear Motor is designed for applications where low-speed rotation, controlled movement, and high torque output are required. With its worm gear reduction system, this motor provides stable and smooth motion, making it useful for automation mechanisms, small machines, robotic movement, rotating displays, and DIY mechanical projects.Built with a metal gearbox, full metal gear structure, and pure copper coil, this motor is suitable for reliable operation in compact drive systems. It supports forward and reverse rotation and can be used with compatible PWM speed control circuits. The worm gear design also provides a self-locking effect under suitable load conditions, helping reduce unwanted reverse movement when the motor stops.
Technical Details
- Product Type: DC Worm Gear Motor
- Model: JGY370 / 370 Gear Reduction Motor
- Rated Voltage: 12V DC
- Speed: 3 RPM
- Torque: 12 kg.cm
- Gear Material: Full Metal

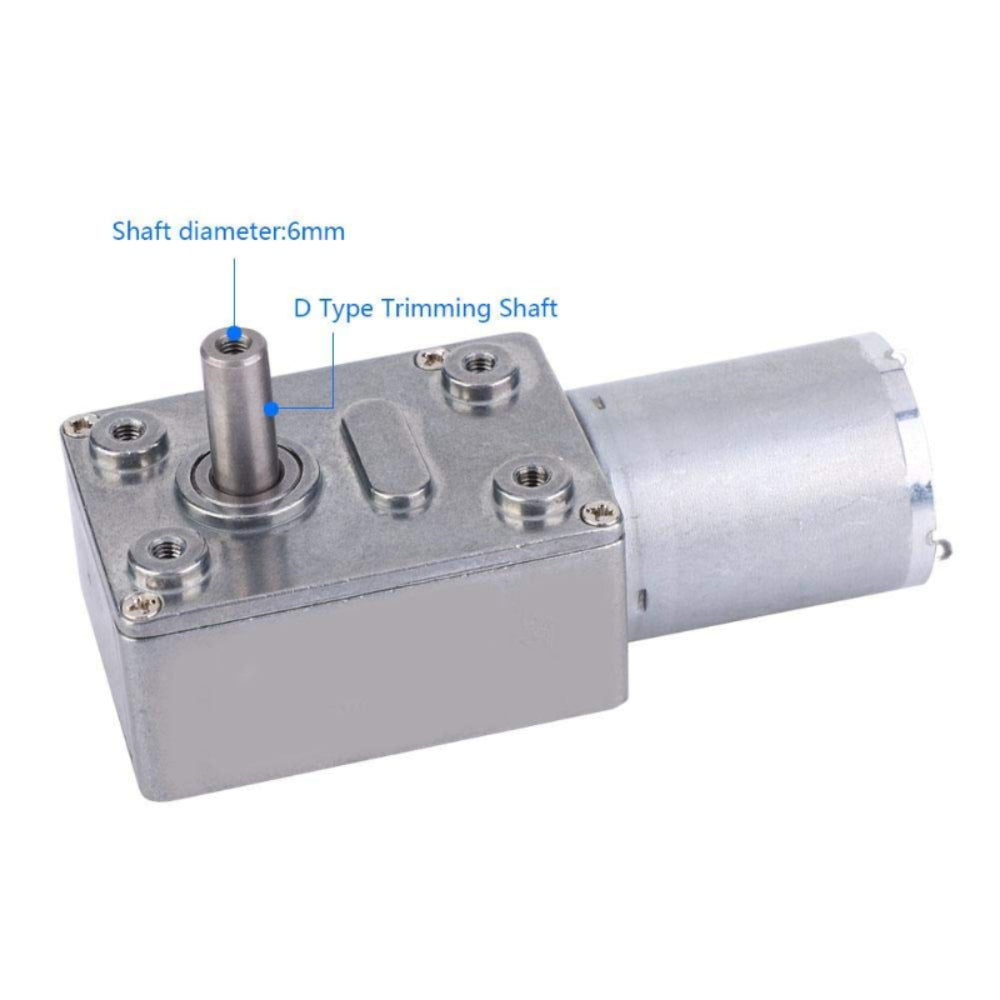

- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Shaft Type: D Type
- Rotation Direction: Forward and Reverse Supported
- Speed Control: PWM Compatible
- Motor Type: Permanent Magnet DC Motor
- Power Supply Type: DC Power
- Gearbox Type: Worm Gear Reduction
- Coil Type: Pure Copper Coil
- Output Style: Right-Angle Shaft Output
Features
- Low 3 RPM speed for slow and controlled output movement
- 12kg.cm torque rating suitable for compact drive applications
- Worm gear reduction system provides stable mechanical operation
- Forward and reverse rotation support for directional control
- Compatible with PWM speed control and motor driver modules
- Full metal gear construction improves durability and service life
- Metal gearbox body provides strength for mechanical mounting
- Self-locking worm gear design helps reduce back-driving after stopping
- Compact size makes it suitable for small automation and prototype use
Applications
- DIY automation mechanisms
- Robotics and small moving systems
- Smart device drive mechanisms
- Rotating display platforms
- Electric lock and latch systems
- Model making and prototype development
- Small machinery movement control
- Household appliance mechanisms
- Industrial control equipment
- Low-speed mechanical transmission projects
Drawing
Physical Attributes
- Gearbox Body Size: 46mm x 32mm
- Motor Diameter: 24mm
- Motor Length: 30.8mm
- Overall Height: 40.8mm
- Output Shaft Diameter: 6mm
- Output Shaft Length: 15.6mm
- Mounting Holes: 4 x M3
- Front Hole Spacing: 33mm x 18mm
- Center Thread Hole: M3 x 10mm
- Side Slot Size: 6mm x 10mm
- Terminal Spacing: 18mm
- Body Material: Metal gearbox with DC motor
- Color: Silver-tone metal finish
- Weight: 150g
Package Includes
- 1 x JGY370 DC 12V 3RPM 12kg-cm Metal Worm Gear Motor
