This motor uses a worm gear reduction structure with metal internal gears to support smooth movement and improved durability. The motor is suitable for PWM-based speed control and can be integrated into DC motor driver circuits for directional operation.
-18%
JGY370 DC 12V 40RPM 4.5kg-cm Metal Worm Gear Motor PWM Forward Reverse
Available:In Stock
- Product SKU: LGGE364
₹ 569
₹ 699
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
JGY370 DC 12V 40RPM 4.5kg-cm Metal Worm Gear Motor PWM Forward Reverse
The JGY370 DC 12V 40RPM 4.5kg-cm Metal Worm Gear Motor is designed for compact drive systems where stable rotation, forward/reverse control, and dependable torque output are required. With a 40 RPM rated speed and 4.5 kg.cm torque, it is useful in automation, mechanical models, robotic movement, and low-power machine mechanisms.This motor uses a worm gear reduction structure with metal internal gears to support smooth movement and improved durability. The motor is suitable for PWM-based speed control and can be integrated into DC motor driver circuits for directional operation.
Technical Details
- Model: JGY370 Metal Worm Gear Motor
- Product Type: DC Gear Reduction Motor
- Rated Voltage: 12V DC
- Rated Speed: 40 RPM
- Torque Rating: 4.5 kg.cm
- Motor Type: Permanent Magnet DC Motor
- Gearbox Structure: Worm Gear Reduction
- Gear Material: Full Metal

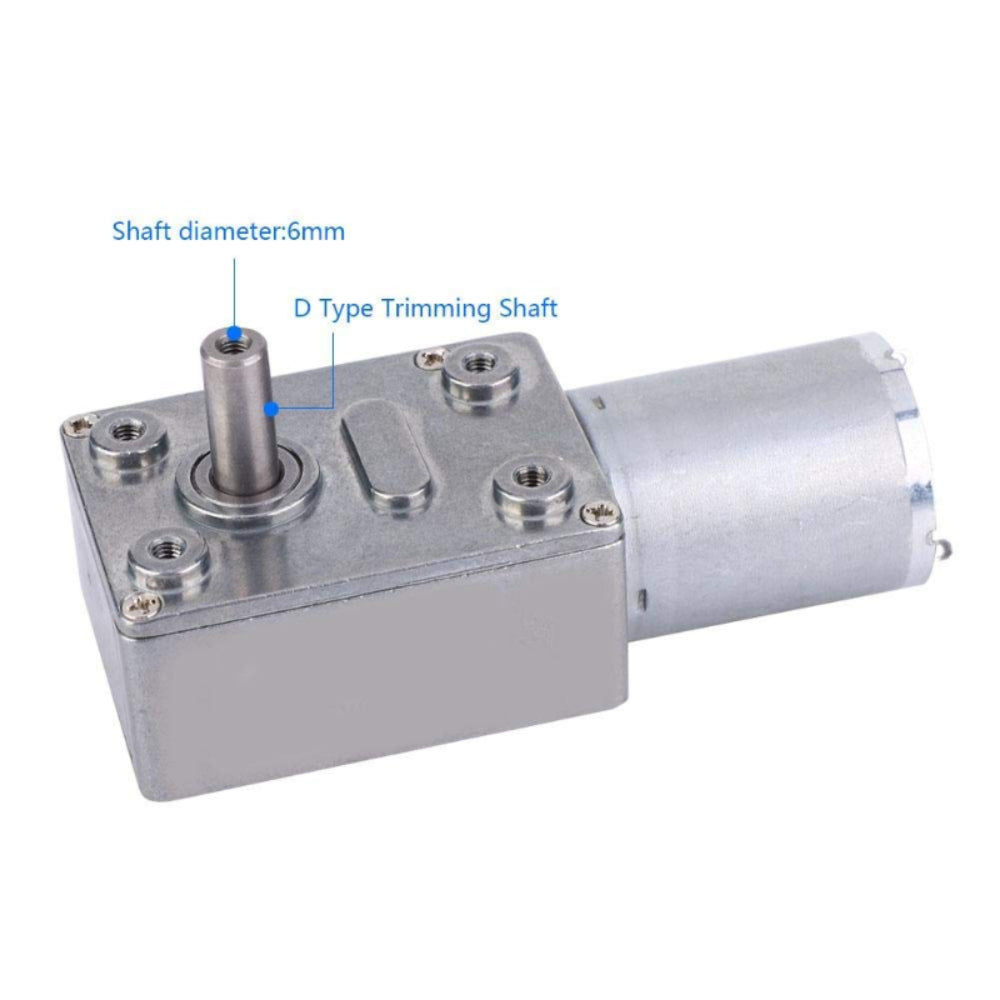

- Shaft Type: D Type
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Rotation Support: Forward and Reverse
- Control Compatibility: PWM Speed Control
- Power Supply: DC Power
- Output Shaft Style: Right-Angle Output
Features
- Compact JGY370 body design for small machine and prototype use
- Metal internal gears provide better wear resistance than plastic gears
- Worm gearbox design helps reduce unwanted back-driving after stopping
- Supports forward/reverse operation through compatible motor drivers
- Can be used with PWM speed controllers for adjustable motor speed
- D-type output shaft provides better grip with compatible couplers
- Right-angle output is useful where straight motor mounting is not suitable
- Reliable option for controlled motion and low-voltage DC drive projects
Applications
- Robotics and motion control projects
- Automatic door or latch mechanisms
- Small conveyor and positioning systems
- Display turntables and rotating stands
- Smart device mechanical drives
- DIY engineering models
- Compact automation equipment
- Machine control mechanisms
- Educational electronics projects
- Custom mechanical prototypes
Drawing
Physical Attributes
- Gearbox Body Size: 46mm x 32mm
- Motor Diameter: 24mm
- Motor Length: 30.8mm
- Overall Height: 40.8mm
- Output Shaft Diameter: 6mm
- Output Shaft Length: 15.6mm
- Mounting Holes: 4 x M3
- Front Hole Spacing: 33mm x 18mm
- Center Thread Hole: M3 x 10mm
- Side Slot Size: 6mm x 10mm
- Terminal Spacing: 18mm
- Body Material: Metal gearbox with DC motor
- Color: Silver-tone metal finish
- Weight: 150g
Package Includes
- 1 x JGY370 DC 12V 40RPM 4.5kg-cm Metal Worm Gear Motor
