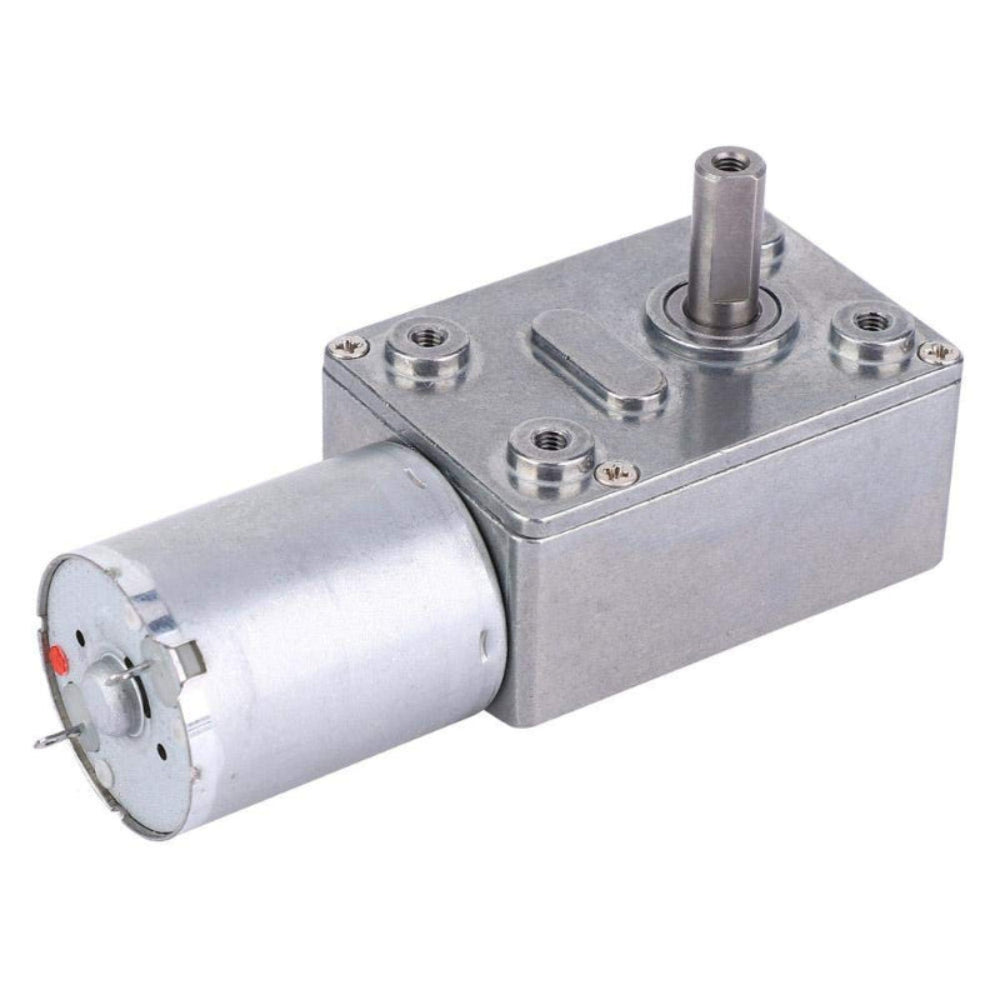

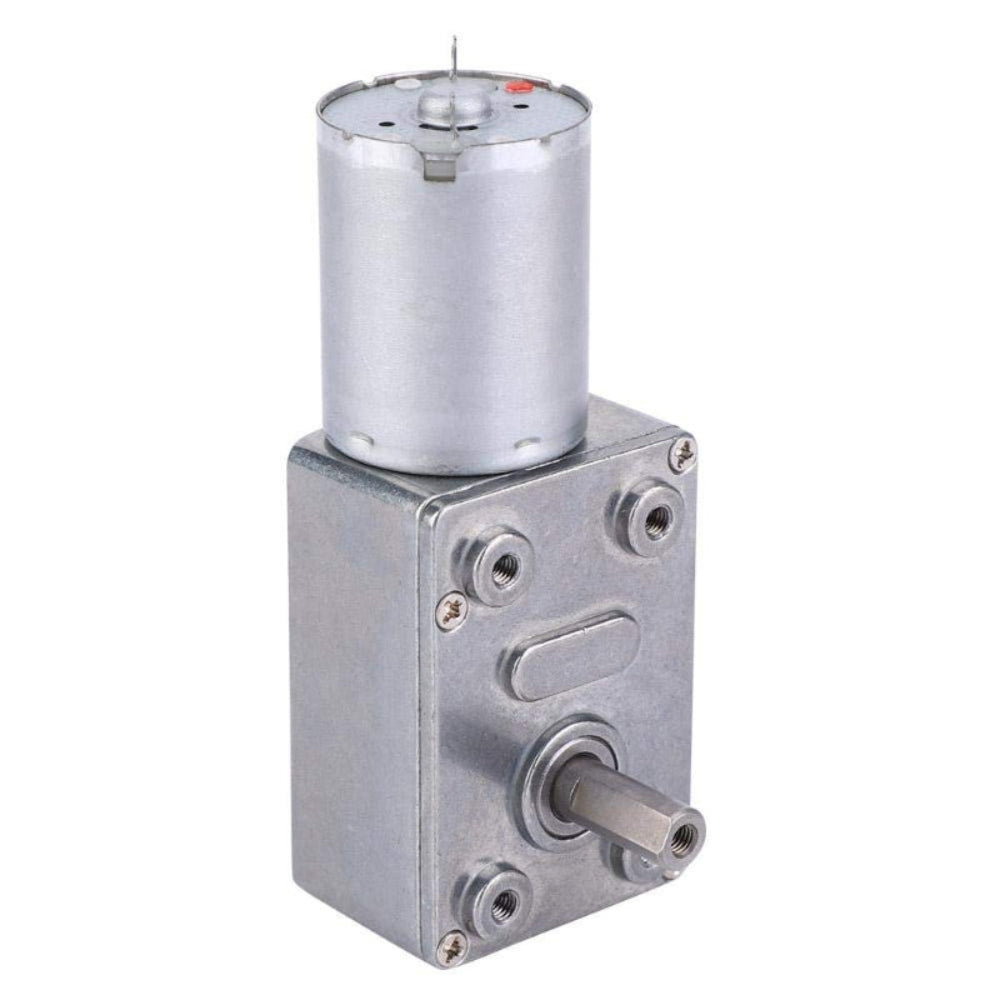

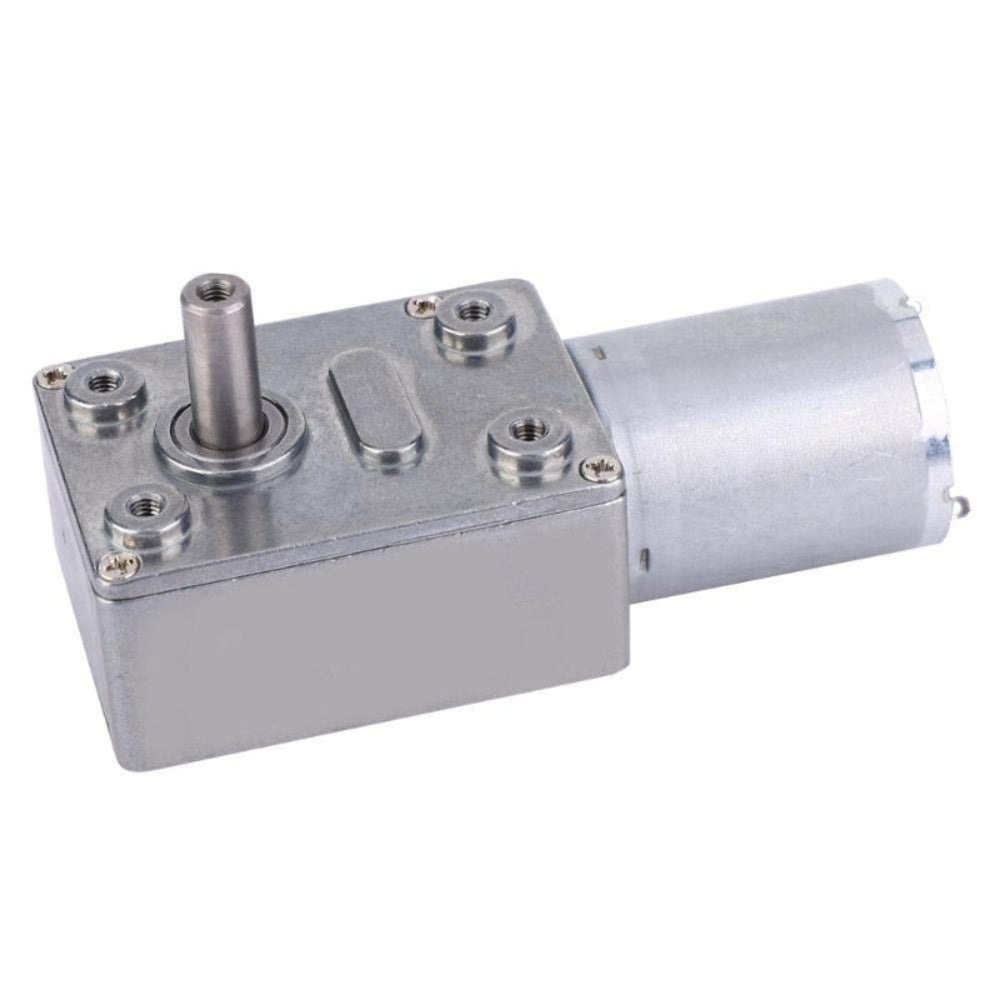

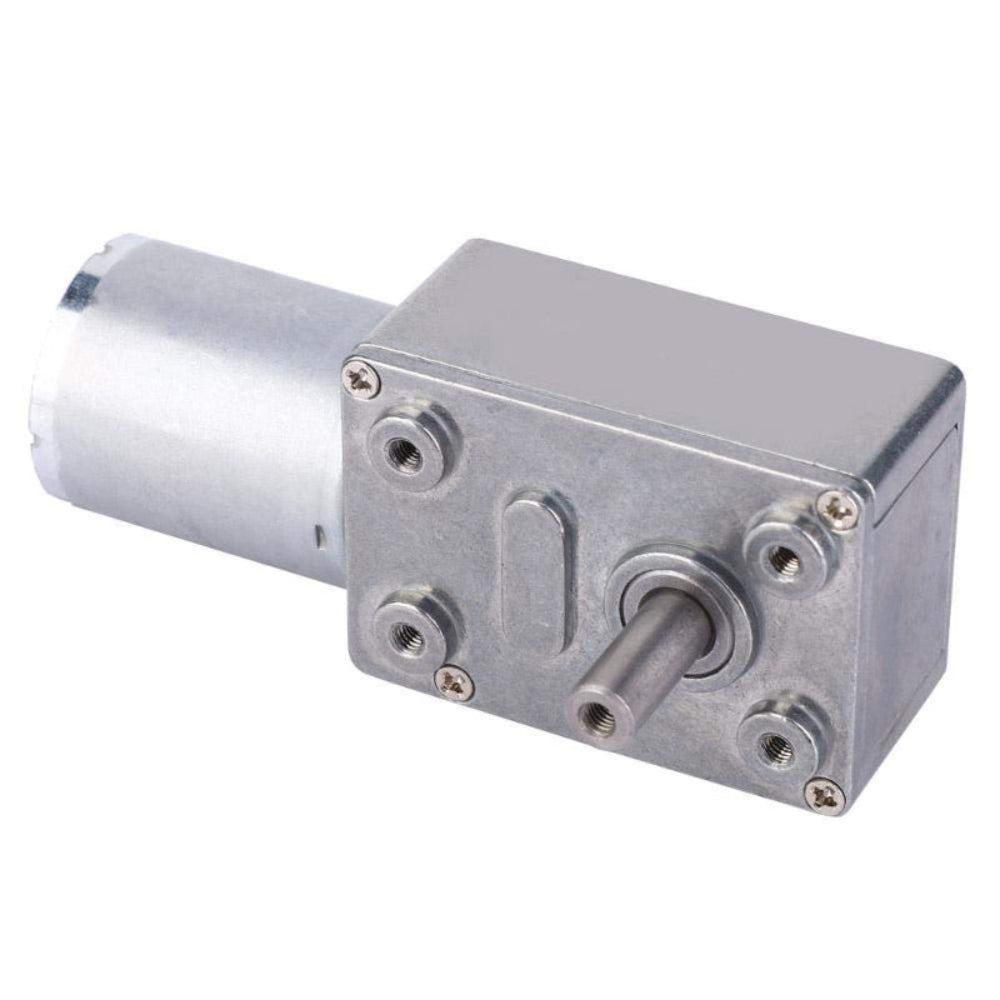

JGY370 DC 6V 3RPM 1.2kg-cm Metal Worm Gear Motor PWM Forward Reverse

The JGY370 DC 6V 3RPM Metal Worm Gear Motor is a compact DC gear reduction motor designed for applications that require slow speed, controlled movement, and forward/reverse rotation. Its worm gear reduction mechanism helps deliver stable output movement, making it suitable for smart devices, DIY automation, small machinery, rotating platforms, and prototype projects.

This motor features a metal gearbox housing, metal internal gears, and a pure copper coil for better durability and reliable performance. The worm gear design provides a self-locking structure, which helps reduce reverse movement after stopping under suitable load conditions. It is also suitable for use with PWM speed control and forward/reverse motor driver circuits.

Technical Details

  • Product Type: DC Worm Gear Reduction Motor
  • Model: JGY370 / 370 Worm Gear Reduction Motor
  • Rated Voltage: 6V DC
  • Speed: 3 RPM
  • Torque: 12 kg.cm as per 3RPM option mentioned in the source PDF
  • Rated Torque: 0.1 N.m
  • Rated Power: 24W
  • Rated Current: 1.5A
  • Gear Material: Full Metal

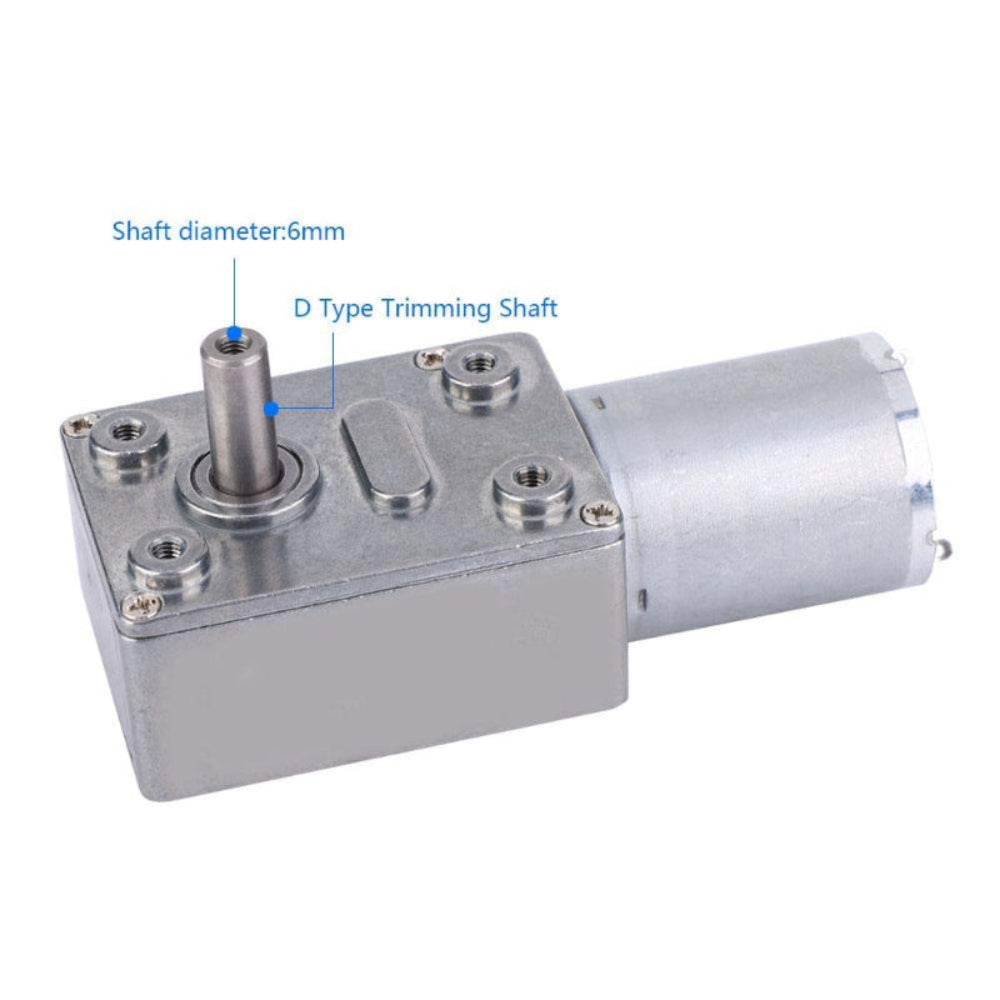

  • Shaft Length: 14mm
  • Shaft Diameter: 6mm
  • Shaft Type: D Type
  • Excitation Method: Permanent Magnet Type
  • Power Supply Type: DC Power
  • Rotation Direction: Forward and Reverse Supported
  • Speed Control: PWM Compatible
  • Encoder Type: Magnetic Encoder

Features

  • Worm gear reduction structure for controlled low-speed motion
  • Forward and reverse rotation support for flexible motor control
  • Self-locking worm gear design helps prevent reverse movement after stopping
  • Metal gearbox housing provides better strength and durability
  • Metal internal gears support long service life and improved load handling
  • Pure copper coil helps improve motor conductivity and performance
  • Compatible with PWM speed controller and motor driver circuits
  • Compact structure suitable for small mechanical and automation projects

Applications

  • Smart product mechanisms
  • DIY automation projects
  • Small robotic systems
  • Electric rotating mechanisms
  • Display and rotating platforms
  • Small machinery and equipment
  • Household appliance mechanisms
  • Industrial control and automatic equipment
  • Model making and prototype projects

Drawing

dimensions

Physical Attributes

  • Gearbox Body Size: 46mm x 32mm
  • Motor Diameter: 24mm
  • Motor Length: 30.8mm
  • Overall Height: 40.8mm
  • Output Shaft Diameter: 6mm
  • Output Shaft Length: 15.6mm
  • Mounting Holes: 4 x M3
  • Front Hole Spacing: 33mm x 18mm
  • Center Thread Hole: M3 x 10mm
  • Side Slot Size: 6mm x 10mm
  • Terminal Spacing: 18mm
  • Body Material: Metal gearbox with DC motor
  • Color: Silver-tone metal finish
  • Weight: 150g

Package Includes

  • 1 x JGY370 DC 6V 3RPM Metal Worm Gear Motor
