JGY370 DC 6V 40RPM 4.5kg-cm Metal Worm Gear Motor PWM Forward Reverse

JGY370 DC 6V 40RPM 4.5kg-cm Metal Worm Gear Motor PWM Forward Reverse

Technical Details

• Product Name: JGY370 DC Worm Gear Motor
• Motor Category: DC Gear Motor
• Operating Voltage: 6V DC
• Output Speed: 40 RPM
• Output Torque: 4.5 kg.cm
• Gearbox Type: Worm Gearbox
• Gear Material: Full Metal
• Excitation Method: Permanent Magnet Type
• Power Input: DC Supply

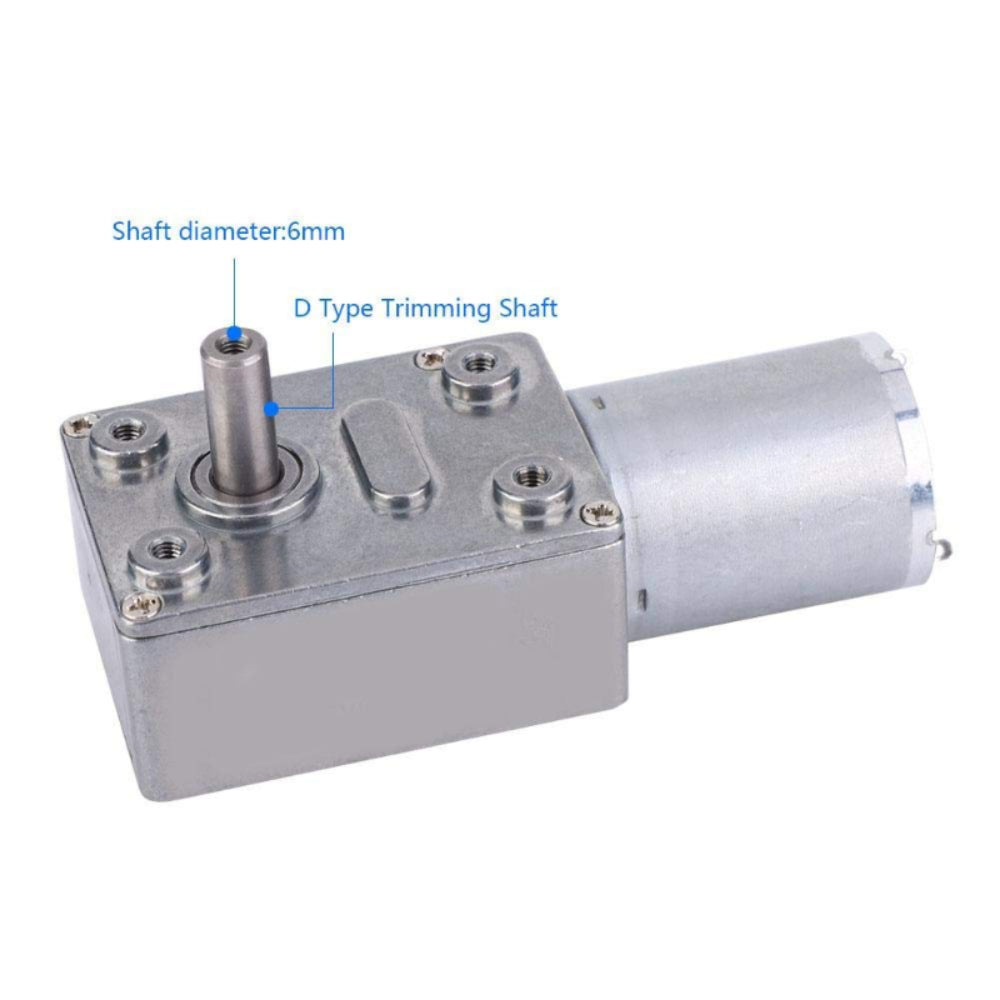

• Shaft Type: D Type
• Shaft Diameter: 6mm
• Shaft Length: 14mm
• Direction Control: Forward / Reverse Supported
• Speed Control Method: PWM Compatible
• Construction: Metal Gearbox with DC Motor

Features

• Stable worm gear drive suitable for controlled rotation applications
• Forward and reverse support allows flexible mechanical movement
• Full metal gear material improves load handling and service life
• Metal gearbox body helps protect the reduction mechanism
• PWM speed control support makes it useful for variable-speed projects
• Compact size is suitable for smart products and small equipment
• Permanent magnet DC motor structure provides practical DC operation
• Useful for rotating platforms, automation mechanisms, and model systems

Applications

• Prototype movement systems
• Low-speed drive assemblies
• Electronic product mechanisms
• Small automation machines
• Robotic arm and wheel mechanisms
• Rotating platforms and display models
• Home appliance drive systems
• Industrial experimental setups
• DIY mechanical control projects
• Compact DC motor applications

Drawing

Physical Attributes

• Gearbox Body Size: 46mm x 32mm
• Motor Diameter: 24mm
• Motor Length: 30.8mm
• Overall Height: 40.8mm
• Output Shaft Diameter: 6mm
• Output Shaft Length: 15.6mm
• Mounting Holes: 4 x M3
• Front Hole Spacing: 33mm x 18mm
• Center Thread Hole: M3 x 10mm
• Side Slot Size: 6mm x 10mm
• Terminal Spacing: 18mm
• Body Material: Metal gearbox with DC motor
• Color: Silver-tone metal finish
• Weight: 150g

Package Includes

• 1 x JGY370 DC 6V 40RPM 4.5kg-cm Metal Worm Gear Motor
