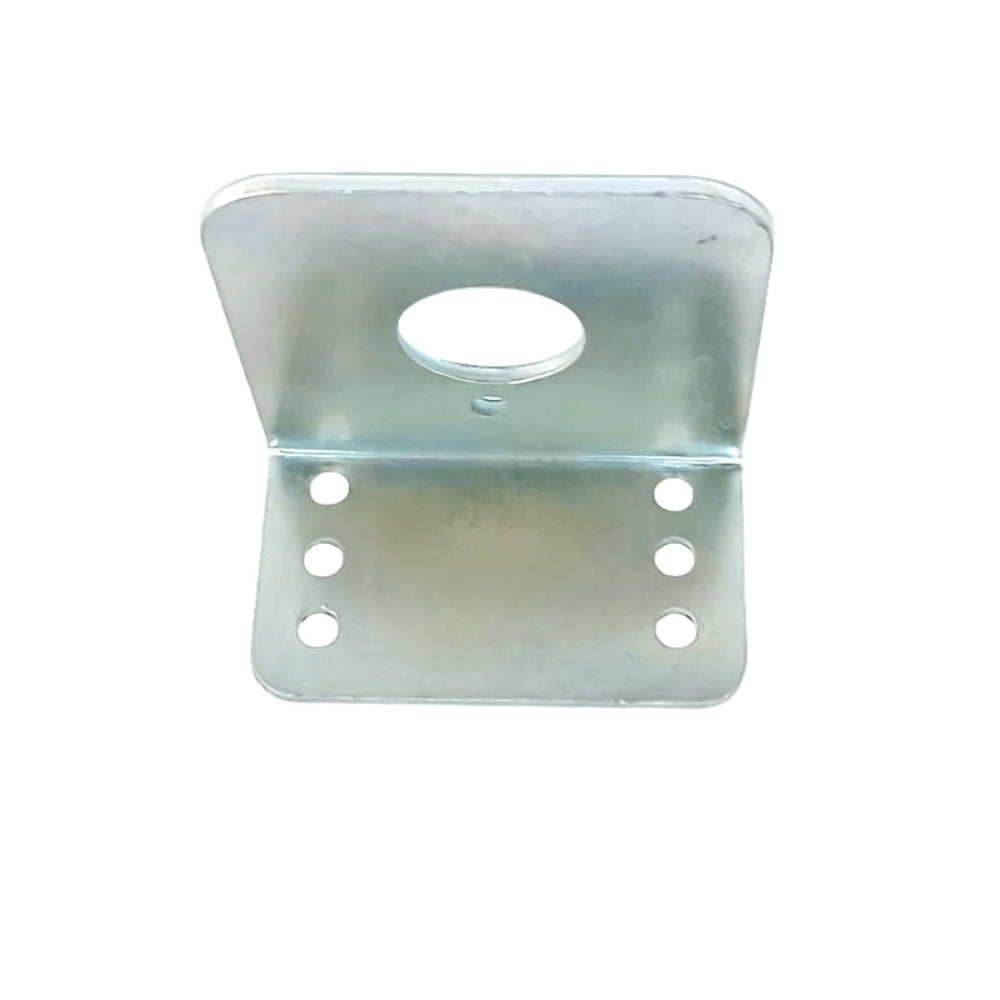

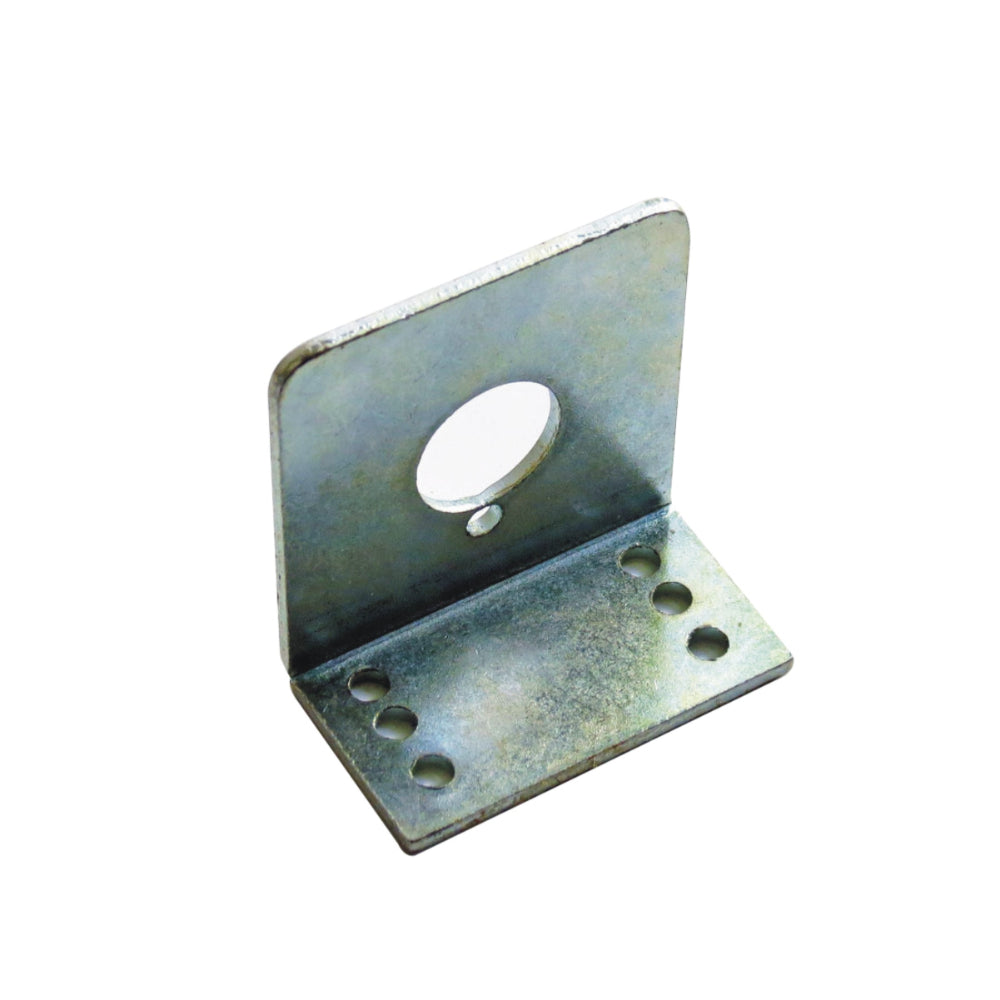

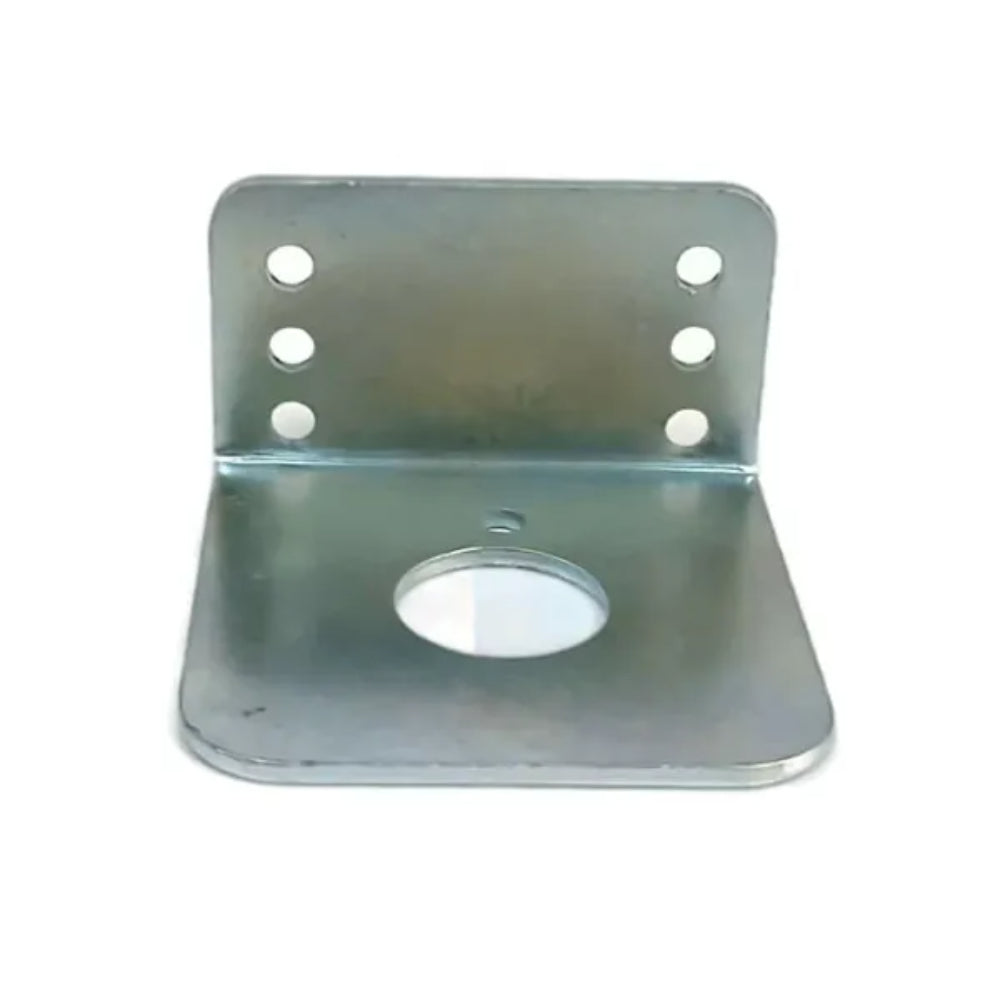

Center Shaft Gear Motor L Clamp (Bracket)
![center shaft motor clamp L bracket for gear motors]()
![gear motor mount bracket for robotics chassis]()
![DC gear motor mount steel motor clamp bracket]()
![center shaft motor clamp L bracket for gear motors]()
![gear motor mount bracket for robotics chassis]()
![DC gear motor mount steel motor clamp bracket]()
Built from **2mm thick Mild Steel**, the motor clamp provides long-lasting durability. It includes a **13.5mm motor hole** for accurate alignment and **3mm chassis mounting holes** for easy attachment. Since this motor mounting bracket supports Johnson-type and other center shaft gear motors, it is widely used in hobby projects, educational robots, and engineering prototypes. With its powder-coated finish, the bracket motor mount also offers dependable resistance against corrosion.
Note: Motor not included — available separately on KitsGuru.com.
-34%
Center Shaft Gear Motor L Clamp (Bracket)
Available:In Stock
- Product SKU: KG146
₹ 19
₹ 29
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Center Shaft Gear Motor L Clamp (Bracket)
This durable motor clamp is designed to offer a strong and stable base for Center Shaft DC Gear Motors, making installation quicker and more secure. Because it functions as a dependable motor mounting bracket, it helps builders achieve precise positioning in robotics and automation projects. Moreover, its rigid structure ensures reliable performance in any setup where a high-quality bracket motor mount is essential.Built from **2mm thick Mild Steel**, the motor clamp provides long-lasting durability. It includes a **13.5mm motor hole** for accurate alignment and **3mm chassis mounting holes** for easy attachment. Since this motor mounting bracket supports Johnson-type and other center shaft gear motors, it is widely used in hobby projects, educational robots, and engineering prototypes. With its powder-coated finish, the bracket motor mount also offers dependable resistance against corrosion.
Note: Motor not included — available separately on KitsGuru.com.
Features
- High-quality steel motor clamp for DC geared motors
- Made from strong 2mm thick Mild Steel (MS)
- Designed for Center Shaft Gear Motors
- Excellent stability with long-term durability
- Powder-coated for rust and wear resistance
- Pre-drilled holes for motor and chassis installation
- Ideal motor mounting bracket for robotics
Technical Details
- Item Type: Bracket
- Compatible Motor Type: Center Shaft DC Geared Motor
- Material: Mild Steel
- Motor Mount Hole Diameter: 13.5 mm
- Chassis Mount Hole Diameter: 3 mm
- Length: 40 mm
- Width: 40 mm
- Height: 40 mm
- Thickness: 2 mm
- Weight: 26g
Physical Attributes
- Body Material: Mild Steel (MS)
- Color: Silver powder-coated
- Mount Type: Bolt-on with pre-drilled holes
- Shape: L-shaped 90° bend
- Motor Mount Side: 40 mm × 40 mm
- Bracket Mount Side: 40 mm × 24 mm
- Hole Alignment: Symmetrical pattern for easy fitting
- Weight: 26g
Applications
- DC motor position and velocity systems
- Industrial automation and robotic arms
- 3D printers, plotters, and CNC machines
- Educational and DIY robot kits requiring a bracket motor mount
- Prototyping for mechanical and motion systems
Package Includes
- 1 × Center Shaft Gear Motor L Clamp (Bracket)
