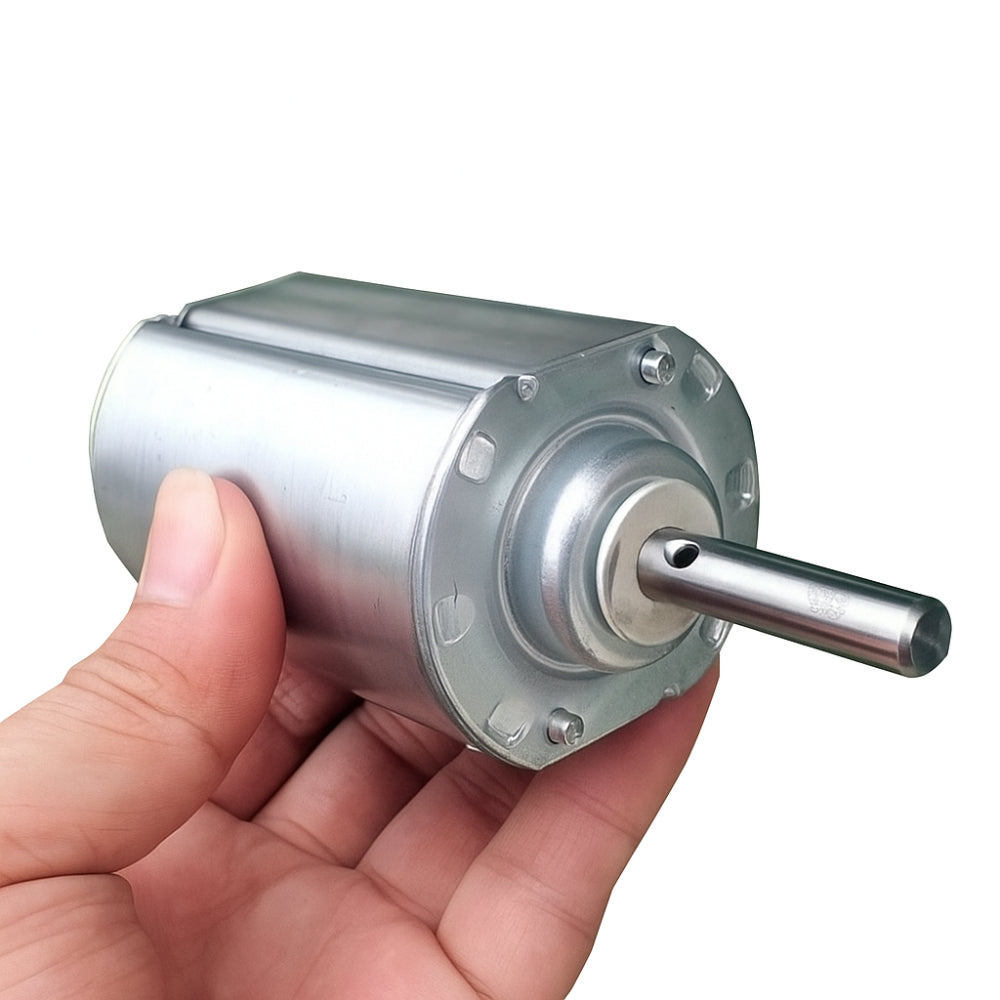

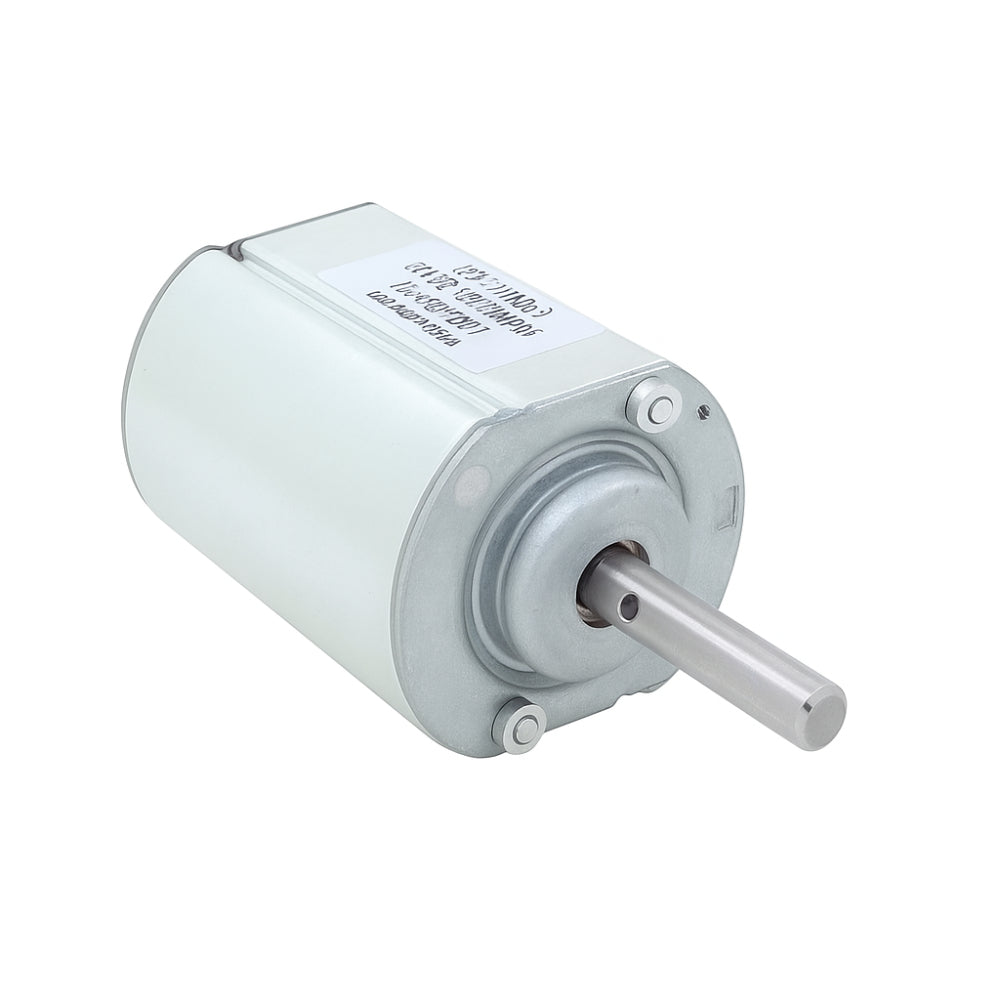

220V Generator / 120V DC Motor – High Power Small Wind & Hand-Cranked Generator Motor

This 220V Generator / 120V DC Motor is a high-efficiency permanent-magnet motor that doubles as a compact generator for DIY power generation and educational applications. It provides stable output and smooth operation thanks to its high-precision shaft and metal housing construction.

The motor can be driven mechanically as a hand-crank or wind generator, or powered electrically as a 120V DC motor. It is widely used in renewable-energy prototypes, mini wind turbines, and science projects requiring reliable mechanical-to-electrical conversion.

Features

  • High-efficiency permanent-magnet DC motor design
  • Dual function: can work as a motor or a generator
  • Robust metal body with low noise and long life
  • Stable rotation and smooth torque performance

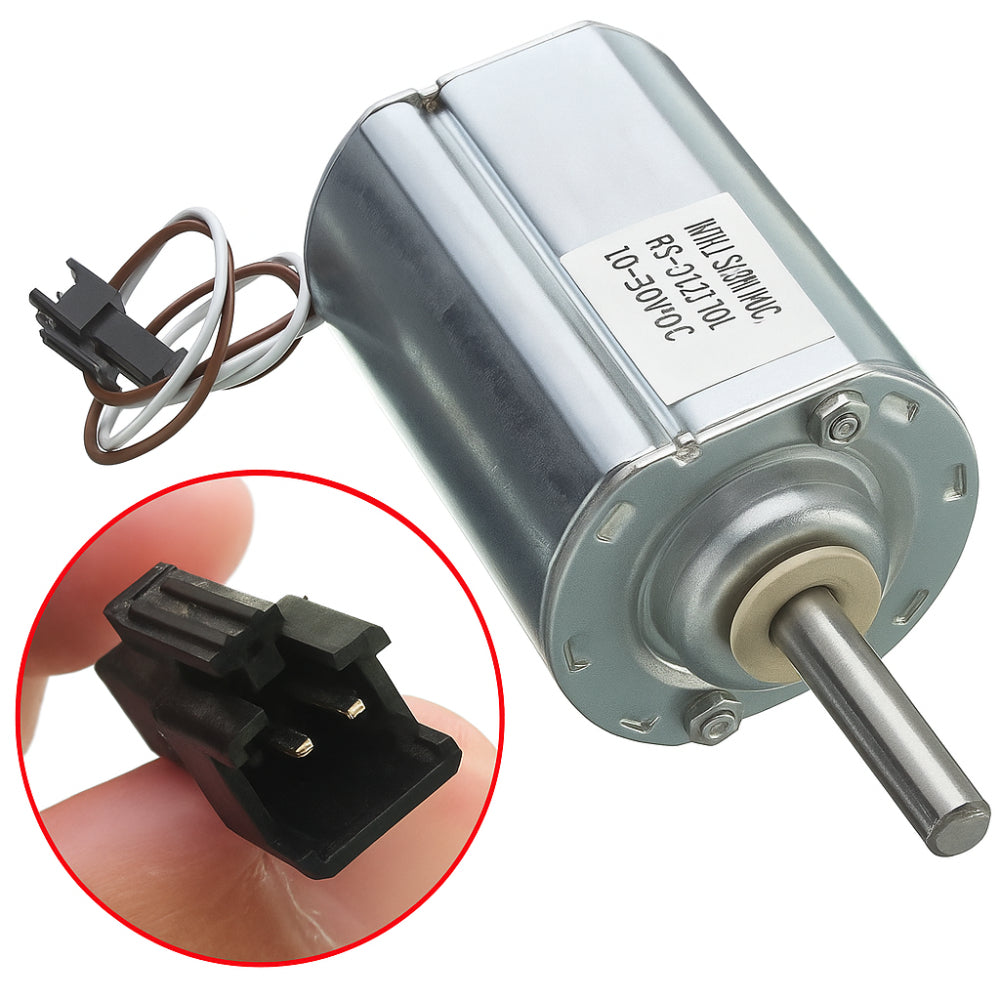

  • Pre-fitted 2-pin connector for quick connection
  • Ideal for DIY generators, small wind projects, and educational experiments

Technical Details

  • Type: PMDC Motor / Generator
  • Rated Voltage (Motor Mode): 120V DC
  • Generator Output (No Load): up to 220V DC
  • Rated Power: 50–100W (typical)
  • Rated Speed: 3000–6000 RPM
  • Shaft Diameter: 8mm
  • Connector Type: 2-pin plug (included)
  • Body Diameter: 50mm
  • Body Length: 87mm (without shaft)
  • Mounting Hole Pitch: 40mm
  • Material: Full metal enclosure with ball bearings
  • Noise Level: <45 dB
  • Weight: approx. 529 g

Applications

  • DIY small hand-crank generators
  • Mini wind-turbine power generation
  • Renewable-energy demonstration projects
  • Educational and physics experiments
  • Custom power tools and automation setups

Package Includes

  • 1 × 220V Generator / 120V DC Motor with Connector Cable
