74HC86D XOR Gate IC – High-Speed, Low Power, SMD Package

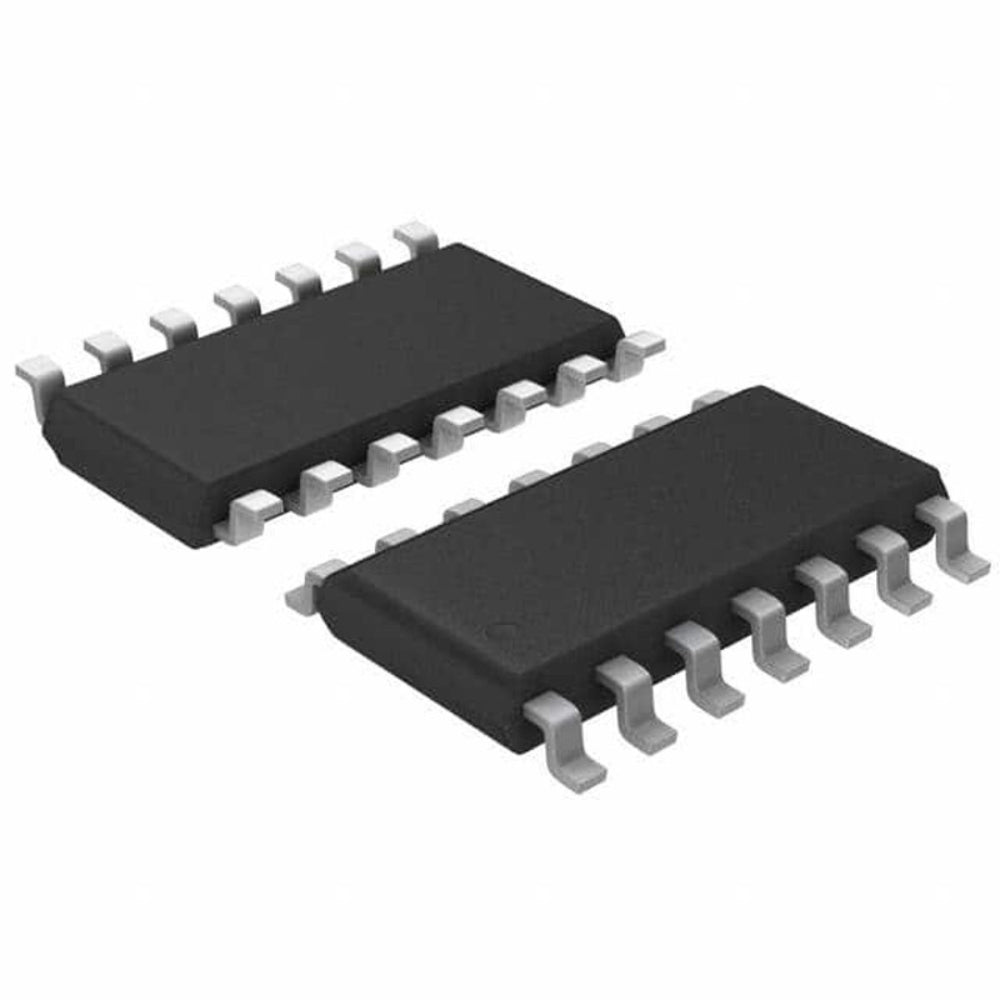

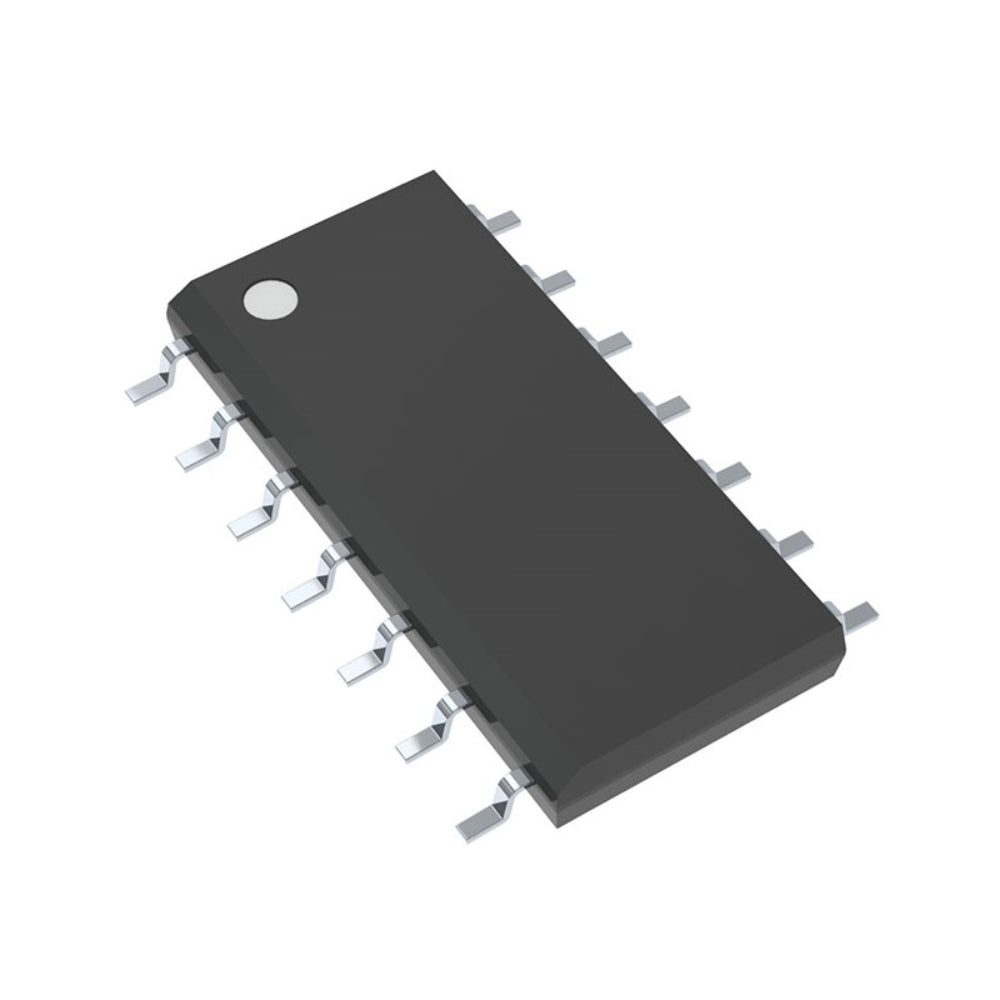

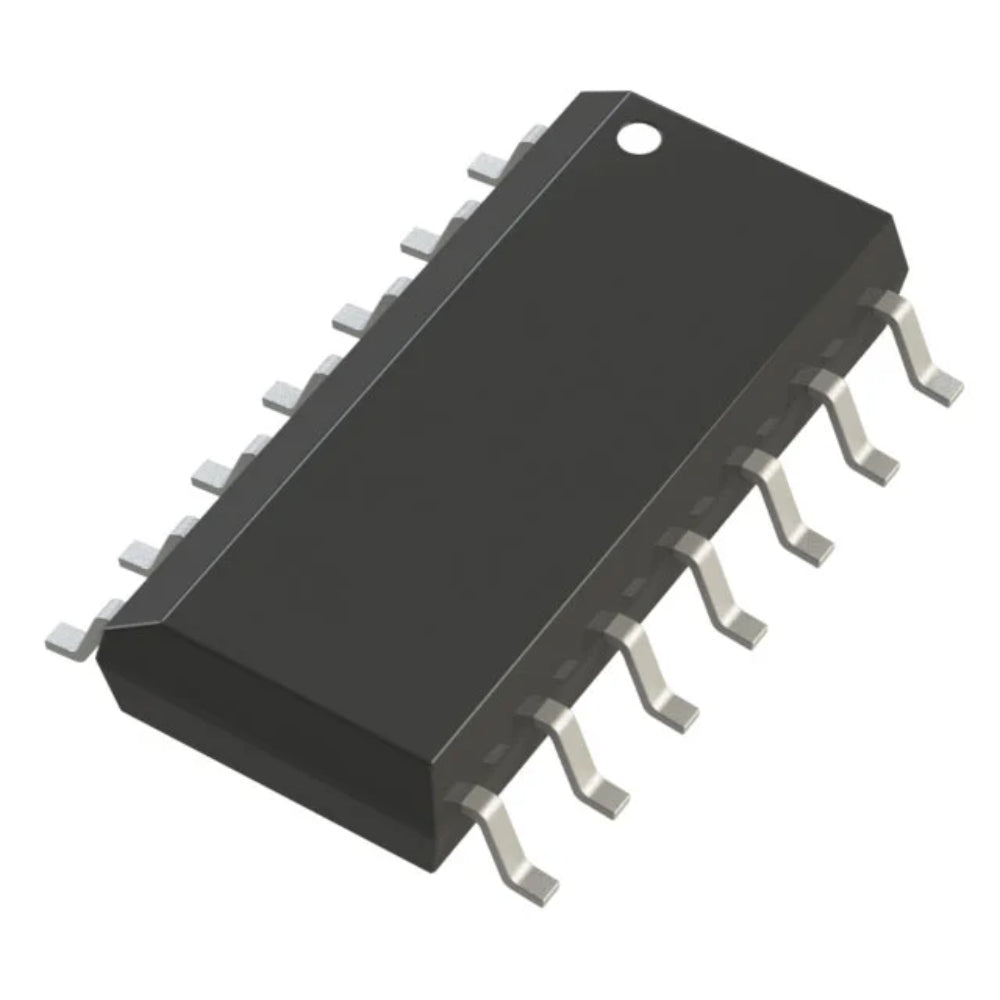

74HC86D SO-14 Quad 2-Input XOR Gate SMD IC

Highlights

• Quad XOR Gates
• 2-Input Logic
• SO-14 Package
• SMD IC Design
• CMOS Technology
• Digital Logic Use

Technical Details

• Product Type: Quad 2-Input XOR Gate IC
• IC Number: 74HC86D
• Logic Function: Exclusive-OR/XOR Gate
• Number of Gates: 4 Independent XOR Gates
• Inputs per Gate: 2 Inputs
• Package Type: SO-14 / SOP-14
• Mounting Type: Surface Mount Device (SMD)
• Technology: High-Speed CMOS
• Operating Voltage Range: Typically 2V to 6V
• Pin Count: 14 Pins

Features

• Contains four separate 2-input XOR logic gates in one IC
• Compact SO-14 SMD package for PCB mounting
• Suitable for high-speed CMOS digital logic applications
• Low power consumption compared to standard logic families
• Useful for parity checking, logic comparison, and control circuits
• Compatible with a wide range of digital electronics designs

Applications

• Digital logic circuits
• Parity generators and checkers
• Binary arithmetic circuits
• Signal comparison circuits
• Embedded system logic interfaces
• Communication and data processing circuits
• DIY electronics and PCB projects

Physical Attributes

• Package: SO-14 / SOP-14
• Mounting Style: SMD
• Number of Pins: 14
• Body Type: Small-outline IC package
• Weight:0.1g

Package Includes

• 1 × 74HC86D SO-14 Quad 2-Input XOR Gate SMD IC
