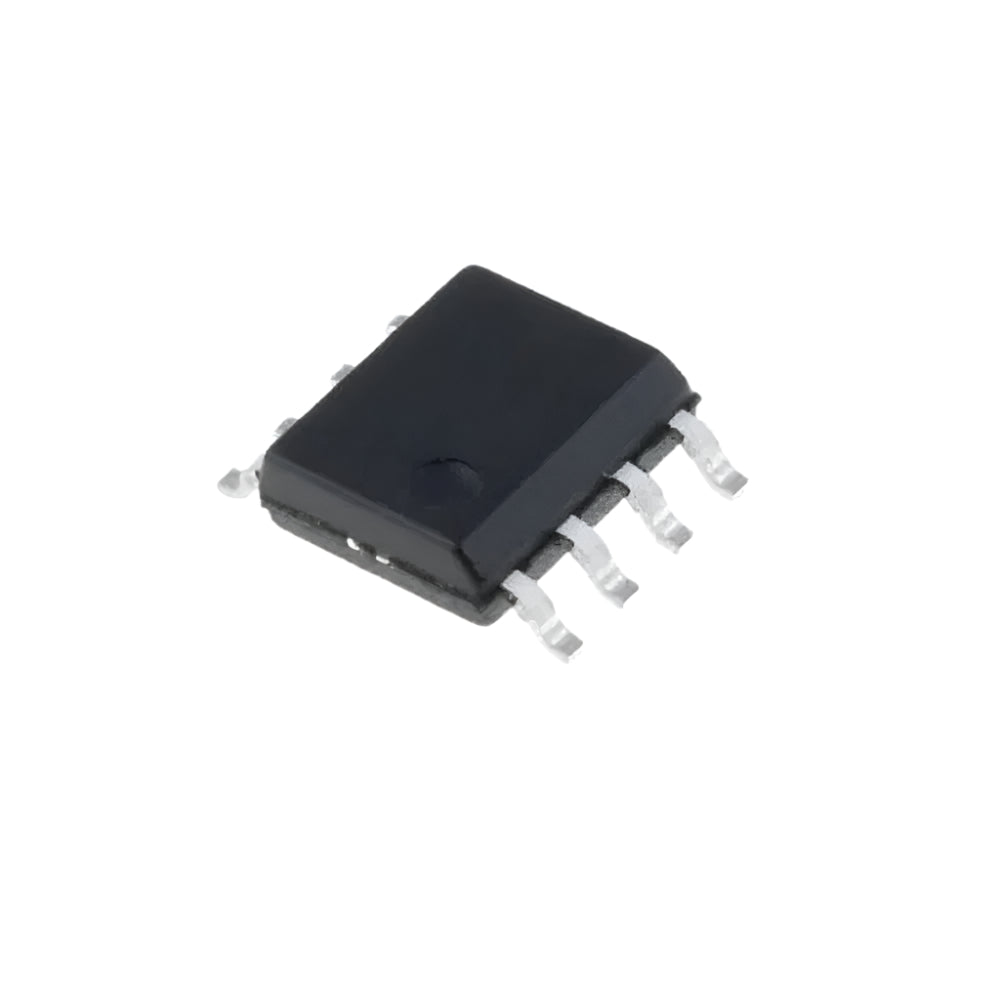

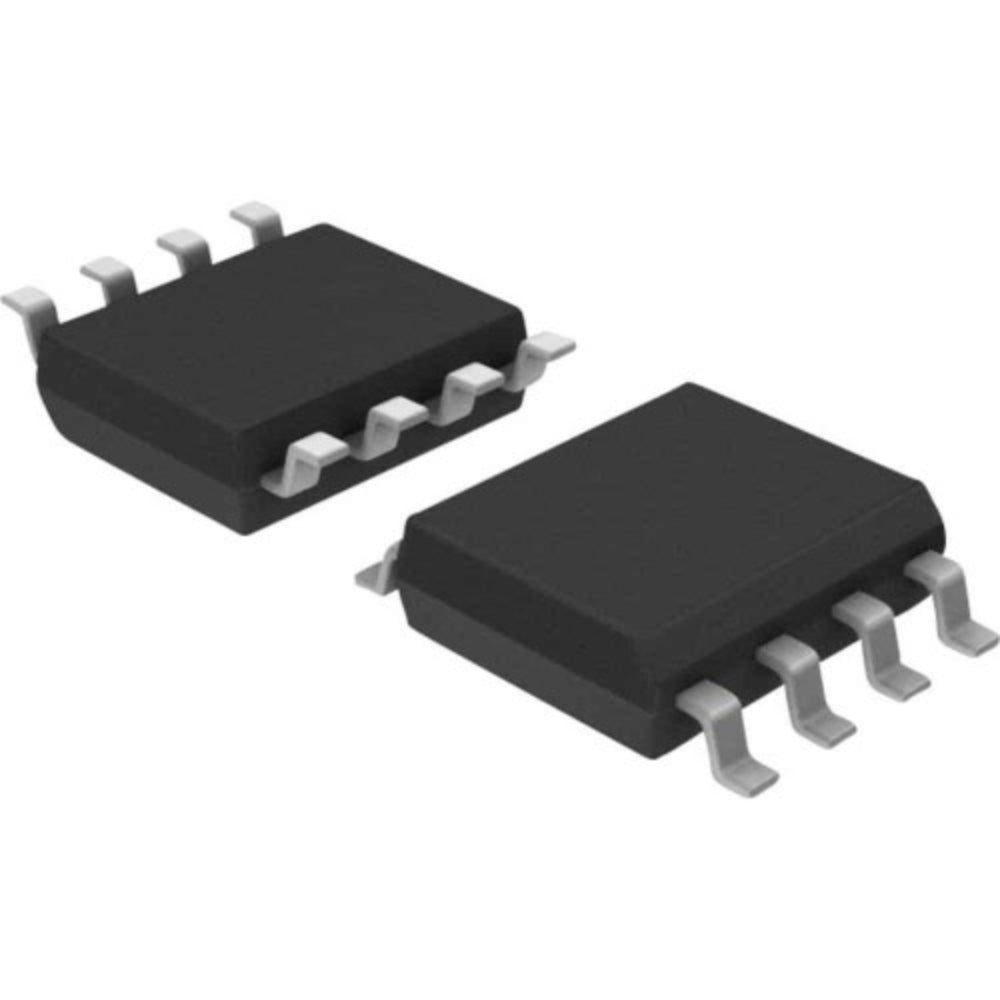

ADUM1200CRZ SOIC-8 SMD Dual-Channel Digital Isolator 5.0kV

Available:In Stock

Product SKU: INTEG410

Wishlist

₹ 99 ~~₹ 199~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Dual-channel 5kV digital isolator
50Mbps high-speed data transfer
Wide supply range: 2.7V–5.5V
CMOS input/output levels
Compact SOIC-8 package

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

12 E - 130 D

Specification

Description

ADUM1200CRZ SOIC-8 SMD Dual-Channel Digital Isolator 5.0kV

ADUM1200 is a dual-channel digital isolator. It is based on the Analog Devices, Inc., icoupler® technology. By combining high speed CMOS and monolithic transformer technologies, this isolation components provide outstanding performance characteristics superior to alternatives, such as opt couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple icoupler digital interfaces and stable performance characteristics.

Technical Details

Number of Channels: 2 Channels
Supply Voltage Range: 2.7V – 5.5V
Number of Pins: 8 Pins
Input Level: CMOS
Output Level: CMOS
Isolation Voltage: 2.5kV
Data Rate: 50 Mbps
Isolation Type: Magnetic
Isolation IC Type: Digital Isolator
Operating Temperature Range: -40°C to 105°C
IC Package: NSOIC
MSL: MSL 1 - Unlimited
SVHC: No SVHC (21-Jan-2025)

Features

Dual-channel digital isolator with CMOS input/output levels
5.0 kV isolation voltage (peak)
Data rate up to 50 Mbps
Low power operation with 2.7V to 5.5V supply range
Magnetic isolation technology with high common-mode transient immunity
Low propagation delay and skew
Standard 8-pin SOIC package (NSOIC)
Temperature range: –40°C to +105°C
MSL 1 – unlimited floor life at ≤30°C/85% RH
RoHS compliant and lead-free

Applications

Microcontroller Interface Isolation: Provides safe and reliable signal isolation between microcontrollers and other components, ensuring protection against voltage spikes and ground loops.

SPI, I²C, and UART Signal Isolation: Ideal for isolating serial communication protocols in embedded systems, maintaining data integrity and system stability.

Industrial Control Systems: Ensures safe communication across high-voltage domains in industrial automation, PLCs, and sensor networks.

Isolated Data Acquisition: Suitable for data acquisition systems that require high-speed digital isolation to protect sensitive analog and digital circuitry.

Medical Monitoring Devices: Used in patient monitoring and diagnostic equipment to safely isolate patient-connected circuitry from processing systems.
