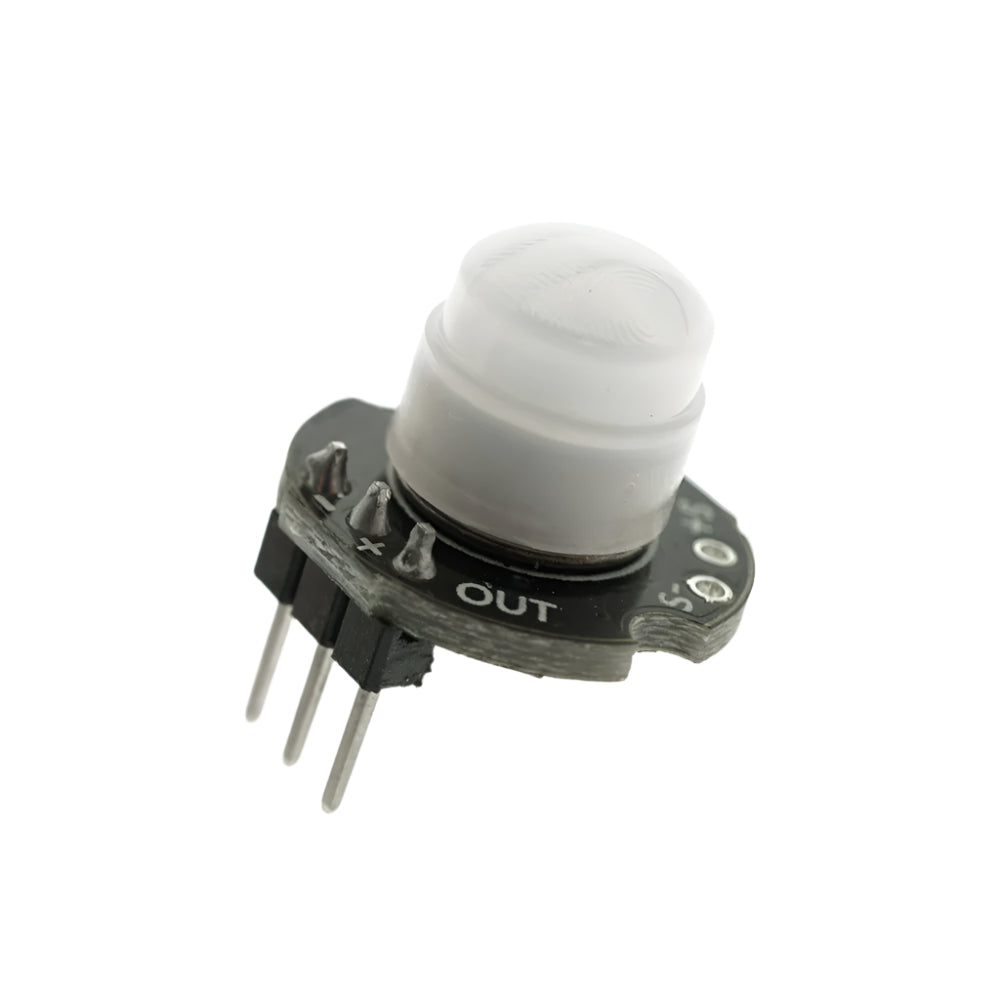

MH-SR602 Mini passive infrared pir sensor Module for Arduino

MH-SR602 MINI Motion Sensor Detector Module is a compact passive infrared pir sensor designed for accurate human movement detection. This pir module offers a sensing range of up to 5 meters, which makes it ideal for smart security devices, body sensor lighting, and automation projects. Since the mini pir sensor consumes very low power and is highly responsive, it fits perfectly in compact embedded electronics and DIY systems. With natural motion detection capabilities, this passive infrared pir sensor improves performance in security and energy-saving applications.

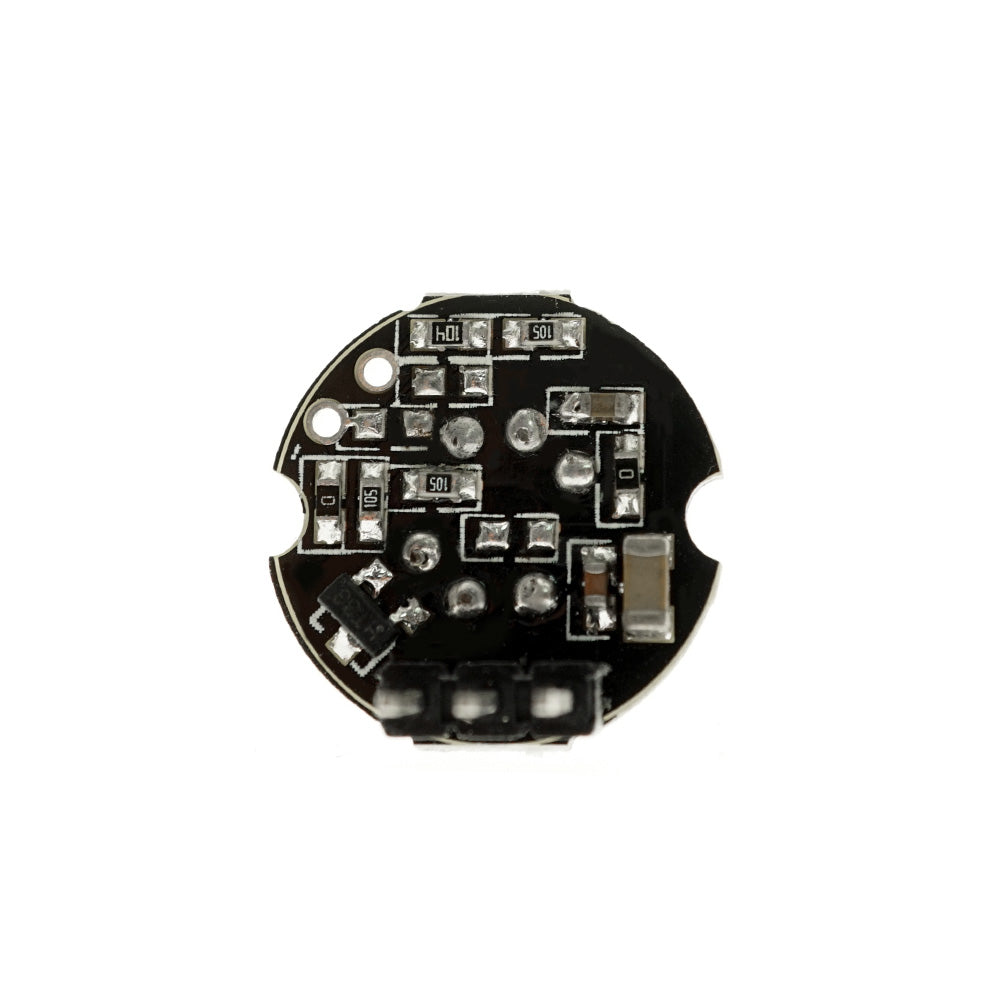

Note: The output high-level time is adjustable between 2.5 seconds and 1 hour (factory-default 2.5s). You can modify the delay by changing a chip resistor based on the required timing.

Technical Details

  • Item Type: Sensor
  • Model Type: Motion Sensor Module
  • Model No.: MH SR602
  • Sensing Distance: 3M–5M
  • Power Supply: 3.3V–15V DC
  • Output: High = 3.3V, Low = 0V
  • Quiescent Current: 20µA
  • Color: Black

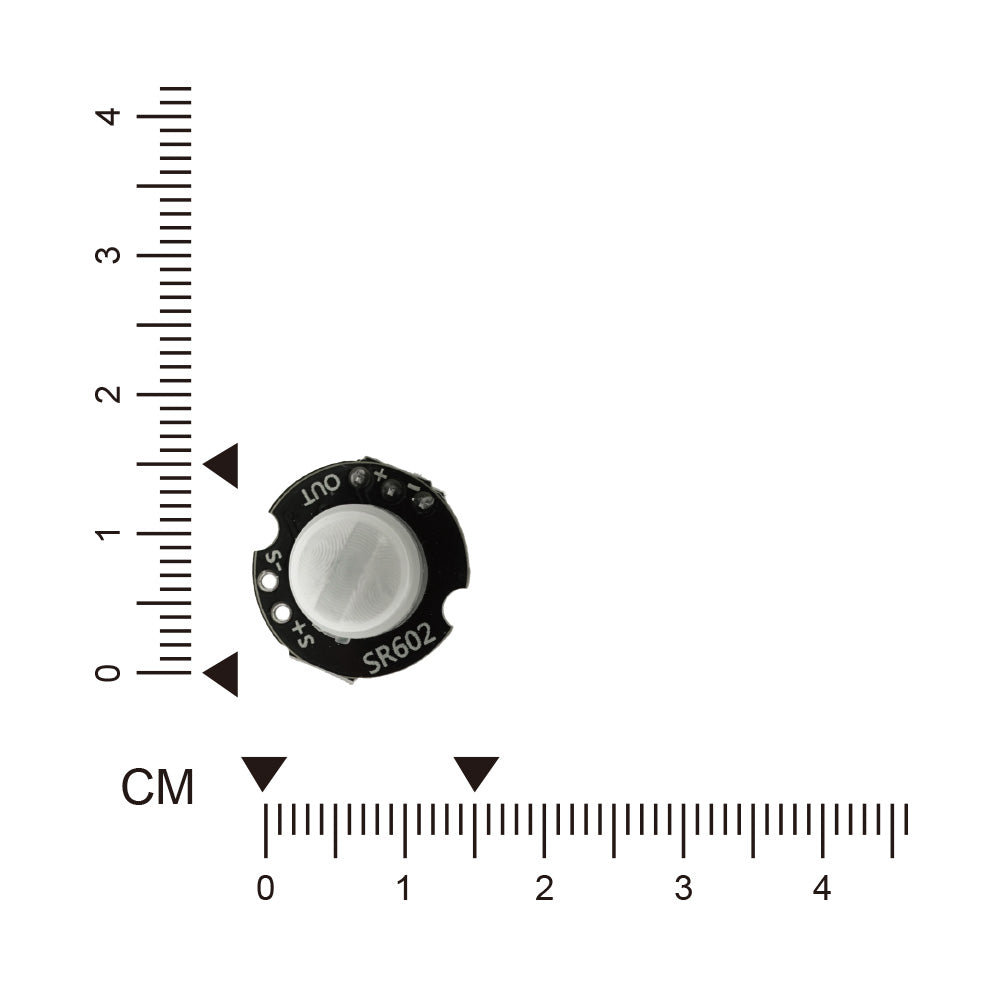

  • Dimensions: 15 x 15 x 20 mm
  • Weight: 3 g

Key Benefits & Features

  • High sensitivity for reliable motion detection
  • Fast response for instant triggering
  • Low static power usage — suitable for battery-powered setups
  • Compact size for a mini pir sensor solution
  • Quick and easy installation with any pir module

Applications:

  • Security Systems: Motion triggers for alarms and surveillance
  • Automatic Lighting: Smart light control using passive infrared pir sensor detection
  • Smart Home: Enhances automation and energy optimization through pir module setups
  • Arduino Projects: Works great with mini pir sensor based interactive designs
  • Energy Saving: Helps reduce electricity usage by activating devices only when needed

Physical Attributes

  • Dimensions: 15 x 15 x 20 mm
  • Weight: 3 g

Package Includes

  • 1 × MH-SR602 MINI Motion Sensor Detector Module for Arduino
