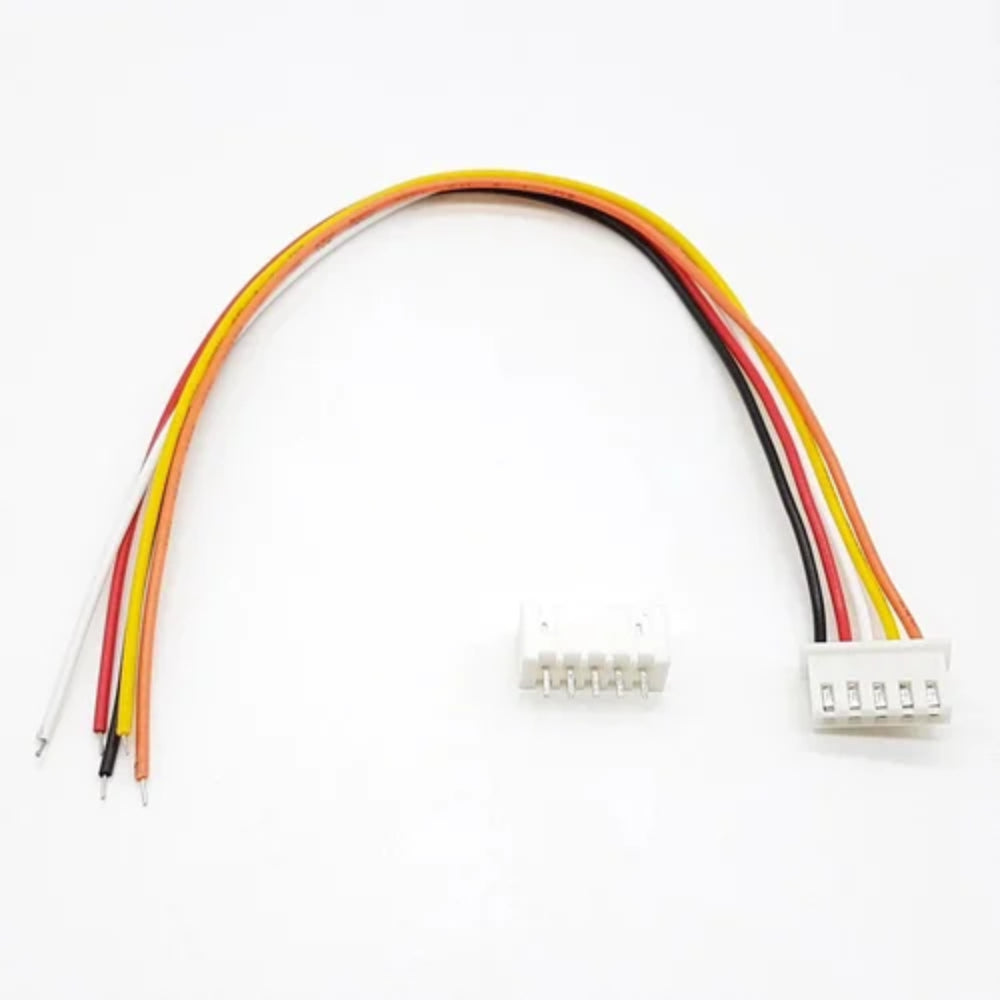

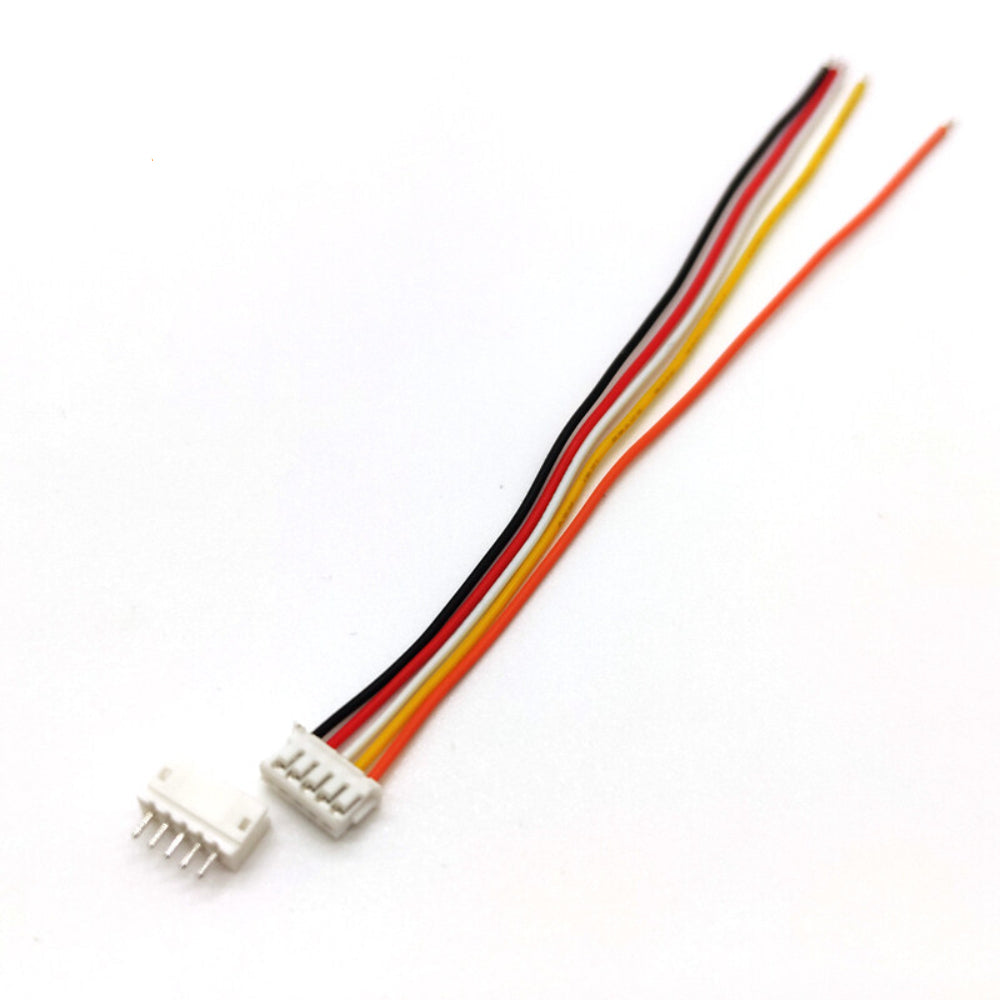

5-Pin Locking Connector 2.54 mm Pitch – Male & Female Pair (300 mm)

The 5-Pin Locking Connector Set provides a secure wire-to-board connection with a 2.54 mm pitch female housing and a matching straight male base.

Equipped with 300 mm pre-crimped wires (red, black, yellow, brawn, and orange), this connector is perfect for multi-signal wiring such as stepper motors, communication buses, sensor arrays, and robotics wiring. The locking latch ensures a secure, vibration-resistant connection that won’t loosen during operation.

Features

  • 5-Pin male and female connector pair with locking latch
  • Standard 2.54 mm pitch – compatible with PCB headers
  • Pre-crimped 300 mm color-coded wires for easy use
  • Reliable, vibration-resistant connection
  • Simple plug-and-play installation – no soldering required

Technical Details

  • Connector Type: 5-Pin Locking (Wire-to-Board)
  • Pitch: 2.54 mm
  • Wire Length: 300 mm
  • Wire Gauge: ~24 AWG
  • Rated Current: up to 2A per pin
  • Mounting: Straight male through-hole base

Physical Attributes

  • Connector Housing: Nylon, white/beige

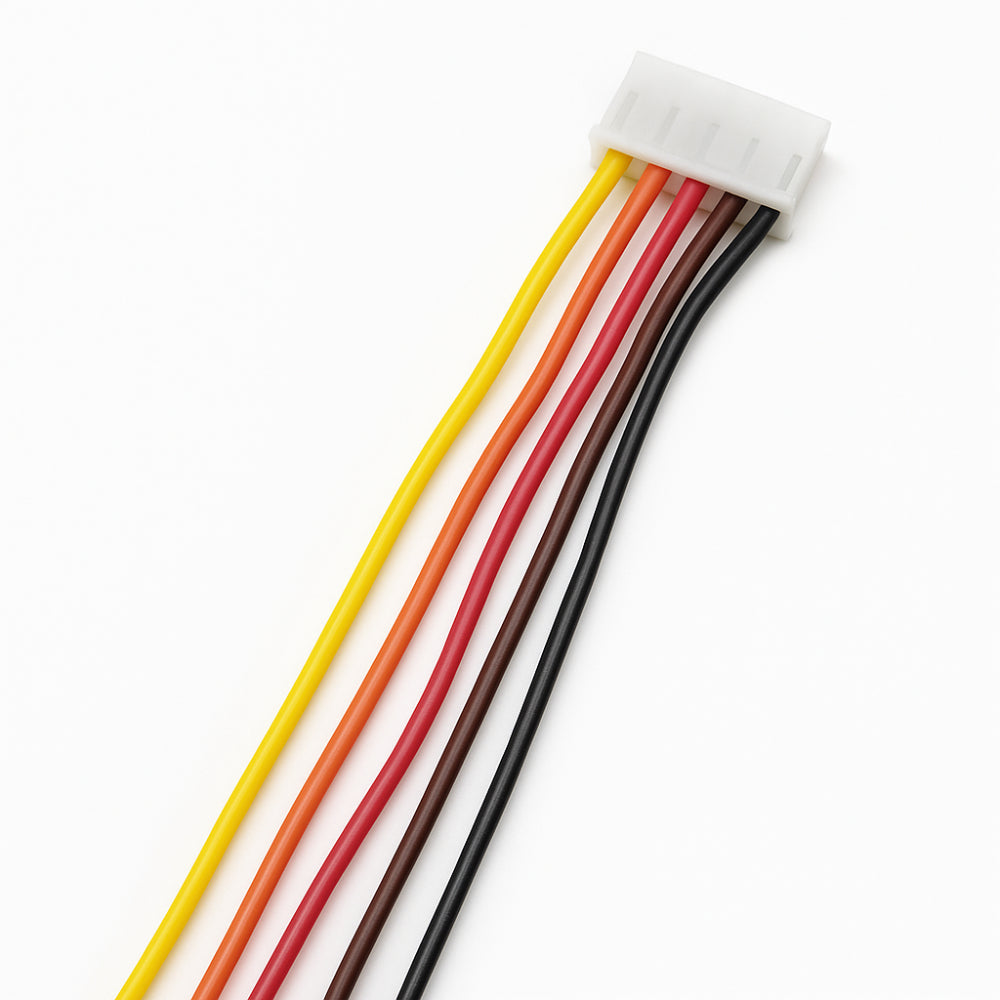

  • Wire Colors: Red (+V), Black (GND), Yellow,orange, Brawn (Signals)
  • Overall Assembly Length: ~320 mm
  • Weight: ~8 g

Applications

  • 5-wire stepper motor wiring
  • Multi-channel signal and sensor connections
  • I/O expansion and communication bus wiring
  • Robotics and automation projects
  • General-purpose electronics requiring 5-wire connections

Package Includes

  • 1 × 5-Pin Female Connector with 300 mm Wires
  • 1 × 5-Pin Straight Male Base (Through-Hole)
