24V 600mA\5V 600mA AC-DC module 220V to 12V/5V Isolated Switching Power Supply

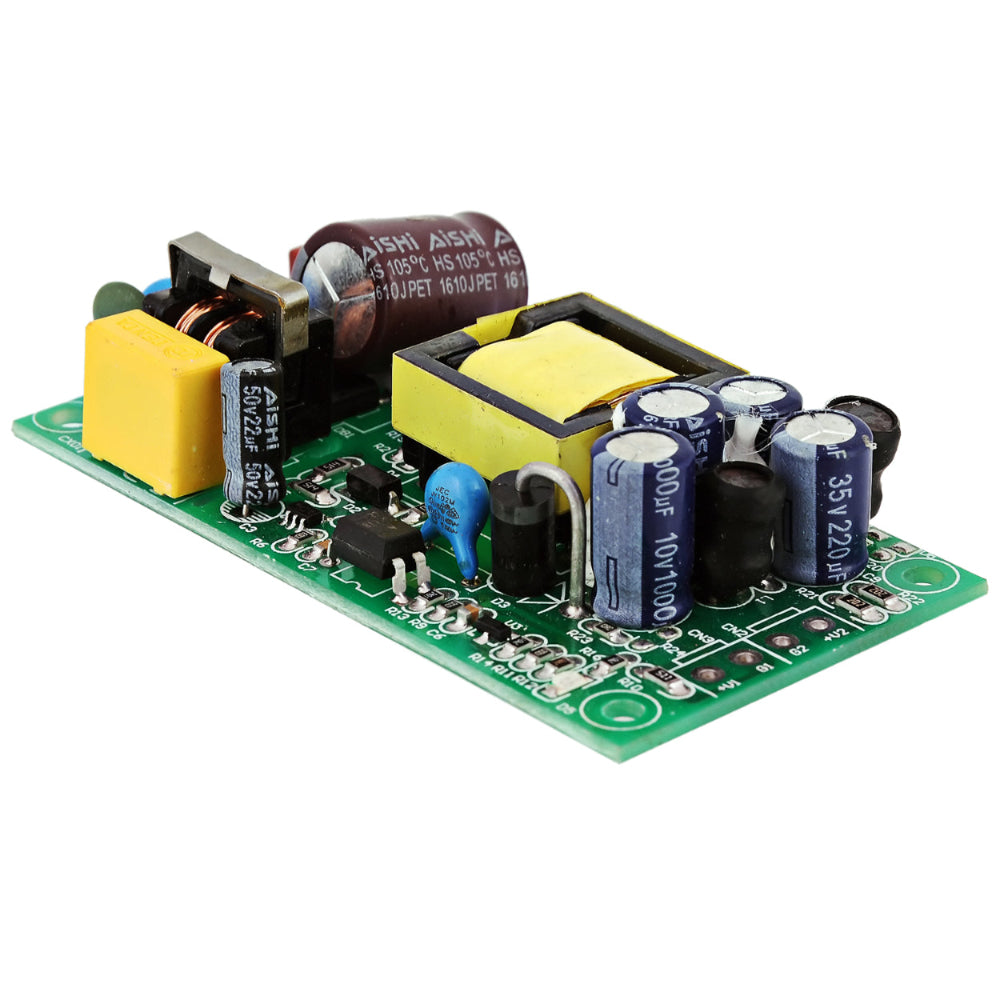

![AC-DC dual output 24V 5V power module]()

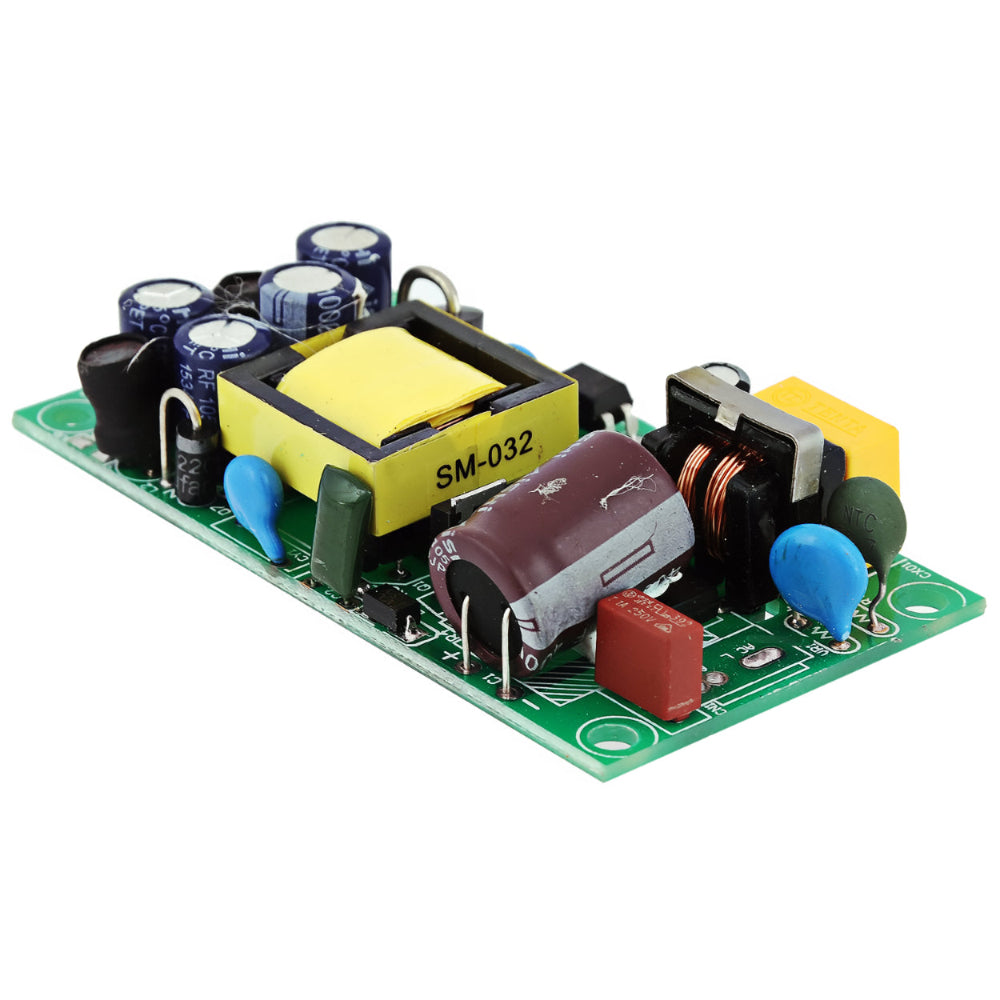

![85–265V input isolated dual output SMPS]()

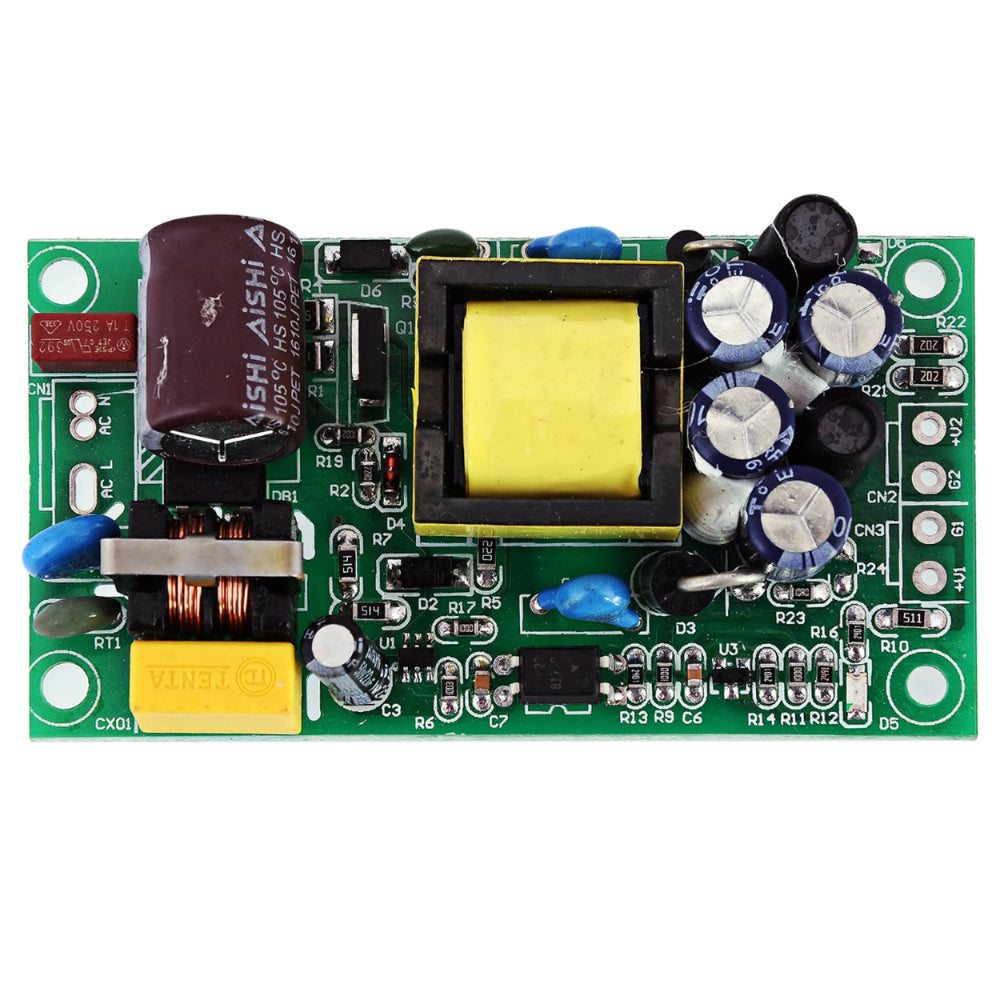

![24V 600mA + 5V 600mA supply board]()
![AC-DC dual output 24V 5V power module]()
![85–265V input isolated dual output SMPS]()
![24V 600mA + 5V 600mA supply board]()
-21%
24V 600mA\5V 600mA AC-DC module 220V to 12V/5V Isolated Switching Power Supply
Available:In Stock
- Product SKU: KG433
₹ 549
₹ 699
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
AC-DC Dual Output Power Supply Module – 24V 600mA + 5V 600mA (Isolated) | 85–265V Input
The AC-DC dual output switching power supply module is an industrial-grade isolated power module designed to convert a wide AC input range into stable DC outputs. It provides dual outputs of 24V and 5V (current as per variant) with built-in protections such as temperature protection, over-current protection, and short-circuit protection.
The module includes mounting holes for secure installation, EMI filtering on input/output, and an internal LC-π filter on the output to reduce ripple and noise. Its compact size and stable performance make it suitable for control panels, automation systems, embedded devices, and DIY/industrial electronics requiring isolated DC supplies.
The module includes mounting holes for secure installation, EMI filtering on input/output, and an internal LC-π filter on the output to reduce ripple and noise. Its compact size and stable performance make it suitable for control panels, automation systems, embedded devices, and DIY/industrial electronics requiring isolated DC supplies.
Technical Specifications
- Easy installation: input/output pluggable terminal or pins, with reserved holes for soldering wires
- Mounting: 4 corner fixing holes for better vibration resistance (hole diameter: 3.2mm)
- Universal input voltage: AC 85–264V or DC 110–370V
- High efficiency with low ripple and noise output
- High input-output isolation
- Protection: overcurrent, short circuit, and over-temperature protection
- Output filtering: built-in LC-π filter (no external filter circuit required)
Physical Attributes
- Dimensions (L × W × H): 76 × 40 × 20 mm
- Weight: 44g
Important Notes
- Mains safety: This module connects to high-voltage AC/DC. Use proper insulation, enclosure, and safe wiring practices.
- Before connecting your load, verify the output terminals and polarity for 24V and 5V using a multimeter.
- For best reliability, ensure ventilation when running near maximum load for long durations.
Package Includes
- 1 × AC-DC Dual Output Switching Power Supply Module (24V + 5V)
