5V 2A AC-DC Switching Power Supply Module Isolated 220V to 5V DC 10W
Available:In Stock
- Product SKU: KG119
₹ 299
₹ 399
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

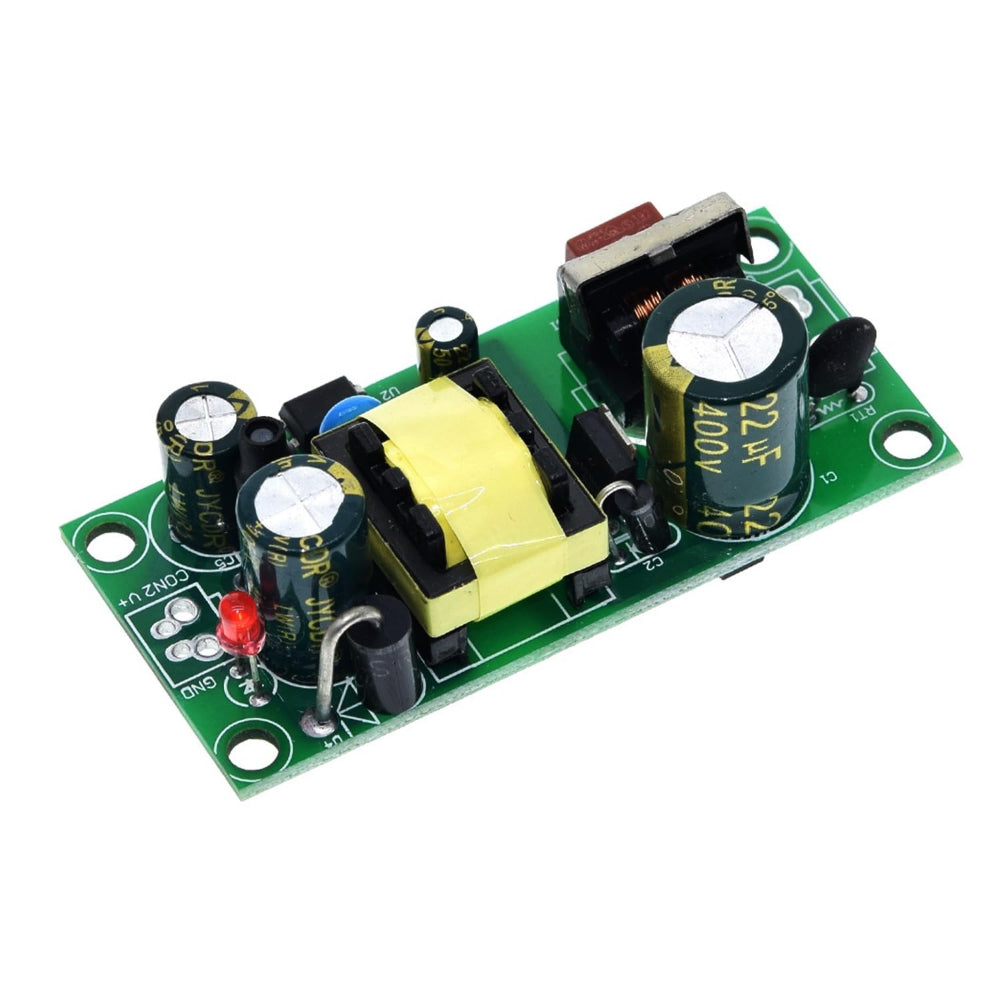

5V 2A Switching Power Supply Module (10W) – AC 85–264V to DC 5V
The 5V 2A Switching Power Supply Module provides a stable and regulated 5V DC output for a wide range of electronics projects. It is ideal for powering microcontrollers, sensors, LED modules, and other low-power devices that require a reliable 5V supply. Its switching design improves efficiency, reduces heat, and helps maintain consistent performance during operation.Technical Details
- Module Type: AC-DC Switching Power Supply Module (Isolated)
- Input Voltage: 85–264V AC / 110–370V DC
- Input Frequency: 47–63Hz
- Output Voltage: 5V DC (Regulated)
- Output Current: 2A rated / 3A peak
- Output Power: 10W
- Protection: Overload, short circuit, over-temperature
- Mounting Hole Diameter: 3.0mm

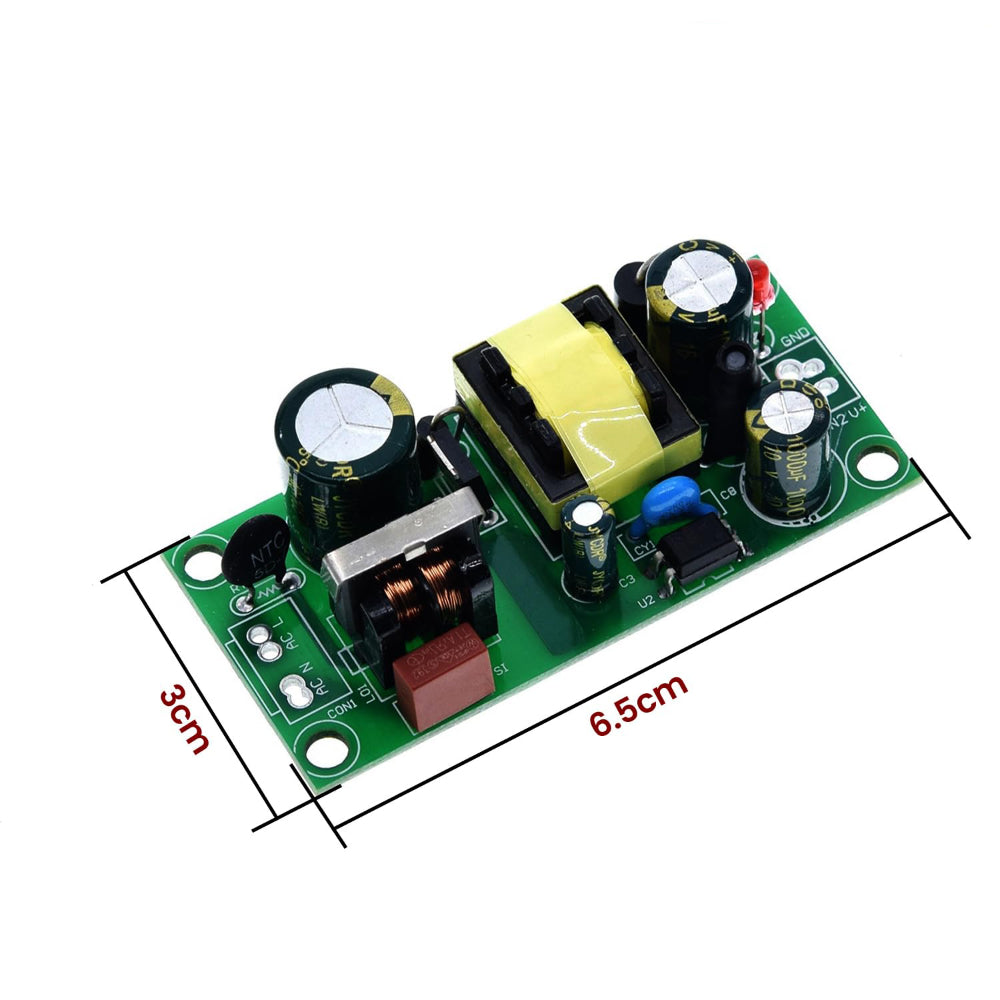

- Overall Size: 65mm × 30mm × 20mm (L × W × H)
Features
- Stable and regulated 5V output for sensitive electronics
- High-efficiency switching design with low heat generation
- Universal wide-range input: 85–264V AC or 110–370V DC
- Isolation between high-voltage input and low-voltage output
- Input/output can be soldered to 5.08 terminals or used with pins
- Four corner mounting holes for firm installation (requires screws)
- Built-in overload, short-circuit, and temperature protection
Applications
- Power supply for Arduino, ESP32, Raspberry Pi projects (5V rail)
- DIY electronics prototyping and embedded systems
- 5V power for sensors, relays, and small control circuits
- LED strip/modules and low-power automation projects
Important Notes
- This module works with high voltage AC input—handle carefully and ensure proper insulation.
- Use proper mounting and keep adequate spacing to avoid short circuits.
- Do not exceed the rated output current for continuous operation.
Physical Attributes
- Length × Width × Height (mm): 65 × 30 × 20
- Weight (g): 30
Package Includes
- 1 × 5V 2A (10W) Switching Power Supply Module (AC to DC 5V)
