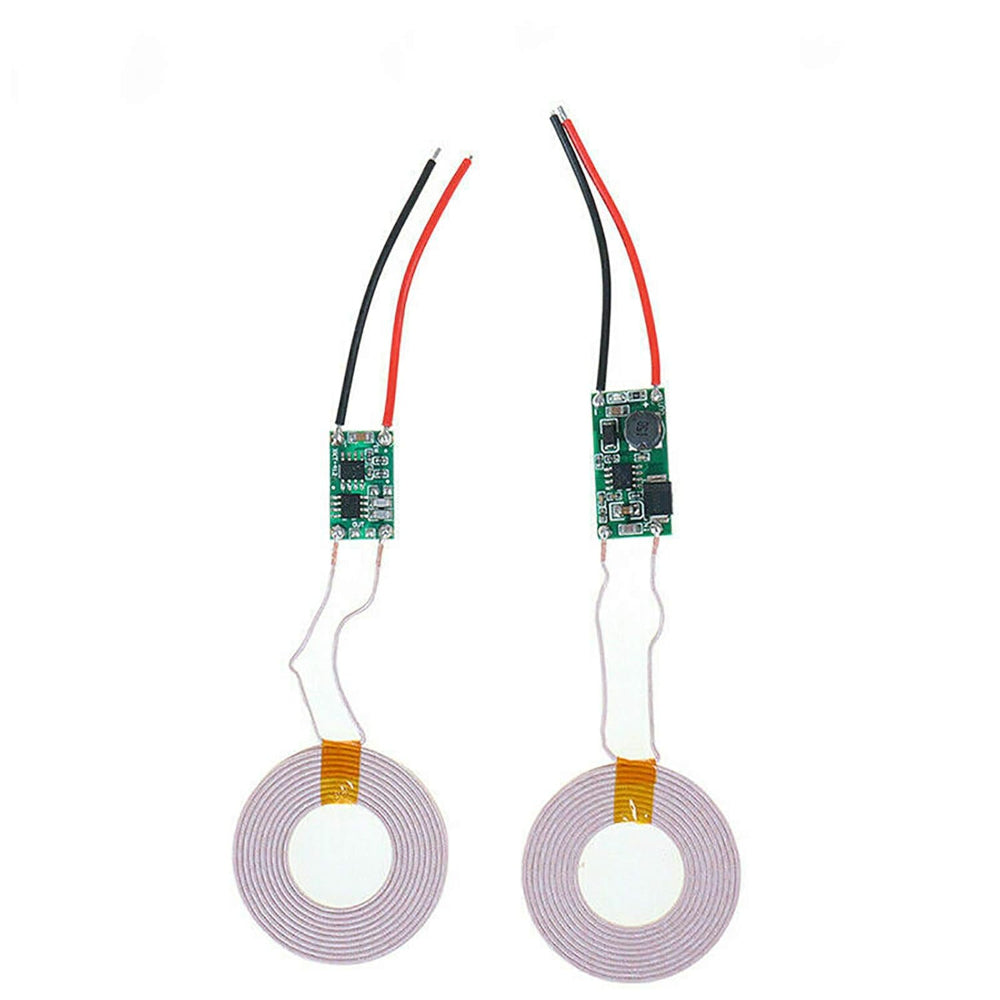

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module_1

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module_2

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

Available:Out of Stock

Product SKU: KG373

Wishlist

₹ 647 ~~₹ 1,039~~

Pre-order

Specification

Description

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

Wireless charging modules uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. This is a new wireless charging module, which could provide 5V@300mA power output. It is using the new technology "resonant magnetic coupling, which will reduce the electricity consumption during power transmission. The transfer efficiency could arrive at 90%. It could meet your most project requests.

Technical Details

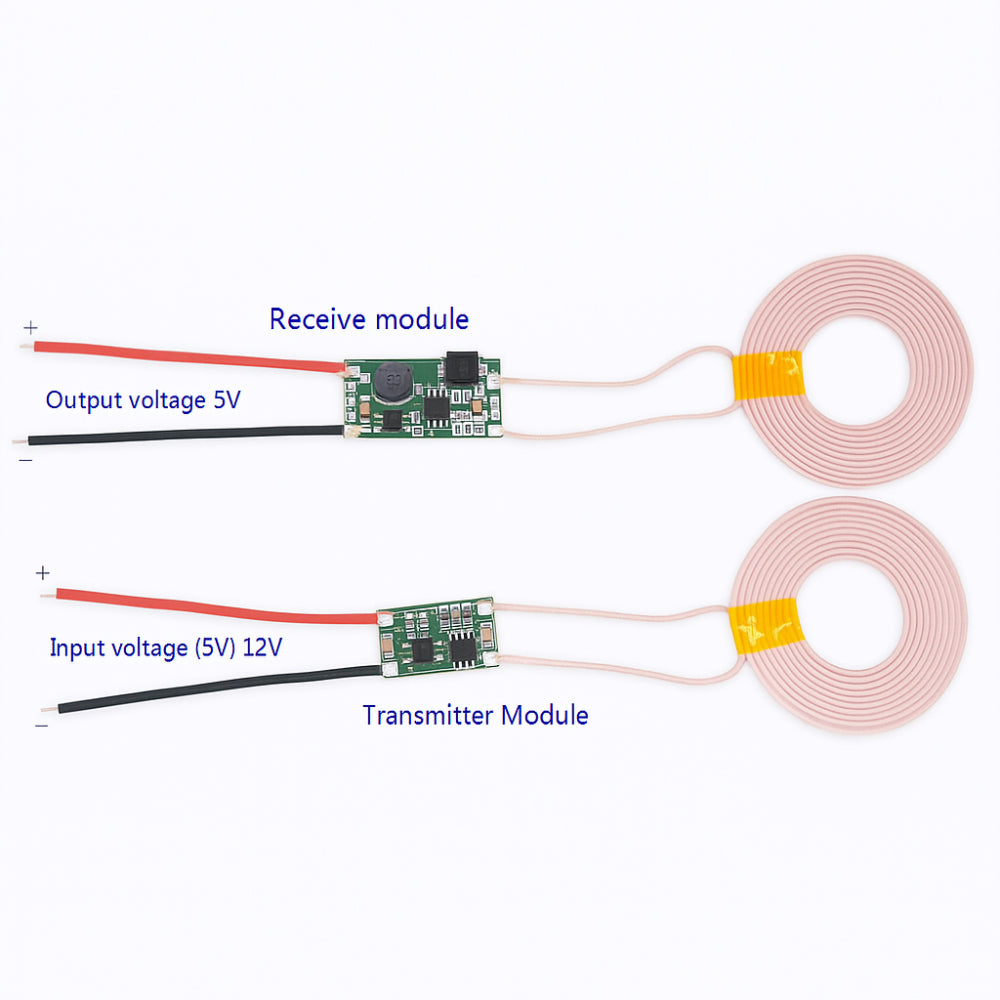

Operating Voltage (Input): 5V
Magnetic coupling resonance technique
Operating Voltage (Output): 5±6%V@300mA (Max: 600mA)
Transmitting Terminal Size: 33mm±3mm (1.3" Outer diameter) * 5mm (0.2" Inside diameter) * 1mm (0.04" Thickness)
Receiving Terminal Size: 21mm±3mm (0.83" Outer diameter) * 10mm (0.4" Inside diameter) * 0.79mm (0.03" Thickness)
Operating Distance: 2-10mm (0.08-0.39")
Weight: 8g

Features

5V input, 300mA output
Wireless charging receiver
Efficient power transfer
Compact design
Compatible with Qi-enabled devices
High charging speed
Stable and reliable performance

Applications :

Smartphones and Tablets: Used in wireless charging docks or pads to charge mobile devices without the need for physical connections.
Wireless Charging Stations: Installed in public or home charging stations for wireless charging of various gadgets.
Electric Toothbrushes: Provides convenient charging for electric toothbrushes without requiring wired connections.
Wearable Devices: Used for wirelessly charging smartwatches, fitness trackers, and other wearable tech.
Battery-Powered Gadgets: Ideal for charging portable devices, such as power banks, without the need for plug-in chargers.
Home Automation Devices: Powers smart home gadgets and sensors, ensuring they remain charged without physical connections.
Robotics: Can be used in robots or autonomous devices to ensure they stay charged and operational.
Medical Devices: Applied to medical equipment like hearing aids, where ease of charging is important.
Consumer Electronics: Wireless charging for smaller consumer electronics such as wireless speakers or handheld devices.
Electric Vehicles (EVs): Used for wireless charging of small electric vehicles or drones.

Circuit Diagram

circuit diagram

Physical Attributes

Transmitting Terminal Size: 33mm±3mm (1.3" Outer diameter) * 5mm (0.2" Inside diameter) * 1mm (0.04" Thickness)
Receiving Terminal Size: 21mm±3mm (0.83" Outer diameter) * 10mm (0.4" Inside diameter) * 0.79mm (0.03" Thickness)
Operating Distance: 2-10mm (0.08-0.39")
Weight: 8g
