12V High Temperature Resistant Transparent 385 Mini Water Pump for Fish Tank Tea Stove
![Mini Water Pump for Fish Tank Tea Stove]()
![12V High Temperature Resistant Transparent]()
![12V High Temperature Resistant Transparent 385 Mini Water Pump]()
![Mini Water Pump for Fish Tank Tea Stove]()
![12V High Temperature Resistant Transparent]()
![12V High Temperature Resistant Transparent 385 Mini Water Pump]()
This pump provides a flow rate of 1.8 ± 0.1 L/min and supports a maximum head of 5m, while usage within 2m is recommended for better performance. It supports water temperature from 5°C to 100°C and should be used with clean water or proper filtration where impurities are present to protect the diaphragm and maintain stable performance.
-16%
12V High Temperature Resistant Transparent 385 Mini Water Pump for Fish Tank Tea Stove
Available:In Stock
- Product SKU: LGGE338
₹ 499
₹ 599
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
12V High Temperature Resistant Transparent 385 Mini Water Pump for Fish Tank Tea Stove

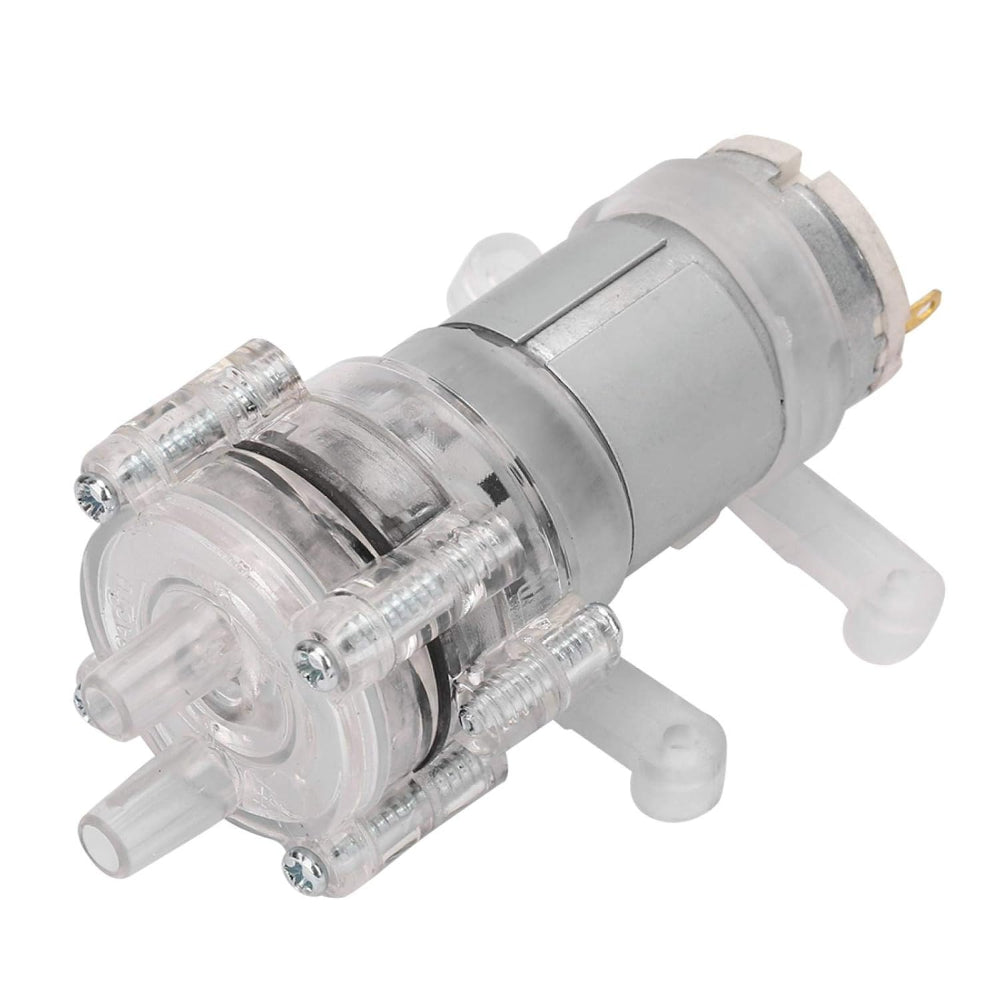

The 12V High Temperature Resistant Transparent 385 Mini Water Pump is a compact DC diaphragm water pump designed for small water circulation and transfer applications. It uses a 385 type motor and operates on 12V DC with rated power of 4.8W, making it suitable for fish tanks, tea stove water circulation, DIY projects, and small cooling systems.This pump provides a flow rate of 1.8 ± 0.1 L/min and supports a maximum head of 5m, while usage within 2m is recommended for better performance. It supports water temperature from 5°C to 100°C and should be used with clean water or proper filtration where impurities are present to protect the diaphragm and maintain stable performance.
Features
- 385 DC motor
- 12V DC operation
- High temperature resistant
- Transparent pump body
- Diaphragm pump design
- Low power consumption
- Stable water flow
- 7mm pipe connection
- Natural cooling support
- Compact mounting design
Technical Details
- Item Type: Mini Water Pump
- Motor Type: 385
- Pump Type: Diaphragm Pump
- Operating Voltage: DC 12V
- Current: ≤ 0.4A
- Power: 4.8W
- Flow Rate: 1.8 ± 0.1 L/min
- Maximum Head: 5m
- Recommended Head: Within 2m
- Applicable Water Temperature: 5°C to 100°C
- Operating Temperature: 5°C to 40°C
- Working Water Pressure: 0.3MPa
- Cooling Method: Natural Cooling
- Maximum Continuous Running Time: 120H limit parameter
- Recommended Running Time: Preferably within 2 to 3 hours on 12V
- Inlet Diameter: 7mm
- Outlet Diameter: 7mm
- Electrical Withstand Test: 500V / 50Hz for 1 minute
- Constant Temperature Test: 40 ± 2°C and 93% ± 3% RH for 48 hours after drying
Applications
- Fish tank water circulation
- Tea stove water pumping
- Small water transfer systems
- DIY water circulation projects
- Notebook cooling systems
- Flower watering applications
- Small aquarium setups
- Abrasive tool cooling
- Mini dispenser projects
- Low-flow water cycle systems

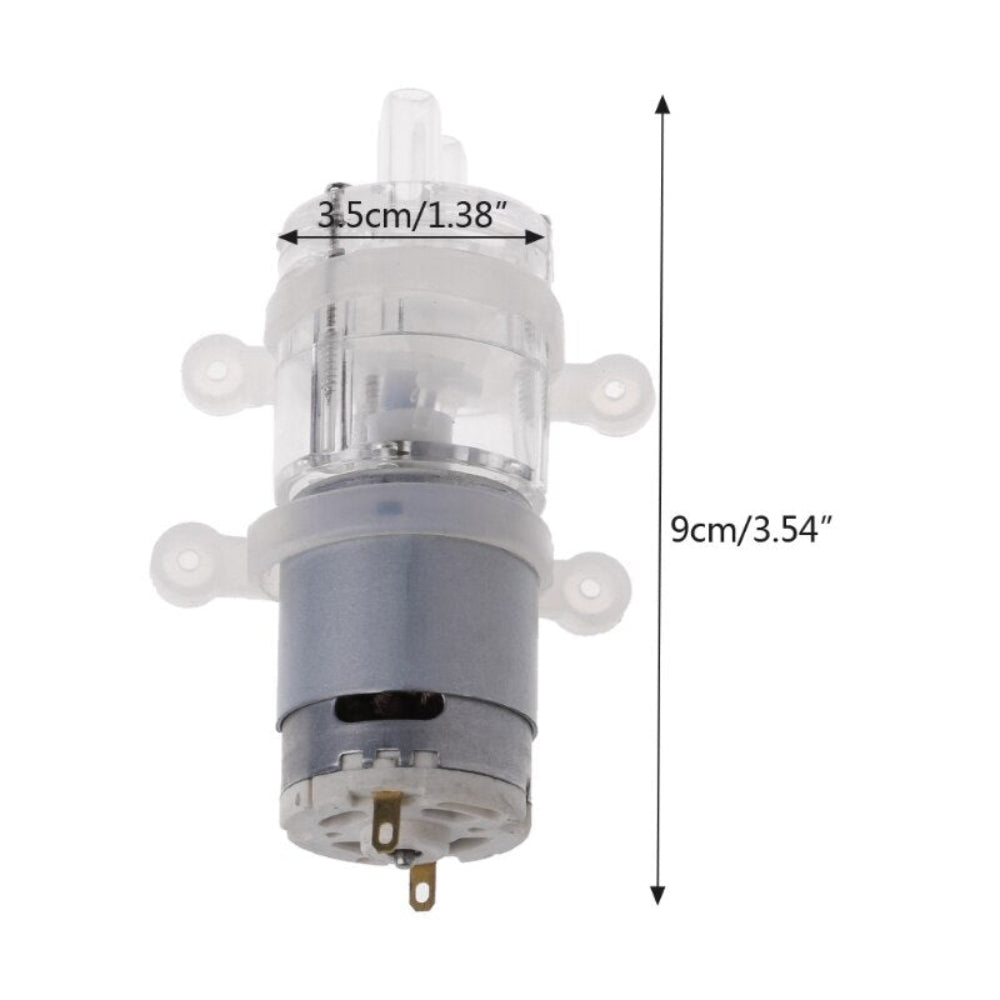

Physical Attributes
- Length: 90mm
- Diameter: 35mm
- Inlet Diameter: 7mm
- Outlet Diameter: 7mm
- Suspension Rubber Compression: 1–1.5mm
- Weight: 108g
Usage Notes
- Use food-grade silicone tube for drinking water applications.
- Do not use with strong alkali, gasoline, alcohol, strong acid, or corrosive liquids.
- Salt water and vinegar are acceptable for suitable applications.
- Do not run continuous water circulation for more than 24 hours.
- Use a filter when water contains impurities, fish waste, or hard particles.
- Hard objects may damage the diaphragm and affect pump performance.
- Do not block the heat hole during installation.
- For 12V operation, single running time should preferably be controlled within 3 hours.
Package Includes
- 1 × 12V DC 385 High Temperature Water Pump
