Specification

Description

JS30 Micro Geared Electric Motor DC 6V 40RPM

The JS30 Micro Geared Electric Motor DC 6V 40RPM is a compact geared DC motor designed for small mechanical drive, controlled rotation, and medium low-speed movement applications. It operates on 6V DC and provides an output speed of 40RPM, making it suitable for DIY mechanisms, robotics projects, model assemblies, and compact automation systems.

This micro geared motor comes with a compact reduction gearbox, metal output shaft, and red-black lead wire connection for easy use in electronic and mechanical projects. With a lightweight body of approximately 28g and compact installation size, it is useful where steady rotation, compact design, and simple DC power operation are required.

Features

  • 6V DC operation
  • 40RPM output speed
  • Micro geared motor
  • Controlled rotation
  • Compact gearbox design
  • Metal output shaft
  • Lightweight motor body
  • Easy wire connection
  • Suitable for DIY use
  • Small automation support

Technical Details

  • Item Type: Micro Geared Electric Motor
  • Model No.: JS30
  • Motor Type: DC Geared Motor
  • Operating Voltage: DC 6V
  • Output Speed: 40RPM
  • Gearbox Type: Micro reduction gearbox
  • Output Shaft Type: Metal shaft
  • Connection Type: Red and black wire lead
  • Application Type: Controlled rotation and small mechanical drive
  • Weight: 28g

Applications

  • DIY rotating mechanisms
  • Small automation projects
  • Model making applications
  • Robotics drive projects
  • Educational electronics projects
  • Mini robot mechanisms
  • Display turntable projects
  • Timed movement systems
  • Small gear drive assemblies
  • Prototype mechanical projects

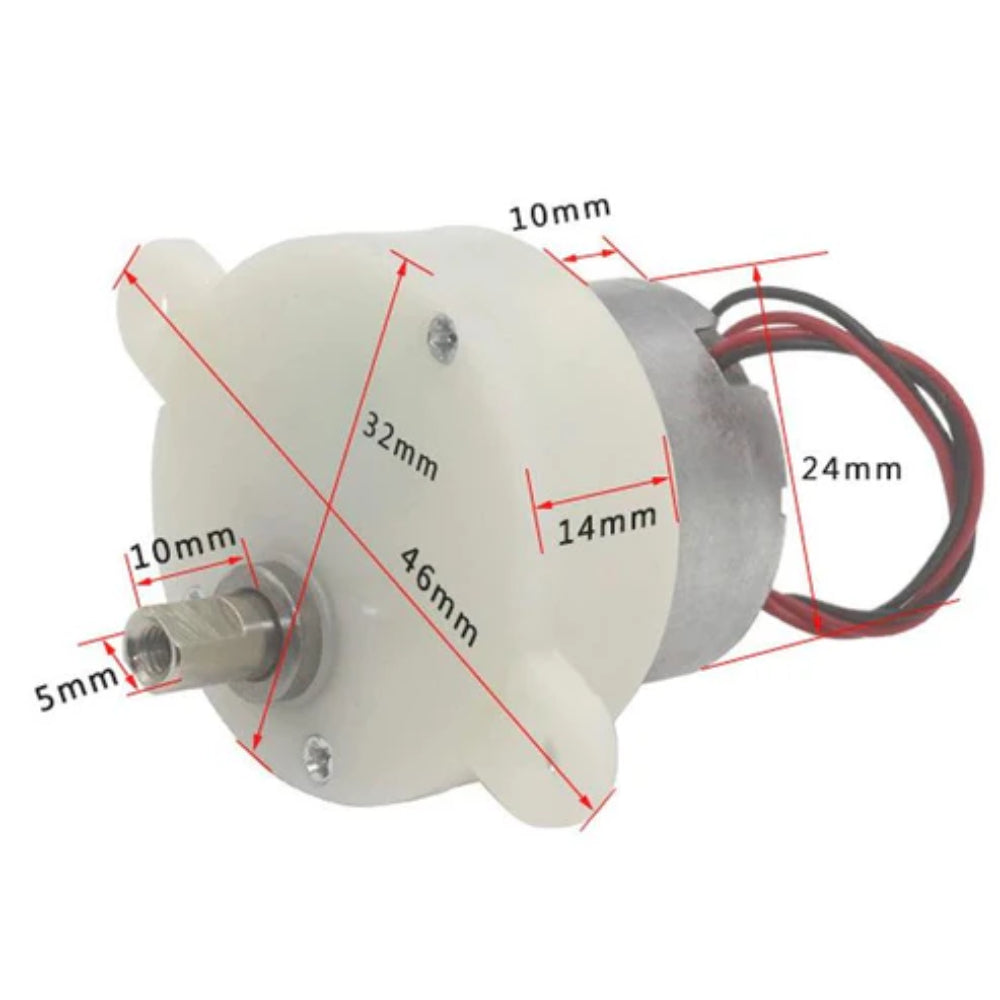

Physical Attributes

  • Body Length: 46mm
  • Gearbox Diameter: 32mm
  • Motor Diameter: 24mm
  • Motor Exposed Length: 10mm
  • Side Projection Length: 14mm
  • Shaft Length: 10mm
  • Shaft Diameter: 5mm
  • Body Type: Compact geared motor body
  • Weight: 28g
  • Wire Type: Red and black lead wire

Package Includes

  • 1 × JS30 Micro Geared Electric Motor DC 6V 40RPM
