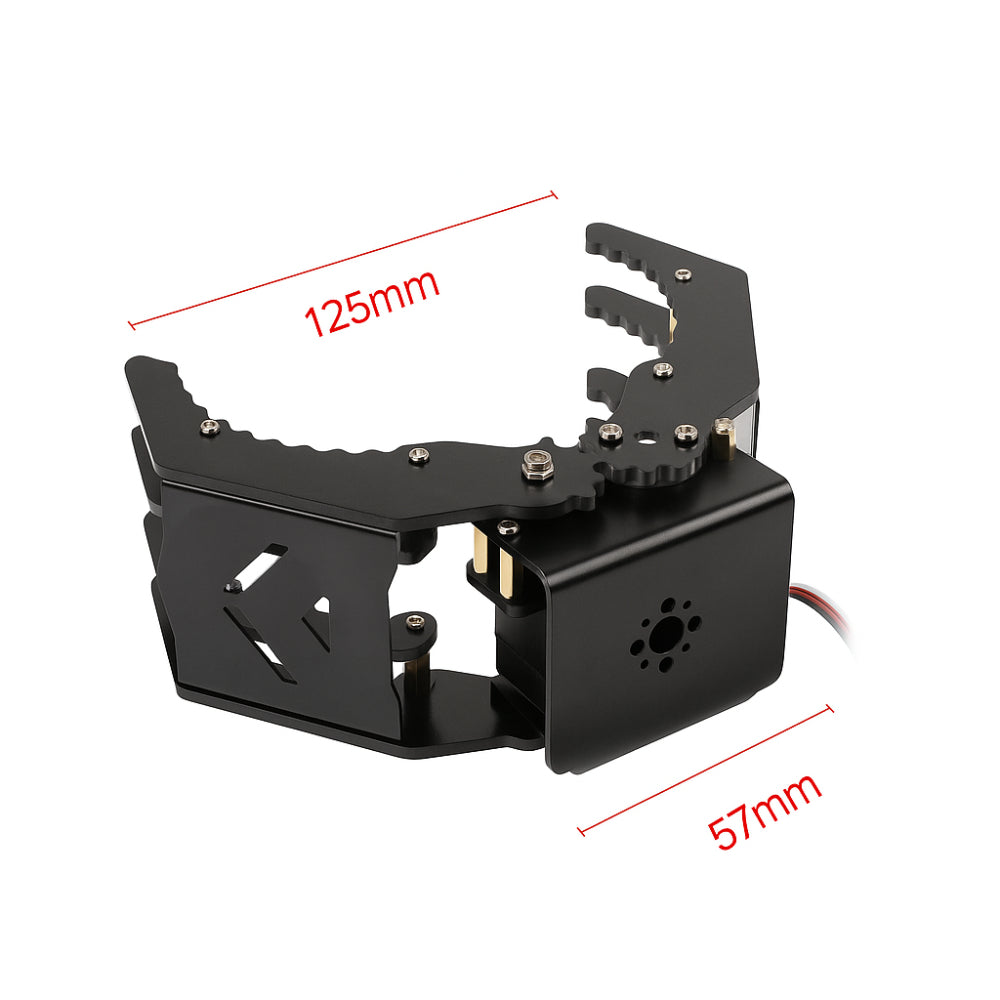

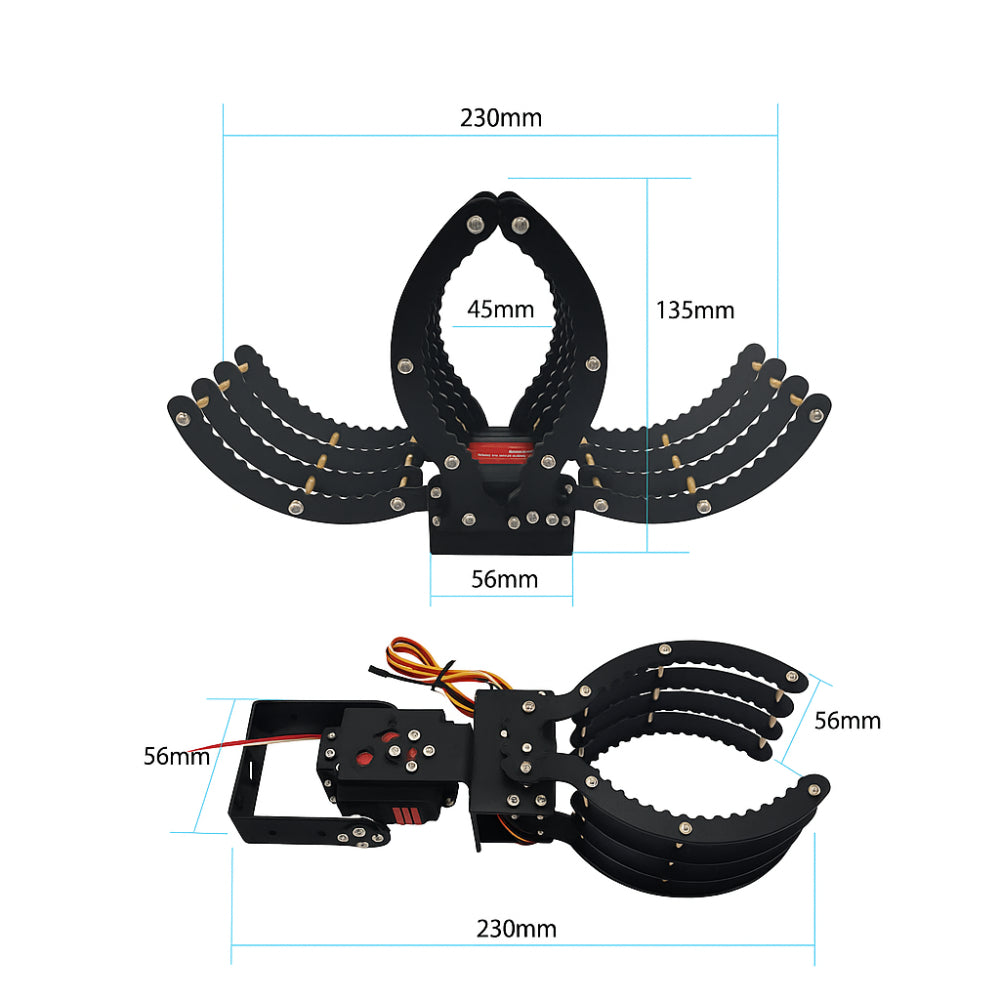

![Mechanical gripper 2DOF arm kit with aluminium frame]()

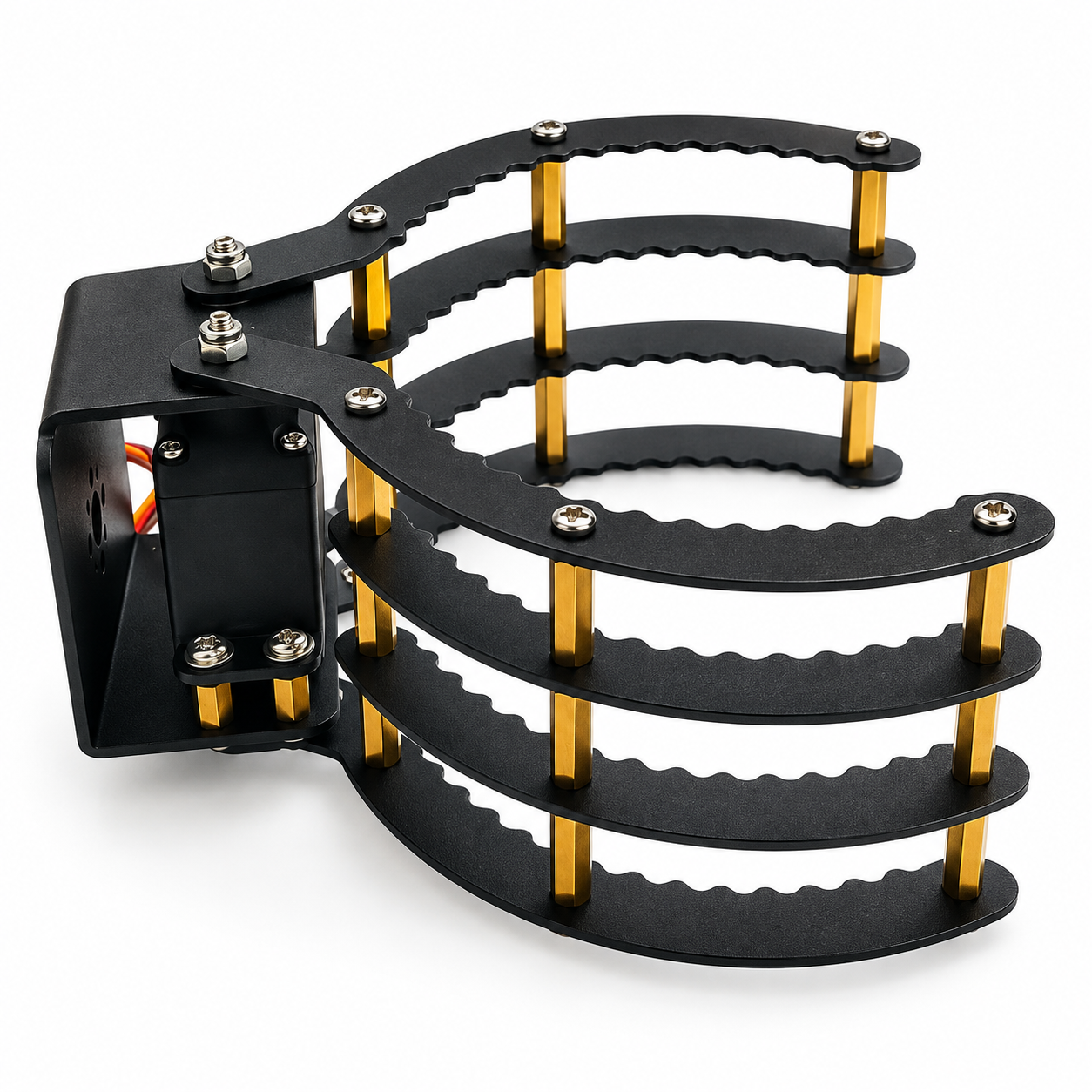

![Robotic Gripper Arm Front View]()
![Robotic Gripper Arm Side View]()

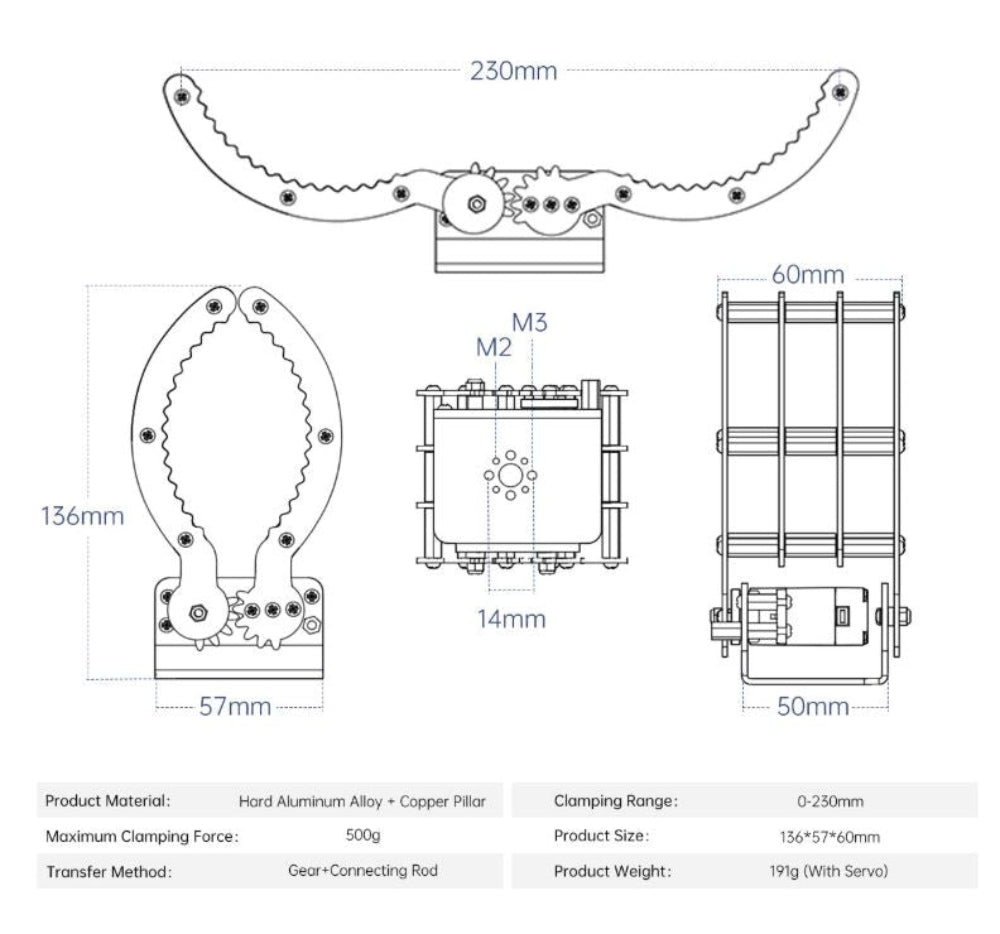

![drawing]()
![Mechanical gripper 2DOF arm kit with aluminium frame]()
![Robotic Gripper Arm Front View]()
![Robotic Gripper Arm Side View]()
![drawing]()
The gripper uses a gear and connecting rod transmission mechanism to control the opening and closing of both jaws. Its wide 0–230mm clamping range allows it to grip objects of different sizes and shapes.
With a maximum clamping force of approximately 500g, this mechanical claw is suitable for pick-and-place robots, robotic manipulators, educational robotics and prototype automation systems.
-20%
Mechanical Claw Robot Arm Gripper Robot Calw With Servo
Available:In Stock
- Product SKU: LGRO020
₹ 3,999
₹ 4,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Aluminum Alloy Servo Mechanical Gripper Robotic Claw – 0–230mm
The Aluminum Alloy Servo Mechanical Gripper Robotic Claw is designed for robotic arms, automation systems, STEM projects and DIY robotics applications. It features a strong aluminum alloy construction with copper support pillars for improved durability and mechanical stability.The gripper uses a gear and connecting rod transmission mechanism to control the opening and closing of both jaws. Its wide 0–230mm clamping range allows it to grip objects of different sizes and shapes.
With a maximum clamping force of approximately 500g, this mechanical claw is suitable for pick-and-place robots, robotic manipulators, educational robotics and prototype automation systems.
Features
- Heavy-duty aluminum alloy robotic gripper
- Servo-operated mechanical claw mechanism
- Gear and connecting rod transmission system
- Wide 0–230mm clamping range
- Approx. 500g maximum clamping force
- Both jaws open and close simultaneously
- Curved inner gripping surface for improved holding
- Strong copper support pillars
- Compact and durable mechanical construction
- Suitable for robotic arm and automation projects
- Ideal for Arduino, ESP32 and Raspberry Pi robotics
- Suitable for STEM and educational robotics projects
Technical Details
- Item Type: Mechanical Servo Gripper / Robotic Claw
- Material: Hard Aluminum Alloy + Copper Pillars
- Transfer Method: Gear + Connecting Rod
- Clamping Range: 0–230mm
- Maximum Clamping Force: Approx. 500g
- Product Size: 136 × 57 × 60mm
- Maximum Opening Width: 230mm
- Body Height: 136mm
- Base Width: 57mm
- Product Depth: 60mm
- Lower Body Width: 50mm

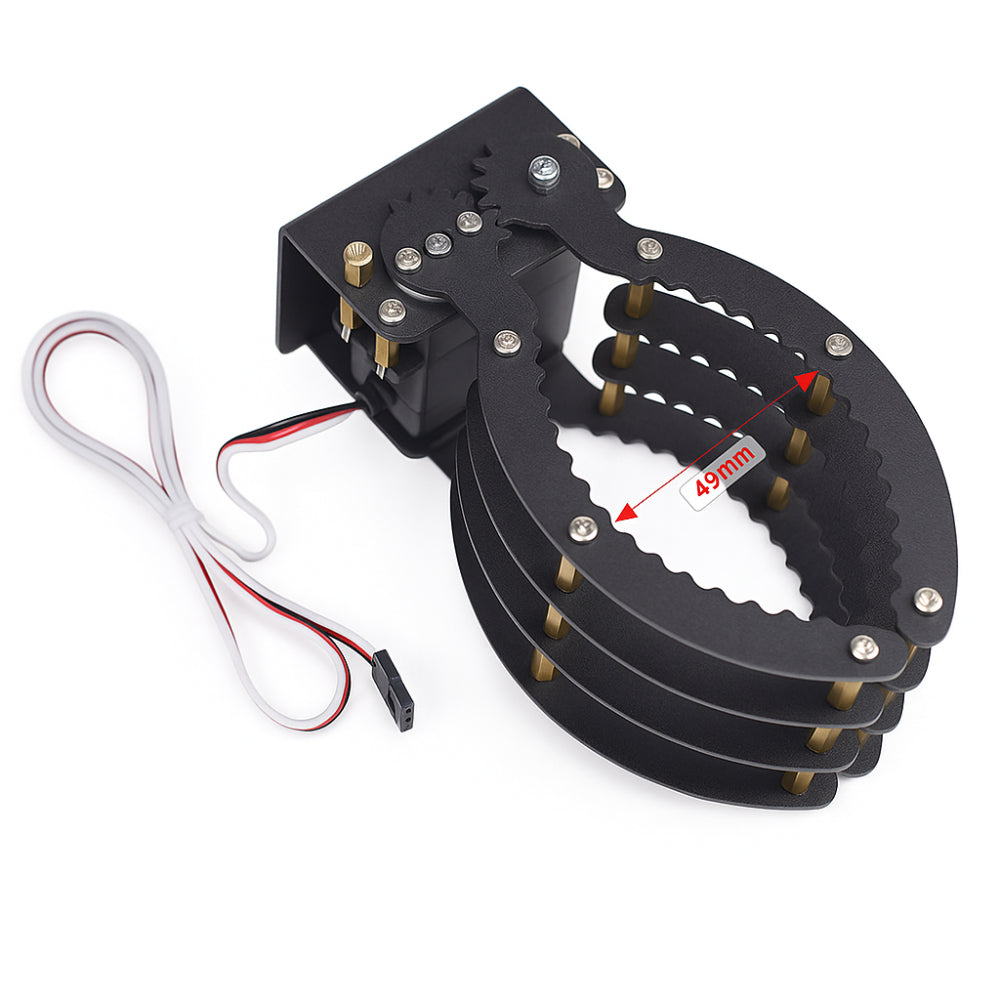

- Internal Dimension Shown: 49mm
- Product Weight: Approx. 191g with Servo
- Mounting Hardware: M2 / M3
- Drive Type: Servo Motor
Working Principle
- The servo motor drives the internal gear mechanism.
- The gear transfers motion through the connecting rod mechanism.
- Both gripper jaws move simultaneously during opening and closing.
- Servo rotation in one direction closes the jaws to grip an object.
- Servo rotation in the opposite direction opens the jaws to release the object.
- The curved jaw profile helps provide a secure grip on different object shapes.
Applications
- Robotic arm projects
- Pick-and-place robots
- Object gripping mechanisms
- DIY robotics projects
- STEM educational projects
- Arduino-based robotic systems
- ESP32 robotic projects
- Raspberry Pi robotics
- Prototype automation systems
- Robotic manipulators
- Material handling experiments
Physical Attributes
- Product Size: 136 × 57 × 60mm
- Weight: Approx. 182g with Servo
- Material: Hard Aluminum Alloy + Copper Pillars
- Maximum Opening Width: 230mm
Package Includes
- 1 × Aluminum Alloy Servo Mechanical Gripper Robotic Claw Assembly
