12 DOF Spider Robot Aluminium Robot Kit Four Leg Educational Toys (Silver)

12 DOF Quadruped Beast Robot Metal Bracket Kit (Without Servo)

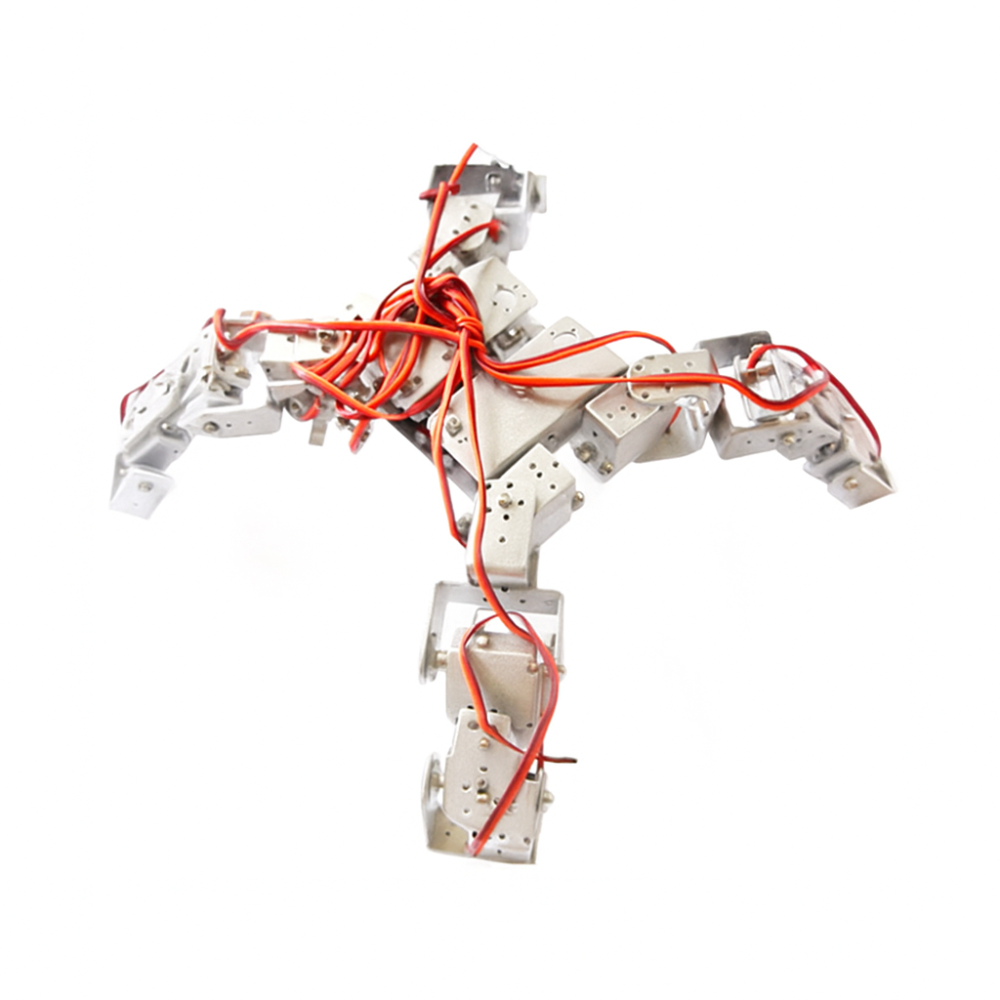

The robot Beast features 12 degrees of freedom, with each leg having 3 servos, allowing it to move forward, turn, and even perform dynamic actions such as dancing.

Designed for creative builders, this quadruped robot offers limitless possibilities — as long as you are willing to explore and program its capabilities, everything is at your fingertips.

Earlier versions of quadruped robots relied on standard servo trays that bore the full weight of the robot, leading to instability, vibration, and mechanical stress that could easily damage the servo motors. The updated design adopts a flat fixing mechanism with integrated bearings, eliminating these issues and providing a much more stable and durable structure.

The frame is made from 60-series 2mm thick aluminum alloy, ensuring high strength, light weight, and excellent precision. The result is a robust, efficient, and reliable platform suitable for robotics enthusiasts, researchers, and advanced DIY makers.

The kit is supplied without servo motors or servo arms. For optimal performance, it is recommended to use MG996R servos for joints that bear larger loads and MG995 servos for joints that experience lighter force.

Features

• Color: Black/Silver
• Constructed using high-quality 2mm thick aluminum alloy
• Strong, lightweight, and corrosion-resistant frame
• Equipped with advanced flat fixing and bearing system for stability
• Improved mechanical strength and reduced vibration
• Cost-effective and easy to assemble
• Ideal for robotics competitions, humanoid robot projects, and hobbyists

Remarks

• Battery not included with the kit
• Servo motors are not included in the kit
• Servo controller is not included in the kit
• This is an unassembled DIY kit

Recommended Servo Setup

• Use MG996R servos for load-bearing joints
• Use MG995 servos for lighter joints

Notes

• Color (Silver or Black) will be shipped as per availability.

Physical Attributes

• Dimensions (H × W): 40 cm × 23 cm
• Material: 60-series aluminum alloy, 2mm thick
• Color Options: Black / Silver
• Weight: Lightweight and high rigidity design

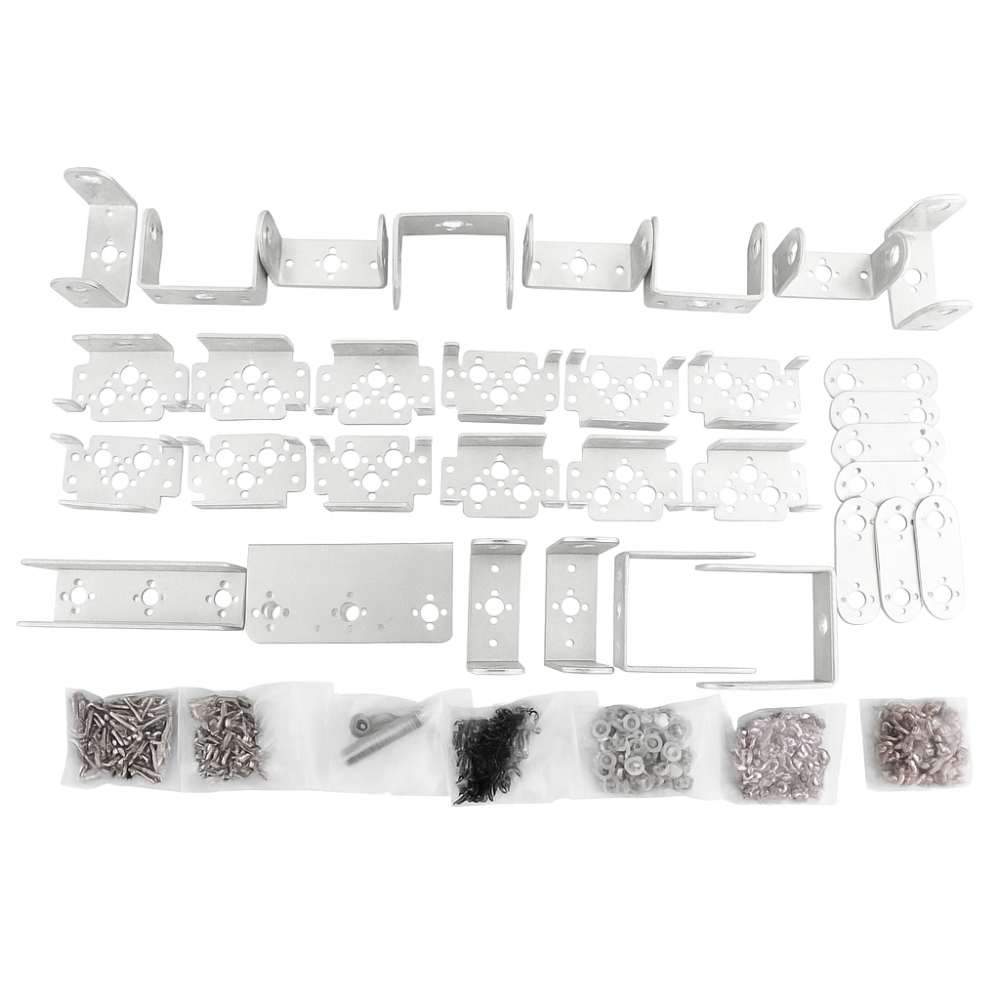

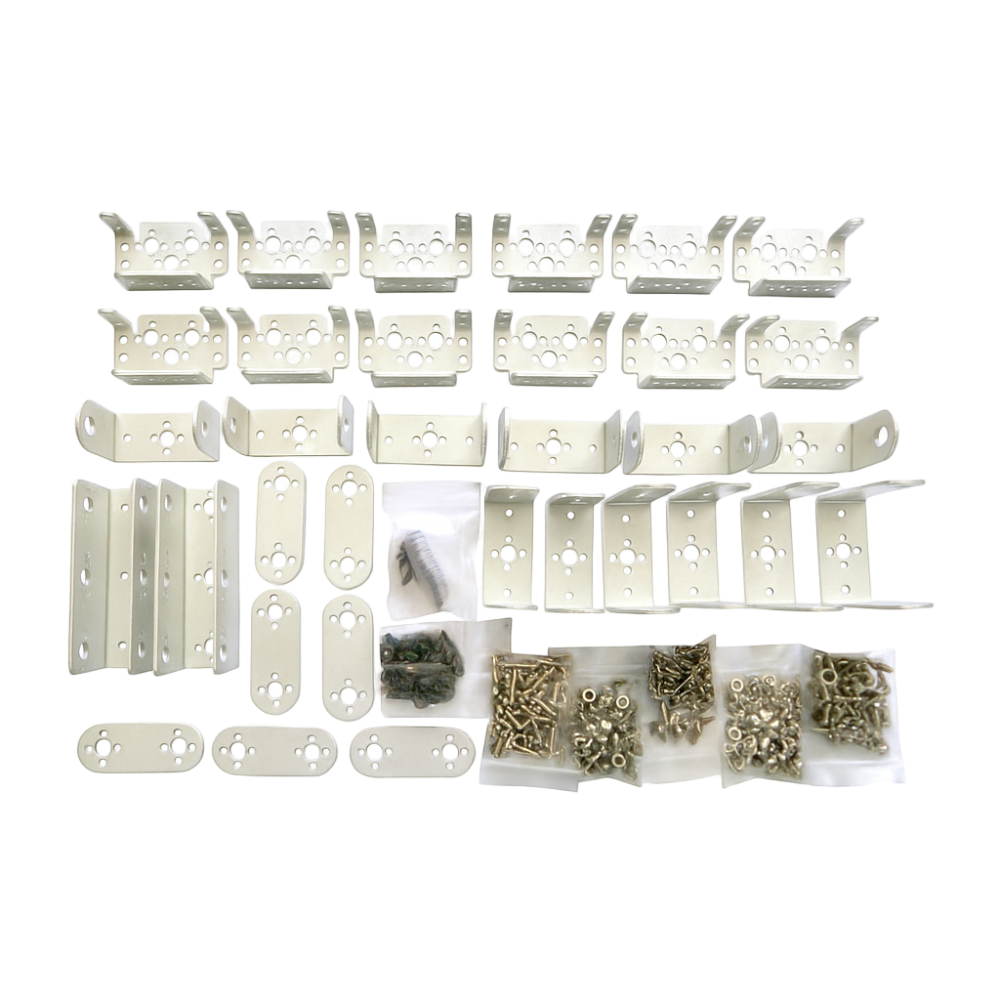

Package Includes

• 12 × Multi-functional Servo Bracket
• 4 × Long U-type Servo Bracket
• 8 × Short U-shaped Bracket
• 6 × Straight Holder Bracket
• 2 × U Beam Shaped Bracket
• 1 × Screw and Screw Cap Set
• 12 × Cup-type Radial Ball Bearings
