13 DOF DIY Biped Robot, Leg Robot Servo Motor Metal Bracket (NO Servo)

13 DOF Biped Humanoid Robot Frame (No Servo)

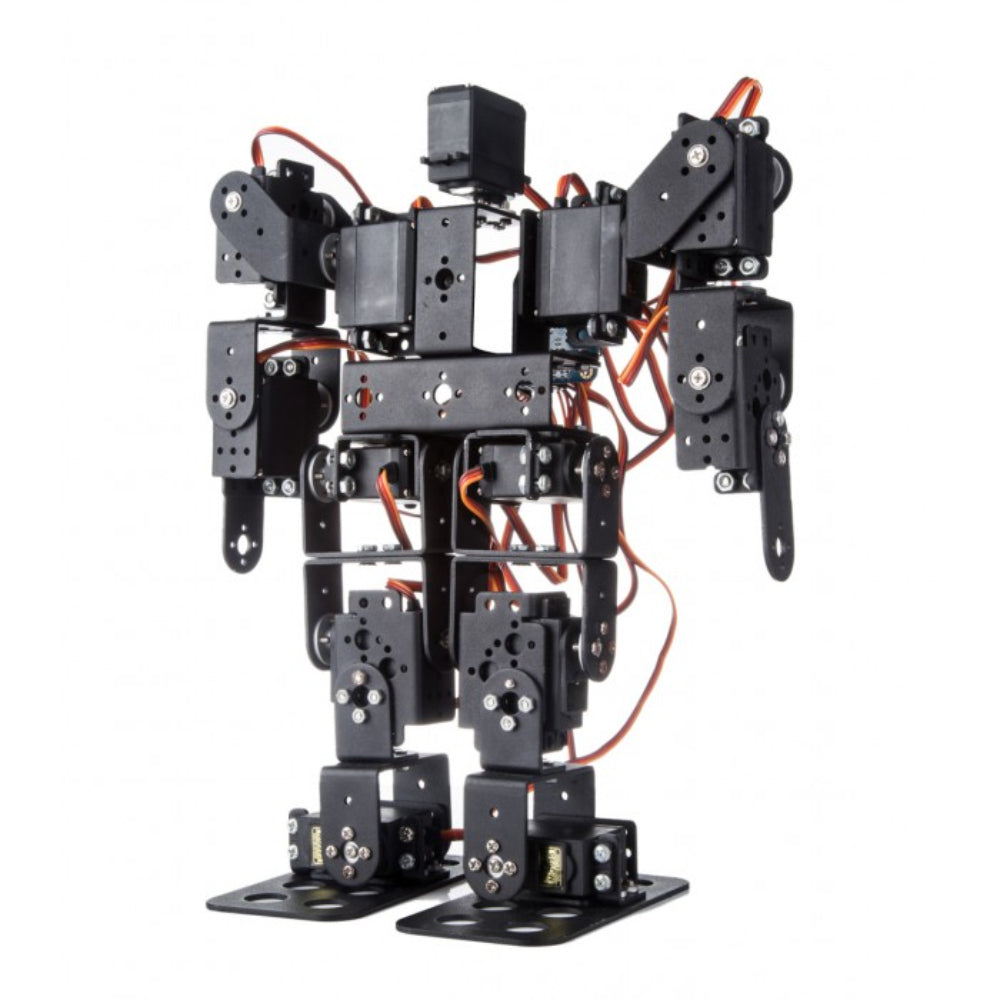

The 13 DOF Biped Humanoid Robot Frame is a precision-engineered aluminum structure designed to create advanced humanoid robots for research, education, and hobby projects. It provides 13 degrees of freedom to replicate human-like motion, enabling complex walking, balancing, and arm movements. Crafted from lightweight yet strong aluminum alloy, the frame offers both stability and flexibility, making it ideal for robotics competitions, STEM learning, and humanoid development experiments.

This kit includes multiple pre-drilled brackets, U-beams, and foot plates for versatile assembly. It allows easy mounting of standard servo motors (not included), enabling users to design fully articulated biped robots with programmable control systems. The modular design supports servo configurations for arms, legs, and head movements, ensuring customizable motion setups.

Note: Servo motors, battery, and servo controller are not included and must be purchased separately according to project requirements.

Specifications

• Model Number: 13 Degree of Freedom (DOF)
• Material: Aluminum Alloy
• Color: Black / Silver (as per availability)
• Dimensions: 40 cm (Height) × 23 cm (Width)
• Type: DIY Biped Humanoid Robot Frame

Features

• Supports 13 degrees of freedom for full humanoid motion
• Made from high-quality aluminum for strength and lightweight design
• Suitable for robotics competitions, educational labs, and STEM research
• Pre-drilled mounting holes for standard servo motors
• Precision laser-cut parts ensure perfect alignment and fit
• Ideal for humanoid leg and arm motion simulations

13 Degrees of Freedom Configuration

• 1 DOF – Head movement
• 4 DOF – Arm articulation
• 2 DOF – Shoulder joints
• 2 DOF – Hip movement
• 2 DOF – Leg rotation
• 2 DOF – Foot balance and tilt

Remarks

• Battery not included in the kit
• Servo motors not included
• Servo controller not included
• This is an unassembled DIY mechanical frame kit

Physical Attributes

• Dimensions (L × W): 40 × 23 cm
• Material: Anodized Aluminum
• Weight: 841 g (approx.)
• Color: Black / Silver
• Finish: Smooth, corrosion-resistant coating

Notes

• Color may vary depending on availability.
• Compatible with MG995 / MG996R / DS3218-type servo motors.
• Basic assembly tools required (not included).

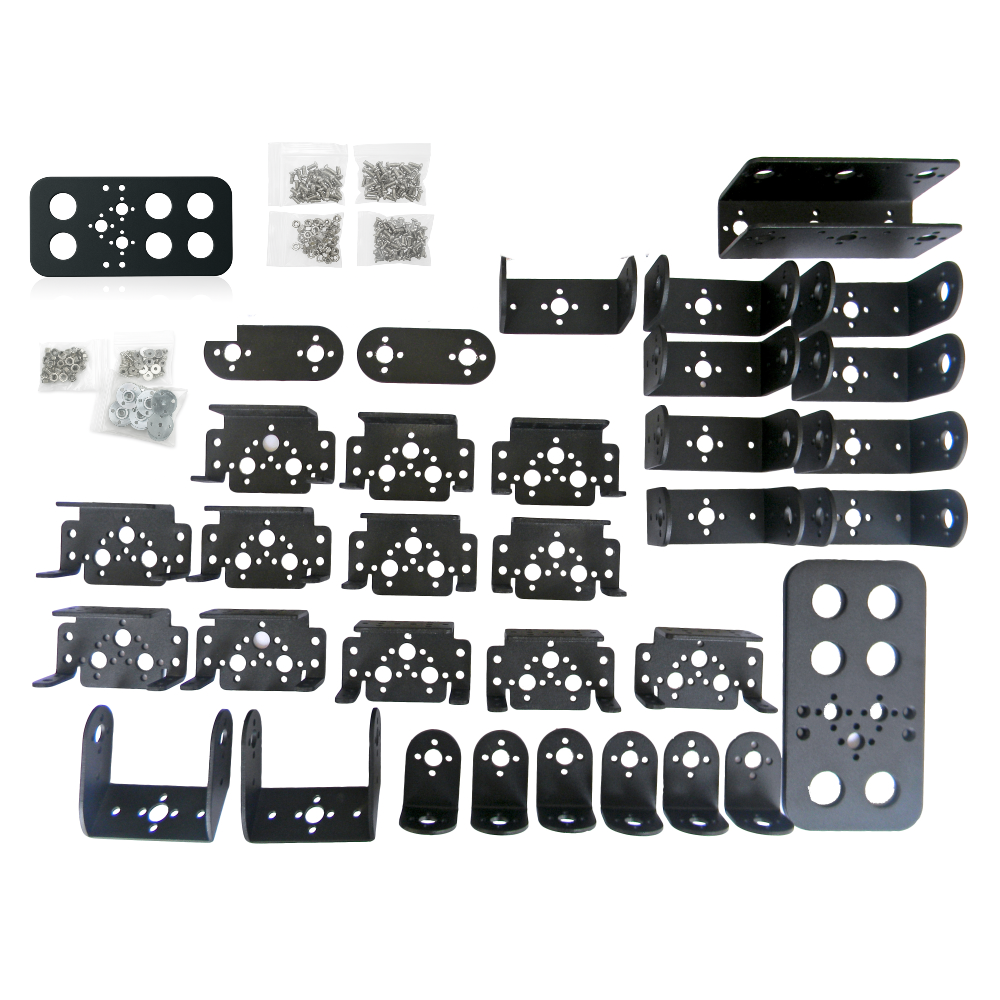

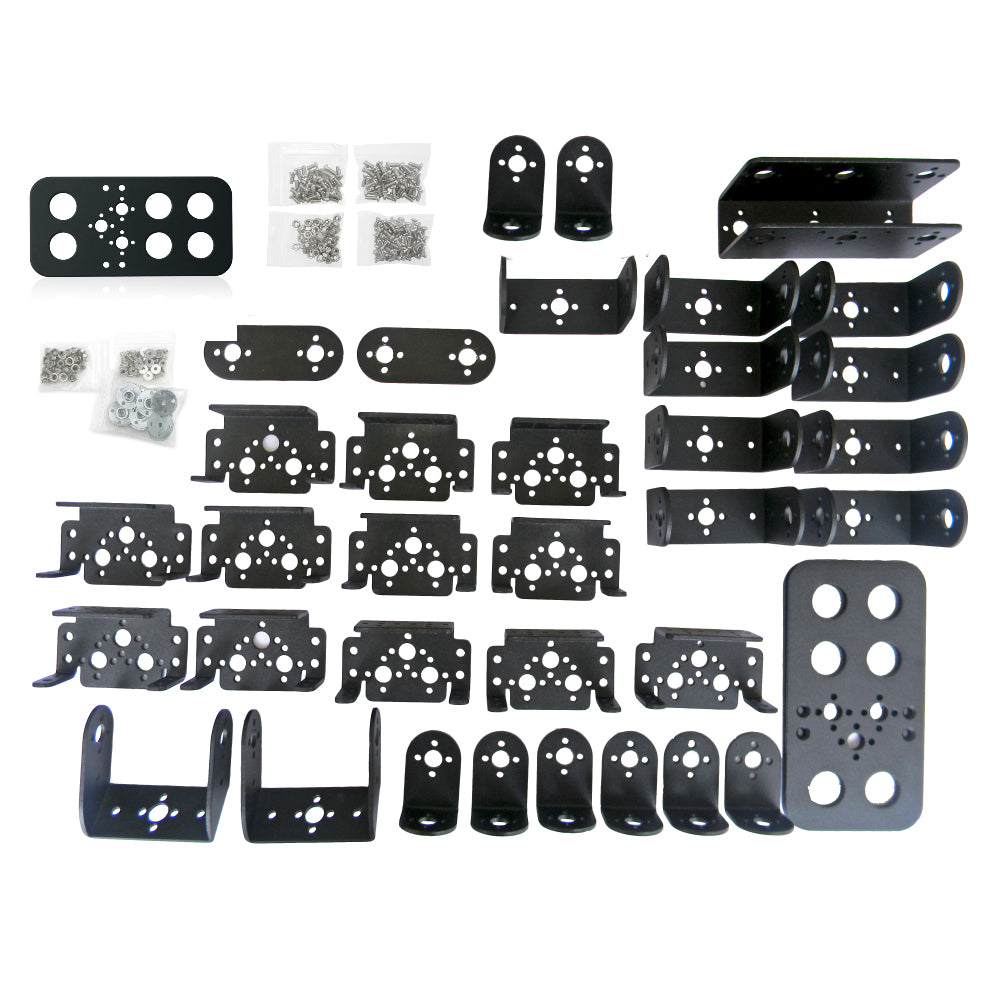

Package Includes

• 12 × Multifunctional Brackets
• 6 × Long U-shaped Brackets
• 3 × Short U-shaped Brackets
• 2 × Inclined U-shaped Brackets
• 8 × L-shaped Brackets
• 1 × U Beam Support
• 2 × Robot Bigfoot Plates
• 2 × One-servo Brackets
• 10 × Bearings
• 1 × Screw Set
