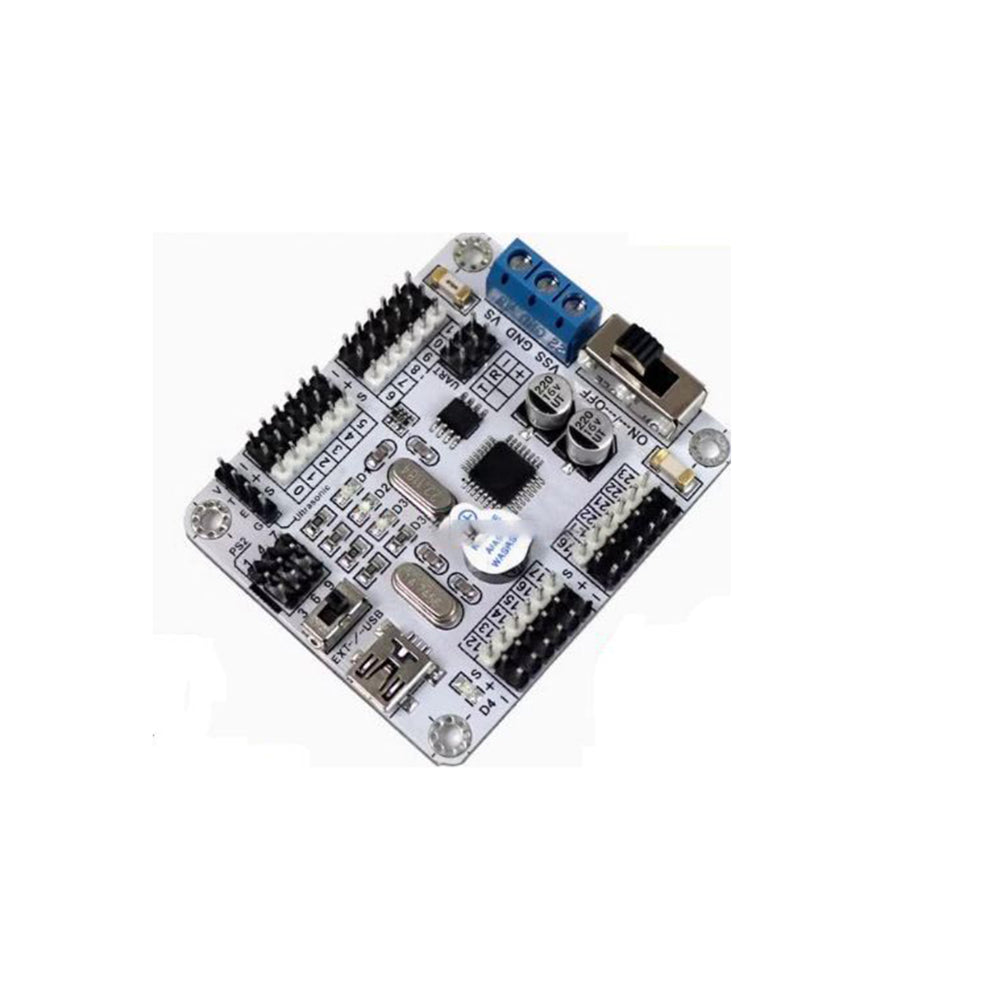

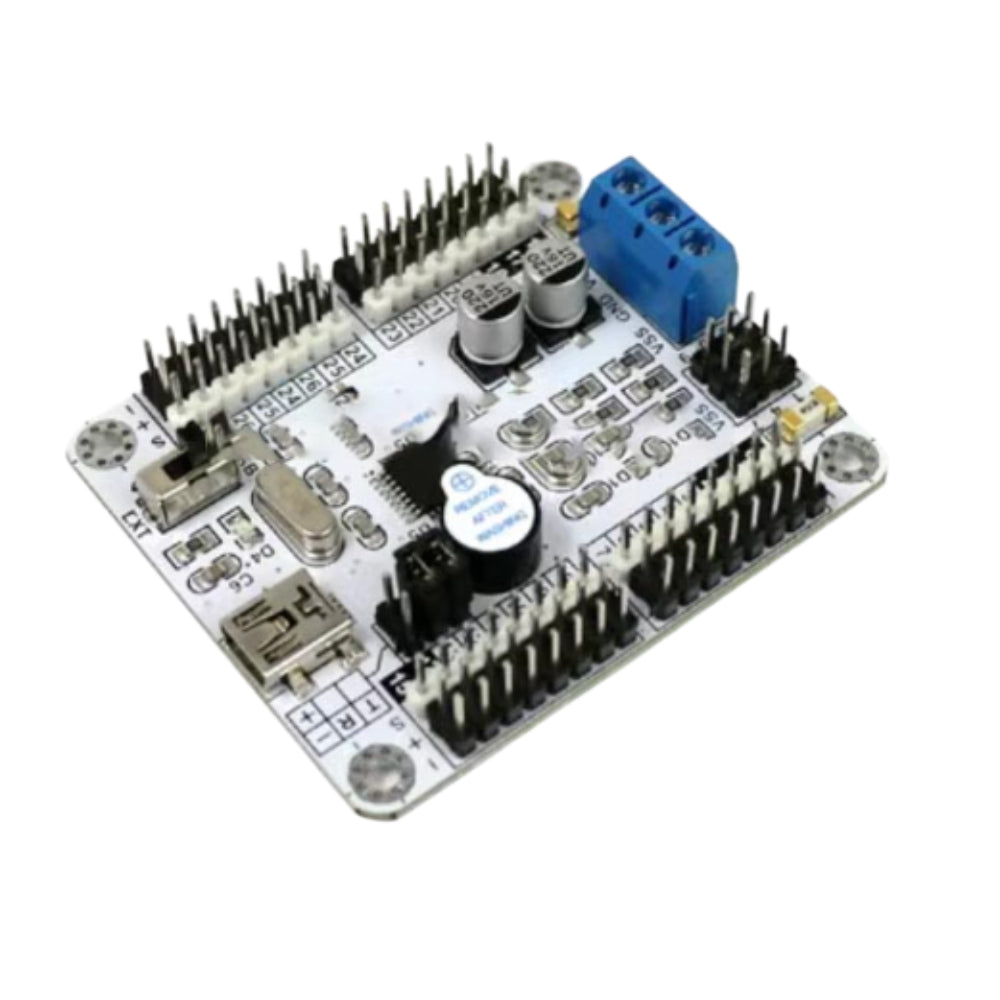

24 Channel Digital Servo Controller with mini USB

24 Channel Servo Motor Controller Board, Support PS2 WIFI with USB Cable

Available:In Stock

Product SKU: LGRO160

Wishlist

₹ 3,999 ~~₹ 4,999~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Controls 24 servos
Mini USB connection
PS2 handle support
Low-voltage and over-current protection
Signal isolation protection
External MP3/Bluetooth support
9600 baud communication

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us scrmore details Click here

Warehouse Details 33K-189

Specification

Description

24 Channel Digital Servo Controller

The 24 Channel Digital Servo Controller is designed with a low voltage alarm and a simple wiring structure, ensuring ease of use and reliability. It features a built-in power switch and a high-performance CPU, making it highly efficient for various applications. With support for a wireless handle and 16M high-capacity memory, it can store up to 230 action groups, providing extensive functionality. Additionally, it is compatible with Bluetooth/MP3 modules and supports TTL serial communication for seamless integration.

All 24 servo interfaces come with overcurrent protection, minimizing the risk of damage due to a locked rotor. The controller utilizes a high-performance STM32 single-chip microcomputer with an ARM Cortex-M3 core, enabling not only precise servo movement control but also speed adjustment. To further enhance usability, PC software is provided, supporting online graphical debugging, allowing users to control all 24 servo channels simultaneously.

Technical Details

Weight: 54g
Dimensions: 52mm × 61.5mm
Mounting Hole Position: 44.5mm × 53.5mm
Communication Interface: Mini USB
Control Channels: 24
Remote Control Handle: Supports external
Bluetooth Module: Supports extension
MP3 Module: Supports extension
WIFI Module: Supports extension
Wireless Module: Supports extension
Ultrasonic Module: Supports extension
Angle Detection: Support
Power Switch: On-board
Voltage Alarm: Support
Secondary Development: Support
Serial Communication: Support
Local Storage: Support
Run Offline: Support

Features

Supports external PS remote control handle for calling actions
On-board angle sensor with detection mode and auto execution
Supports ultrasonic module for obstacle distance detection
Supports Bluetooth, WiFi, and MP3 module extensions
Supports secondary development with reserved serial interface
Automatic low-voltage detection, alarm, and action storage
Multiple voltage regulation, signal isolation, and overload protection
Includes detailed electronic information and video tutorials

Interface Diagram

Drawing

Power Supply connection

power supply

Secondary Development

Development

Detailed Display:

Applications :

Robotics: Controls multiple servos in complex robotic systems like arms, legs, and drones.
Automation: Used in automated systems for precise control of servo motors in machines and devices.
Modeling and Simulation: Ideal for controlling servos in model vehicles, robots, or animations.
Prototyping: Facilitates the rapid prototyping of robotic projects requiring multi-axis control.
3D Printing: Can be used in 3D printers for controlling multiple extruders or movable parts.
STEM Education: A valuable tool for teaching students about electronics, robotics, and servo control.
Industrial Applications: Used in manufacturing, especially in systems needing precise movement or positioning.
Entertainment: Can control servos in animatronics for theme parks, film sets, or robotic displays.
