100mm Aluminium Mecanum Wheel Pair Left & Right 6mm Shaft Black/Silver
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-20%

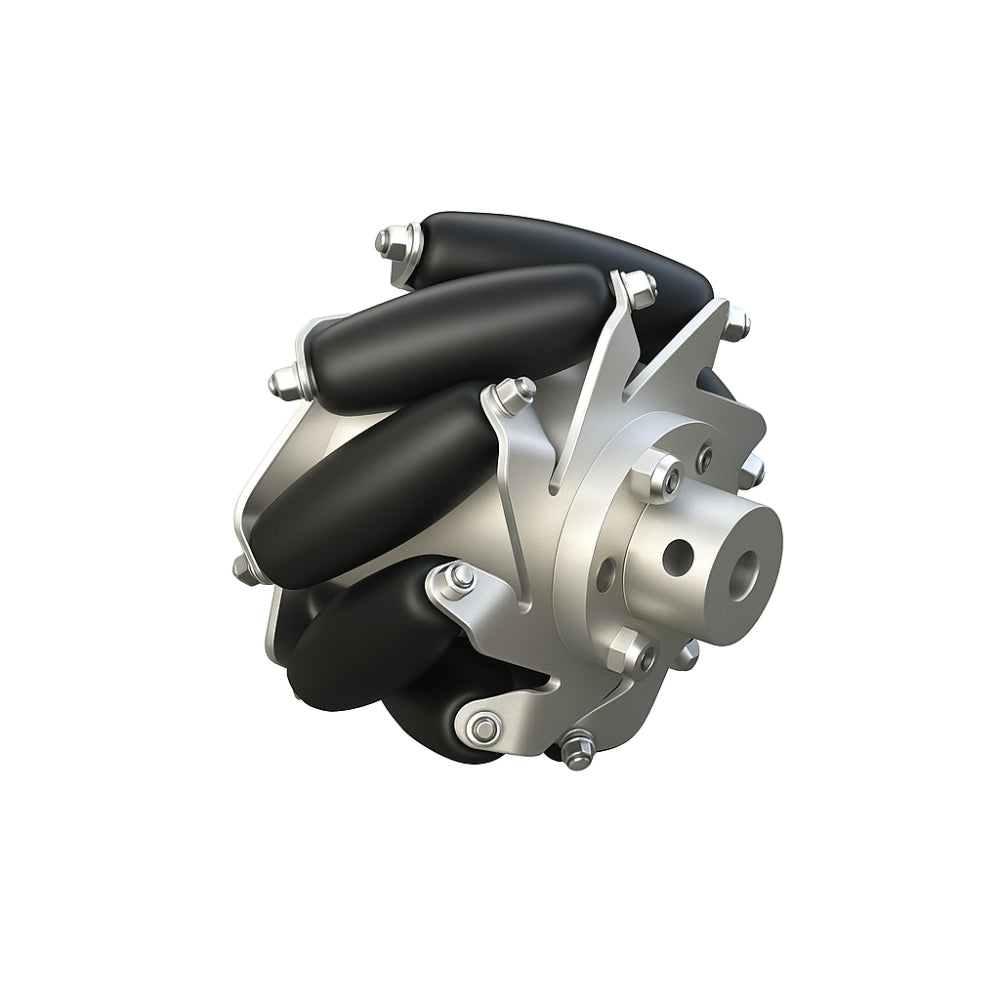

100mm mecanum wheel for omnidirectional robots
100mm mecanum wheel 6mm shaft

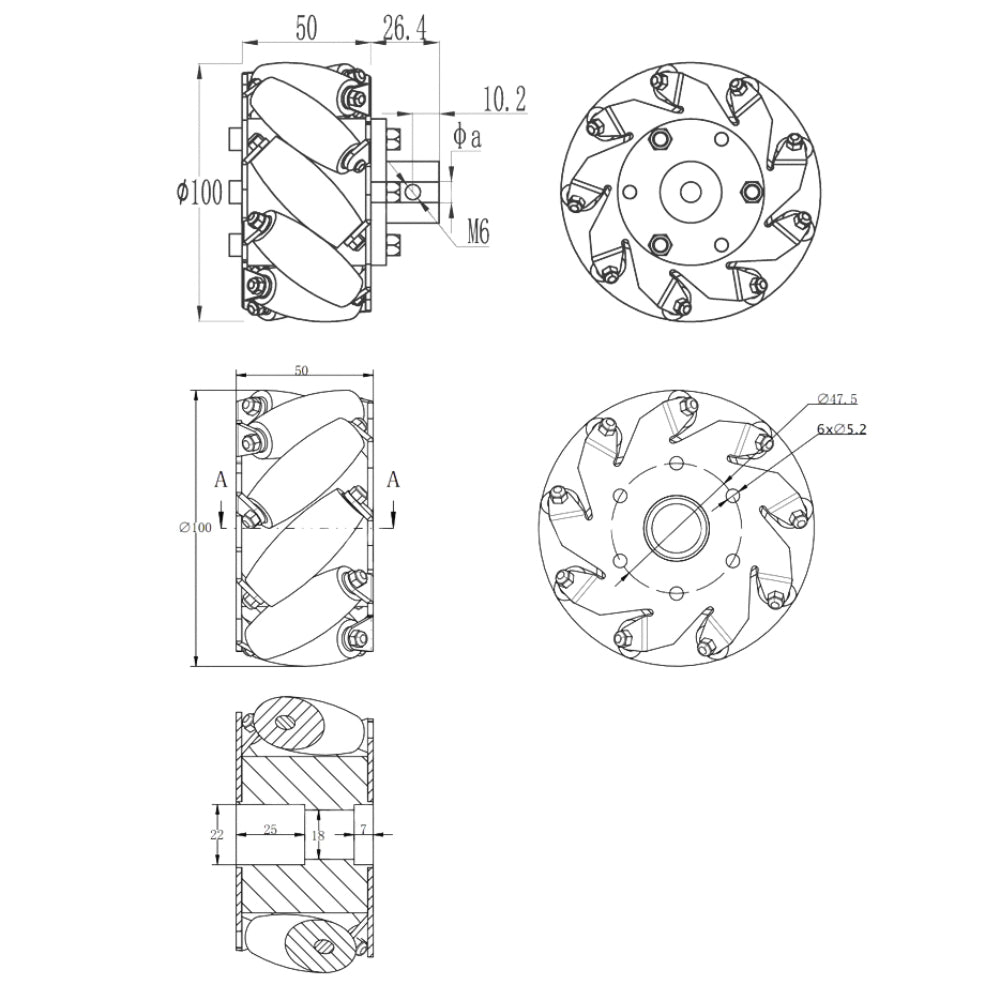

Aluminium mecanum wheel left and right pair_grawing1
100mm mecanum wheel for omnidirectional robots
100mm mecanum wheel 6mm shaft
Aluminium mecanum wheel left and right pair_grawing1

100mm Aluminium Mecanum Wheel Pair Left & Right 6mm Shaft Black/Silver

Available:In Stock
  • Product SKU: LGRO030
Wishlist
₹ 3,999 ₹ 4,999
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Omnidirectional 100mm wheels
  • Durable aluminium build
  • Fits 6mm motor shafts
  • Left & right wheel pair
  • Black and silver finish
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
24 D - 118
Secure

Specification

Description

Mecanum Wheel Omnidirectional Aluminium 100mm For Motor Shaft 6mm Left and Right Pair Black and Silver

The Mecanum Wheel 100mm (Left & Right Pair) is specially designed for robotics applications where omnidirectional movement is required. Made with a strong aluminium alloy frame and durable black rubber rollers, these wheels provide enhanced grip, precision, and multi-directional motion, including sideways, diagonal, and rotation in place.

This version supports 6mm motor shafts, making it compatible with more powerful gear motors and robotic drive systems.

Technical Details

  • Roller Angle: 45°
  • Outer Diameter (OD): 100 mm
  • Inner Diameter (ID): 18 mm
  • Wheel Width: 54 mm
  • Roller Length: 47.5 mm
  • Roller Type: Bearing
  • Load Capacity: 10–12 Kg per wheel
  • Roller Material: Nylon + TPR
  • Spacer Material: Nylon
  • No. of Plates: 2
  • No. of Rollers: 9 per wheel
  • Plate Thickness: 2.5 mm
  • Mounting Hole PCD: 47.5 mm
  • Mounting Hole Diameter: 6 mm (M5 compatible)
  • Nut Type: Hex, Nyloc
  • Wheel Set:1 Left + 1 Right
  • Weight (pair):750g

Main Features

  • 360° omnidirectional movement with high maneuverability
  • Strong aluminium alloy body with corrosion resistance
  • Soft rubber rollers set at 45° angle
  • Compatible with 8mm motor shafts
  • Includes Left and Right wheel for differential movement

Typical Applications

  • Robotic platforms with lateral motion
  • Warehouse AGVs and delivery bots
  • Educational and research robots
  • Autonomous mobile vehicles
  • Robotics competitions and industrial prototypes

Package Includes

  • 1 x Left Mecanum Wheel (Black and Silver, 100mm)
  • 1 x Right Mecanum Wheel (Black and Silver, 100mm)
