Servo Mount Robot Mechanical Arm Brackets For MG995 MG996 Servo Motor
![Metal servo mount bracket compatible with MG995 and MG996 servo motors]()
![Robot mechanical arm servo bracket with mounting holes]()
![Heavy-duty servo motor bracket for MG995 MG996 robotics]()
![Metal servo mount bracket compatible with MG995 and MG996 servo motors]()
![Robot mechanical arm servo bracket with mounting holes]()
![Heavy-duty servo motor bracket for MG995 MG996 robotics]()
The U-shaped design lets you easily build 2DOF or 3DOF robotic joints by combining two or more brackets together. It is ideal for DIY robotics, school projects, competition robots and automation prototypes.
-20%
Servo Mount Robot Mechanical Arm Brackets For MG995 MG996 Servo Motor
Available:In Stock
- Product SKU: LGRO111
₹ 119
₹ 149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Servo Mount Robot Mechanical Arm Bracket for MG995 / MG996 Servo Motor

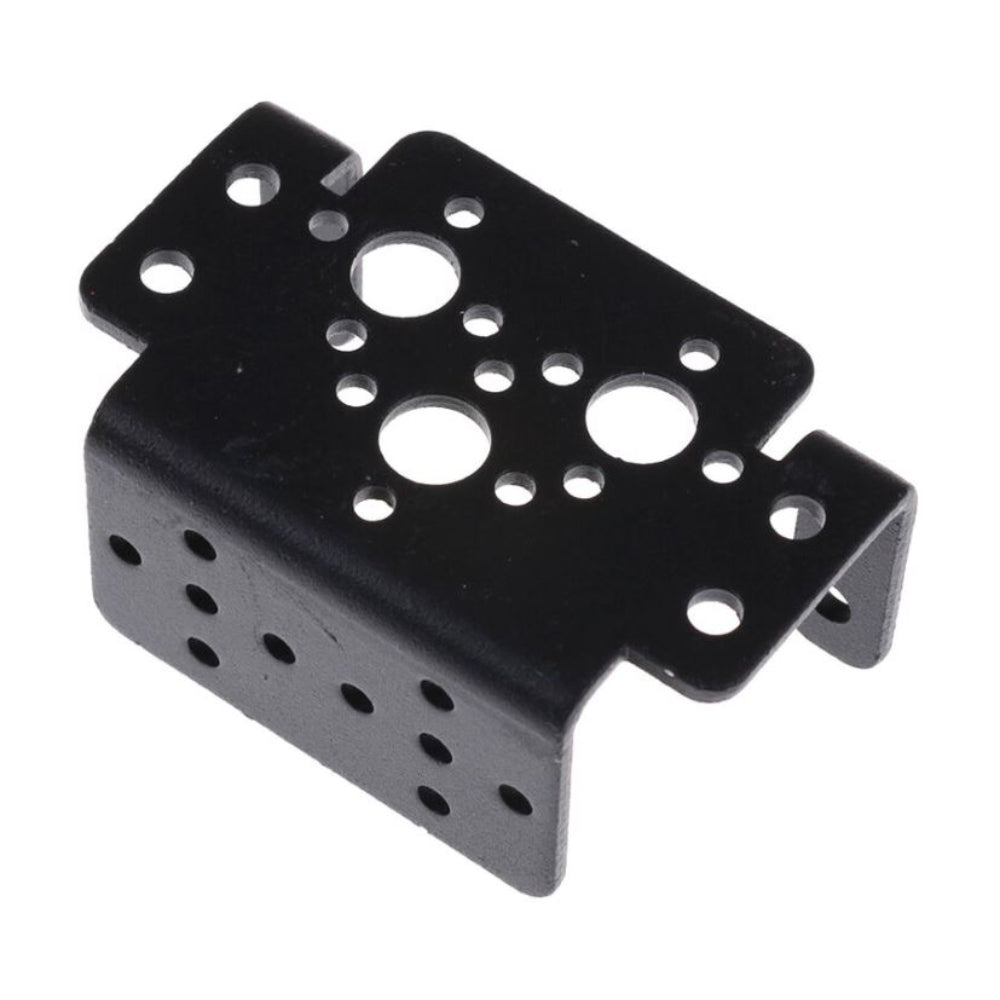

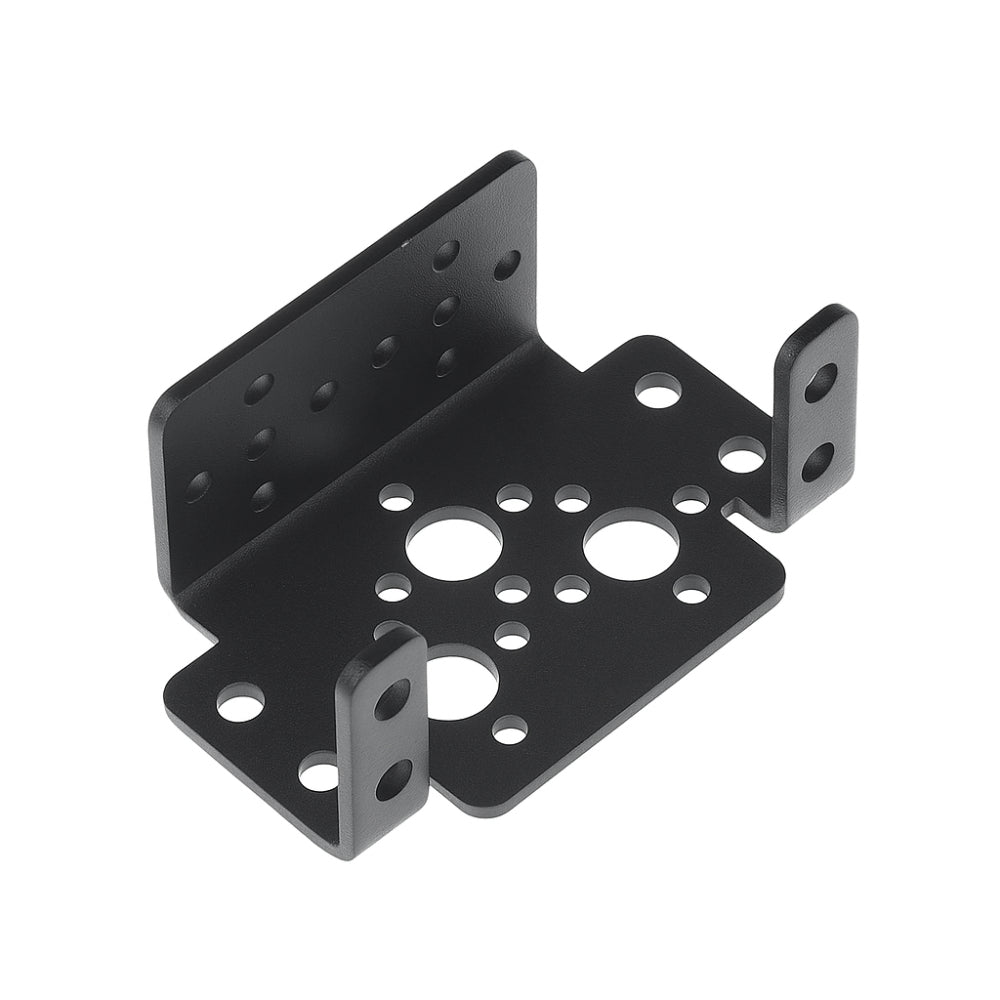

The Servo Mount Robot Mechanical Arm Bracket is designed to securely hold MG995, MG996 and other standard 40 × 20 mm servo motors in robotic arms, pan–tilt systems and smart robot chassis. Made from strong metal with a black coated finish, this bracket provides a rigid mounting frame while offering multiple hole positions for links, sensors and other mechanical parts.The U-shaped design lets you easily build 2DOF or 3DOF robotic joints by combining two or more brackets together. It is ideal for DIY robotics, school projects, competition robots and automation prototypes.
Technical Details
- Compatible Servos: MG995, MG996 and standard 40 × 20 mm servo motors
- Material: Metal bracket (black coated)
- Bracket Style: U-shaped servo mounting frame

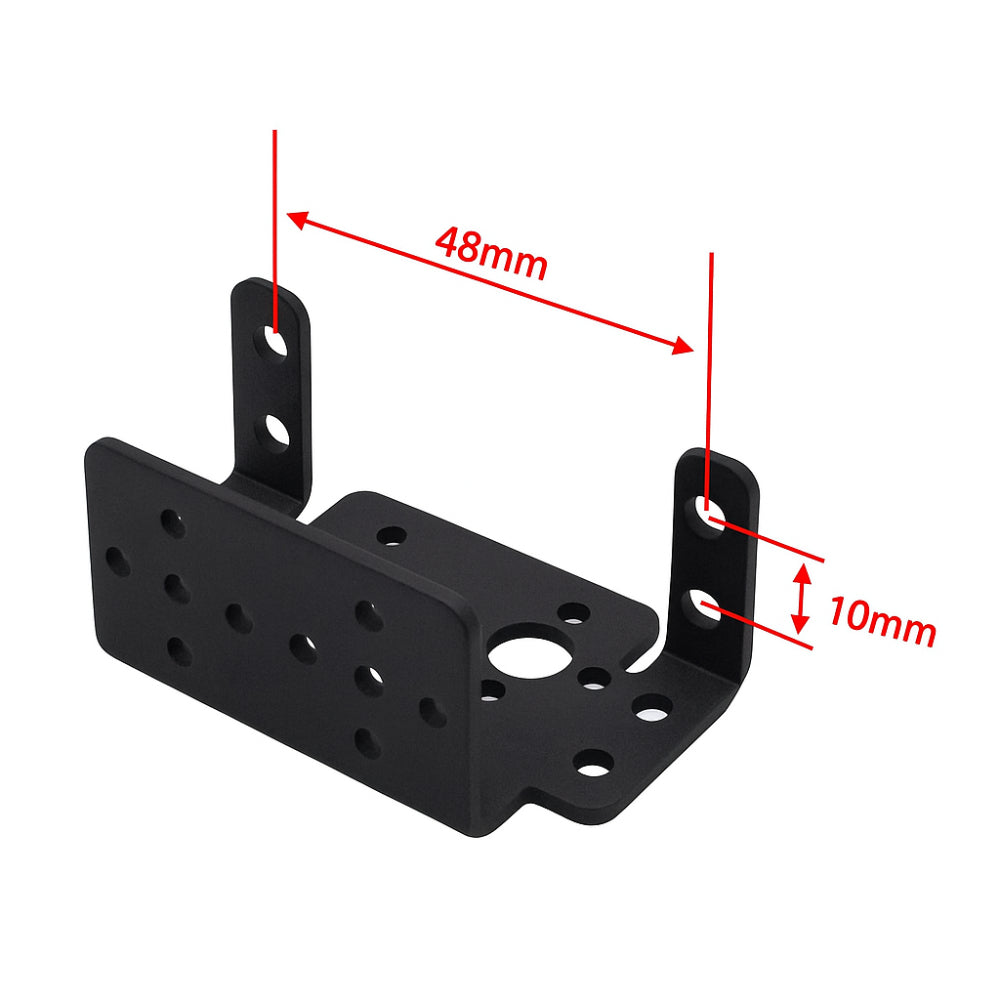

- Distance Between Side Plates: 48 mm (approx.)
- Vertical Hole Spacing on Side Plates: 10 mm (center to center)
- Side Plate Mounting Holes: Suited for M3 screws (typical)
- Base Plate: Multiple mounting holes for links, sensors or chassis fixing
- Finish: Black matte / powder-coated
- Mounting Hardware: Not included
Features
- Specifically designed for MG995 / MG996 high-torque servo motors
- Rigid U-shaped design for accurate and stable motion
- Multiple hole patterns for flexible linkage and sensor mounting
- Black coated metal body for strength and long service life
- Easy to assemble with standard M3 screws
- Perfect for building robotic arms, pan–tilt heads and servo joints
Applications
- Robotic arms and manipulators
- Pan–tilt camera or sensor mounts
- Humanoid and bionic robot joints
- STEM and educational robot kits
- DIY automation and servo-controlled mechanisms
Physical Attributes
- Bracket Type: U-shaped servo mount
- Side Plate Spacing: 48 mm (approx.)
- Side Plate Hole Spacing: 10 mm (approx.)
- Material: Metal, black coated
- Color: Black
- Suitable Screw Size: M3 (typical for servo mounting)
- Servo Compatibility: MG995 / MG996 and similar size servos
- Weight: 15g
Package Includes
- 1 × Servo Mount Robot Mechanical Arm Bracket (for MG995 / MG996 Servo Motor)
- Note: Servo motor and mounting screws are not included
