DC 3V-6V DC TT Double Shaft Copper Coil BO motor for Robotics Smart Car Gear Ratio 1:200 Advanced Version

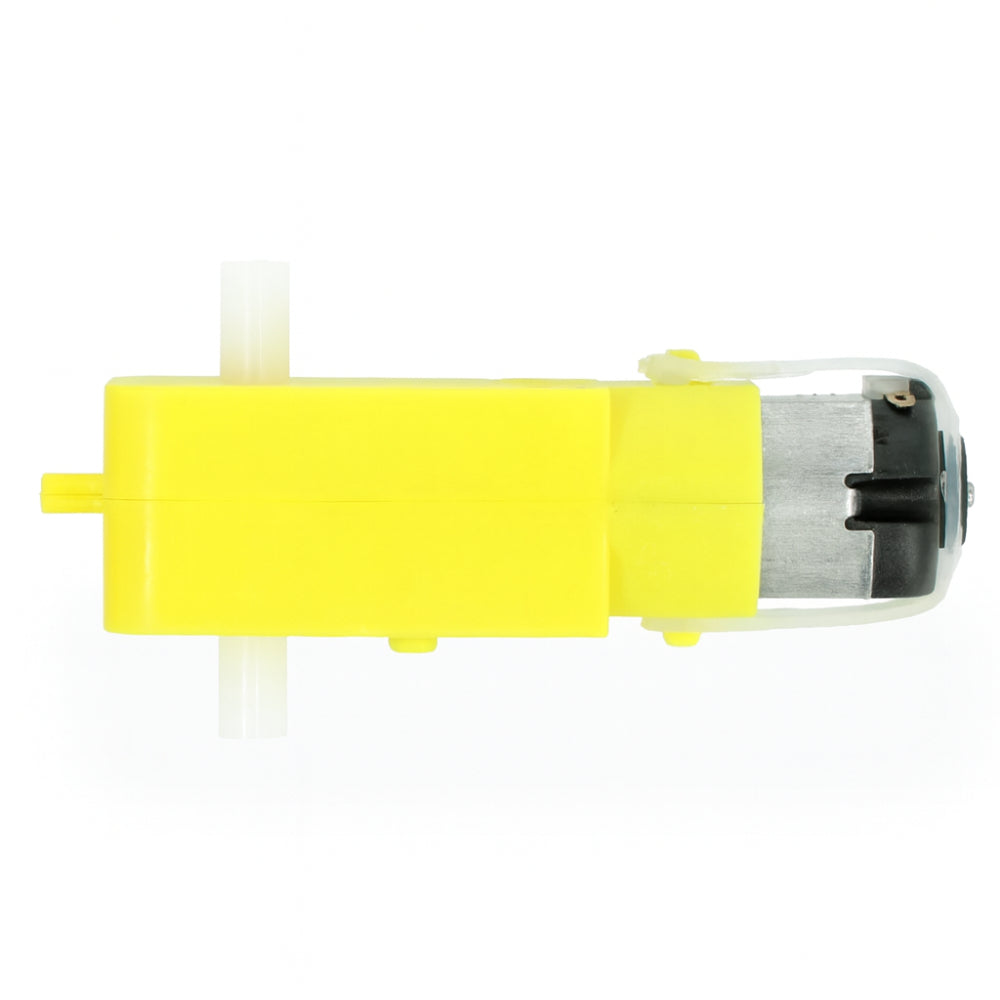

![TT double shaft BO motor 3V–6V copper coil with 1:200 gearbox]()

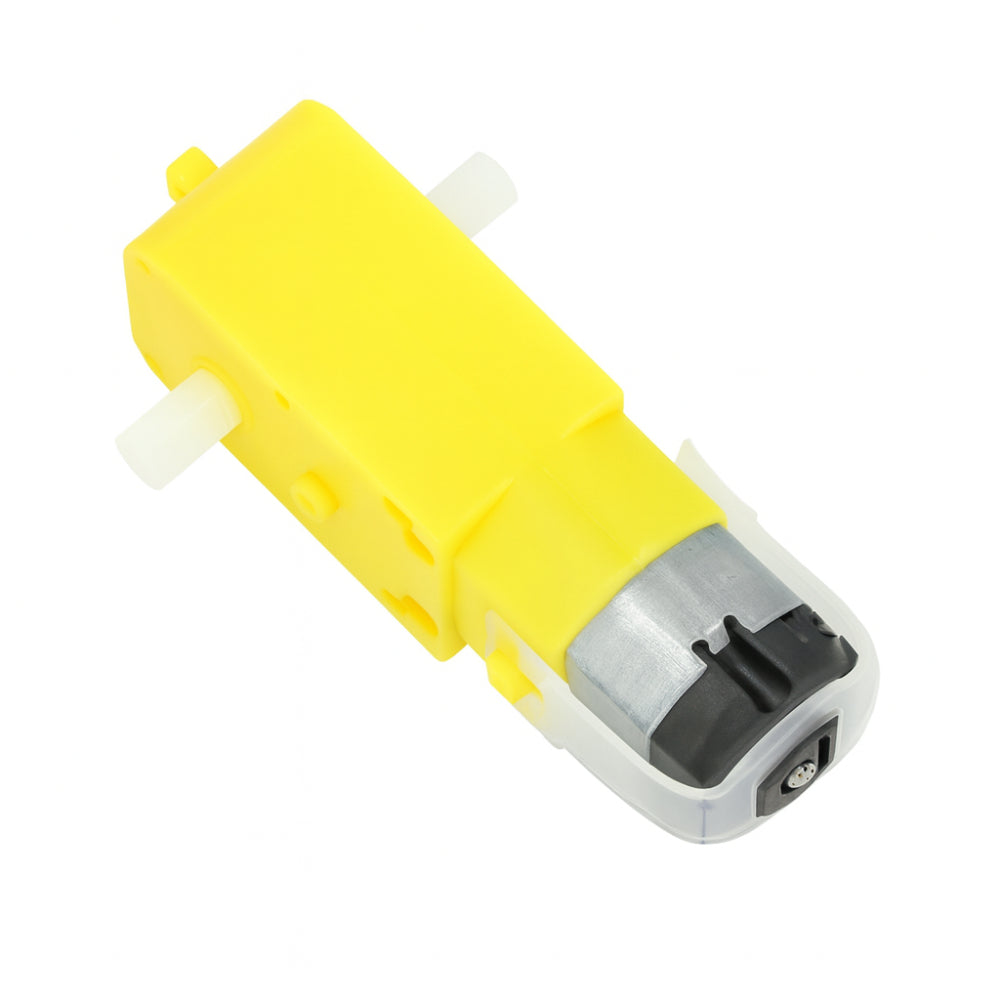

![TT BO motor dimensions diagram for robotics applications]()

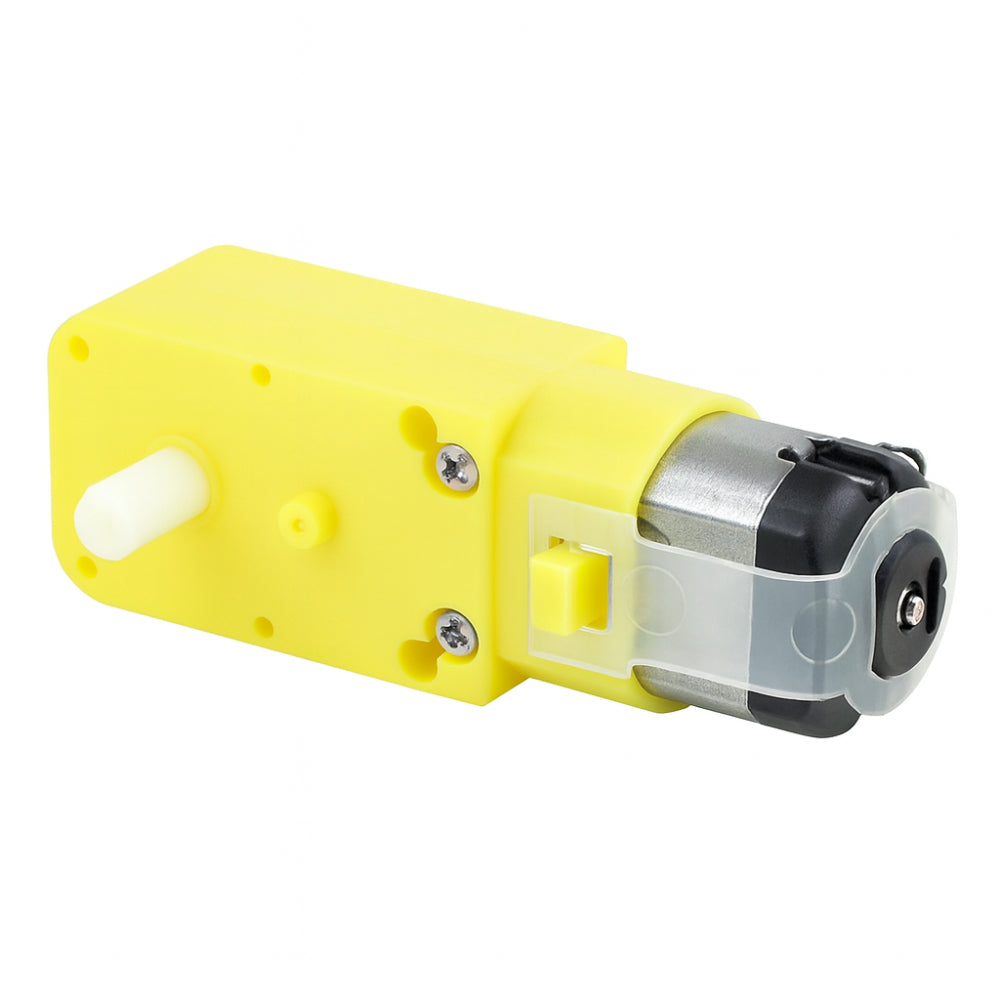

![Dual shaft TT motor yellow gearbox for smart car projects]()
![High torque TT BO motor for Arduino robot cars and DIY kits]()
![TT double shaft BO motor 3V–6V copper coil with 1:200 gearbox]()
![TT BO motor dimensions diagram for robotics applications]()
![Dual shaft TT motor yellow gearbox for smart car projects]()
![High torque TT BO motor for Arduino robot cars and DIY kits]()
Built with a copper coil motor, it offers superior efficiency, stronger torque, stable operation, and long service life. The 1:200 gear ratio provides powerful slow-speed rotational output, ideal for high-torque robotic movement and load-driven applications.
-14%
DC 3V-6V DC TT Double Shaft Copper Coil BO motor for Robotics Smart Car Gear Ratio 1:200 Advanced Version
Available:In Stock
- Product SKU: LGRO132
₹ 119
₹ 139
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
DC 3V–6V TT Double Shaft Copper Coil BO Motor – Gear Ratio 1:200
The TT Double Shaft BO Motor (1:200 Gear Ratio) is a high-torque DC motor widely used in robotics, DIY smart cars, automation projects, and STEM learning kits. Designed with a dual output shaft, it supports wheels, gears, encoders, and couplings on both sides—perfect for advanced robotic mechanisms.Built with a copper coil motor, it offers superior efficiency, stronger torque, stable operation, and long service life. The 1:200 gear ratio provides powerful slow-speed rotational output, ideal for high-torque robotic movement and load-driven applications.
Technical Details
- Operating Voltage: 3V – 6V DC
- Gear Ratio: 1:200 (High Torque)
- Motor Type: Copper Coil BO Motor
- Shaft Output: Dual Shaft
- Total Length: 70mm
- Gearbox Length: 62mm
- Width: 19mm
- Height: 22mm
- Body Height: 37mm
- Shaft Type: TT Standard Flat Shaft
- Material: ABS Plastic + Metal Motor
- Noise: Low
- Direction: Forward/Reverse by polarity change
Features
- High-torque 1:200 gearbox for powerful mechanical output
- Copper coil motor for long life and stable performance
- Dual shaft design for wheels, pulleys, gears & encoders
- Durable lightweight ABS body
- Smooth, low-noise rotation
- Optimized for robotics & smart car systems
Applications
- DIY Robot Cars (2WD / 4WD)
- Arduino Robotics Projects
- Line-Following Robots
- Obstacle Avoiding Robots
- Motorized School STEM Projects
- Gearbox & Mechanical Training Kits

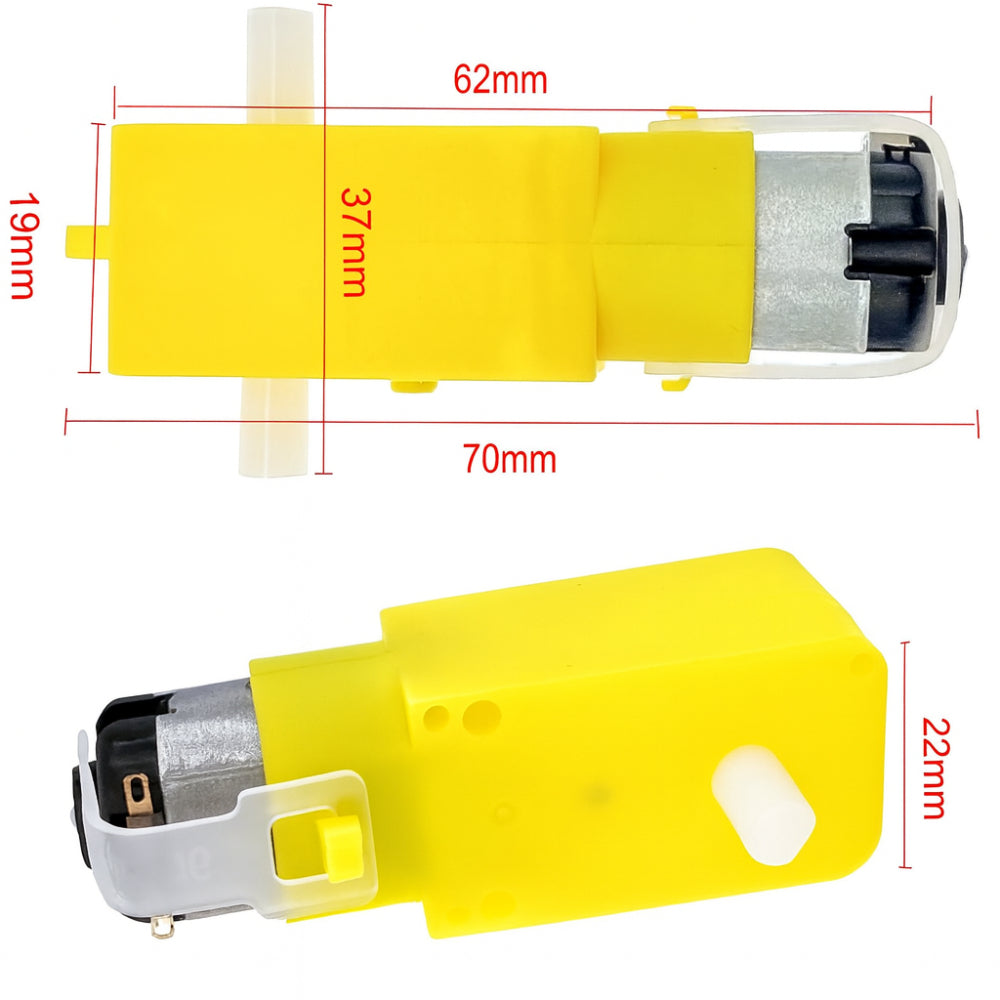

Drawing
Physical Attributes
- Total Length: 70mm
- Gearbox Length: 62mm
- Width: 19mm
- Height: 22mm
- Body Height: 37mm
- Shaft: Dual Output Shaft
- Material: ABS + Metal Motor
- Color: Yellow (As per stock)
- Weight: Lightweight
Package Includes
- 1 × TT Double Shaft BO Motor (Copper Coil, 1:200 Gearbox)
