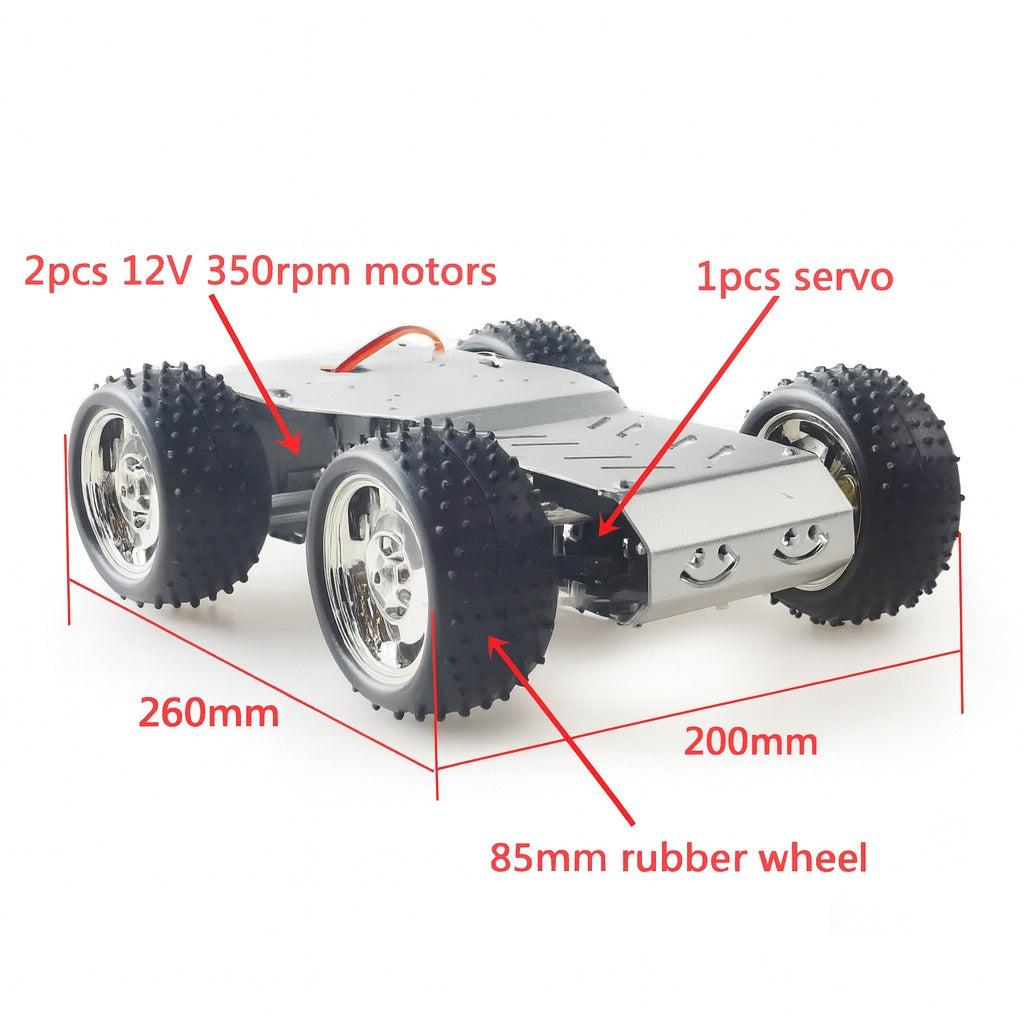

Kit Motor and Servo Metal Smart Chassis Car Robot Platform with 85mm Rubber Wheels DIY Toy for Arduino Education and Maker

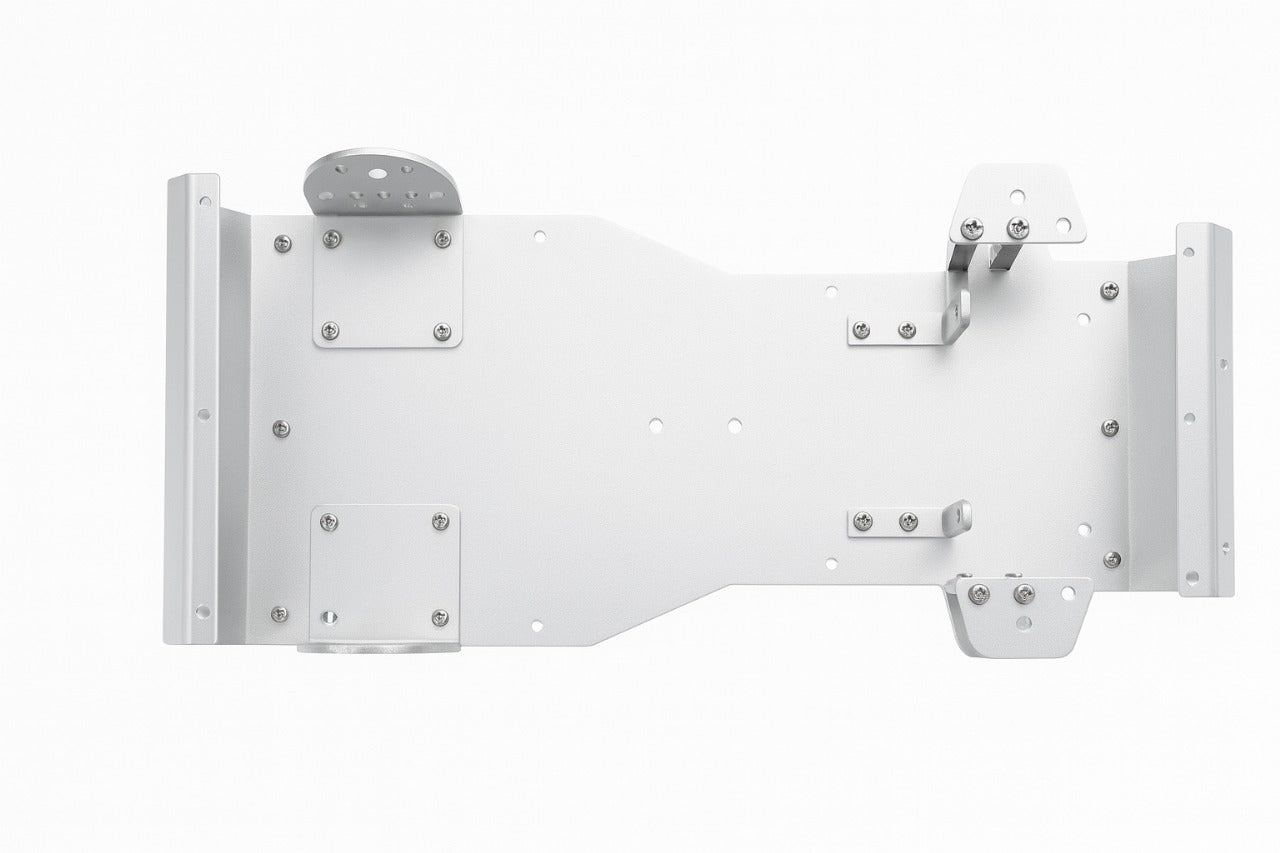

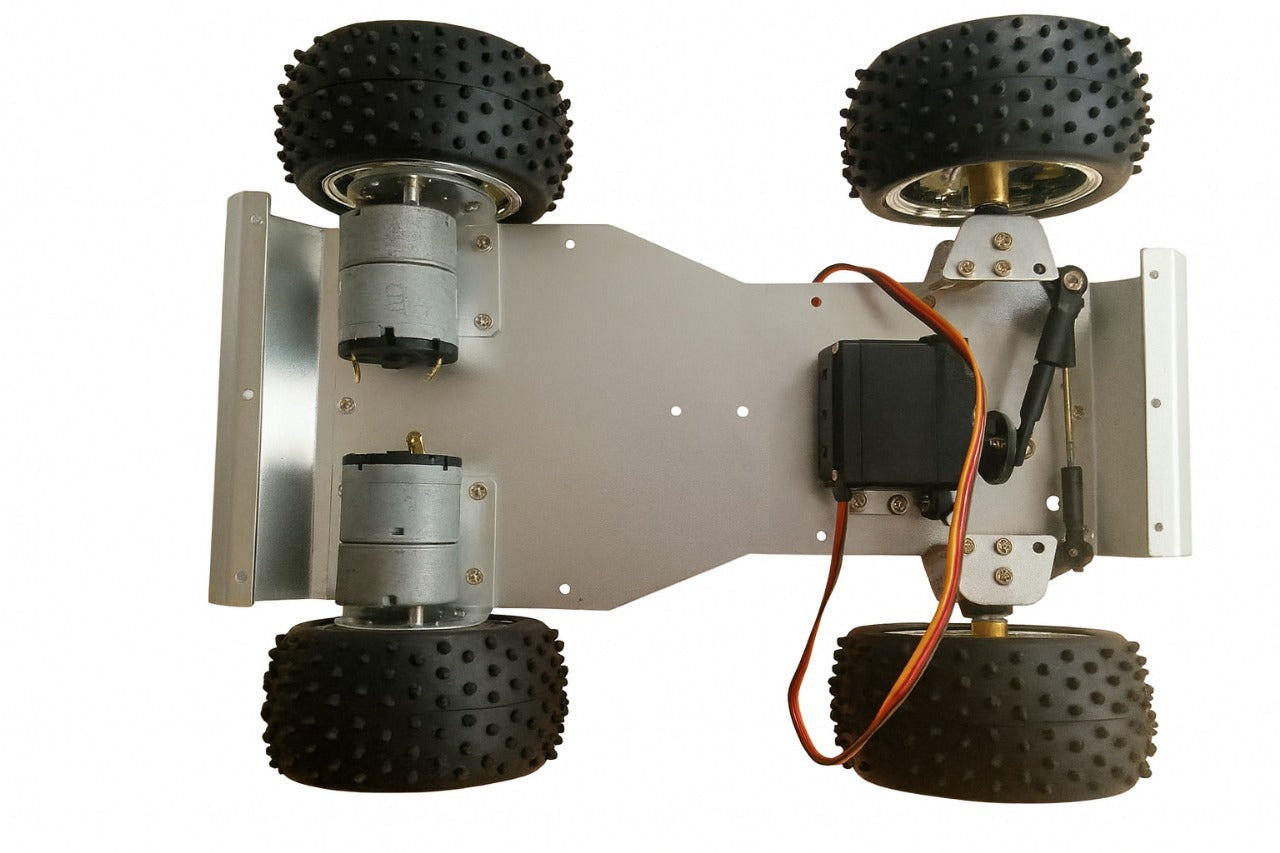

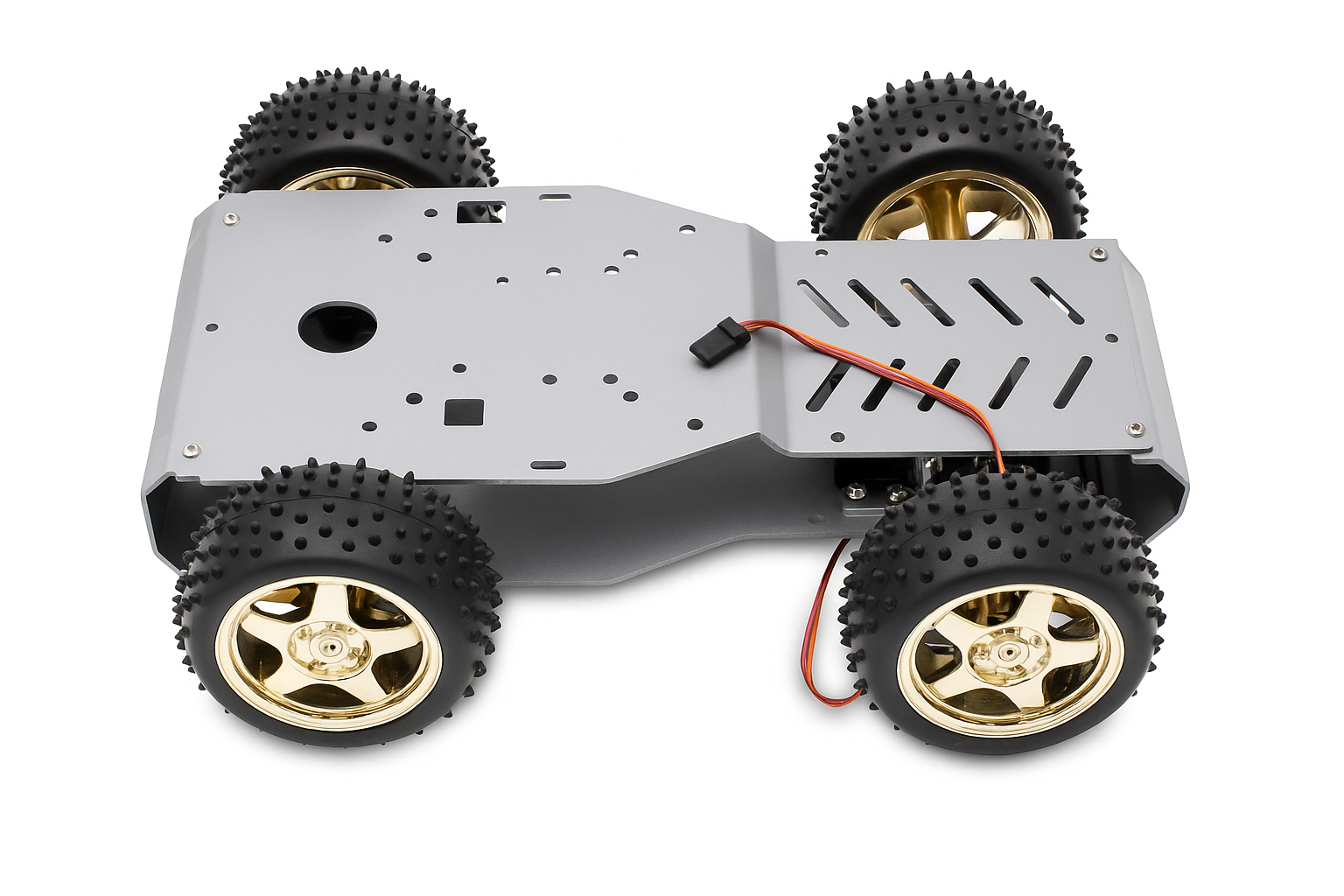

This is a DIY smart robot car chassis kit ideal for educational and hobby projects, especially with Arduino or Raspberry Pi. The base is constructed from durable metal, ensuring a solid platform for various robotic tasks. It features four 85mm rubber wheels with a spiked pattern, offering excellent grip on multiple surfaces. The rear wheels are powered by DC gear motors, while the front assembly uses a servo motor, enabling a differential or Ackermann-style steering system for better maneuverability. Next to the chassis lies a metal top cover, which can be used to mount components like batteries, controllers, and sensors. A small set of screws and fasteners is included for easy attachment. This platform is suitable for building obstacle-avoiding robots, line-followers, or remote-controlled vehicles, and serves as a great tool for STEM learning, prototyping, and robot development.

Technical Details

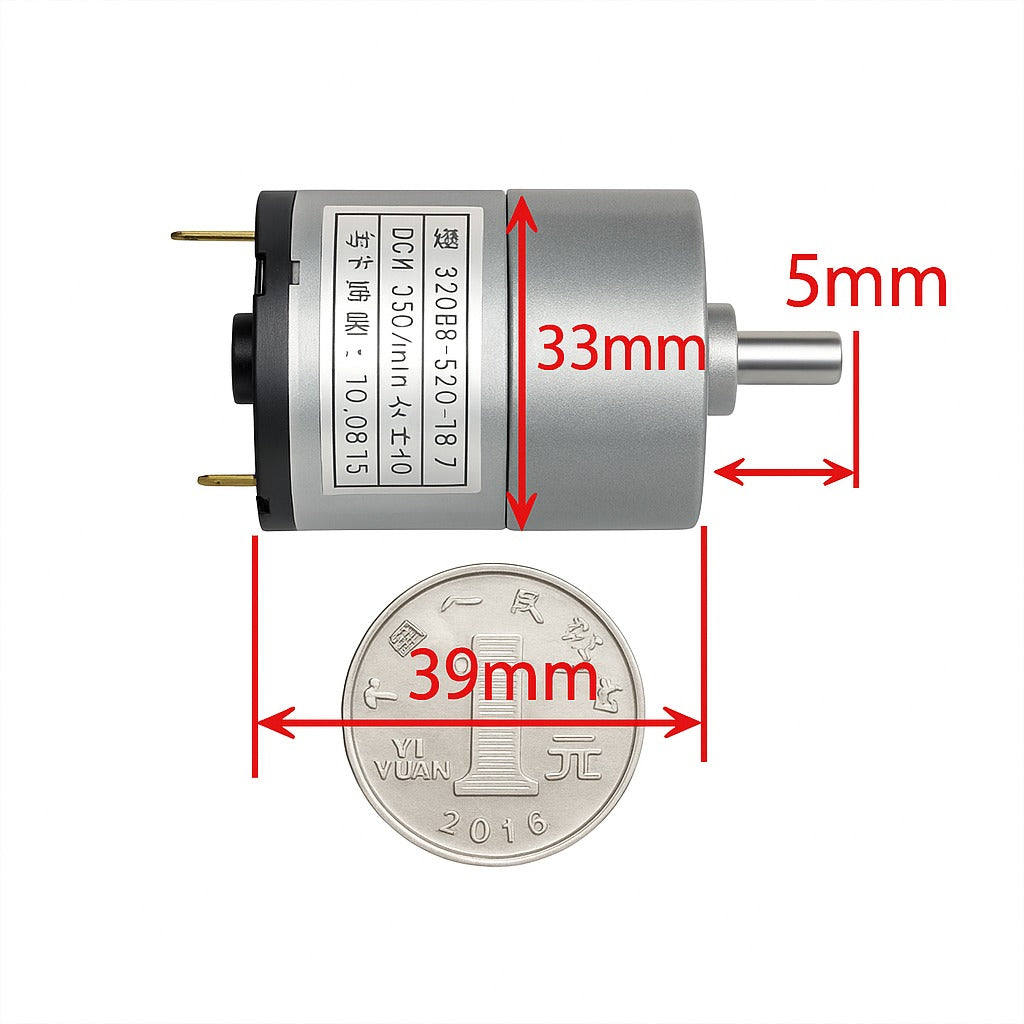

33GB-520 Motor Parameters
  • Voltage Range: 6V-12V
  • No-load Speed: 170-350RPM
  • Rated Voltage: DC12V
  • No-load Current: 100mA

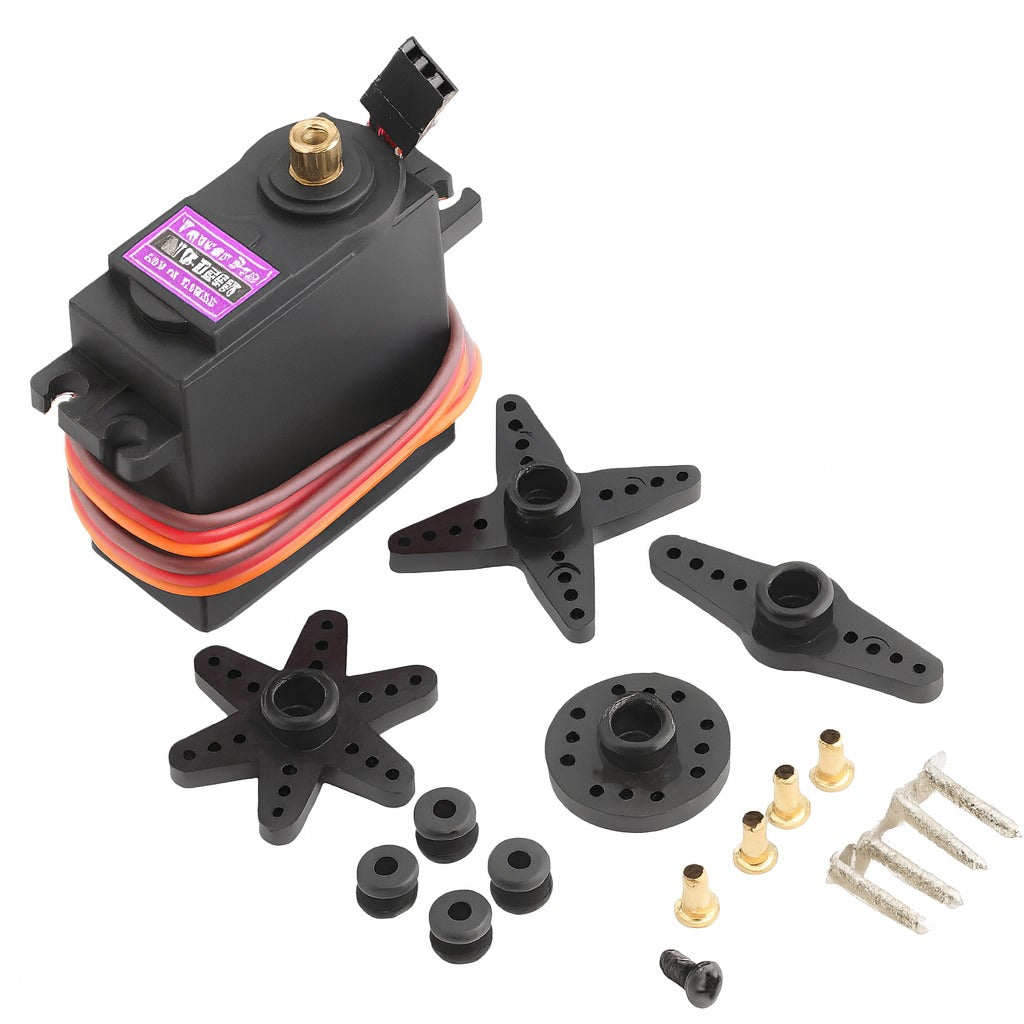

Servo Parameters
  • Name: MG996R Servo
  • Net Weight: 55g
  • Size: 40.7 × 19.7 × 42.9 mm
  • Pulling Force: 9.4 kg/cm (4.8V), 11 kg/cm (6V)
  • Reaction Rate: 0.17 sec / 60° (4.8V), 0.14 sec / 60° (6V)
  • Working Voltage: 4.8V-7.2V
  • Working Temperature: 0°C-55°C
  • Gear Form: Metal Gear
  • Working Dead Zone: 5 µs (microseconds)
85mm wheel parameters
  • Outer Diameter: 85mm
  • Width: 31mm
  • Inner Diameter (Hex-to-Edge Distance): 12mm
  • Weight: 51g
  • Color: Silver
  • Material: The hub is made of reinforced nylon and is very sturdy. The tire is made of high-quality rubber, Microsoft, with a large friction coefficient, excellent load capacity, and strong grip ability.

Applications :

  • Ideal for Arduino programming and motor control experiments.
  • Helps students learn about sensors, servo motors, and microcontrollers.
  • Supports STEM education and maker projects.
  • Uses IR or ultrasonic sensors for path navigation.
  • Can be programmed to follow lines or avoid obstacles autonomously.
  • Perfect for AI and robotics competitions.

Package Includes

  • 1 × Car Chassis
  • 2 × 12V Motors
  • 1 × MG996R Servo
  • 2 × Motor Brackets
  • 1 × 2-Cell Battery Holder 18650
  • 1 × Bag with Multiple Screws, Nuts, Standoffs, and Accessories
