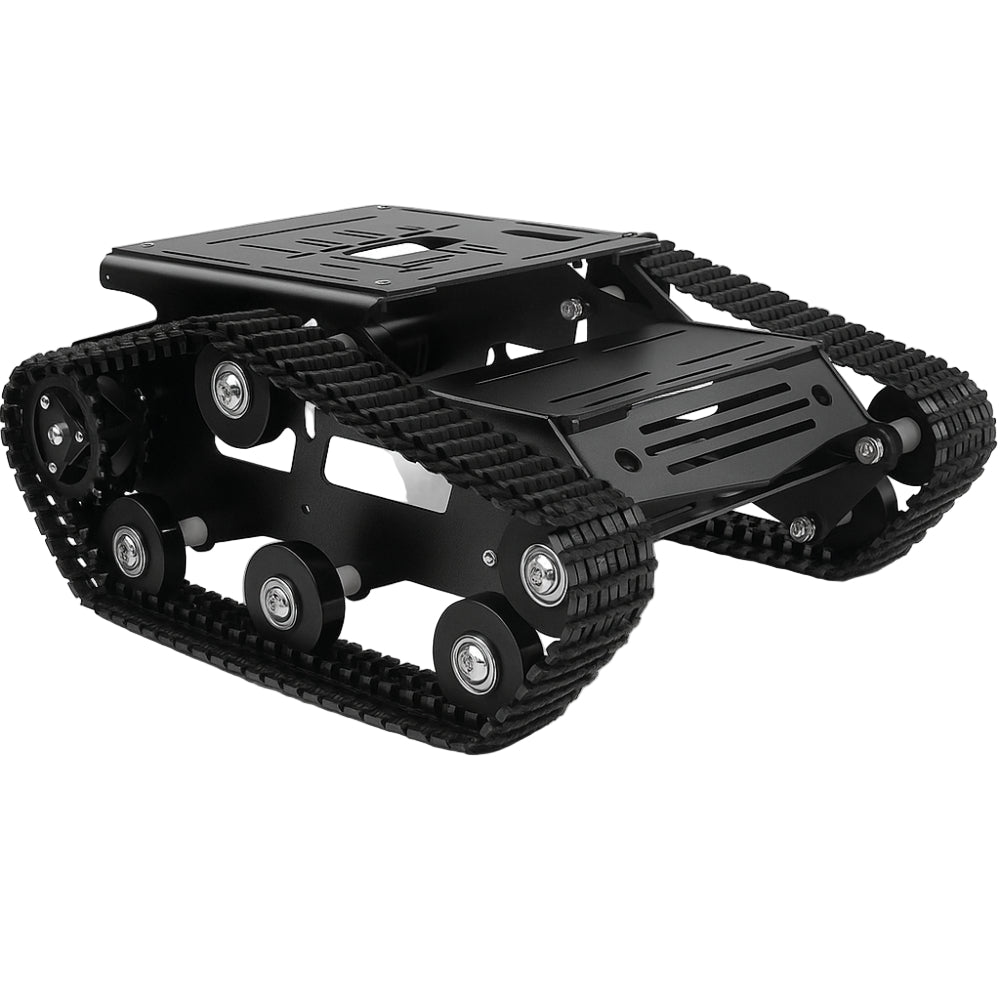

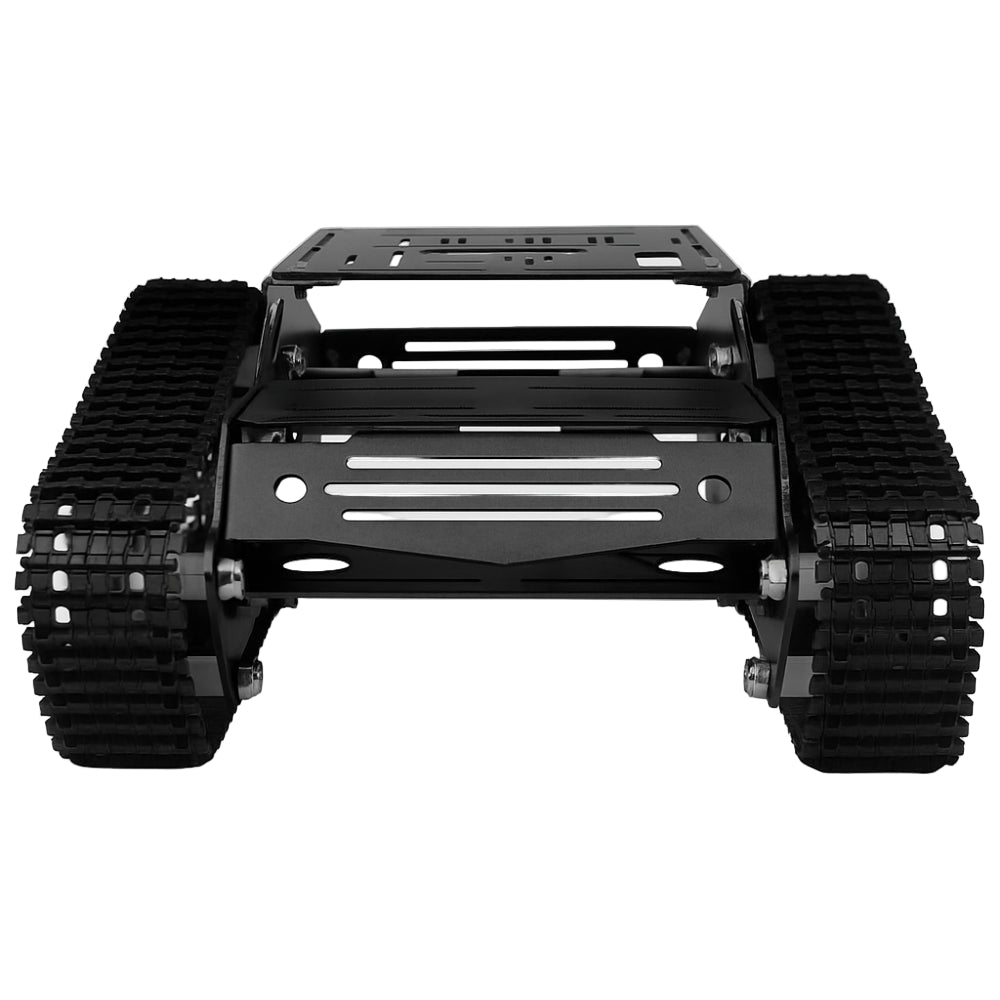

2WD Export Quality Tank Chassis Smart Car Crawler – Robot Building Kit for Adults (Black)

The 2WD Export Quality Tank Chassis Smart Car is a durable tracked platform designed as an ideal robot building kit for adults who want to explore hands-on robotics. Its aluminium alloy frame with a matte black finish provides excellent rigidity, making it suitable for advanced makers and those seeking robotics kits for adults with high structural strength. With dual tracks and multiple mounting points, this DIY setup also appeals to users searching for a reliable robot making kit for adults for long-term experimentation and custom builds.

Thanks to its stable crawler design and broad compatibility with Arduino, Raspberry Pi, Jetson, and ESP32, this platform supports a wide range of robotics projects. Whether you're building autonomous crawlers, navigation prototypes, or testing sensors, this configuration offers the flexibility expected from premium robot building kit for adults solutions. Its DIY nature also makes it valuable for learners who enjoy mechanical assembly and want a practical introduction to robotics kits for adults.

Technical Details

  • Drive Type: 2WD tracked tank chassis (dual belts)
  • Body Material: Aluminium alloy
  • Color: Black (matte finish)

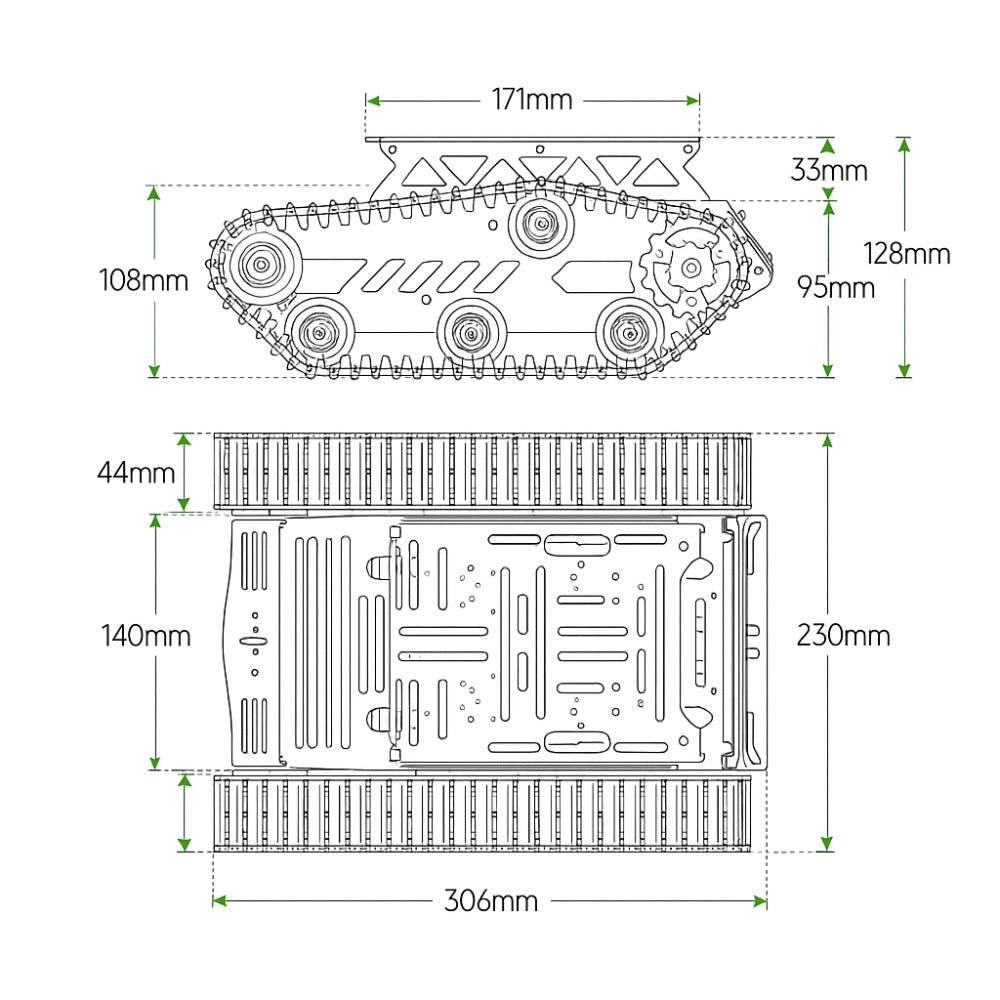

  • Overall Length: ~306 mm
  • Overall Width (track edge to edge): ~230 mm
  • Chassis Plate Width: ~140 mm
  • Track Height (from ground): ~44 mm
  • Side View Height: ~108 mm (ground to top plate)
  • Upper Deck Length: ~171 mm
  • Recommended Motors: 2 × DC gear motors (37/25-type, user selectable)
  • Controller Compatibility: Arduino, Raspberry Pi, Jetson Nano, STM32, ESP32, etc.

Features

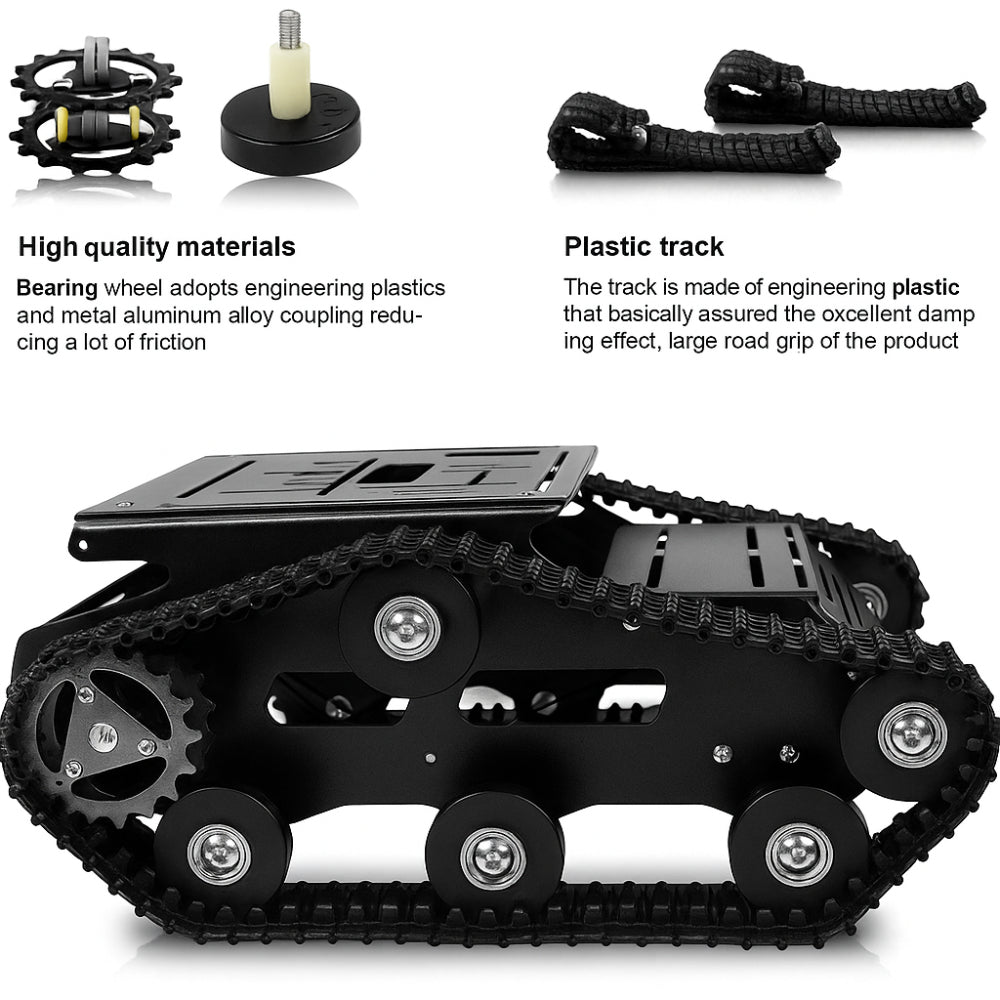

  • Export-quality metal tank chassis with robust construction
  • Dual rubber tracks for smooth, stable all-terrain motion
  • Large upper and lower plates with multiple slots and holes
  • Supports custom motor, driver, and battery configurations
  • Ideal for autonomous navigation and crawler robot testing
  • DIY assembly format—great for hands-on robot building kit for adults applications
  • Perfect for STEM clubs, engineering labs, and robotics kits for adults

Applications

  • Autonomous tracked robots and UGV platforms
  • Surveillance and inspection robots for indoor/outdoor use
  • Obstacle-avoidance, path-planning, and SLAM research
  • STEM education, robotics clubs, and mechanical learning
  • Robo-race and competition prototypes
  • Advanced DIY builds using robot making kit for adults setups
  • Hands-on engineering using complete robot building kit for adults components

Physical Attributes

  • Chassis Type: 2WD metal tank crawler
  • Material: Aluminium alloy with rubber tracks
  • Color: Black

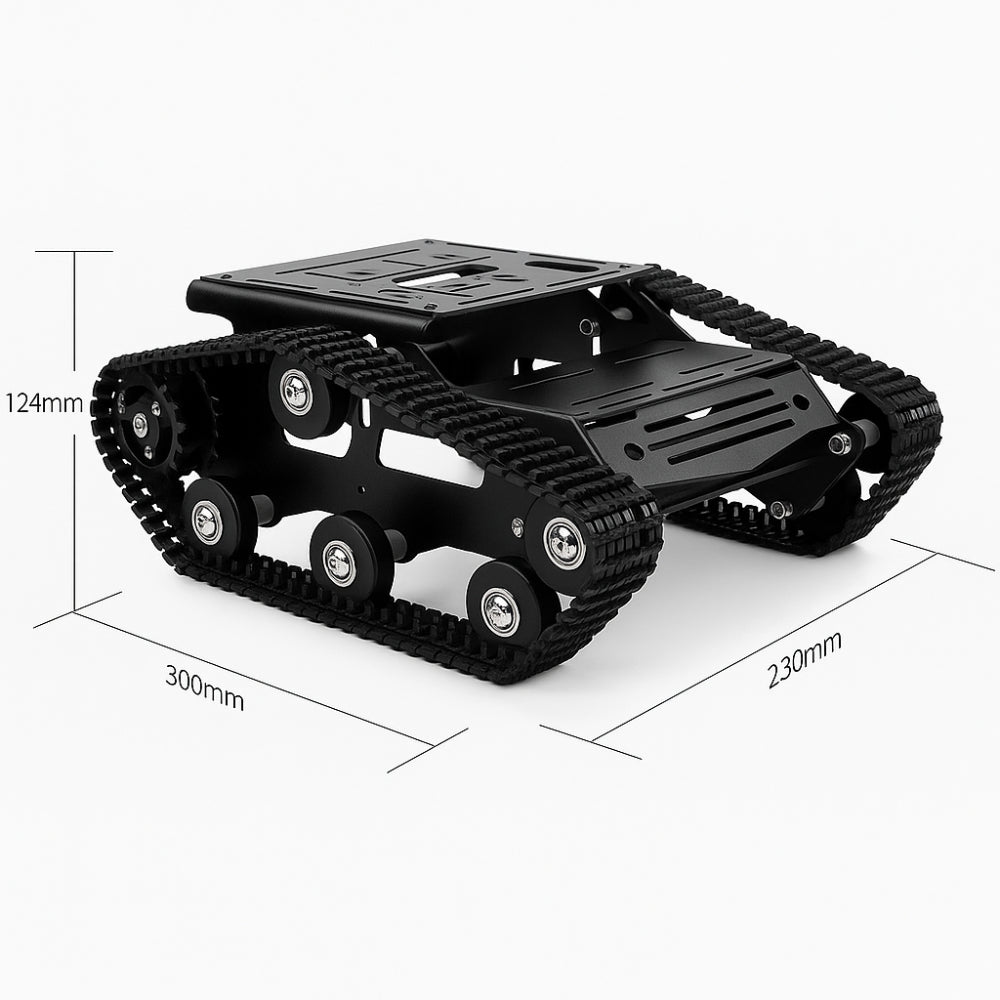

  • Approx. Dimensions: 306 mm (L) × 230 mm (W) × 108 mm (H)
  • Track Width: ~44 mm each side
  • Assembly: DIY screw-together kit suitable for robotics kits for adults

Package Includes

  • 2 × Side Plates (with mounting holes)
  • 1 × Bottom Plate (square with slots)
  • 2 × Top/Support Plates (rectangular)
  • 2 × Front/Back Plates (slotted)
  • 2 × DC Geared Motors
  • 2 × 6-Pin Wire Connectors for Motor
  • 2 × Rubber Track Belts
  • 10 × Bearings
  • 4 × Metal Sprocket Gears
  • 10 × Black Bearing Wheels
  • 6 × Brass Standoffs
  • 2 × Couplings
  • 10 × Long Nut Bolts
  • 2 × 10mm LEDs
  • 2 × 10mm LED Holders with Back Cover
  • 4 × Allen Keys
  • 1 × Nut & Bolt Bag
  • 11 × Plastic Standoff Spacers
  • 1 × Battery Holder
  • Note: Motor driver, controller board, and battery are not included.
