Fire and Flame Sensor infrared Receiver Ignition source detection module

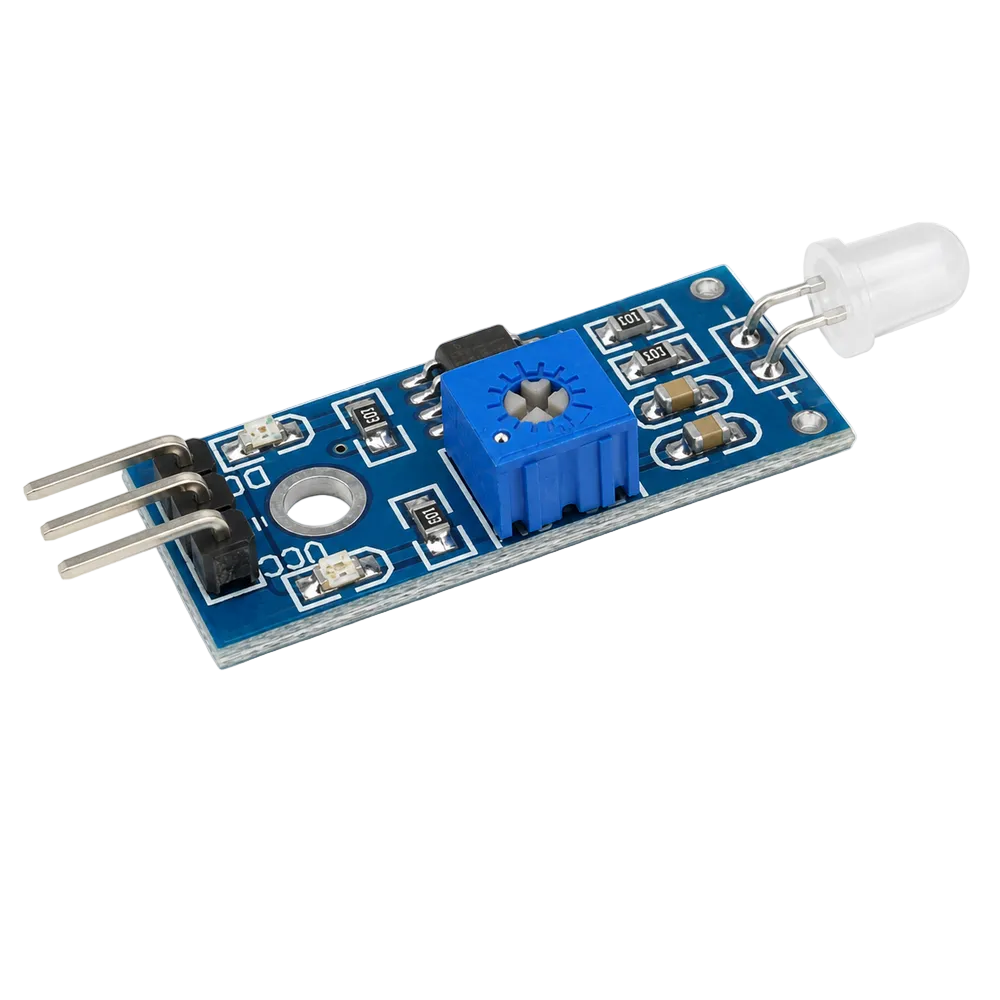

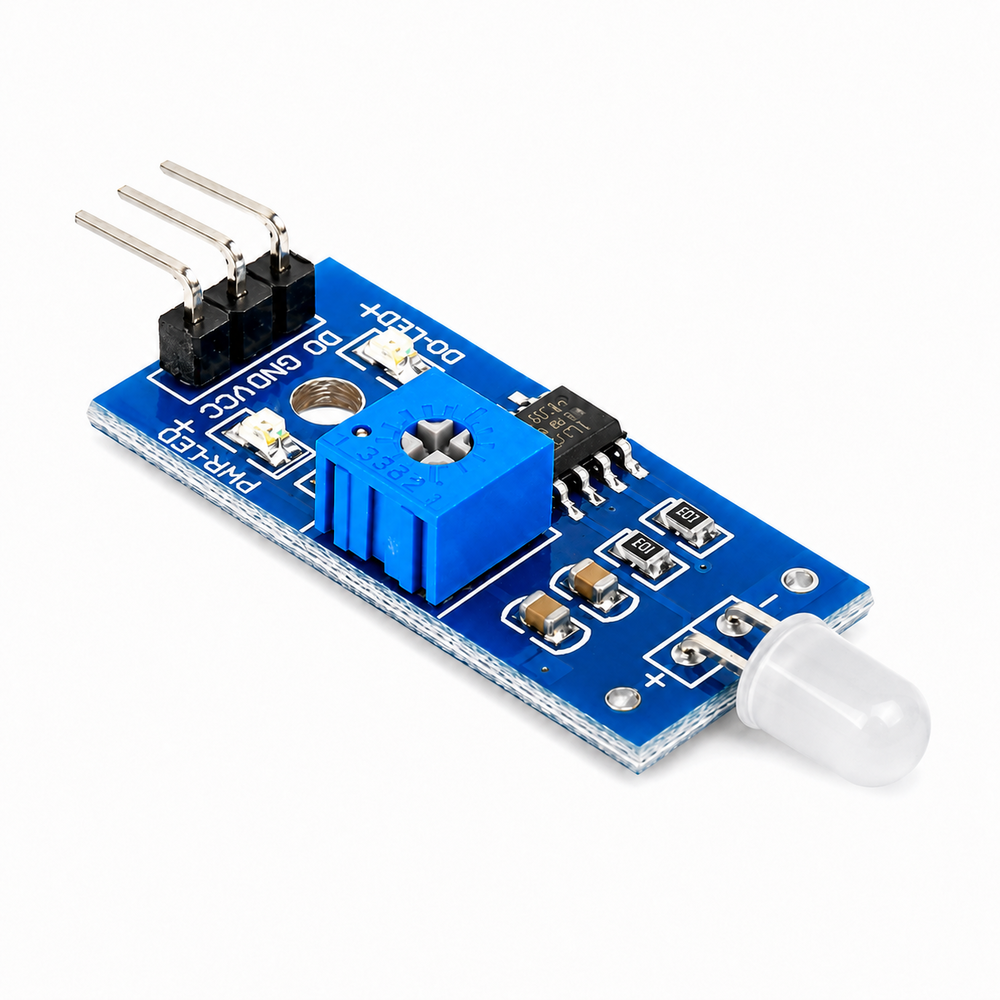

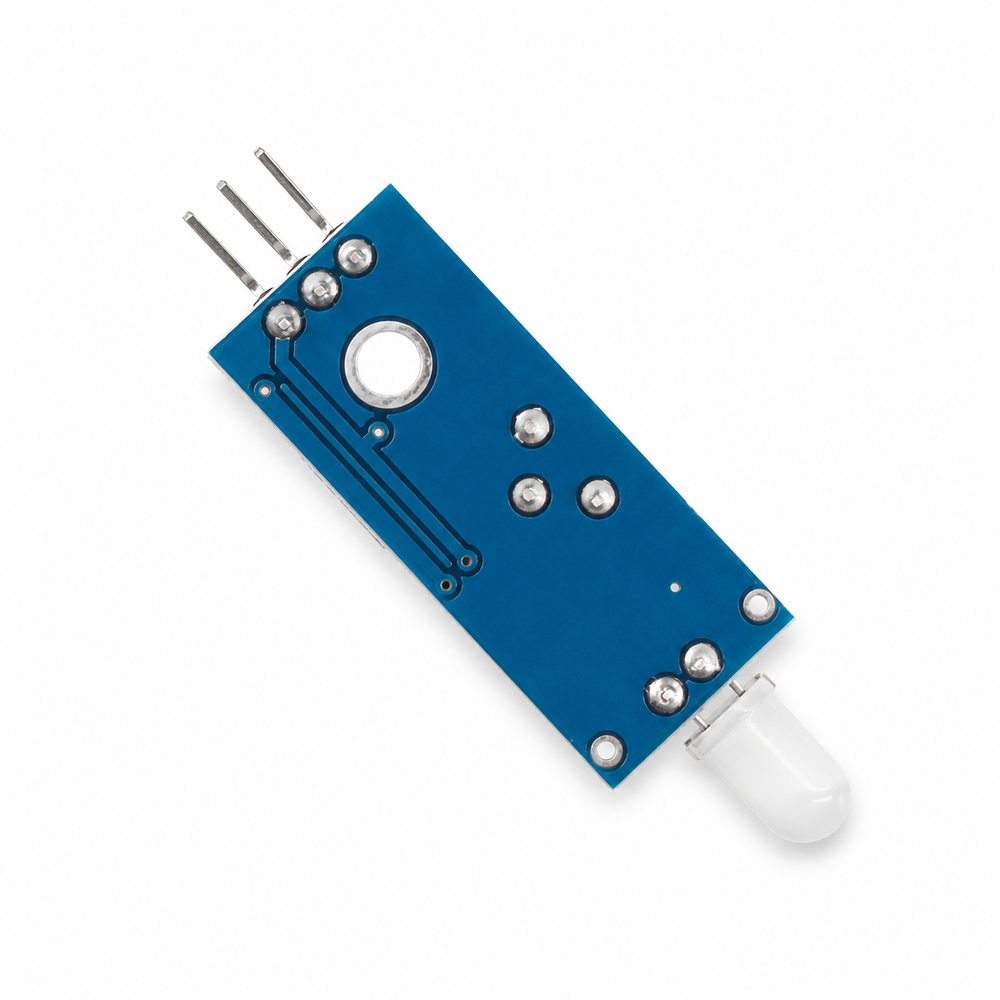

This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible and can be use to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detection at a distance of 80cm.The greater the flame, the farther the test distance. It has a Detect angle of 60° and is very sensitive to the flame spectrum.
It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of a blue potentiometer given on the board.
Technical Details
- Item Type: Sensor Module
- Model Type: Flame Sensor Module
- Rated Voltage (V): 3.3 to 5
- Mounting Hole (mm): 3
- Length (mm): 45
- Width (mm): 14
- Weight (g): 3
Features
- Indicator lights: Green for switch, Red for power
- Built-in potentiometer for sensitivity control
- Signal output indication: High signal with indicator light on
- Output signal connects directly to microcontroller IO
- Detects fire or wavelengths in 760-1100 nm range
- Detection angle: 60 degrees, sensitive to flame spectrum
- Highly sensitive to flames, responds to regular light as well
- Primarily used for fire alarm purposes
Applications :
- Fire Detection: Detect fire and flames in industrial, commercial, and residential settings for safety alarms.
- Flame Monitoring: Used in gas or oil burners, boilers, and furnaces to monitor flame presence and ensure proper combustion.
- Fire Alarm Systems: Integrates into fire alarm systems to trigger alerts in case of flame detection.
- Industrial Equipment Safety: Detects flame presence in hazardous environments or near sensitive machinery to prevent damage.
- Ignition Source Detection: Detects ignition sources in various processes, such as welding, to monitor safety in workshops.
Integration with Arduino
Sample Code
Physical Attributes
- Length (mm): 45
- Width (mm): 14
- Weight (g): 3
Package Includes
- 1 x Fire and Flame Sensor infrared Receiver Ignition source detection module
Customer Reviews
This device is used to sense when there is a flame in a ventless propane fireplace. This triggers an Arduino sketch to turn on fireplace fan, send email with date/time-temperatures to my Mac mail app with a rule to activate AppleScript to read email and append data to a Apple Numbers app spreadsheet. From this data, daily-monthly propane gas usage and cost is calculated.
Works well easy to setup. I used these on my 3d printers. Would buy again
Came quick and was what I needed
Excellent sensors! They provide stable, reliable, and consistent analog readings. I have been using them without any issues.
These IR sensors work well and easy to connect.
