22x22mm Thin Film FSR Pressure Sensor Force Sensitive Resistor Long tail
- Product SKU: KG1201
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

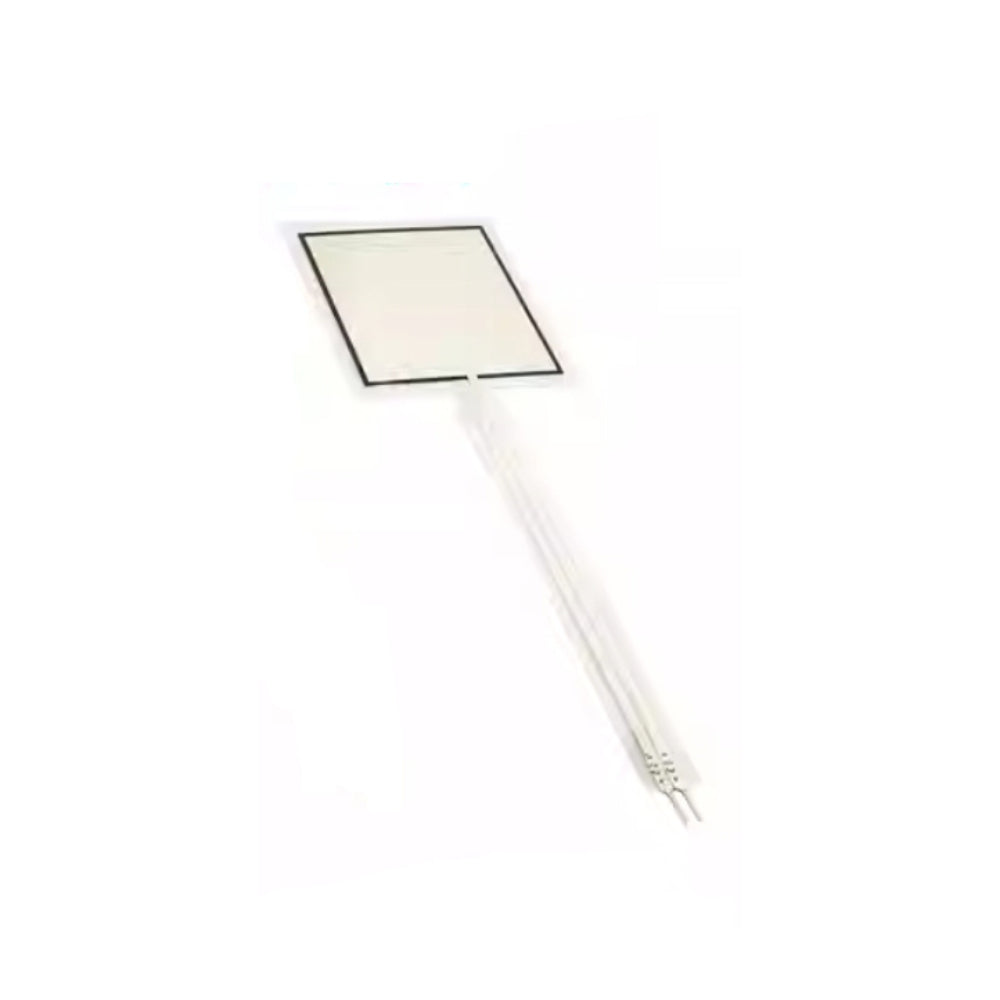

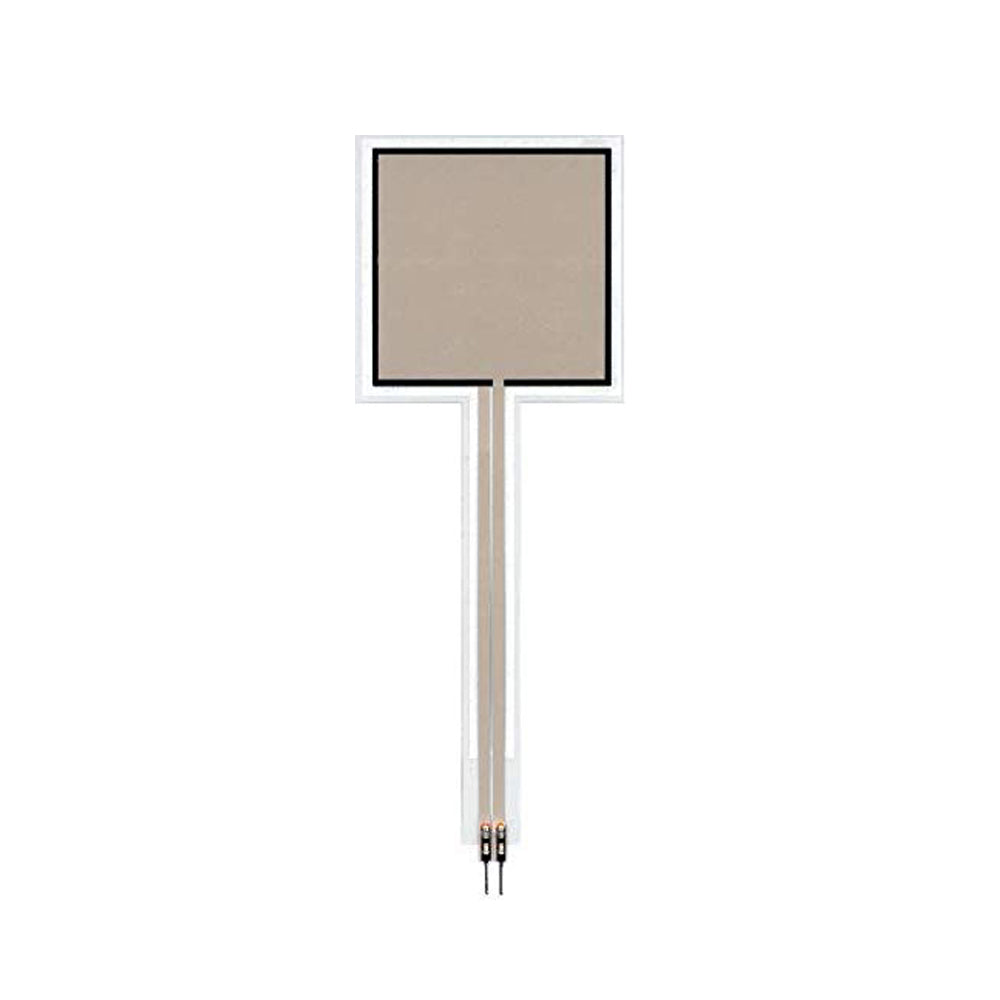

The 22x22 mm square thin film pressure sensor offers continuous force sensing across a wide range, with an analog output for accurate, real-time force monitoring. Designed with a compact, 120 mm flexible tail and a slim 0.3 mm profile, this sensor easily integrates into tight spaces within various devices. Constructed on a durable polyester substrate, it provides reliable performance with a long lifespan, tested for up to 1 million cycles. This sensor is well-suited for applications that require precise, repeatable measurements over a square sensing area.
Features:
Square Active Area: 22x22 mm, suitable for applications requiring broader surface sensing in a square format.Wide Force Range: Senses forces from 100 grams up to 50 kilograms.
Slim Profile: 0.3 mm thickness for seamless integration in space-constrained environments.
High Responsiveness: 5-microsecond rise time for immediate detection and feedback.
Analog Output: Provides smooth, continuous force measurement for dynamic applications.
Long-Lasting Performance: Designed for up to 1 million actuations, making it durable for repeated use.
Polyester Substrate: Offers flexibility and resilience, adaptable to diverse applications.
Applications:
Medical Equipment: Ideal for pressure-sensitive applications requiring square sensing areas, such as diagnostic equipment or wearable health devices.Industrial Controls: Useful in automation for detecting applied force on equipment in confined spaces.
Robotics: Enables square-format force sensing, advantageous in tactile feedback systems and robot grippers.
Consumer Electronics: Suitable for touch-sensitive interfaces or controls that need responsive, real-time feedback.
Technical Details
- Active Area: 22x22 mm, square-shaped sensor
- Sensor Length: 120 mm, featuring a flexible tail for versatile installation
- Typical Force Range: 100 grams to 50 kilograms
- Sensor Thickness: 0.3 mm, balancing flexibility with resilience
- Operating Temperature: -20°C to 60°C
- Force Resolution: Continuous, providing smooth and precise feedback
- Output: Analog, ideal for real-time force measurement
- Relative Humidity: Functions well in 5% to 90% humidity
- Stand-Off Resistance: Greater than 2 Mega ohms, enhancing signal stability
- Force Repeatability: ±10% for consistent performance across multiple uses
- Lifespan: Tested to withstand up to 1 million cycles
- Response Time: <5 microseconds for immediate feedback
- Substrate Material: Polyester for durability and flexibility
- Parasitic Capacitance: 50–500 pF, standard for thin film resistors
Package Includes
- 1 x 22x22mm Thin Film FSR Pressure Sensor Force Sensitive Resistor Long tail
