It includes a high linearity pressure sensor and an ultra-low power 24-bit ADC with factory-calibrated coefficients. The module outputs precise digital pressure and temperature readings with multiple operation modes, allowing you to optimize between conversion speed and power consumption. The HX710B module uses a high-precision AD sampling chip and a 0–40 kPa air pressure sensor. It supports connection with a 2.5 mm hose, enabling detection of air pressure, water level, and fluid dynamics.
-23%
Hx710B air pressure 0-40Kpa sensor module with straight
Available:In Stock
- Product SKU: KG1246
₹ 129
₹ 169
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
HX710B Atmospheric Pressure Sensor Module (0–40kPa)
If you want to build a device that detects atmospheric pressure, then this sensor is perfect for you. With the HX710B Atmospheric Pressure Sensor Module, you can easily measure air pressure changes — such as wind pressure during cyclones or altitude variation in weather and scientific projects. This barometric pressure sensor is optimized for altimeters and variometers with an altitude resolution of 10 cm.It includes a high linearity pressure sensor and an ultra-low power 24-bit ADC with factory-calibrated coefficients. The module outputs precise digital pressure and temperature readings with multiple operation modes, allowing you to optimize between conversion speed and power consumption. The HX710B module uses a high-precision AD sampling chip and a 0–40 kPa air pressure sensor. It supports connection with a 2.5 mm hose, enabling detection of air pressure, water level, and fluid dynamics.
Features
- High-precision 24-bit ADC for accurate pressure measurement
- Two selectable differential input channels
- On-chip active low noise PGA (Programmable Gain Amplifier)
- Selectable gain options: 32, 64, and 128
- Built-in power supply regulator for ADC analog power
- On-chip Power-On-Reset for stable startup
- Simple digital control and serial interface
- Compact and low-power design for embedded systems
Technical Details
- Interface Type: Serial
- Output Data Rate: 10 SPS / 80 SPS
- Maximum Operating Current: 1.5 mA
- Operating Temperature: -40°C to +85°C
- IC Package Type: 16 Pin SOP
- Selectable Gain: 32 / 64 / 128
Applications
- Atmospheric pressure measurement
- Weather monitoring systems
- Water level and fluid pressure sensing
- Altimeter and variometer devices
- Environmental monitoring projects
- DIY weather station and IoT pressure-based applications
Physical Attributes
- Length: 18 mm
- Width: 17 mm
- Height: 11.4 mm
- Weight: 2 g

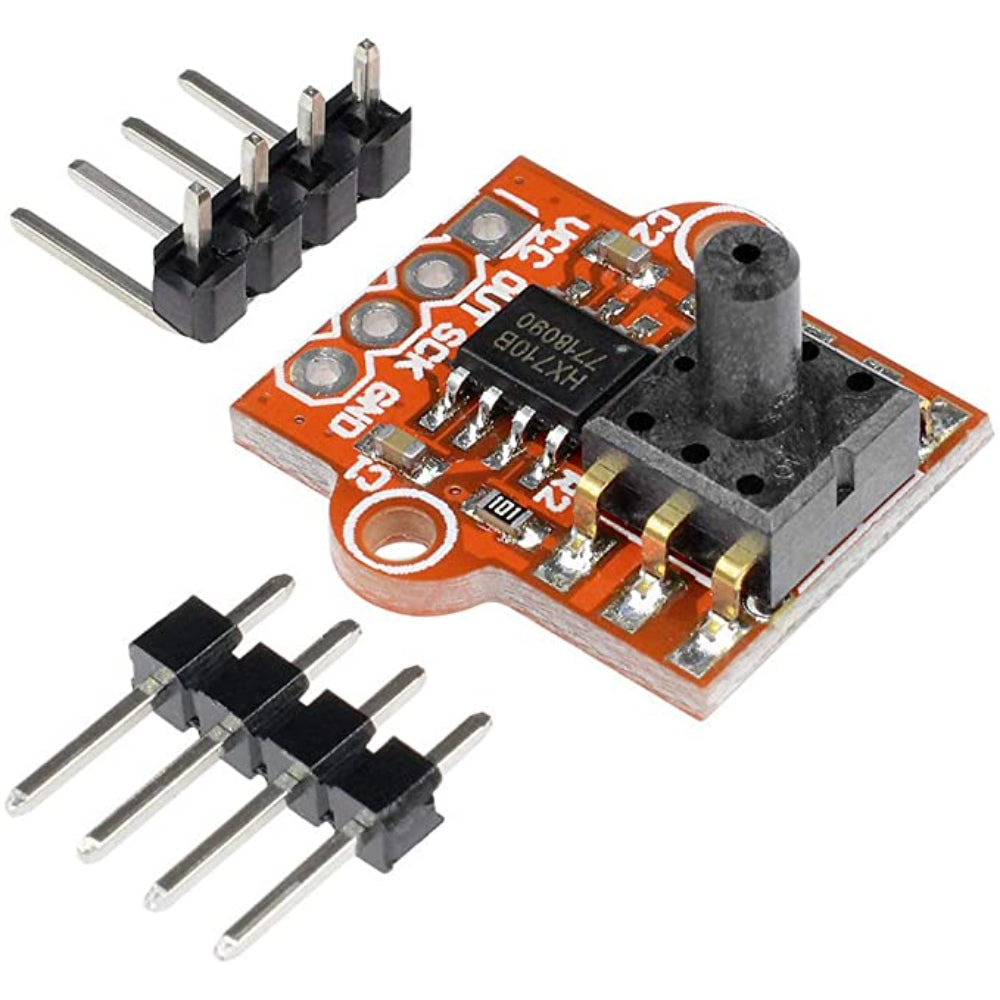

Package Includes
- 1 × HX710B Air Pressure (0–40kPa) Sensor Module
- 1 × 4-pin Male Straight Header
- 1 × 4-pin Male Right Angle Header
