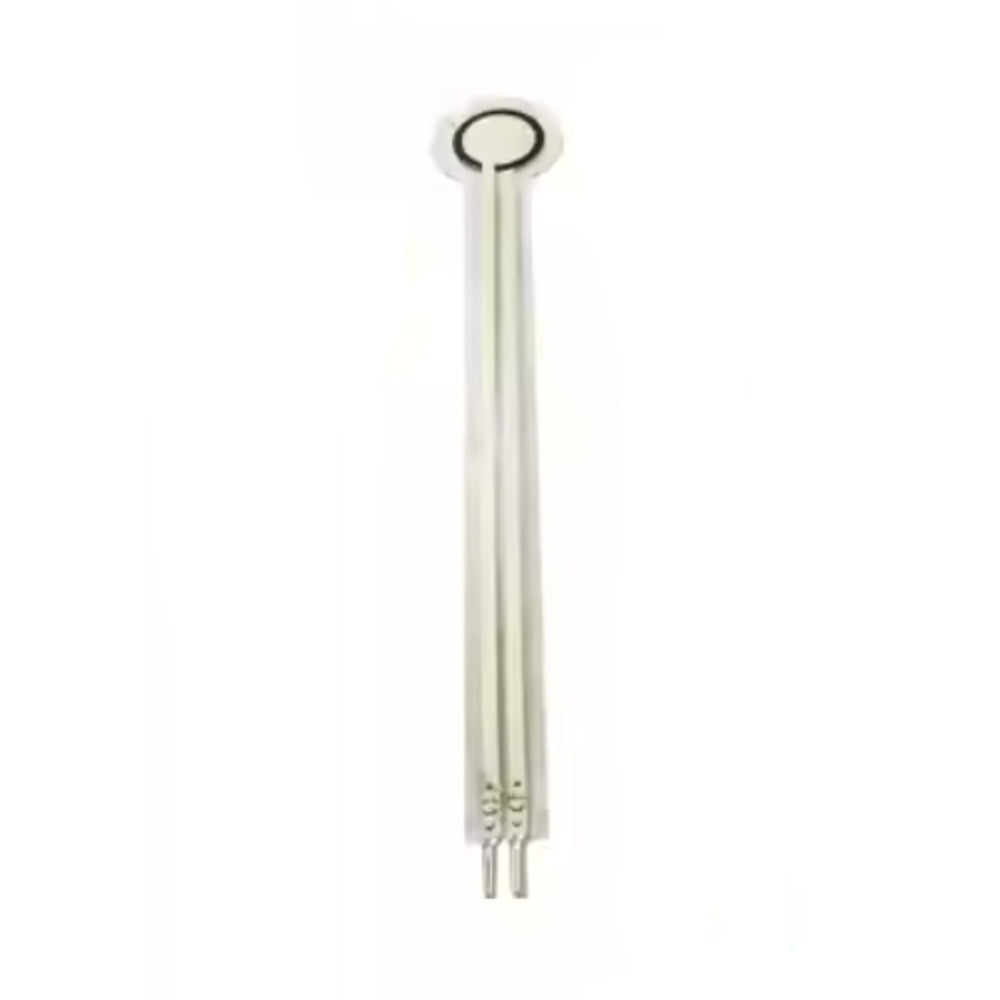

Thin Film Pressure Sensor Single Point Circular Diameter 3 mm Flexible Resistor Long tail
- Product SKU: KG1196
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
This thin film pressure sensor is a highly compact, circular pressure sensor with a flexible design, engineered to provide precise force measurement. Featuring a sensitive active area of 3 mm in diameter, it operates over a wide force range and is suitable for applications requiring a quick, analog response to varying pressure levels. With a thin profile and durable polyester substrate, this sensor is well-suited for integration into lightweight and space-constrained devices.
Features:
Compact Active Area: 3 mm diameter allows for precise, targeted force measurement.Broad Force Range: Measures from very light (100g) to heavy pressure (up to 50kg).
Thin Profile: Just 0.2 mm thick, perfect for applications with tight space constraints.
Quick Response: Less than 5 microseconds rise time, ideal for high-speed applications.
Analog Output: Provides a continuous analog response, facilitating real-time monitoring.
Durable and Long-lasting: Withstands up to 1 million cycles, ensuring long service life.
Flexible Design: Polyester substrate offers durability and flexibility for diverse use cases.
Applications:
Medical Devices: Ideal for applications like patient monitoring, tactile feedback, and pressure mapping.Robotics: Useful in robotic hands and grippers for force-sensing applications.
Consumer Electronics: Embedded in interfaces or touch-sensitive areas for user interaction.
Wearable Devices: Fits in compact wearable tech that requires force measurement.
Industrial Controls: Useful in manufacturing automation for force feedback and pressure control.
Technical Details

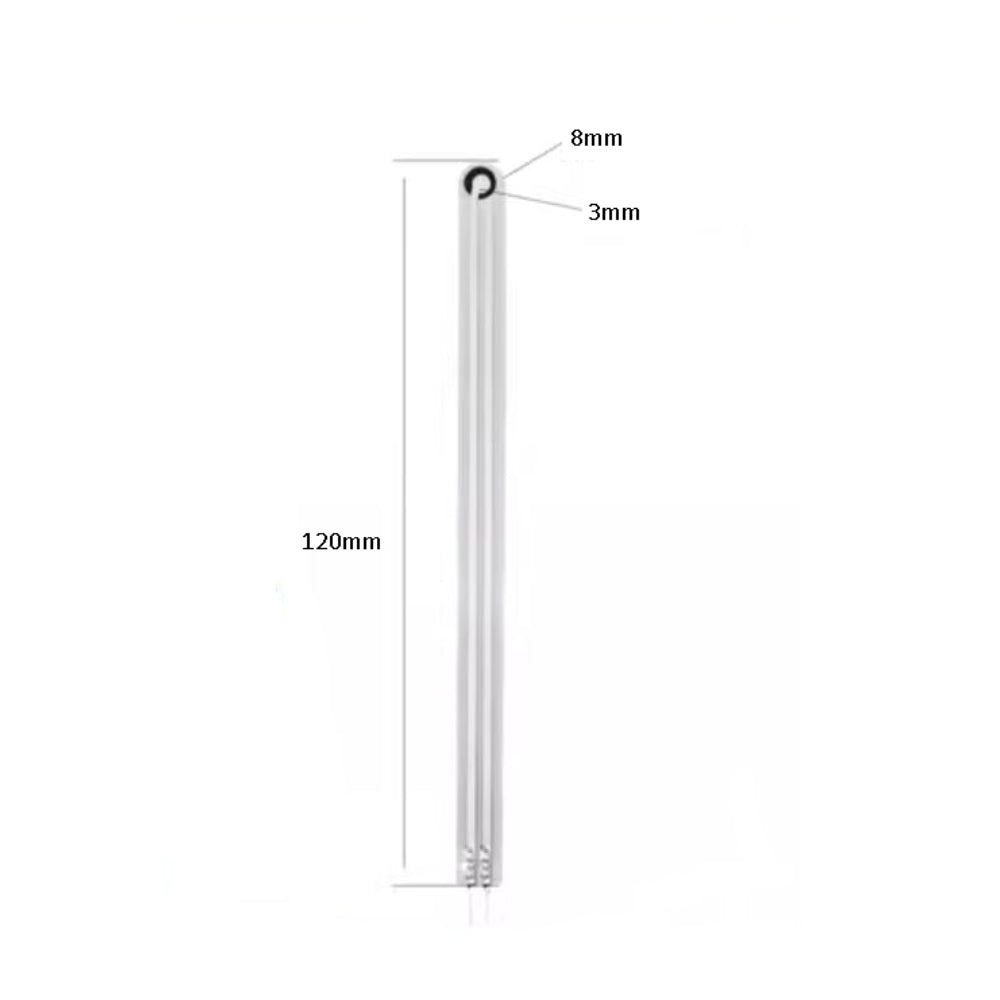

- Active Area: Circular, 3 mm diameter
- Length: 120 mm with a flexible tail for connectivity
- Typical Force Range: 100 grams to 50 kilograms
- Sensor Thickness: 0.2 mm
- Operating Temperature: -20°C to 60°C
- Force Resolution: Continuous, analog output
- Relative Humidity: 5% to 90%
- Stand-Off Resistance: 2 M? (Mega ohms)
- Force Repeatability: ±10%
- Lifespan: Tested for up to 1 million actuations
- Response Time: 5 microseconds
- Substrate Material: Polyester
- Parasitic Capacitance: 50–500 pF
Package Includes
- 1 x Thin Film Pressure Sensor Single Point Circular Diameter 3 mm Flexible Resistor Long tail
