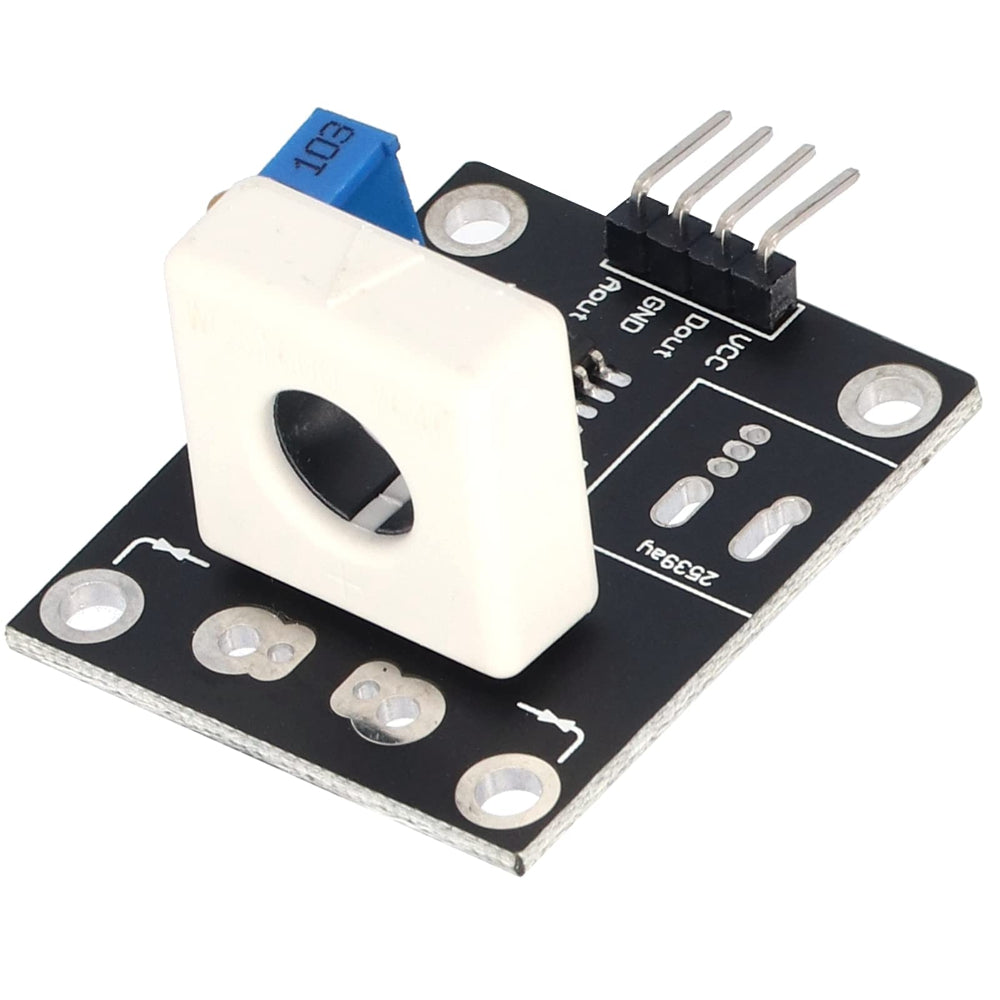

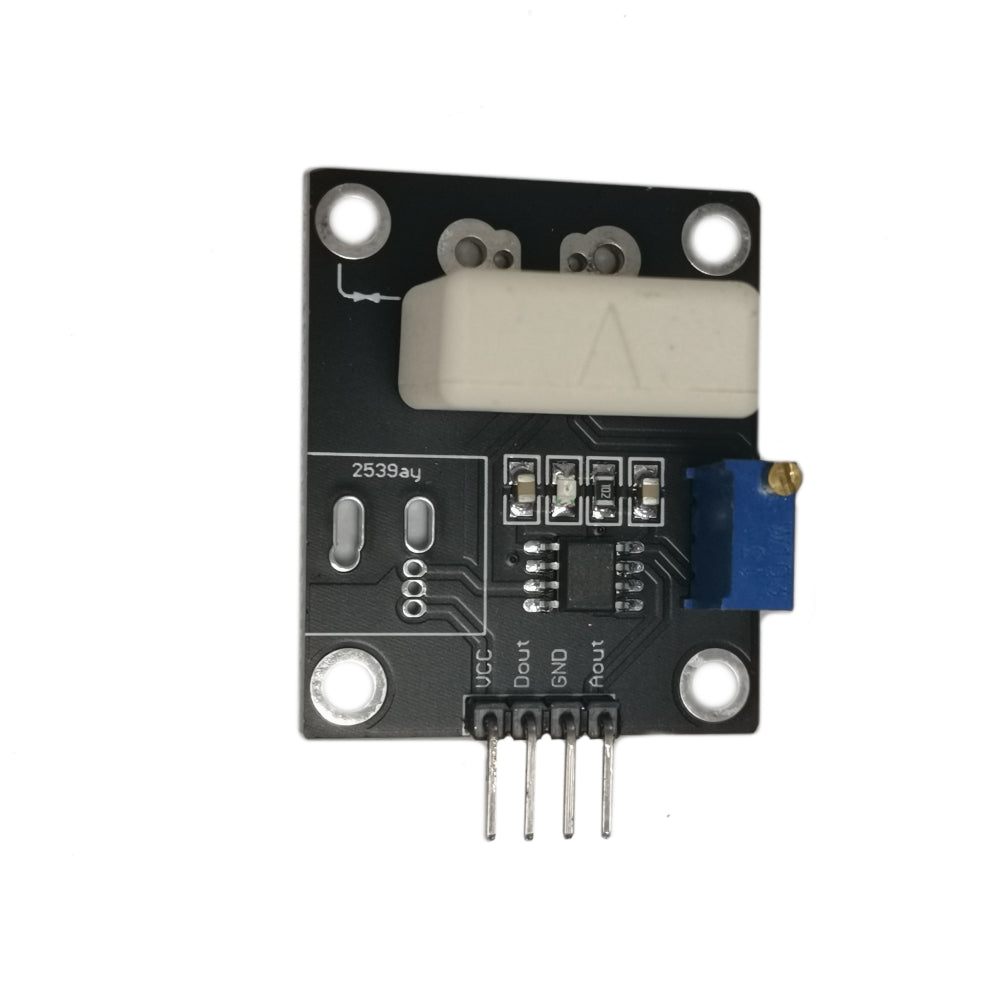

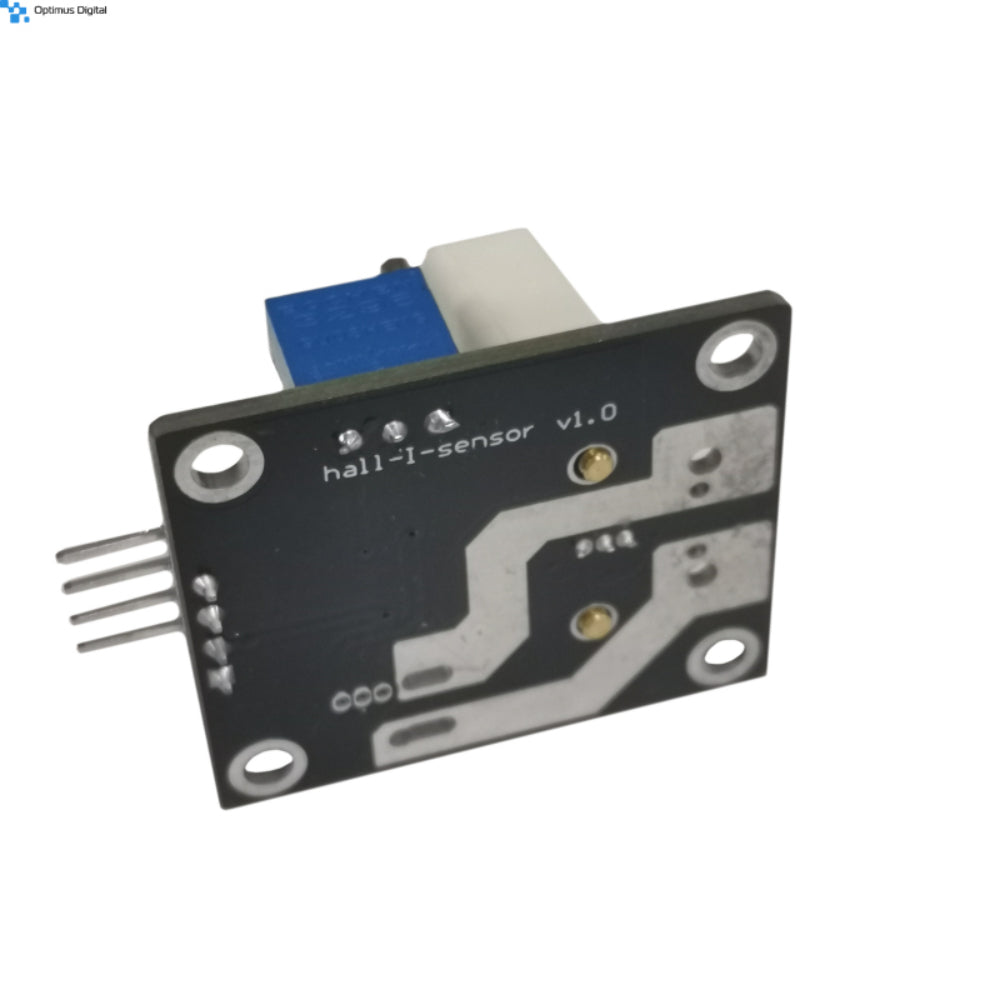

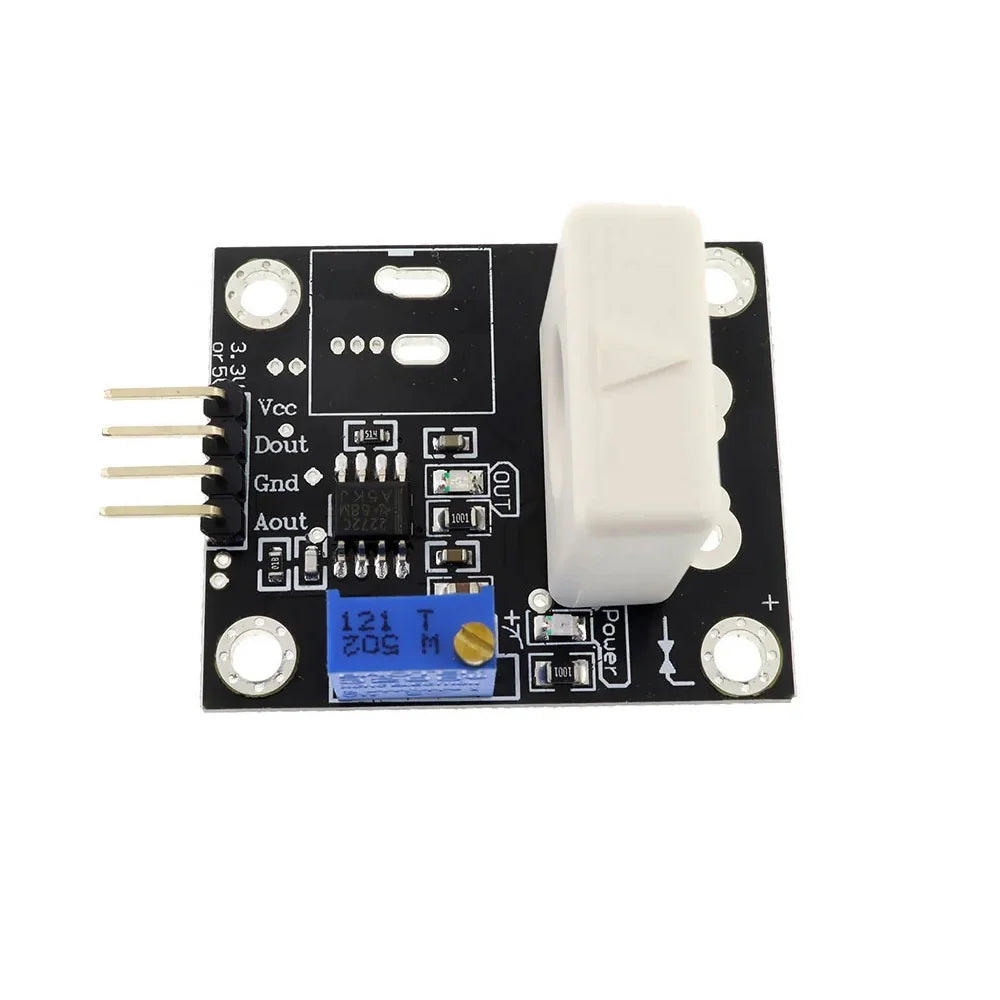

WCS1700 Hall Current Sensor with Overcurrent Protection – 70A

The WCS1700 Current Sensor provides an economical and precise solution for both DC and AC current sensing in industrial, commercial, and communication systems. Its unique design enables easy integration without altering the existing system layout, making it ideal for various intelligent power management applications.

This module features a precise, low-temperature drift linear Hall effect sensor IC with a built-in temperature compensation circuit and a 9.0 mm through-hole for current flow. The current-carrying wire can pass through this hole, allowing accurate measurement of the magnetic field generated by the current. The sensor converts this magnetic field into a proportional analog voltage output, providing high accuracy and stable performance.

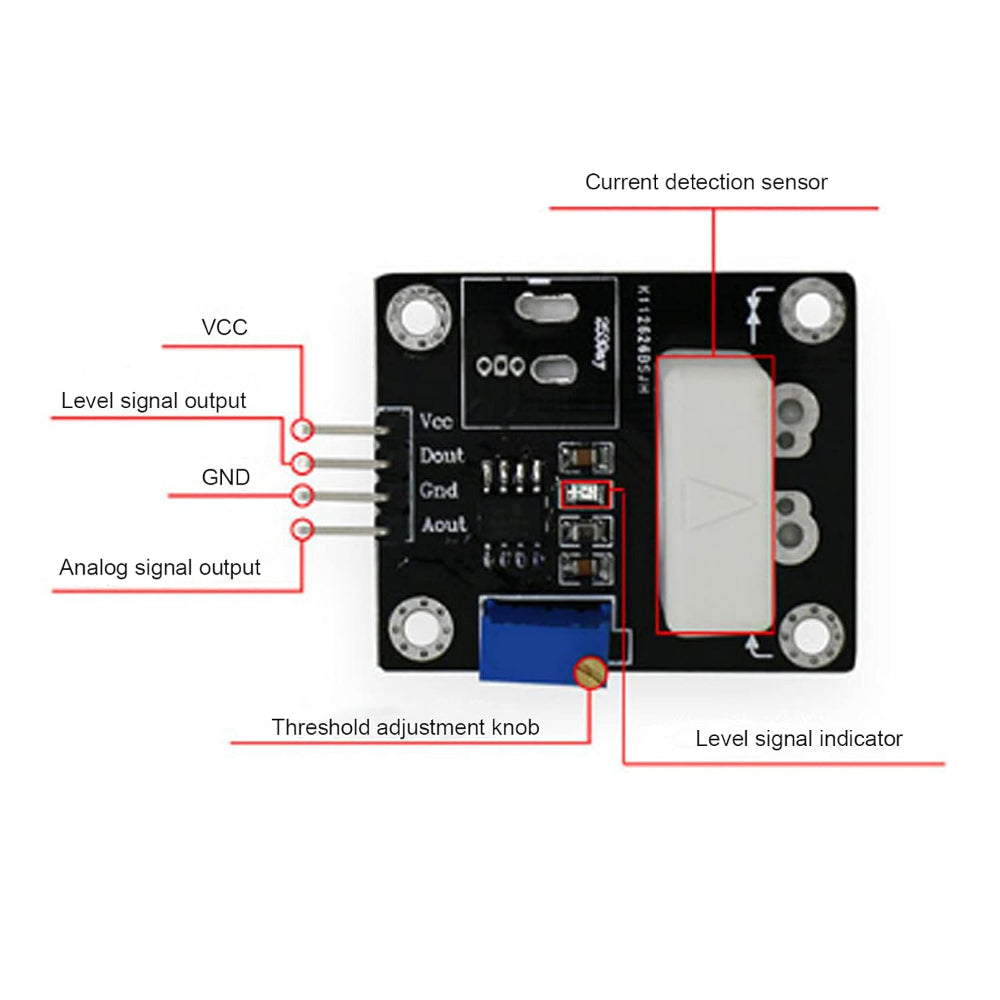

Features

  • Accurate AC/DC current sensing up to 70A
  • Current detection resolution of 32mV/A
  • Built-in overcurrent signal indication
  • Adjustable overcurrent threshold setting (3A resolution)
  • Low-temperature drift and high linearity output
  • 9mm through-hole for non-intrusive current measurement
  • Mounting holes for easy installation
  • Analog signal output compatible with ADC or microcontroller I/O ports

Technical Details

  • Item Type: Current Sensor
  • Model Type: Hall Current Sensor
  • Pass-Through Wire Diameter: 9 mm
  • Current Detection Resolution: 32mV/A
  • Maximum Current Range: 70A
  • Output Current Sink: 0.4 mA
  • Operating Voltage: 5V (typical)
  • Output Type: Analog Voltage
  • Length: 5 mm
  • Width: 5 mm
  • Height: 4 mm
  • Weight: 10 g

Applications

  • Motor control and monitoring systems
  • Load detection and management
  • Over-current fault detection
  • Intelligent power management systems
  • Battery monitoring and charging systems
  • Industrial automation and control

Physical Attributes

  • Package Type: Through-hole
  • Through-Hole Diameter: 9 mm
  • Compact and lightweight design
  • Mounting holes for secure installation
  • Material: PCB and encapsulated electronic components
  • Color: May vary

Package Includes

  • 1 × WCS1700 Hall Current Sensor with Overcurrent Protection
