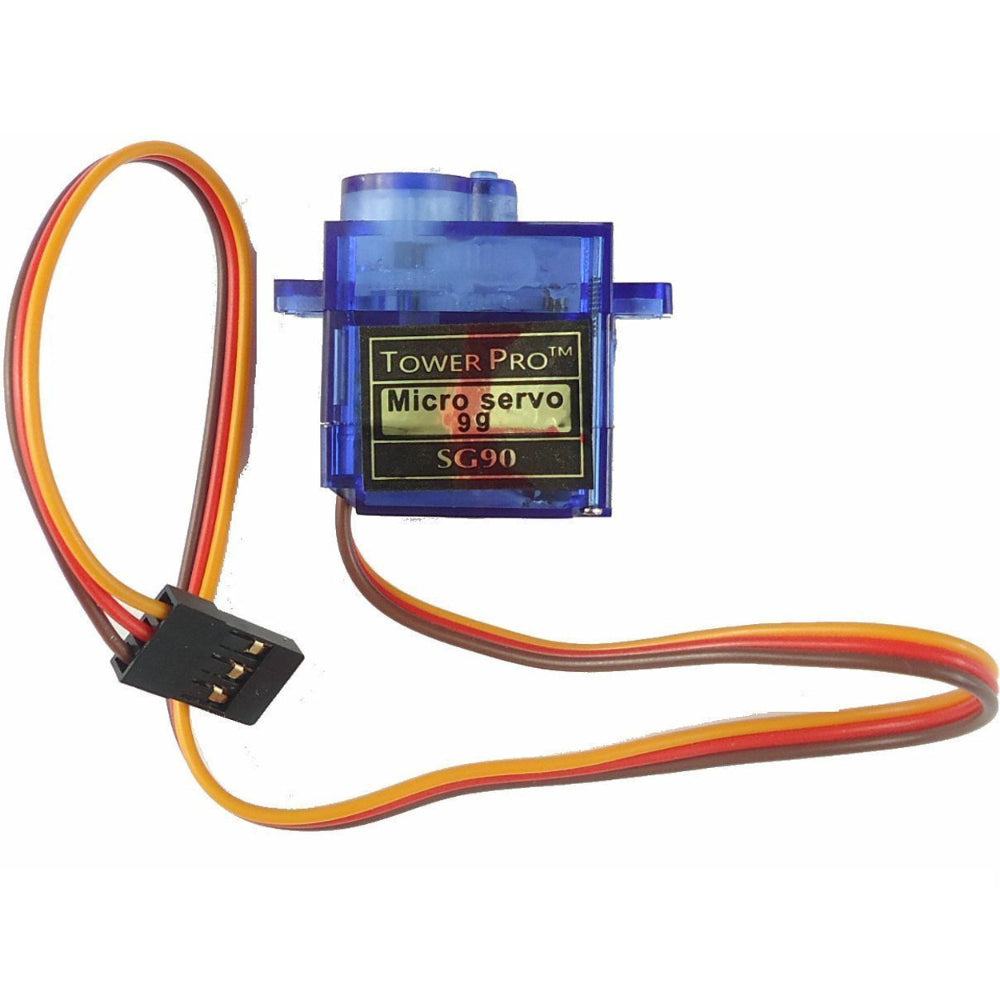

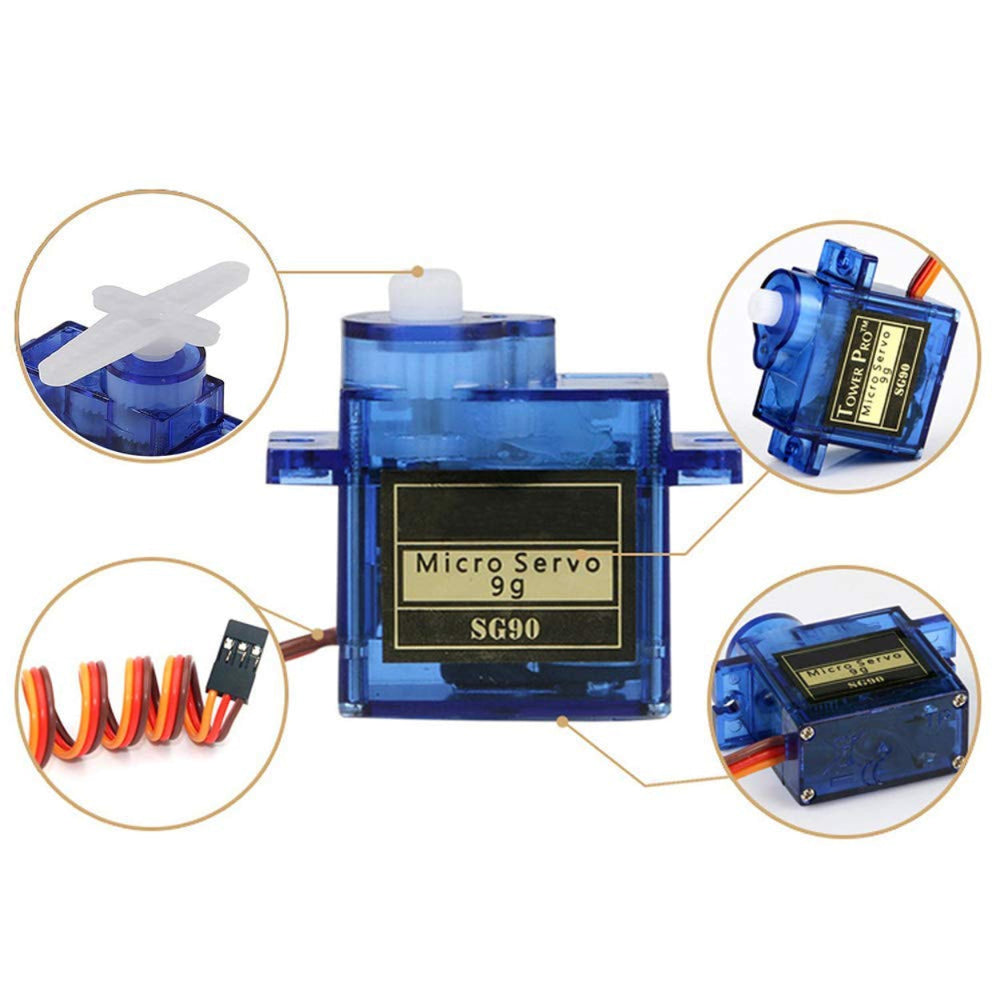

TowerPro SG90 Mini Servo – 360 degree Rotation – Standard Quality
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

TowerPro SG90 Mini Servo – 360 degree Rotation – Standard Quality

Available:In Stock
  • Product SKU: KG113
Wishlist
₹ 99 ₹ 139
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   12B-108

Secure

Specification

Description

The TowerPro Servo Motor

Is a very difficult task to recognize and buy an original TowerPro servo Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name. It equips Carbon Fiber Gears which makes the servo motor much lighter than the same metal gear motor.

For small load applications using the metal gear, the servo motor adds on unnecessary weight, so we suggest using these lightweight plastic gear servo motors. The TowerPro SG90 9g Mini Servo is a 360° rotation servo. It is a Digital Servo Motor that receives and processes PWM signals faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

KitsGuru.com believes in satisfied customers, so whatever the product is we first import them then test them for their supplier-defined and standard capabilities. Only after doing all the possible quality checks, we make the product available to our customers.

Applications

The TowerPro SG90 is widely used in RC (Remote Control) models, small robotic projects, and various DIY applications that require angular motion control. It's commonly used for tasks like moving small robot limbs, steering mechanisms in remote-controlled cars, and other position-sensitive applications.

Size: The SG90 is known for its small and lightweight design, making it ideal for applications where space and weight constraints are significant factors.

Standard Quality: The SG90 is considered a standard-quality servo motor, suitable for general-purpose applications that do not require extreme precision or high torque. It is valued for its affordability and is a popular choice for beginners and hobbyists.
  • High quality and high-cost performance.
  • Operating speed: 0.1second/ 60degree ( 4.8V no load)
  • Operating voltage: 4.8-6V
  • Small size and lightweight.
  • Application: Used for fixed-wing, helicopter, KT, glider, small robot, robotic arm, and other models.

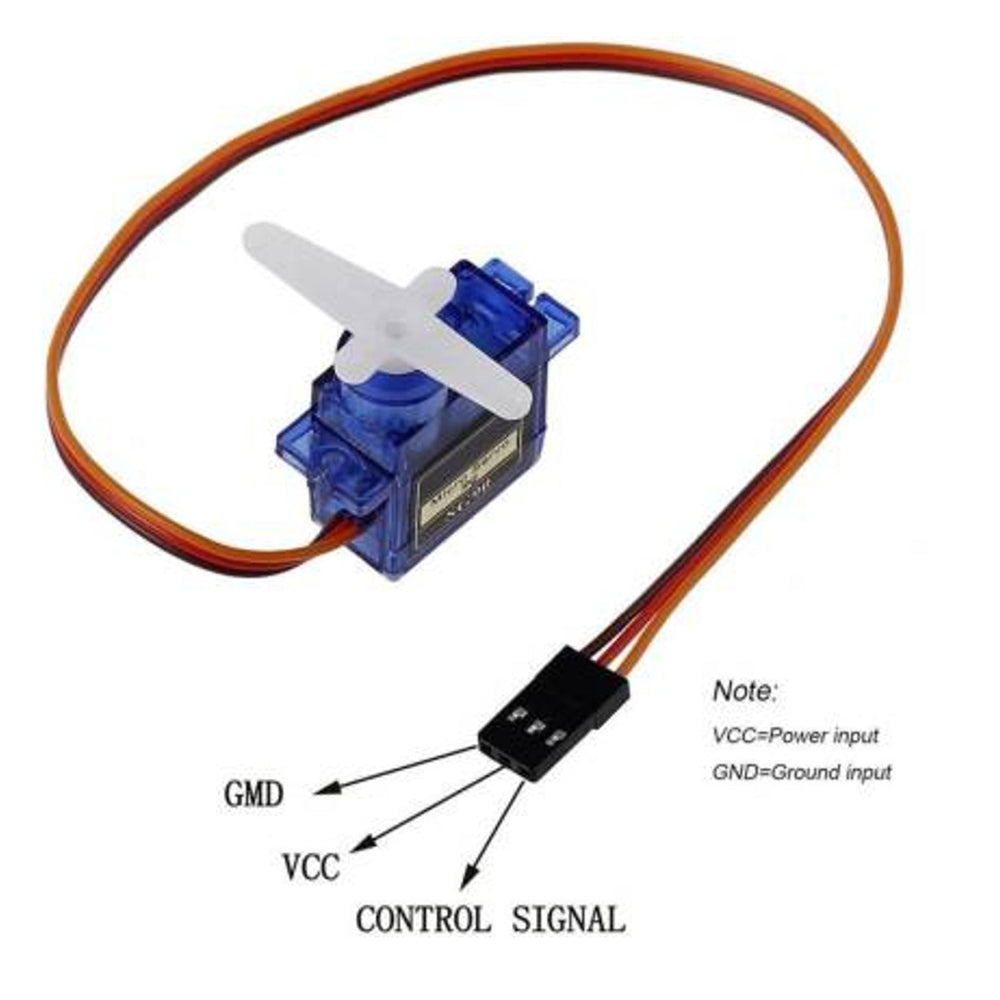

Wire Description

  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Technical Details

  • Model : SG90
  • Operating Voltage (VDC) : 3.0 ~ 7.2
  • Operating Speed @4.8V : 0.10sec/60°
  • Stall Torque @ 4.8V (Kg-Cm) : 1.2
  • Stall Torque @6.6V (Kg-Cm) : 1.6
  • Operating Temperature (°C) : -30 to 60
  • Dead Band Width ( μs) : 7
  • Gear Type : Glass Fiber
  • Rotational Degree : 360º
  • Servo Plug : JR

Physical Attributes

  • Length × Width × Height(mm) : 22.8 × 12.6 × 30
  • Weight (gm) : 12
  • Cable Length (cm) : 25

Integration with Arduino


Sample Code

Additional Details

  • High resolution
  • Accurate positioning
  • Fast control response
  • Constant torque throughout the servo travel range
  • Excellent holding power

Product Video

Documentation

Package Includes

  • 1 x TowerPro SG90 Mini Servo – 360 degree Rotation – Standard Quality
