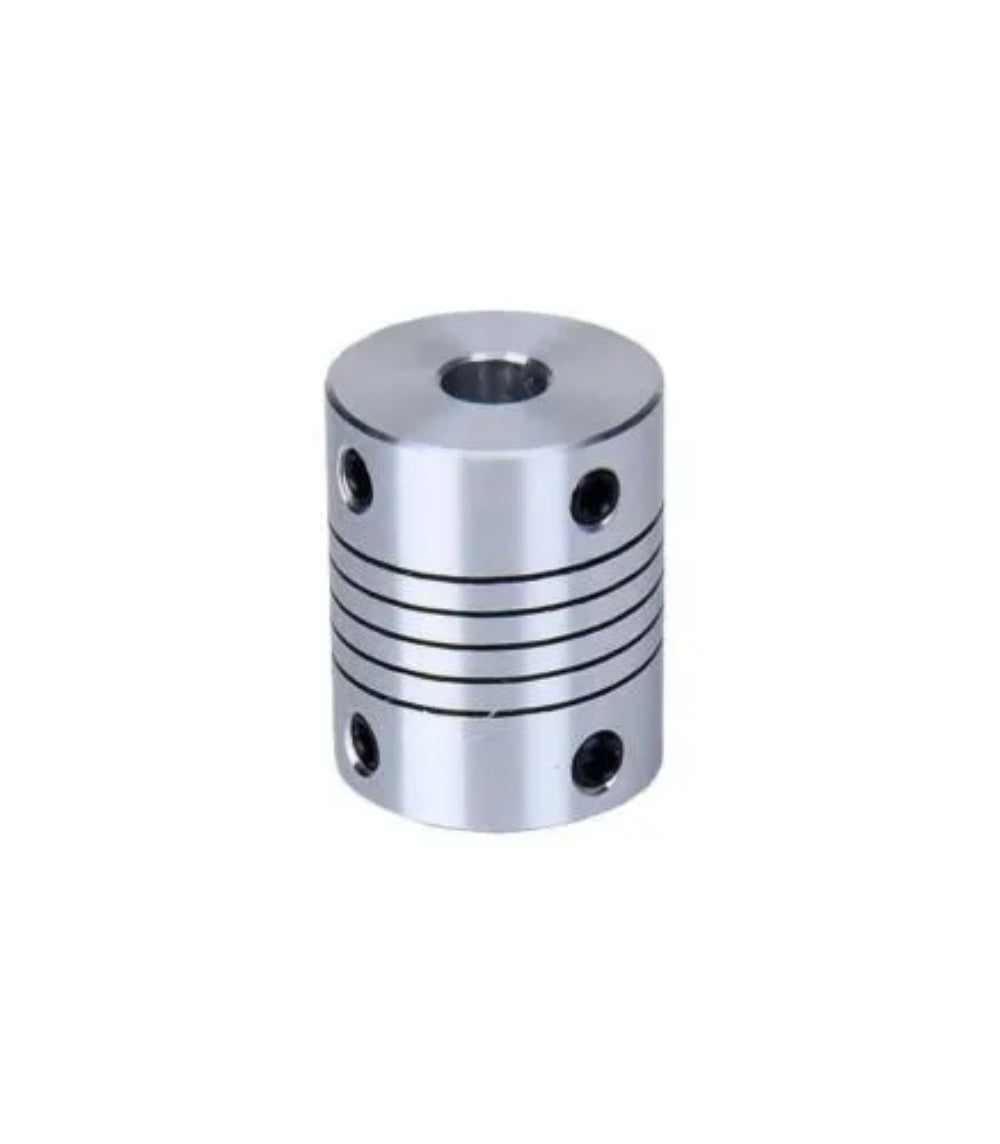

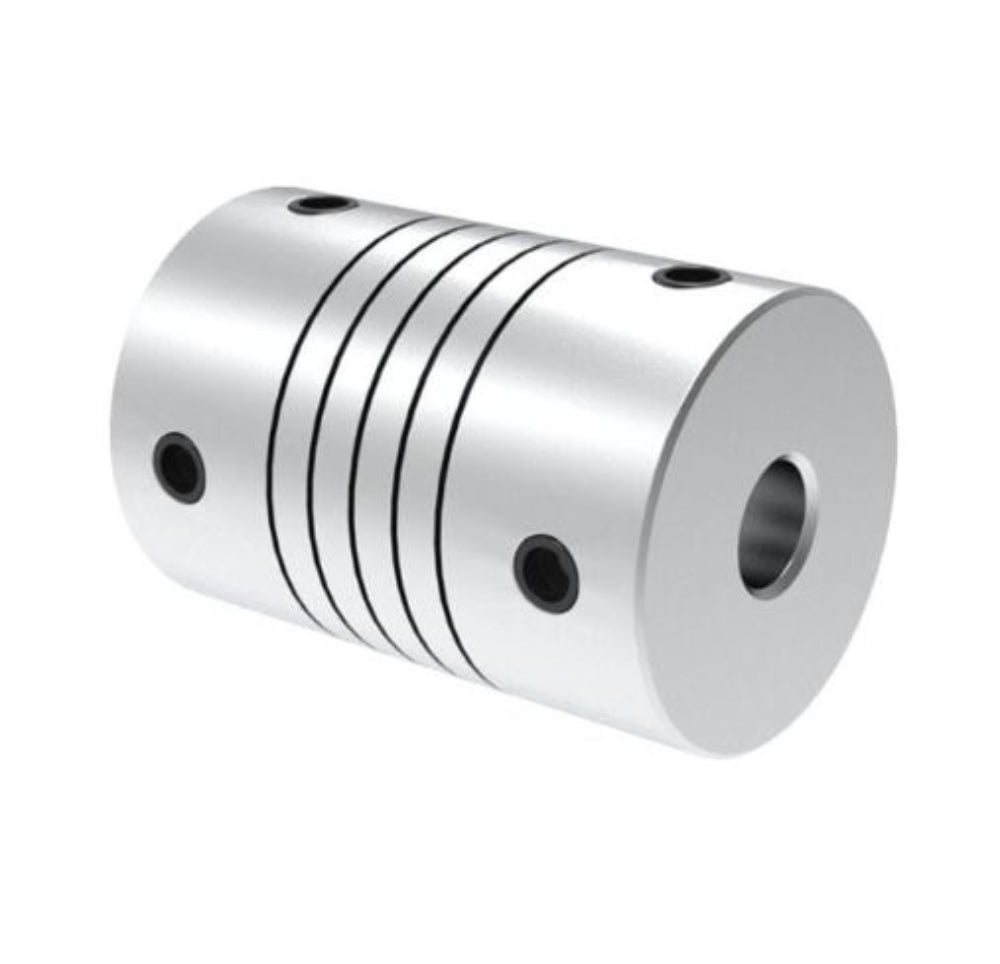

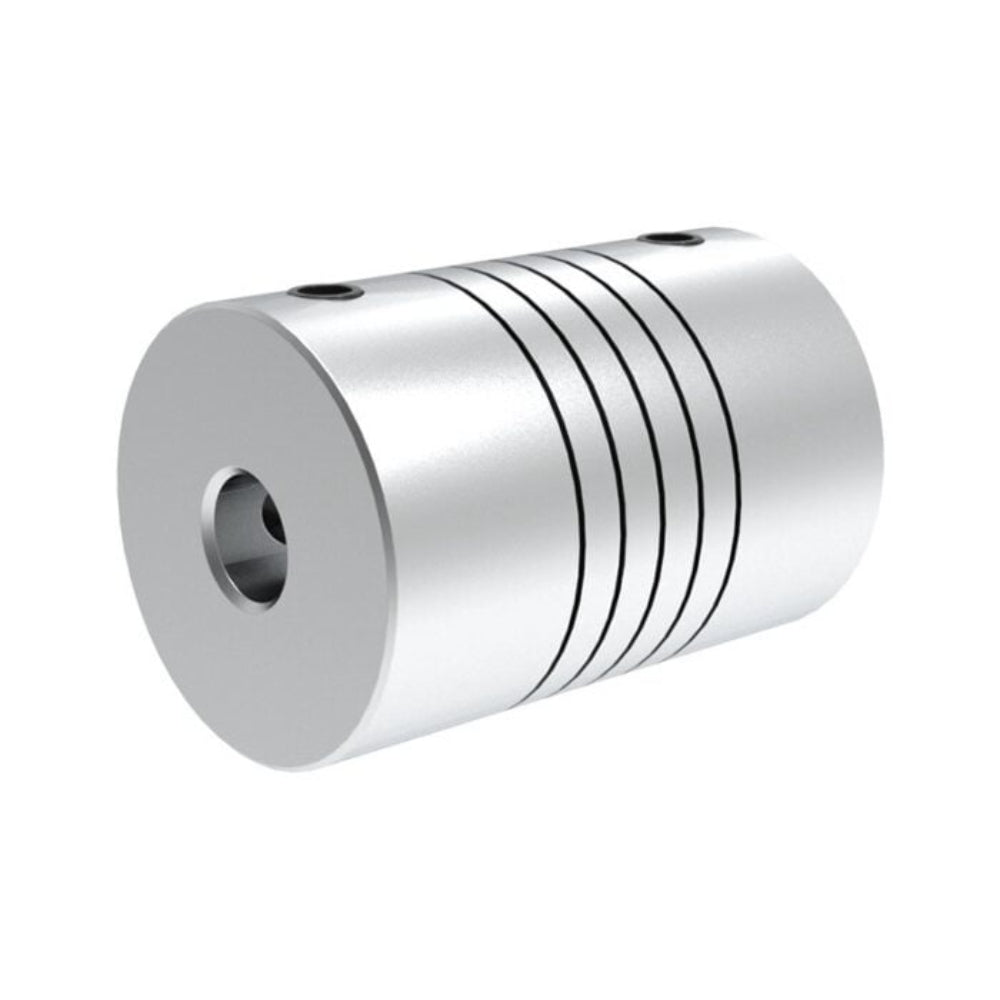

19mm Outer Diameter x 25mm Length, 5mm x 6.35mm Inner Diameter RB Aluminium Flexible Shaft Coupling
![5mm-to-6-35mm-coupler]()
![flexible-aluminium-shaft-sleeve]()
![helical-drive-shaft-connector]()
![5mm-to-6-35mm-coupler]()
![flexible-aluminium-shaft-sleeve]()
![helical-drive-shaft-connector]()
Made from durable aluminium, this one-piece flexible coupling offers zero backlash performance, low rotational inertia, and reliable torque transfer. It is well suited for CNC equipment, 3D printer systems, robotics, and automation mechanisms where smooth operation and reduced vibration are required.
-25%
19mm Outer Diameter x 25mm Length, 5mm x 6.35mm Inner Diameter RB Aluminium Flexible Shaft Coupling
Available:In Stock
- Product SKU: LGSTM093
₹ 149
₹ 199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
19mm Outer Diameter x 25mm Length, 5mm x 6.35mm Inner Diameter RB Aluminium Flexible Shaft Coupling
The RB Aluminium Flexible Shaft Coupling is a compact mechanical connector designed to couple 5mm and 6.35mm shafts in precision motion and transmission systems. With a 19mm outer diameter and 25mm body length, it is suitable for compact assemblies where secure shaft connection and stable rotation are important. Its helical beam cut structure helps compensate for slight shaft misalignment while reducing stress on connected components during operation.Made from durable aluminium, this one-piece flexible coupling offers zero backlash performance, low rotational inertia, and reliable torque transfer. It is well suited for CNC equipment, 3D printer systems, robotics, and automation mechanisms where smooth operation and reduced vibration are required.
Drawing
Applications
- Motor and shaft connection assemblies
- 3D printer drive systems
- CNC and engraving machines
- Robotics and automation equipment
- Precision motion transmission setups
- DIY mechanical projects
Technical Details
- Product Type: Flexible Shaft Coupling
- Series: RB
- Material: Aluminium
- Outer Diameter: 19mm
- Total Length: 25mm
- Bore Diameter Side 1: 5mm
- Bore Diameter Side 2: 6.35mm
- Bore Combination: 5mm x 6.35mm
- Screw Type: 2 x M3
- Construction: One Piece
- Torsional Performance: Zero Backlash
Physical Attributes
- Weight: 16g
- Dimensions: 19mm x 25mm
- Bore Diameter (Both Sides): 5mm x 6.35mm
Package Includes
- 1 × RB Aluminium Flexible Shaft Coupling 5mm x 6.35mm
