Insert each shaft into the appropriate bore and tighten the supplied M3 gripping screws. This secure locking method reduces slip and ensures consistent movement, allowing the coupling to perform well in robotics, RC propulsion stages, and prototype systems requiring dependable rotational accuracy.
-40%
Double pass brass universal adapter coupling 4mm x 4mm
Available:In Stock
- Product SKU: LGRO083
₹ 59
₹ 99
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

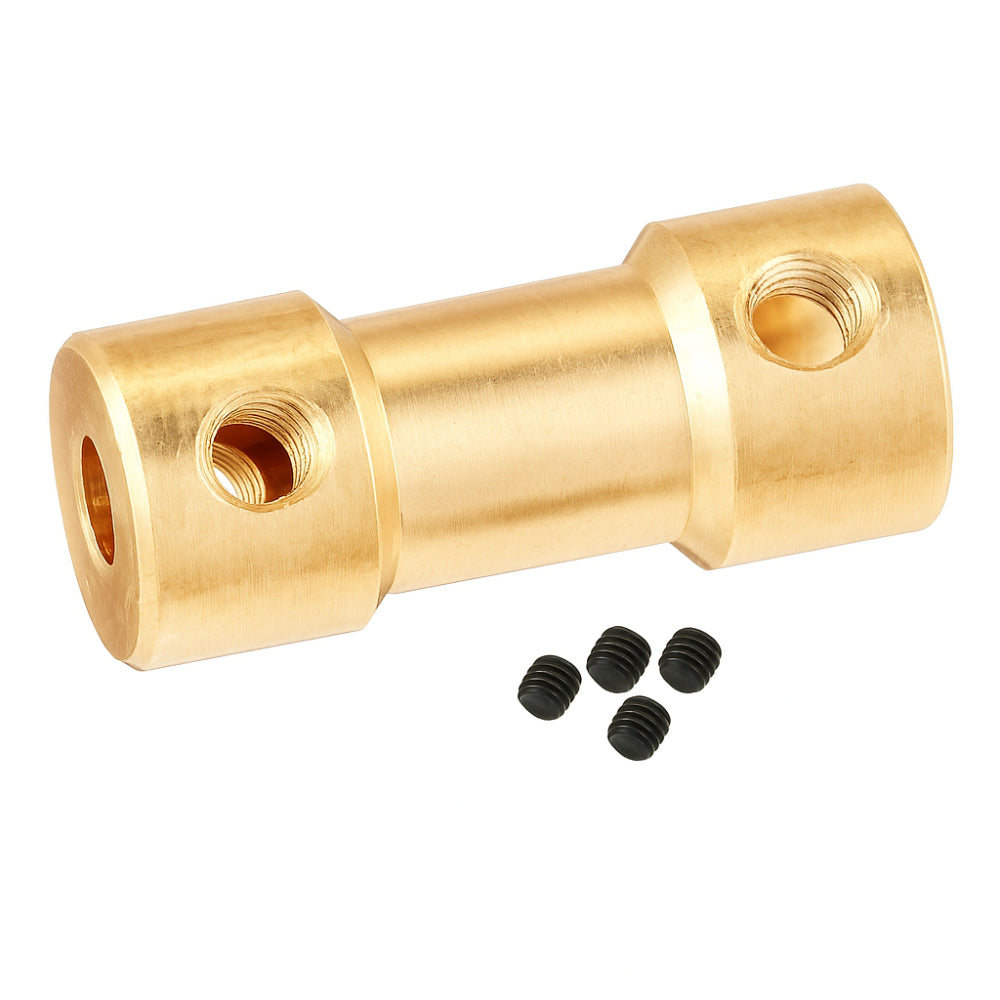

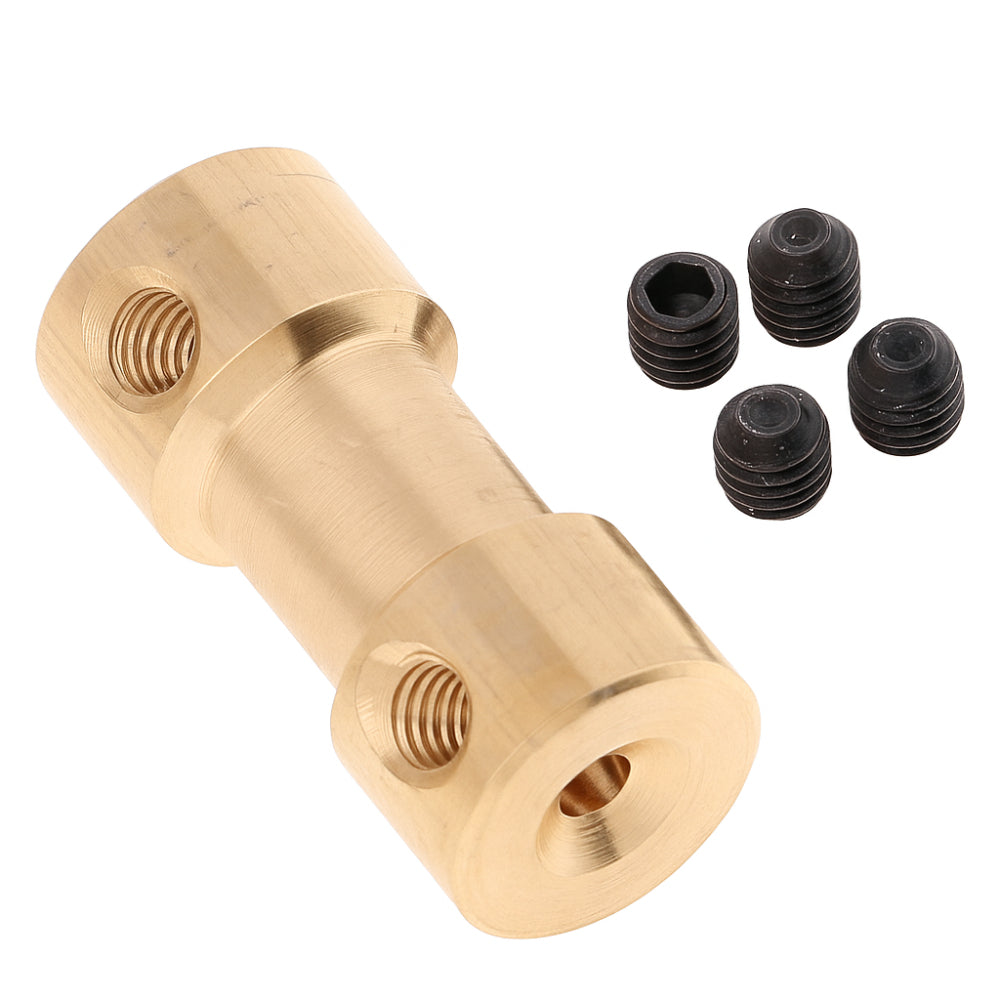

Double Pass Brass Universal Adapter Coupling 4mm × 4mm
The Double Pass brass adapter coupling 4mm × 4mm is designed for smooth rotational transfer in compact assemblies where precise alignment is maintained. Its durable brass body supports stable torque output, making it suitable for setups involving motor coupling and motor coupling shaft adjustments while keeping the coupling efficient across various miniature mechanisms.Insert each shaft into the appropriate bore and tighten the supplied M3 gripping screws. This secure locking method reduces slip and ensures consistent movement, allowing the coupling to perform well in robotics, RC propulsion stages, and prototype systems requiring dependable rotational accuracy.
Technical Details
- Material: Brass
- Bore Sizes: 4mm and 4mm
- Body Length: 20 mm
- Outer Diameter: 9 mm
- Locking Hardware: M3 gripping screws (4 pcs)
- Coupling Format: Rigid cylindrical sleeve
- Weight: 8 g
- Finish Tone: Gold brass machining
Features
- Adapts 4mm motor shafts to 4mm driven components
- Brass machining offers long-lasting durability
- Four-screw clamping enhances shaft retention
- Compact size ideal for tight mechanical layouts
Applications
- Robotic actuator diameter transitions
- RC propulsion linkage conversions
- Prototype gear and pulley interfacing
- Micro mechanical torque transfer
- Instrument spindle adaptation

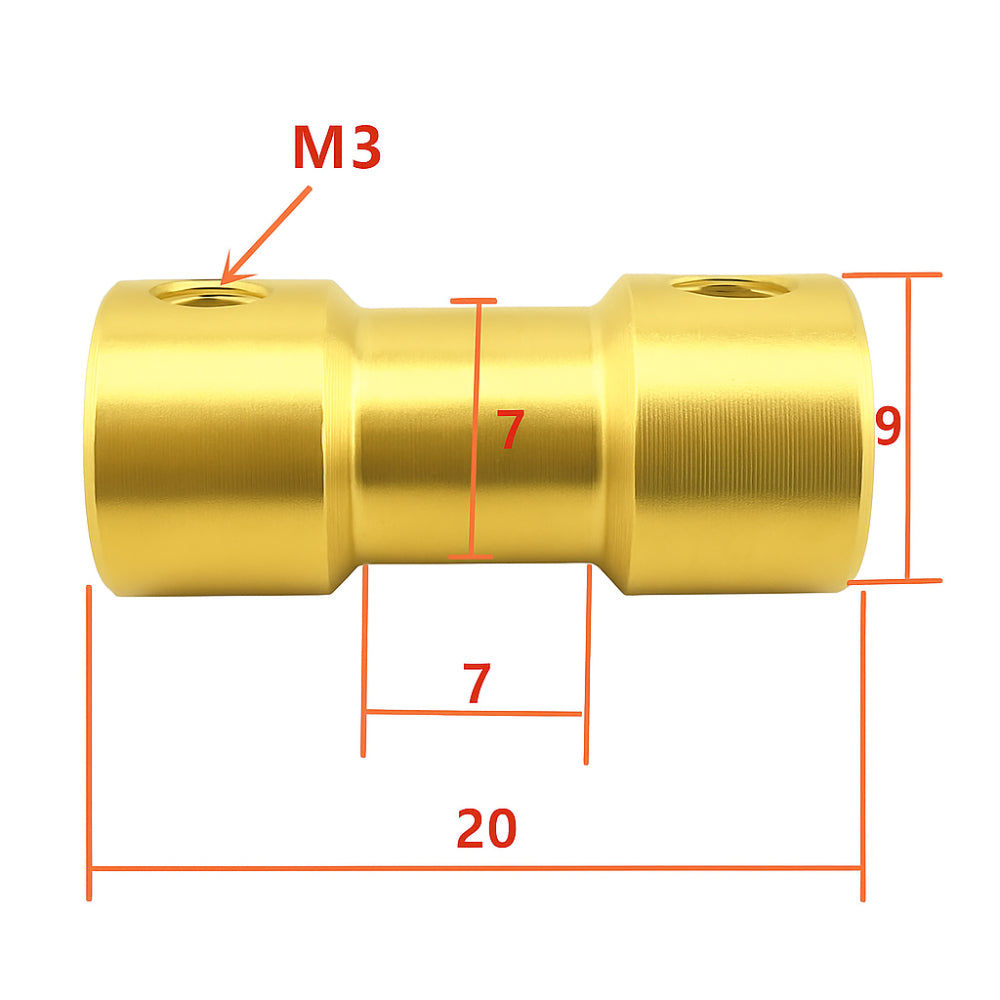

Physical Attributes
- Component Length: 20 mm
- Outer Diameter: 9 mm
- Bore Dimensions: 4 mm and 4 mm
- Screw Thread Type: M3
- Included Screws: 4 pcs
- Approximate Weight: 8 g
- Shape Type: Solid cylindrical sleeve
- Surface Finish: Smooth precision-machined brass
Package Includes
- 1 × Double Pass Brass Coupling (4mm × 4mm)
- 4 × M3 Gripping Screws
