Double pass brass universal adapter coupling 5mm x 5mm
![Brass coupling 5mm to 5mm adapter]()
![5mm brass motor shaft coupler]()
![Rigid brass sleeve coupling 5mm]()
![CNC machined brass 5mm coupling]()
![Brass coupling 5mm to 5mm adapter]()
![5mm brass motor shaft coupler]()
![Rigid brass sleeve coupling 5mm]()
![CNC machined brass 5mm coupling]()
Secure each shaft using the supplied M3 locking screws, which tighten evenly around the surface to minimize slip. This dependable interface enhances rotational consistency in prototype mechanisms, small drive modules, and applications where the motor shaft coupling needs long-term stability. With its strong grip and precision machining, the coupling performs effectively across various miniature drivetrain setups.
-40%
Double pass brass universal adapter coupling 5mm x 5mm
Available:In Stock
- Product SKU: LGRO085
₹ 59
₹ 99
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Double Pass Brass Universal Adapter Coupling 5mm × 5mm
The Double Pass brass adapter coupling 5mm × 5mm offers stable rotational transfer for precision builds, supporting both motor shaft coupling layouts and engine shaft coupling configurations in compact mechanical systems. With its rigid brass structure, the coupling maintains smooth alignment when two equal-diameter shafts are seated accurately within the sleeve, ensuring reliable motion even in space-restricted assemblies.Secure each shaft using the supplied M3 locking screws, which tighten evenly around the surface to minimize slip. This dependable interface enhances rotational consistency in prototype mechanisms, small drive modules, and applications where the motor shaft coupling needs long-term stability. With its strong grip and precision machining, the coupling performs effectively across various miniature drivetrain setups.

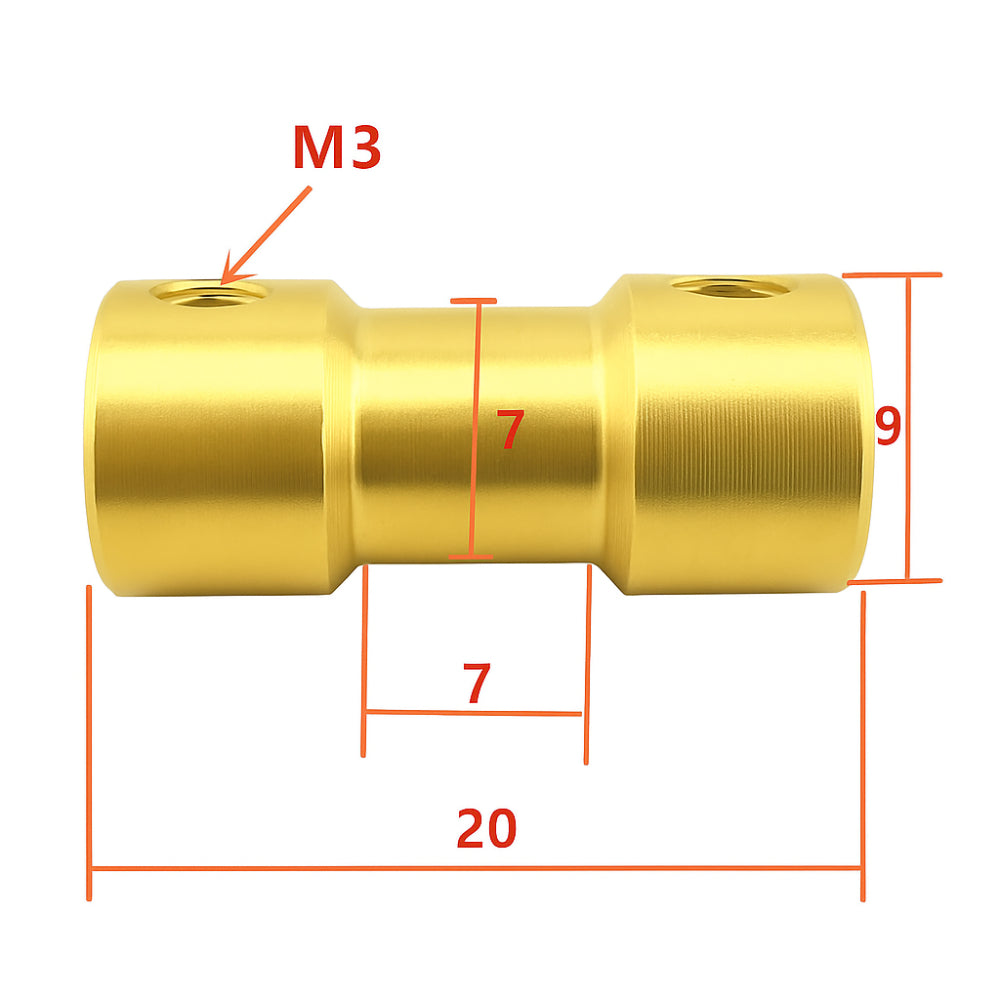

Technical Details
- Material: Brass
- Shaft Bore Sizes: 5mm × 5mm
- Body Length: 20 mm
- Outer Diameter: 9 mm
- Locking Screws: M3 (4 pcs)
- Coupling Type: Rigid cylindrical sleeve
- Weight: 8 g
- Finish Color: Gold brass polish
Features
- Equal-diameter shaft connection for smooth rotation
- Machined brass construction improves service durability
- Balanced four-point clamp for stronger retention
- Resistant to mild environmental wear and oxidation
- Compact design ideal for tight mechanical assemblies
Applications
- Robot drivetrain shaft alignment tasks
- RC motor output extension links
- Prototype gear interface sequences
- Pulley or spindle coupling points
- Low-power mechanical drive mechanisms
Physical Attributes
- Component Length: 20 mm
- Cylinder Diameter: 9 mm
- Bore Dimensions: 5 mm × 5 mm
- Screw Thread Type: M3
- Included Screws: 4 pcs
- Total Weight: 8 g
- Body Shape: Solid cylindrical tube
- Surface Finish: Smooth machined brass texture

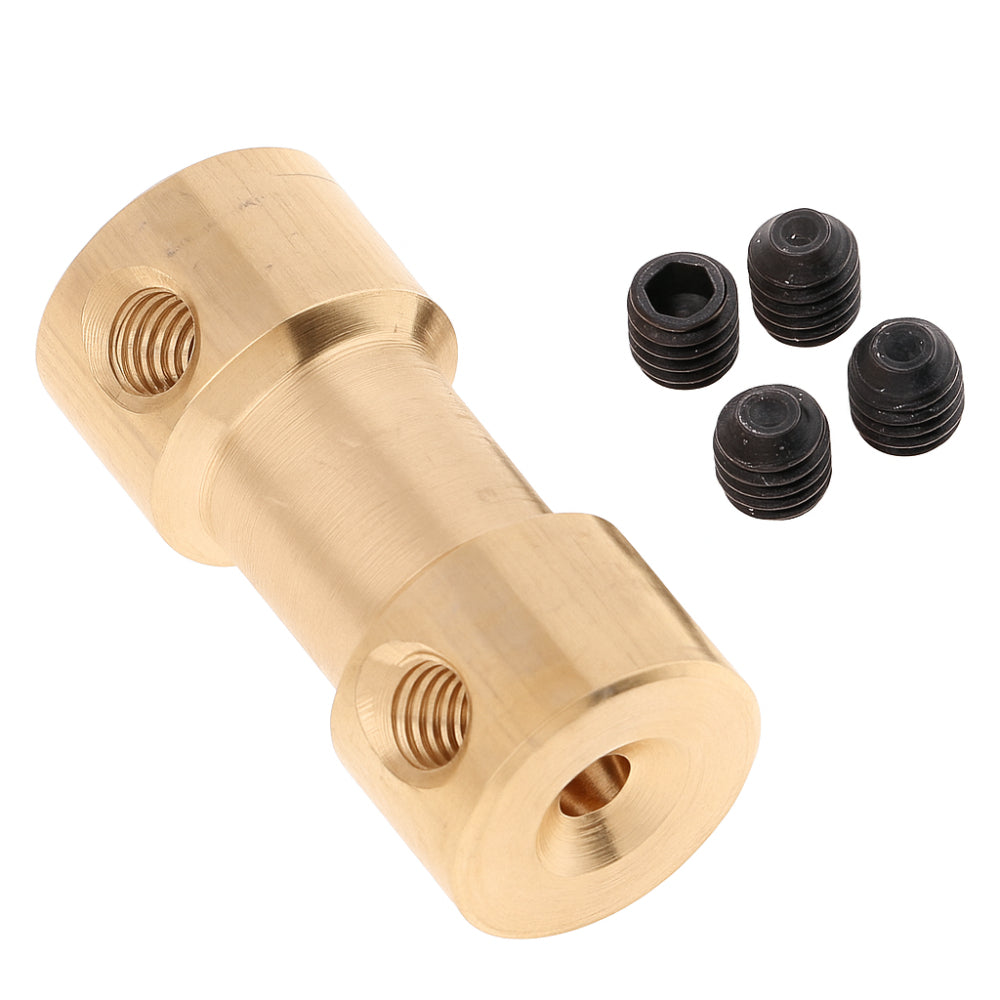

Package Includes
- 1 × Double Pass Brass Coupling (5mm × 5mm)
- 4 × M3 Locking Screws
