XB 45mm Outer Diameter x Length 78mm x Inner Diameter Both Side 14mm Flexible Aluminum Alloy Spider Jaw Coupling
![XB 14mm Outer Diameter x Length 22mm x Inner Diameter_1]()
![XB 14mm Outer Diameter x Length 22mm x Inner Diameter_2]()
![XB 14mm Outer Diameter]()
![XB 14mm Outer Diameter x Length 22mm x Inner Diameter_1]()
![XB 14mm Outer Diameter x Length 22mm x Inner Diameter_2]()
![XB 14mm Outer Diameter]()
Made from aluminum alloy with a flexible spider jaw structure, this coupling helps absorb vibration, reduce shock, and compensate for minor shaft misalignment. This product series is available in a 3mm to 8mm bore range, but in this particular variant, both D1 and D2 bore sizes are the same, and each side has a 3mm bore. It is a practical choice for compact mechanical systems that require efficient rotation transfer, smooth running performance, and dependable coupling strength.
-32%
XB 45mm Outer Diameter x Length 78mm x Inner Diameter Both Side 14mm Flexible Aluminum Alloy Spider Jaw Coupling
Available:In Stock
- Product SKU: LGSTM064
₹ 269
₹ 399
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XB Flexible Aluminum Alloy Spider Jaw Coupling 14mm OD x 22mm Length x 3mm-3mm Bore

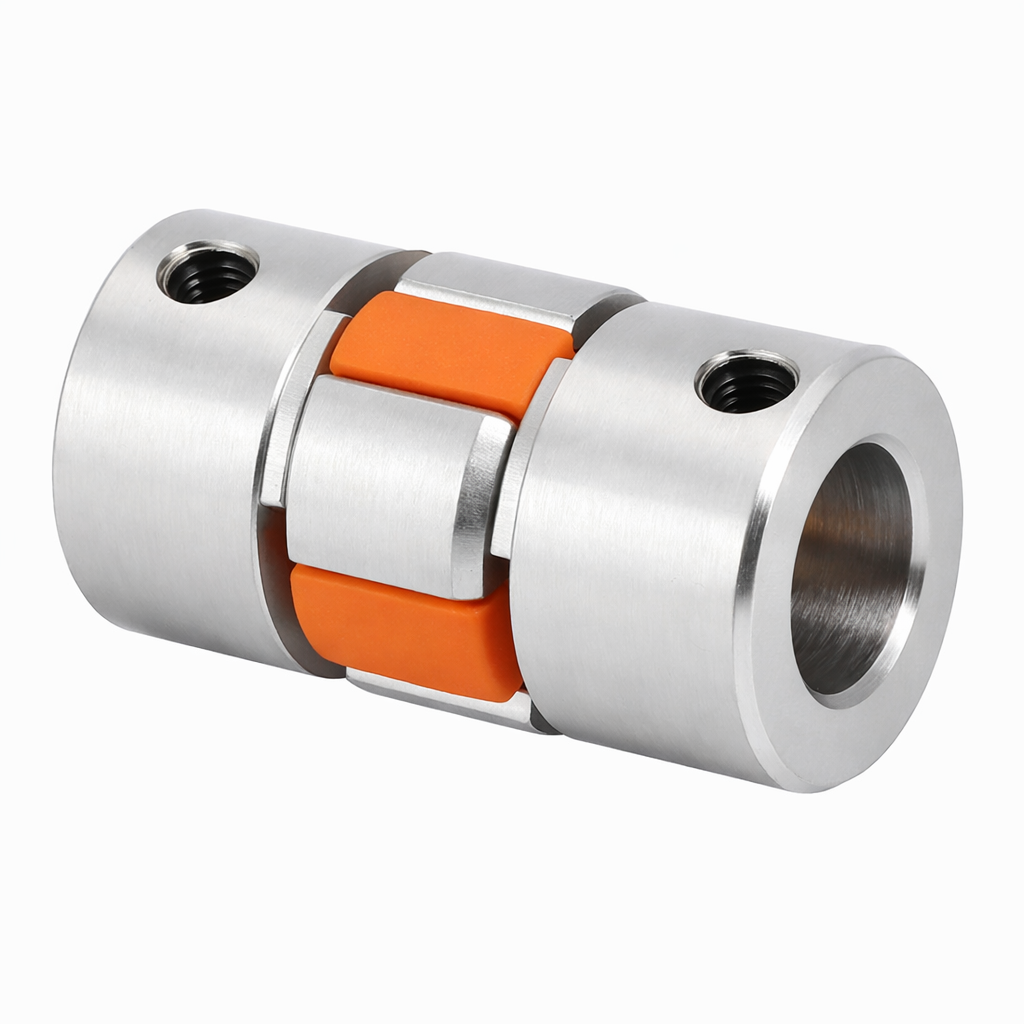

The XB Flexible Aluminum Alloy Spider Jaw Coupling is a compact shaft coupling designed for smooth and reliable torque transmission between two shafts. With a 14mm outer diameter, 22mm total length, and 3mm inner bore on both sides, this coupling is suitable for motors, encoders, small automation systems, CNC assemblies, and robotics applications. Its set screw type design helps provide secure shaft locking and stable mechanical connection during operation.Made from aluminum alloy with a flexible spider jaw structure, this coupling helps absorb vibration, reduce shock, and compensate for minor shaft misalignment. This product series is available in a 3mm to 8mm bore range, but in this particular variant, both D1 and D2 bore sizes are the same, and each side has a 3mm bore. It is a practical choice for compact mechanical systems that require efficient rotation transfer, smooth running performance, and dependable coupling strength.
Features
- Flexible spider jaw design for smooth torque transmission
- Made from durable aluminum alloy
- 14mm outer diameter and 22mm total length
- 3mm bore on both sides for shaft coupling
- Set screw type for secure shaft locking
- Helps absorb vibration and reduce mechanical shock
- Compensates for slight shaft misalignment
- Compact and lightweight design for small mechanical systems
- Suitable for motors, CNC systems, encoders, and robotics
- Product series available in 3mm to 8mm bore options
- In this variant, D1 = 3mm and D2 = 3mm
Technical Details
- Model: XB
- Item Type: Flexible Spider Jaw Coupling
- Material: Aluminum Alloy
- Outer Diameter: 14mm
- Total Length: 22mm
- D1 Bore: 3mm
- D2 Bore: 3mm
- Jaw Count: 2 Claws
- Screw Size: M3
- Keyway Size: None
- Rated Torque: 0.8 N·m
- Maximum Torque: 1.5 N·m
- Mounting Type: Set Screw Type
Applications
- Stepper motors and DC motors
- Encoders and miniature drive systems
- CNC machines
- 3D printers
- Robotics projects
- Automation systems
- Precision shaft connection applications
- DIY mechanical and motion control projects

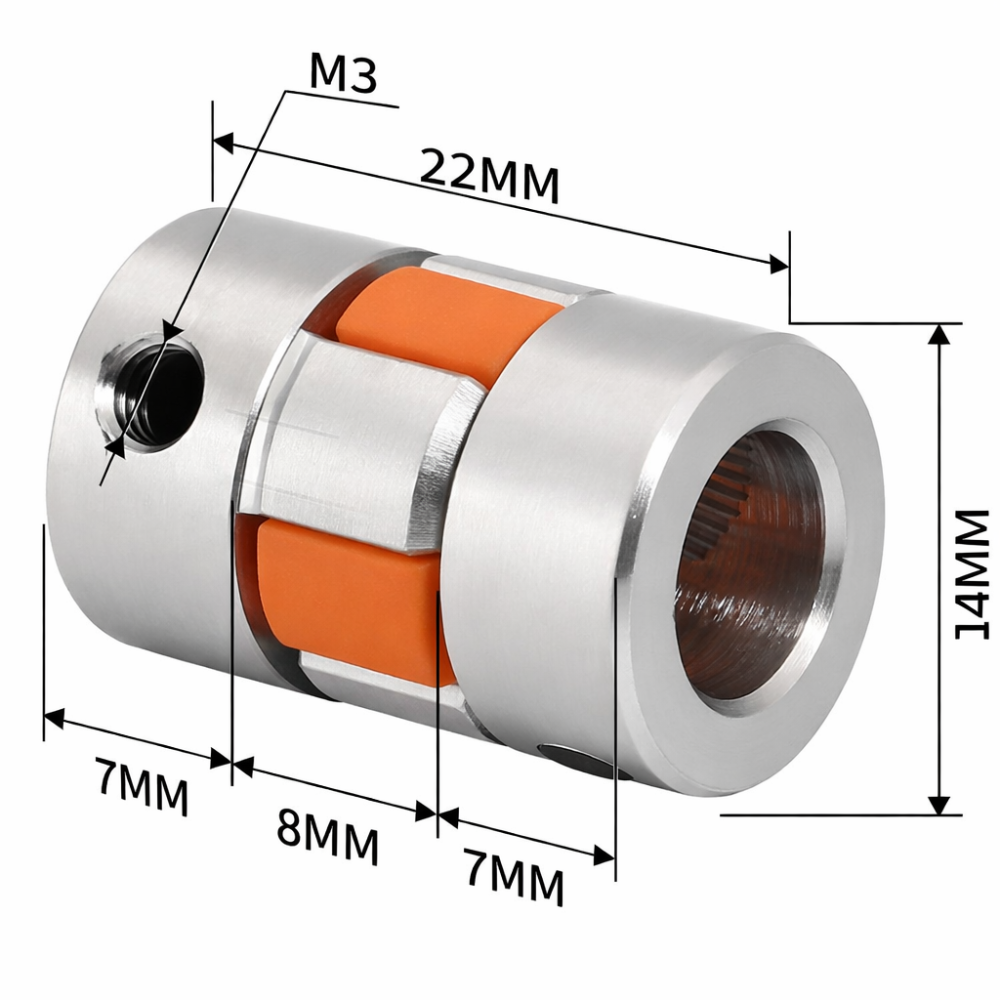

Physical Attributes
- Outer Diameter: 14mm
- Total Length: 22mm
- Section Lengths: 7mm + 8mm + 7mm
- D1 Bore: 3mm
- D2 Bore: 3mm
- Screw Size: M3
- Weight: 8g
Package Includes
- 1 × XB Flexible Aluminum Alloy Spider Jaw Coupling 14mm OD x 22mm Length x 3mm-3mm Bore
