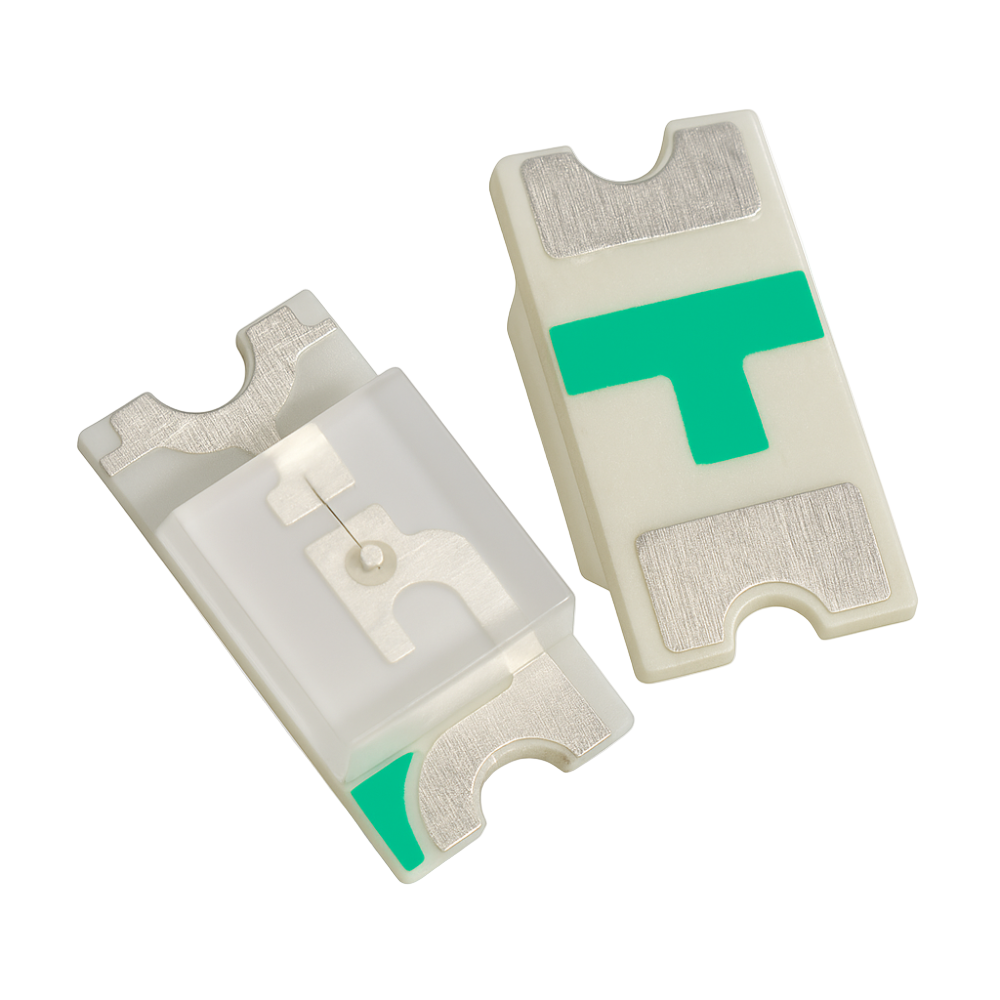

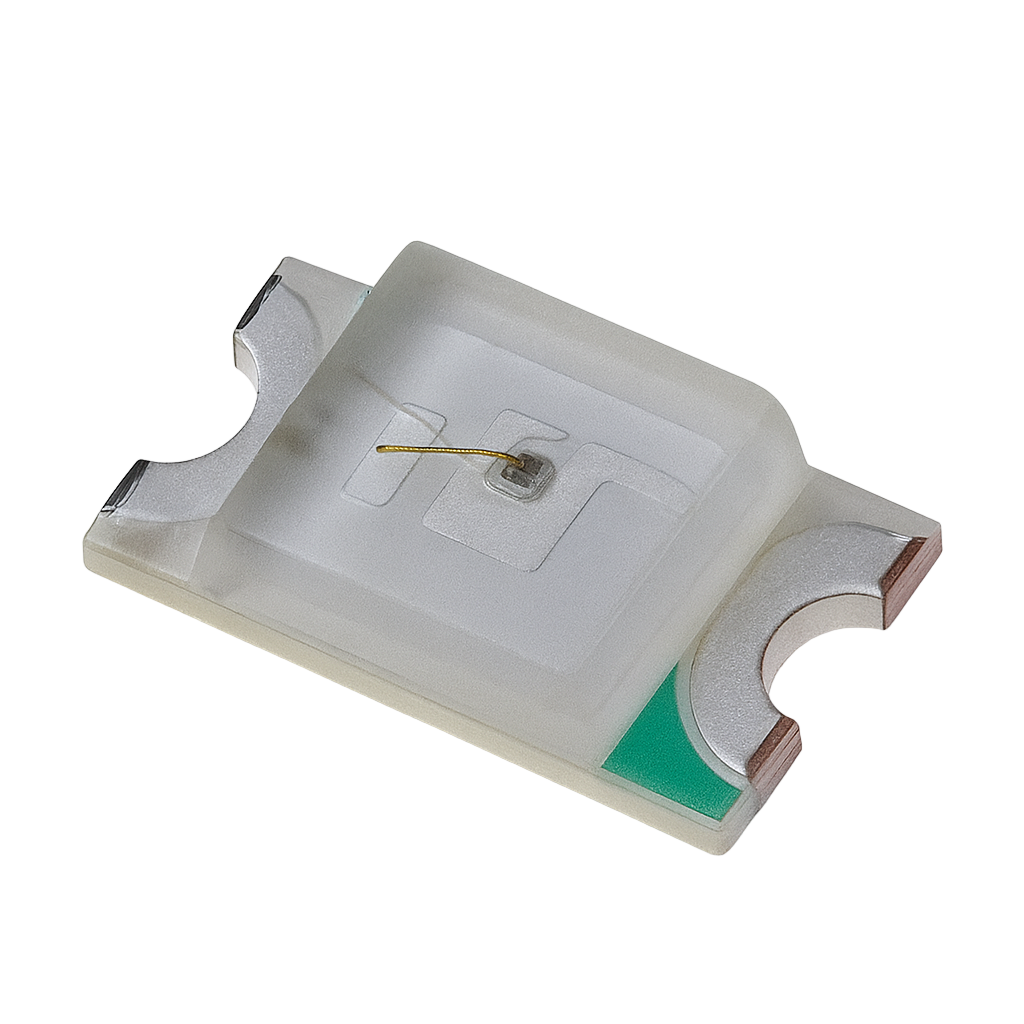

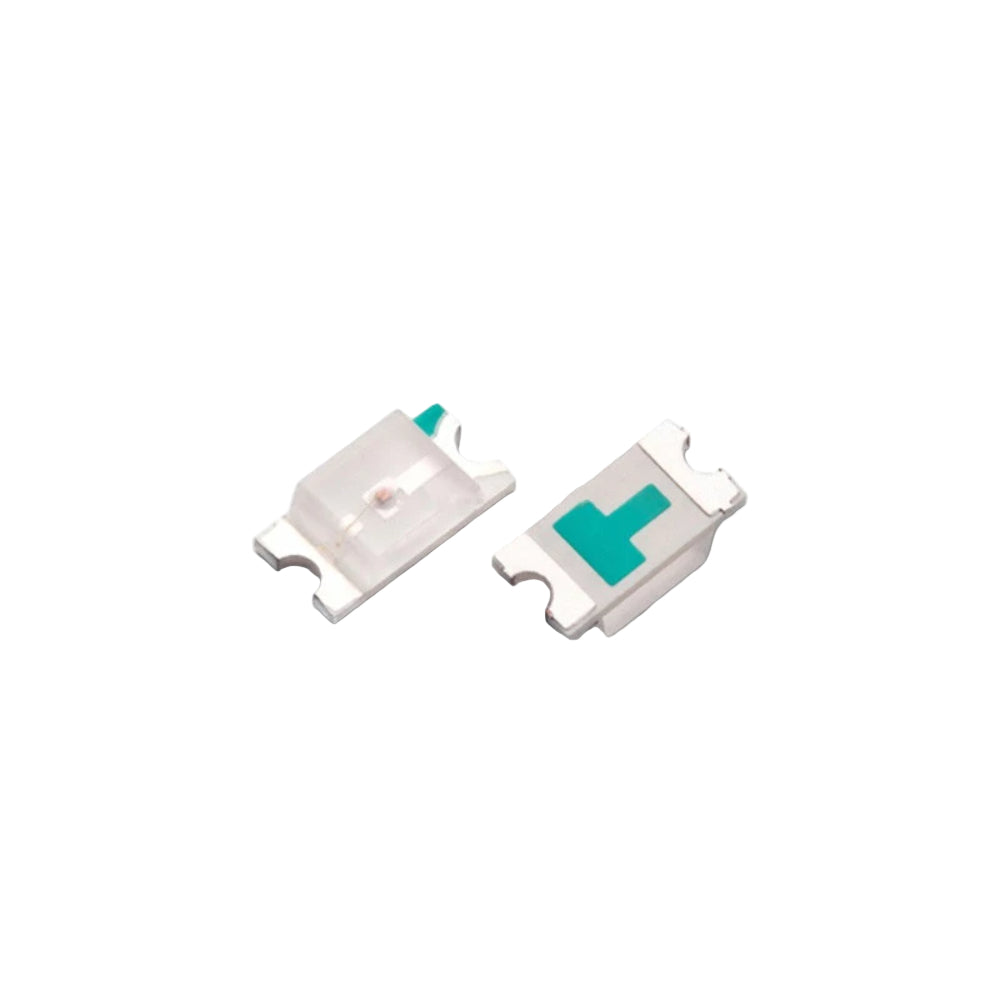

SMD LED 1206 Red - High Performance Red LED

The Surface Mount red SMD LED in a 1206 package is a highly efficient and compact light-emitting diode designed for a wide range of applications, including consumer electronics, automotive, industrial devices, and more. This LED emits bright red light, making it ideal for use as indicators, backlighting for displays, and status lights. With its small dimensions of 3.2mm x 1.6mm, the 1206 package is perfect for space-constrained environments and supports surface mount technology (SMT), allowing for automated assembly on printed circuit boards (PCBs). Operating at a forward voltage of approximately 3.0V to 3.4V with a typical forward current of 20mA, this SMD LED offers low power consumption and a long operational lifespan. Its wide viewing angle of around 120 degrees ensures broad illumination coverage, making it suitable for applications requiring consistent and reliable lighting performance. The LED's durable construction and ability to function in a wide temperature range (-40°C to 85°C) enhance its versatility and reliability in various settings.

Technical Details

Case/Package: 1206
Color: Red
Forward Voltage: 2.1 V
Forward Current: 20 mA
Lens Appearance: Transparent
Package Size: 1206 (3.2mm x 1.6mm)
Low power consumption

Features

Bright red light
Efficient operation with minimal power requirements
Durable construction ensures a long operational life
Designed for automated assembly on PCBs

Applications :

Backlighting: Used in LCDs, keypads, and signage.

Indicators: Status indicators in electronic devices, appliances, and control panels.

Automotive Lighting: Dashboard illumination, interior lights, and button backlights.

Consumer Electronics: Mobile phones, remote controls, and wearables.

Medical Devices: Small display panels and indicators in medical instruments.

General Illumination: Small-scale lighting solutions and decorative lighting.
