25x11mm 24V 5Kg 2.5W Circular Strong Industrial Electromagnet Lifting Magnet

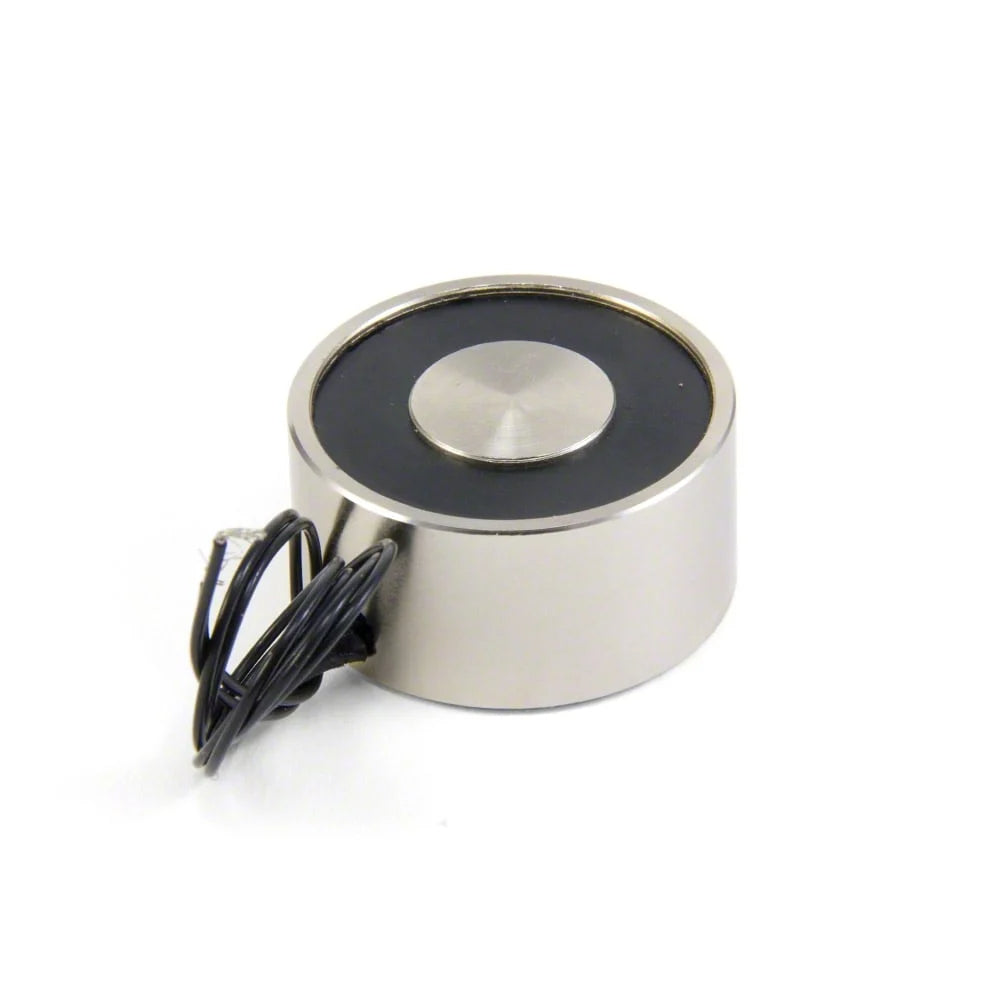

![25x11mm 24V simple electromagnet front view lifting magnet]()

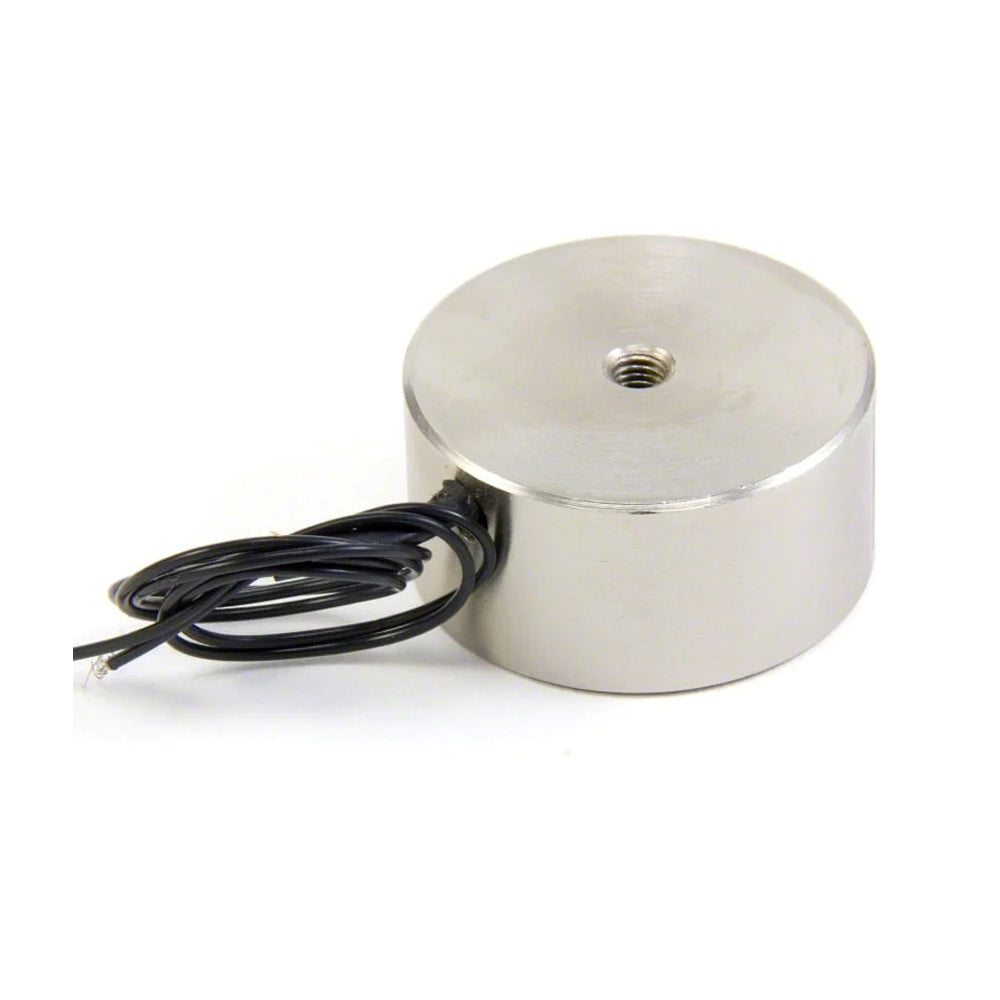

![Side view of 25x11mm 24V circular electromagnet lifting magnet]()
![40×20 mm 24 V solenoid electromagnet showing 300 mm wire and M5 mount]()
![25x11mm 24V simple electromagnet front view lifting magnet]()
![Side view of 25x11mm 24V circular electromagnet lifting magnet]()
![40×20 mm 24 V solenoid electromagnet showing 300 mm wire and M5 mount]()
With a 25 mm diameter and 11 mm height, it delivers up to 5 kg holding force while consuming just 2.5 W at 0.1 A. The 300 mm wire and integrated M4 mounting hole allow secure and flexible installation into compact mechanisms. In addition, this compact design keeps wiring simple so the unit can be integrated quickly in new or existing systems.
-36%
25x11mm 24V 5Kg 2.5W Circular Strong Industrial Electromagnet Lifting Magnet
Available:In Stock
- Product SKU: LGSO026
₹ 319
₹ 499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
25×11mm 24V simple electromagnet Compact Lifting
This compact 24V electromagnet offers strong lifting capability suitable for industrial automation and embedded electromechanical systems. As a simple electromagnet designed for reliable performance, it works like a practical circular electromagnet for everyday use. Built with a durable chrome-coated metal body, it ensures long-term reliability and smooth operation, making it an easy choice for engineers and hobbyists.With a 25 mm diameter and 11 mm height, it delivers up to 5 kg holding force while consuming just 2.5 W at 0.1 A. The 300 mm wire and integrated M4 mounting hole allow secure and flexible installation into compact mechanisms. In addition, this compact design keeps wiring simple so the unit can be integrated quickly in new or existing systems.
Key Features
- High lifting strength up to 5 kg in a simple electromagnet package
- Energy-saving 2.5 W power use for an easy electromagnet in 24V DC projects
- Low current requirement: 0.1 A at 24V DC
- Compact 25×11mm round form factor ideal for a circular layout
- Durable metal construction with chrome finish
- 300 mm wire + 1×M4 screw hole for secure mounting
Applications
- Industrial automation and positioning where a simple electromagnet is needed for reliable holding
- Secure electromechanical locking mechanisms that benefit from an easy electromagnet control method
- Compact robotic gripping and actuators using a small circular electromagnet
- DIY, custom mechanisms & embedded systems that require a straightforward solution
Advantages
- Strong performance in a compact package
- Low-power and low-current operation
- Reliable and long-life metal assembly
- Suitable for a wide range of space-limited applications
- Simple installation with standard mounting hardware
Disadvantages
- Voltage-specific: Only for 24V DC systems
- Not suitable for high-capacity lifting beyond 5 kg
- May generate heat under continuous duty cycles
Drawing
Physical Attributes
- Diameter: 25mm
- Height: 11mm
- Lifting Capacity: 5 kg
- Power: 2.5 W
- Voltage: 24 V DC
- Current: 0.1 A
- Wire Length: 300mm
- Material: Metal
- Finish: Chrome
- Shape: Round
- Weight (gm): 32
Package Includes
- 1 × 25×11mm 24V 5Kg 2.5W Industrial Lifting Electromagnet
