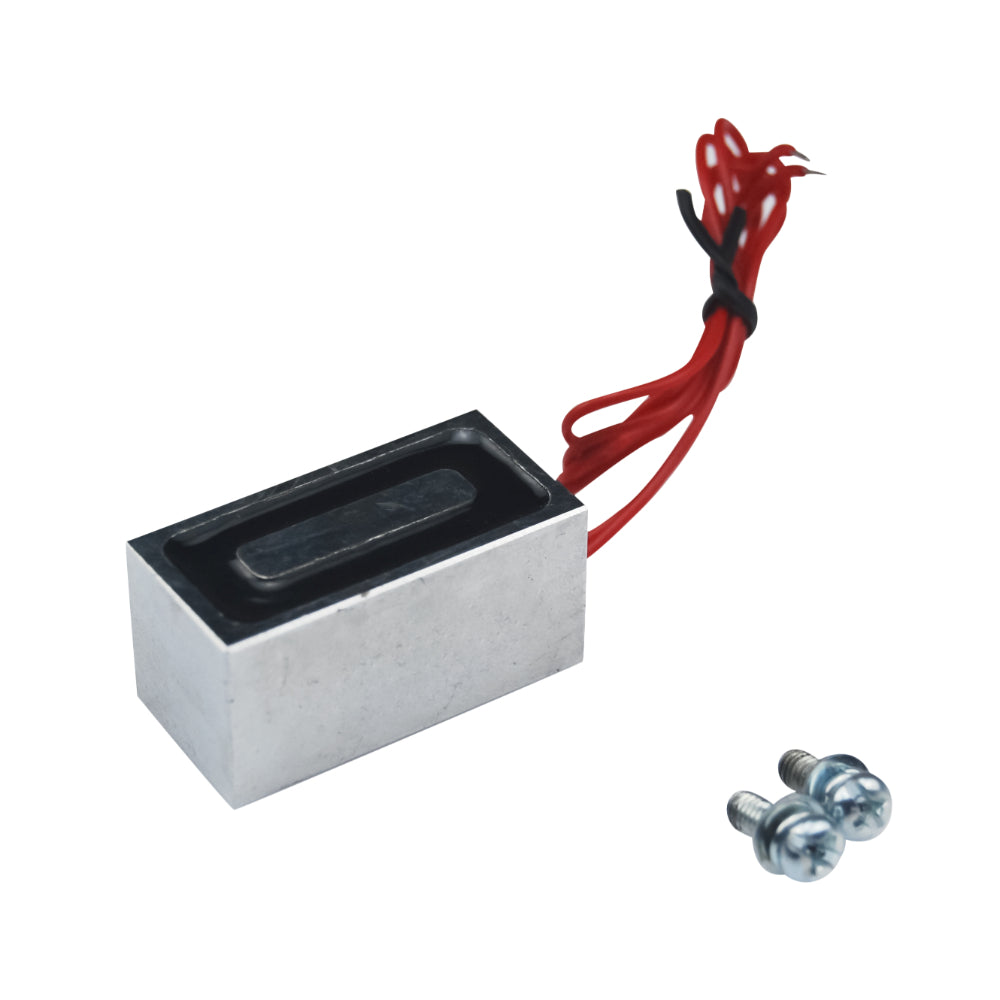

![Front view of 30x20x20mm 12V electromagnet rectangular block]()

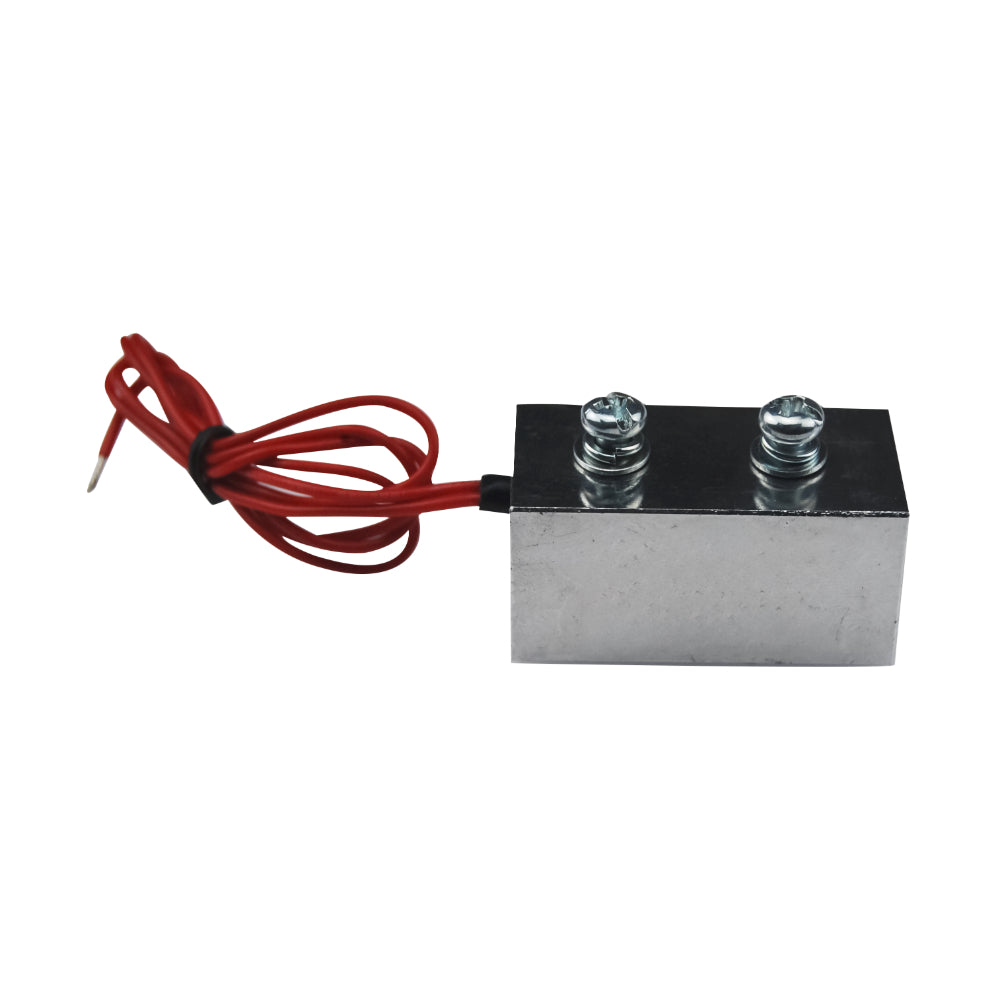

![Side view of compact 30x20x20mm 12V electromagnet for light lifting]()

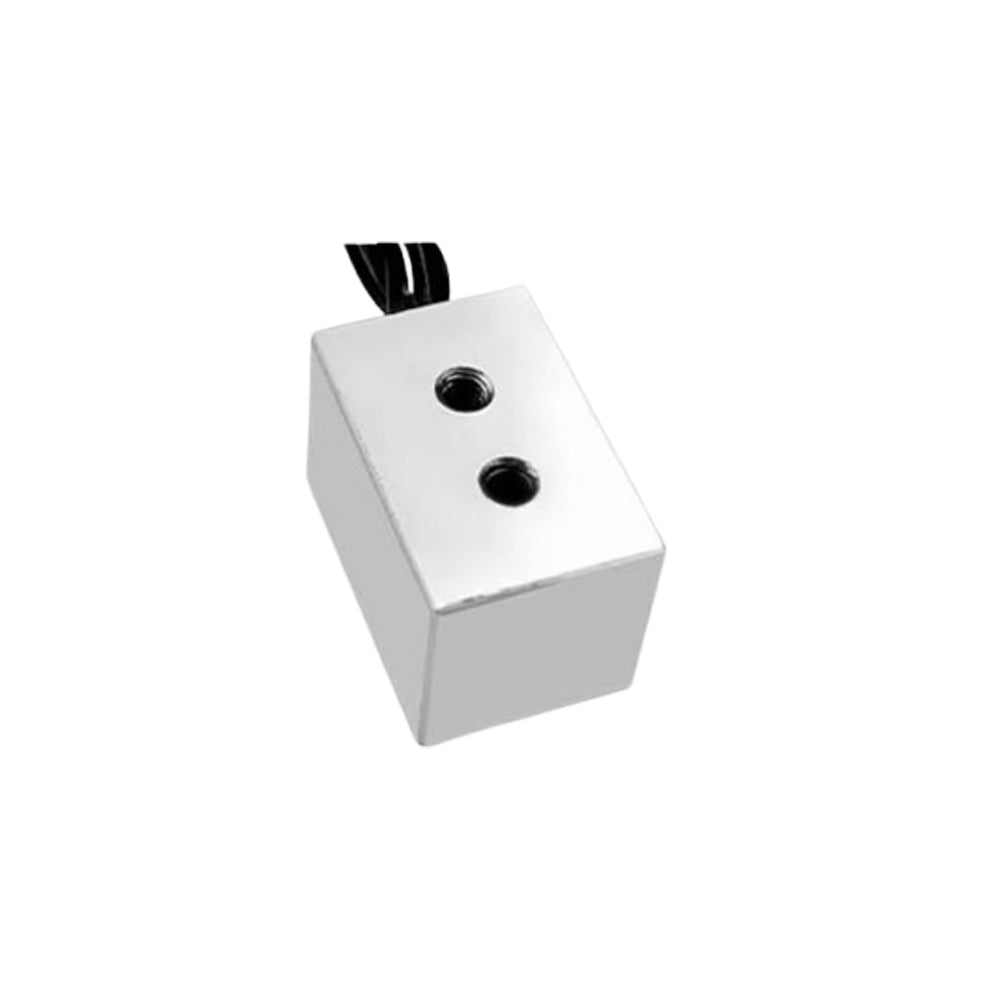

![Bottom view showing dual M4 mounting holes on 24 V electromagnet coil]()
![Front view of 30x20x20mm 12V electromagnet rectangular block]()
![Side view of compact 30x20x20mm 12V electromagnet for light lifting]()
![Bottom view showing dual M4 mounting holes on 24 V electromagnet coil]()
![Front view of DC 12V solenoid 3.5–65 N 20 mm stroke]()
![Side view of 12V push-pull solenoid with 20mm movement]()
-33%
30 x 20 x 20mm DC 12V 4kg Thick Rectangular Industrial strong Electromagnet with 4mm Mounting Hole
Available:In Stock
- Product SKU: LGSO041
₹ 1,999
₹ 2,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
30×20×20mm 12V Electromagnet for Compact Industrial Use
This 30x20x20mm thick rectangular 12V electromagnet is designed for small to medium industrial tasks, offering a reliable 4 kg holding force while operating on a 12V DC supply. Inside, a well-designed electromagnet coil provides stable magnetic force, and the compact body can also support magnetic solenoid lock style projects in automation and security. It features a durable metal body, low power consumption of 2W, and compact structure for effortless integration into space-restricted systems. With its 300mm wire and dual mounting holes, this 12V electromagnet supports convenient installation in access control and positioning applications.Key Features
- Holds up to 4 kg — ideal for light industrial tasks and compact magnetic solenoid lock mechanisms
- Energy-efficient operation — just 2W power consumption from a 12V electromagnet design
- Compact rectangular design — fits in tight spaces where an electromagnet coil module is required
- Durable metal body for long service life
- 300mm wire ensures flexible connection and easy routing
- 2×M4 mounting holes (10mm spacing) for secure attachment in panels and brackets
Applications
- Small automation machines using a compact electromagnet coil for precise holding
- Magnetic locking and access control systems based on magnetic solenoid lock hardware
- Light conveyor and material handling where a 12V electromagnet is sufficient
- Compact robotics and positioning setups that need reliable on-off magnetic force
Advantages
- Low power usage helps reduce operating costs while still giving strong pull from the electromagnet coil
- Space-saving design makes this coil suitable for compact assemblies and magnetic solenoid lock housings
- Sturdy construction supports long-term performance when the 12V electromagnet is used in daily operation
Disadvantages
- Only 4 kg holding force — not intended for heavy-duty jobs or large workpieces
- Requires regulated 12V DC power input to protect the solenoid and wiring
Technical Details
- Rated Voltage: 12V DC
- Holding Force: 4Kg
- Power Consumption: 2W
- Length: 30mm
- Width: 20mm
- Height: 20mm
- Wire Length: 300mm
- Material: Metal
- Shape: Rectangular
- Current: 0.18A
- Mounting: 2×M4 screw holes
- Hole Spacing: 10mm (center distance)
Dimensions
Physical Attributes
- Length: 30mm
- Width: 20mm
- Height: 20mm
- Material: Metal
- Wire Length: 300mm
- Shape: Rectangular
- Weight: 65g
Package Includes
- 1 × 30×20×20mm 12V 4Kg Thick Rectangular Industrial Electromagnet
