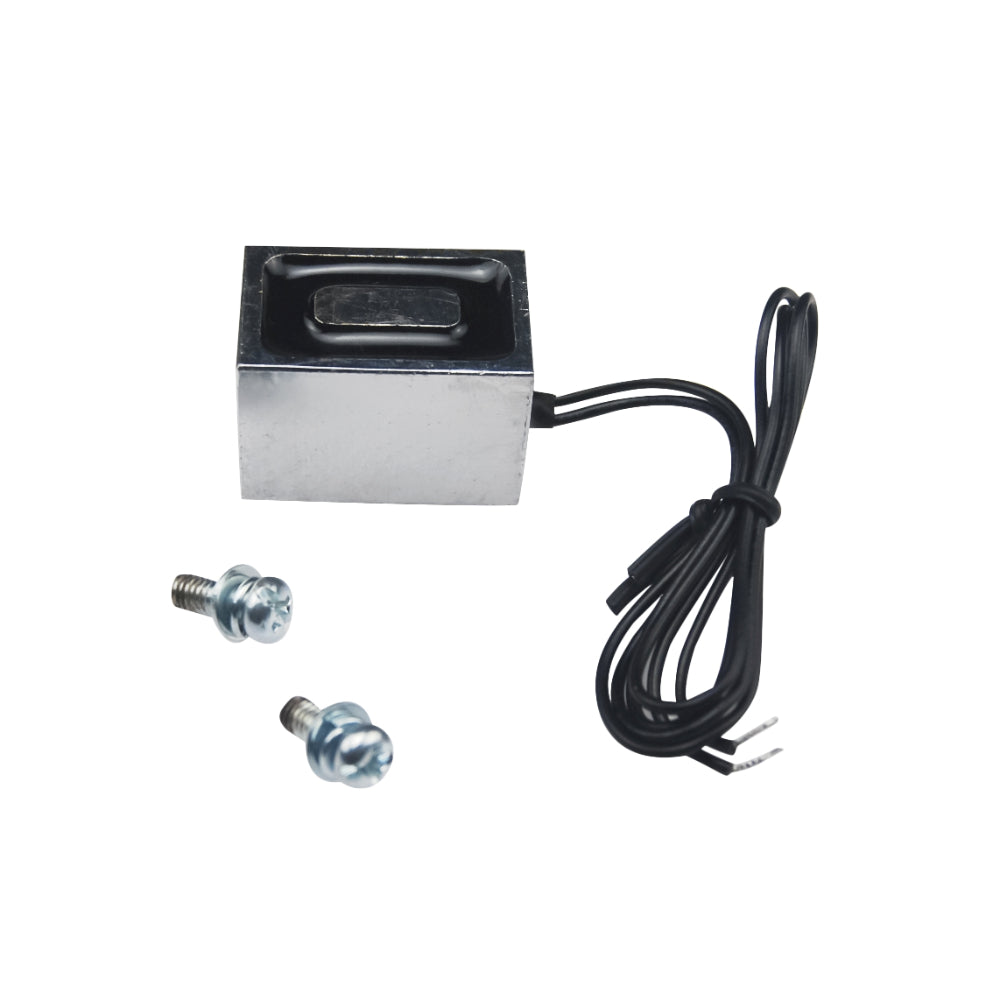

![Front-view of 30×20×20 mm 24 V electromagnet (coil for solenoid)]()

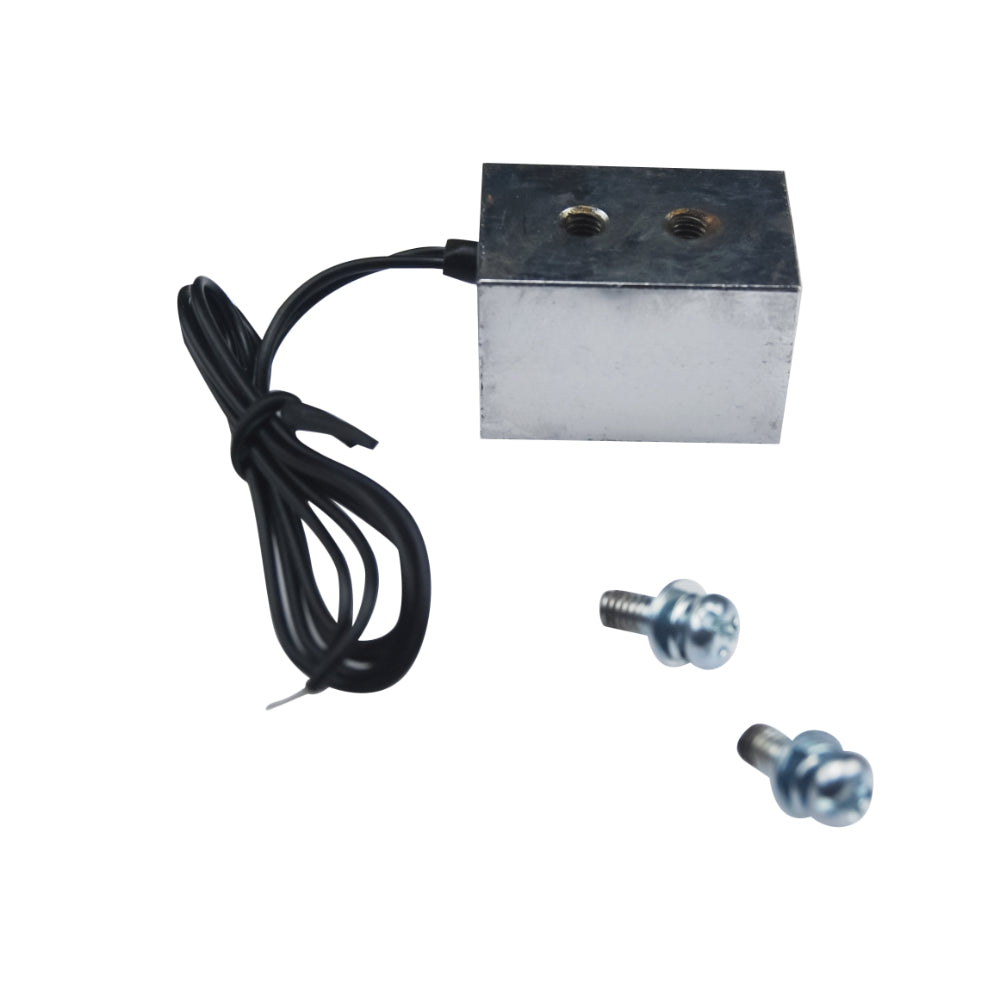

![Side-view of 30×20×20 mm 24 V thick rectangular electromagnet]()
![Bottom view showing dual M4 mounting holes on 24 V electromagnet coil]()
![Front-view of 30×20×20 mm 24 V electromagnet (coil for solenoid)]()
![Side-view of 30×20×20 mm 24 V thick rectangular electromagnet]()
![Bottom view showing dual M4 mounting holes on 24 V electromagnet coil]()
![Front view of DC 12V solenoid 3.5–65 N 20 mm stroke]()
![Side view of 12V push-pull solenoid with 20mm movement]()
-33%
30 x 20 x 20mm DC 24V 4Kg 2.4W Thick Rectangular Industrial strong Electromagnet with 4mm Mounting Hole
Available:In Stock
- Product SKU: LGSO042
₹ 1,999
₹ 2,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
30×20×20mm 24V Thick Rectangular Coil for Solenoid Electromagnet
This 30x20x20mm thick rectangular 24V electromagnet is designed for compact industrial applications for solenoid valve lock, delivering a reliable 4 kg holding force on a 24V DC supply. Inside the unit, a finely wound coil for solenoid provides consistent magnetic pull, and the compact body is ideal when space is limited. With just 2.4W power consumption, it remains energy-efficient — perfect for continuous-duty or frequent use. Moreover, its robust metal body and small footprint allow easy integration into automation, security, or light material-handling systems without compromising performance.Key Features
- Moderate holding force up to 4 kg — suitable for light industrial tasks or small magnetic locking setups
- Energy-efficient operation at only 2.4W on 24V DC, thanks to high-quality electromagnet coil
- Compact rectangular metal body designed for harsh industrial environments
- 300mm wire for flexible routing and easy installation
- 2×M4 mounting holes (10mm center distance) for secure attachment
Applications
- Small automation systems needing compact magnetic actuation with a reliable coil for solenoid
- Compact magnetic locking and access-control mechanisms — functioning as a magnetic solenoid lock
- Light-duty material handling in conveyors or small storage systems
- Robotics and small mechanisms requiring precise magnetic actuation or holding force
Advantages
- Low power consumption reduces operating costs while delivering stable magnetic force
- Space-saving design — ideal when a compact coil for solenoid is needed in tight assemblies
- Durable construction ensures long-term reliability even under continuous operation
Disadvantages
- Limited holding capacity of 4 kg — not suitable for heavy-duty lifting or large loads
- Requires regulated 24V DC supply — power stability important for reliable performance
Technical Details
- Rated Voltage: 24V DC
- Holding Force: 4 Kg
- Power Consumption: 2.4W
- Length: 30 mm
- Width: 20 mm
- Height: 20 mm
- Wire Length: 300 mm
- Material: Metal
- Shape: Rectangular
- Current: ~0.1A
- Mounting: 2×M4 screw holes, 10 mm center distance
Dimensions
Physical Attributes
- Length: 30 mm
- Width: 20 mm
- Height: 20 mm
- Material: Metal
- Wire Length: 300 mm
- Shape: Rectangular
- Weight: 65 g
Package Includes
- 1 × 30×20×20mm 24V 4 Kg 2.4W Thick Rectangular Industrial Electromagnet (coil for solenoid)
