40x20mm 24V 30Kg 3.5W Circular Strong Industrial Electromagnet Lifting Magnet

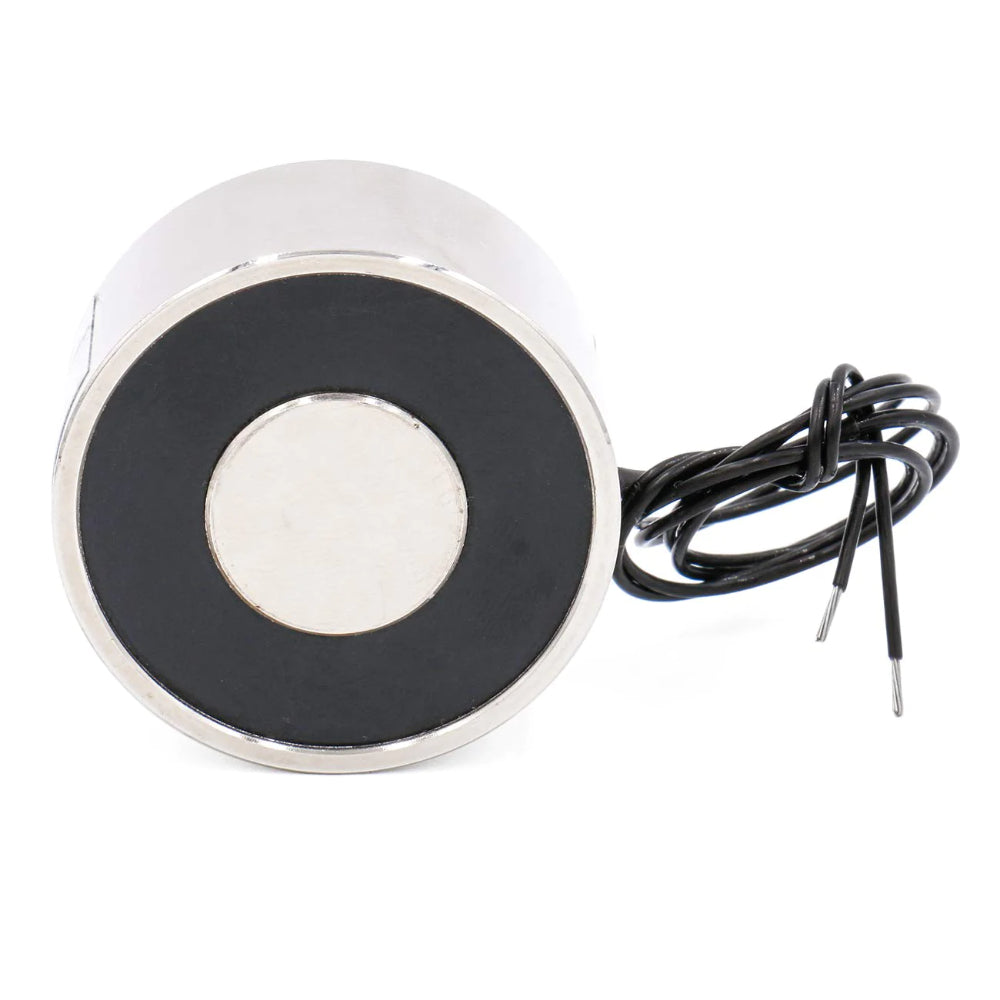

![40×20 mm 24 V industrial solenoid electromagnet – front view]()

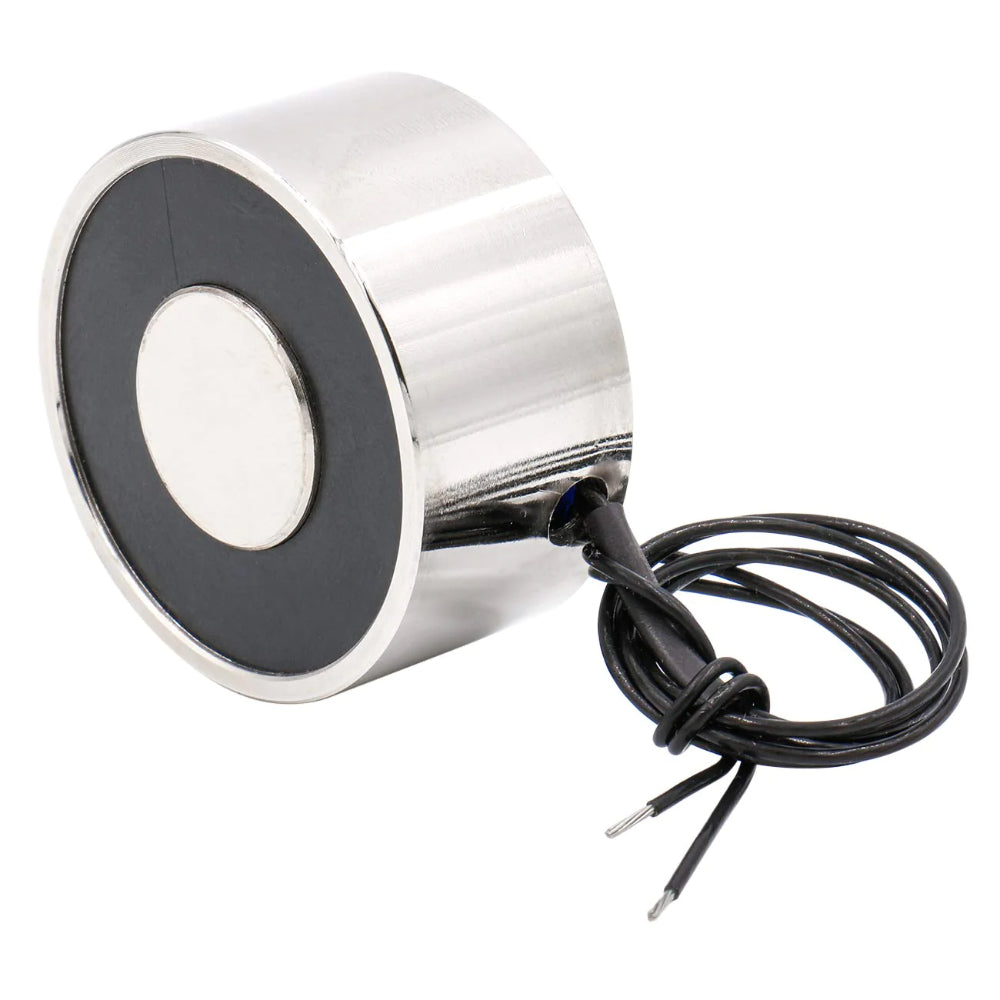

![Side view of 40×20 mm 24 V solenoid lifting magnet]()

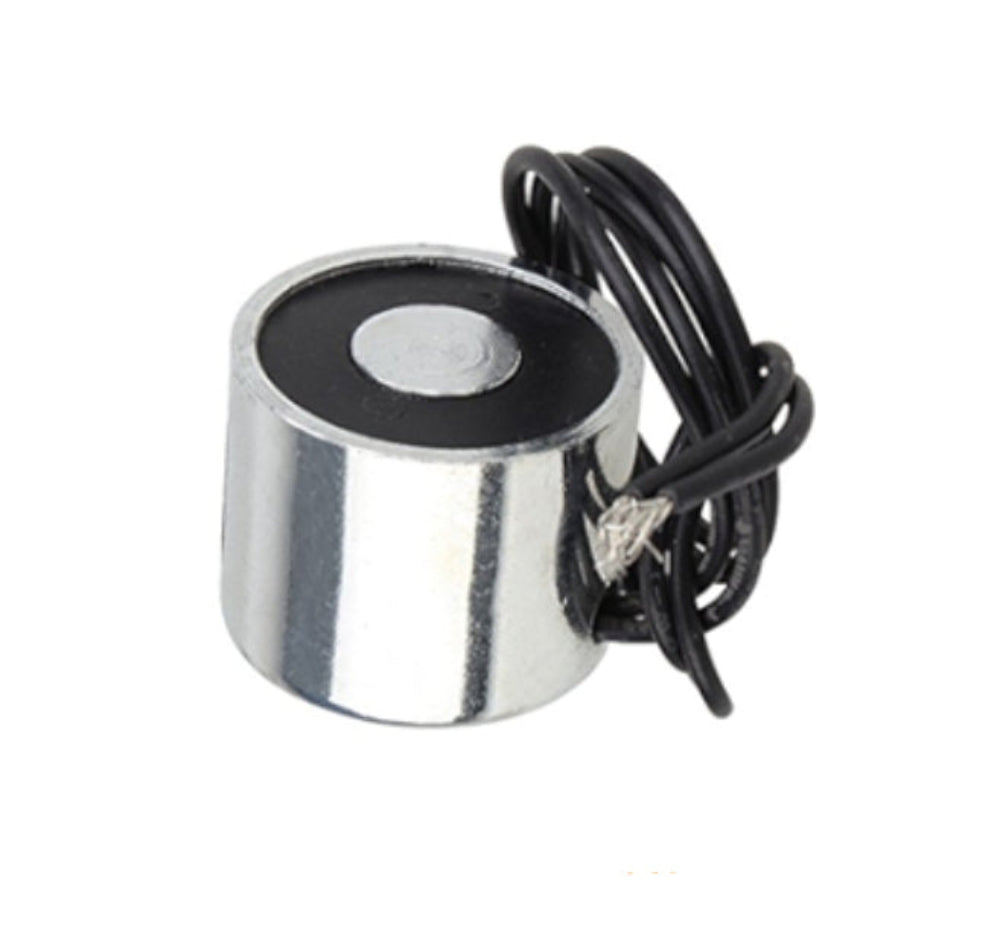

![40×20 mm 24 V solenoid electromagnet showing 300 mm wire and M5 mount]()
![40×20 mm 24 V industrial solenoid electromagnet – front view]()
![Side view of 40×20 mm 24 V solenoid lifting magnet]()
![40×20 mm 24 V solenoid electromagnet showing 300 mm wire and M5 mount]()
-36%
40x20mm 24V 30Kg 3.5W Circular Strong Industrial Electromagnet Lifting Magnet
Available:In Stock
- Product SKU: LGSO037
₹ 729
₹ 1,149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
40×20mm 24V Heavy-Duty Industrial Lifting Solenoid Electromagnet
This 40×20 mm electromagnet is engineered for industrial-grade lifting and holding applications, delivering a strong 30 kg holding force while operating efficiently on a 24 V DC power supply. The chrome-finished metal construction and high-quality electromagnet coil ensure durability and resistance to wear in demanding environments. With only 3.5 W power consumption and a low 0.15 A current draw, it provides reliable and energy-efficient performance. As a pwm solenoid compatible device, it supports controlled operation in automation systems. The compact design fits easily into machinery, while the 300 mm wire allows flexible installation. In short, this solenoid is ideal for packaging in robotics, automation, or magnetic-holding tasks from the start.Key Features
- Strong lifting capability up to 30 kg
- Efficient operation at 3.5 W and 24 V DC
- Durable metal housing with chrome finish
- Compact design: 40 mm diameter, 20 mm height
- 300 mm wire for versatile installation
- M5 mounting hole for secure attachment
Applications
- Industrial automation systems requiring secure magnetic holding with a compact electromagnet coil
- Magnetic locking systems for enhanced security
- Material handling: conveyors and automated storage
- Robotics: gripping and arm actuation systems — works well as a pwm solenoid in control circuits
Advantages
- High holding force with low energy consumption — thanks to efficient solenoid design
- Compatible with a wide range of industrial setups
- Compact structure for easy integration
- Reliable long-term performance
Disadvantages
- Voltage-specific: Requires a 24 V DC supply
- May generate heat during prolonged continuous use if not properly cooled
Technical Details
- Rated Voltage: 24 V DC
- Holding Force: 30 kg
- Power Consumption: 3.5 W
- Current: 0.15 A
- Diameter: 40 mm
- Height: 20 mm
- Wire Length: 300 mm
- Material: Metal
- Finish: Chrome
- Shape: Round
- Mounting: M5 screw hole
- Weight: 145 g
Drawing
Package Includes
- 1 × 40×20 mm 24 V 30 Kg 3.5 W Industrial Lifting Solenoid Electromagnet
