40x20mm 5V 30Kg 3W Circular Strong Industrial Electromagnet Lifting Magnet

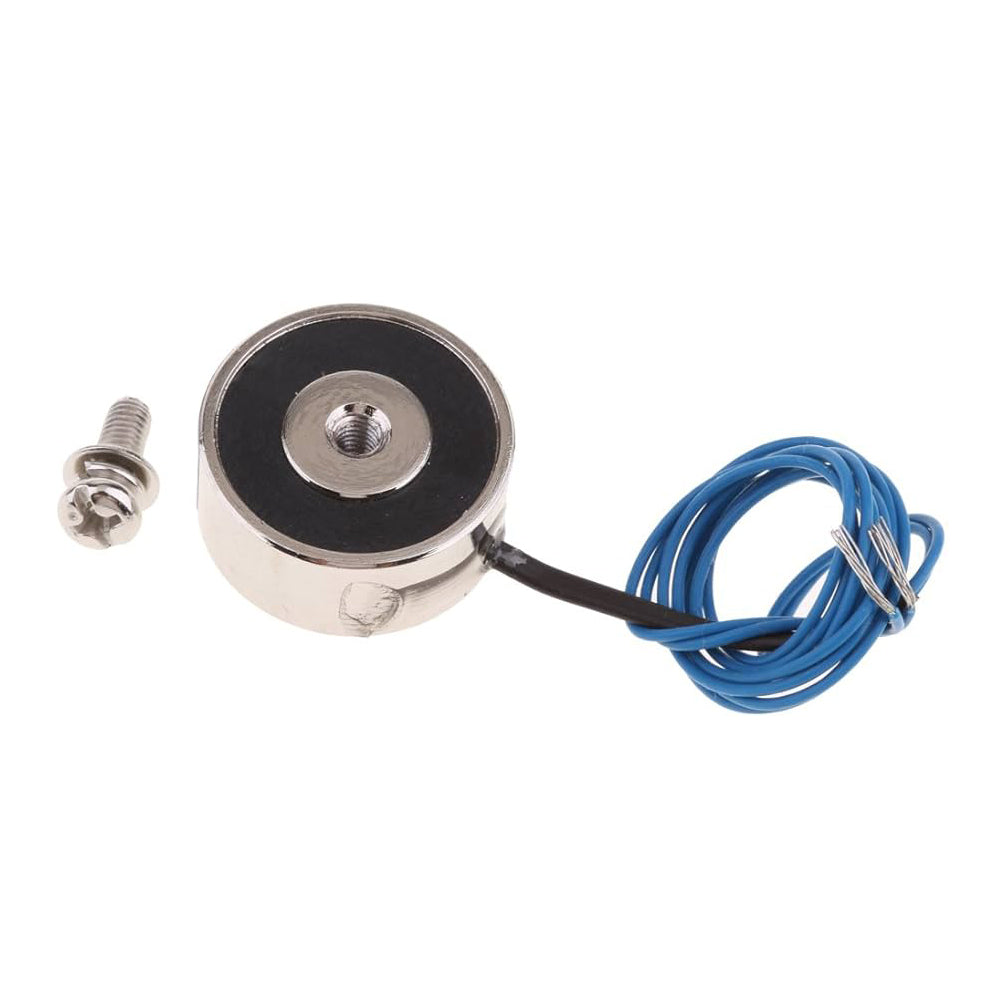

![40×20 mm 5 V 30 Kg strong electromagnet front view]()

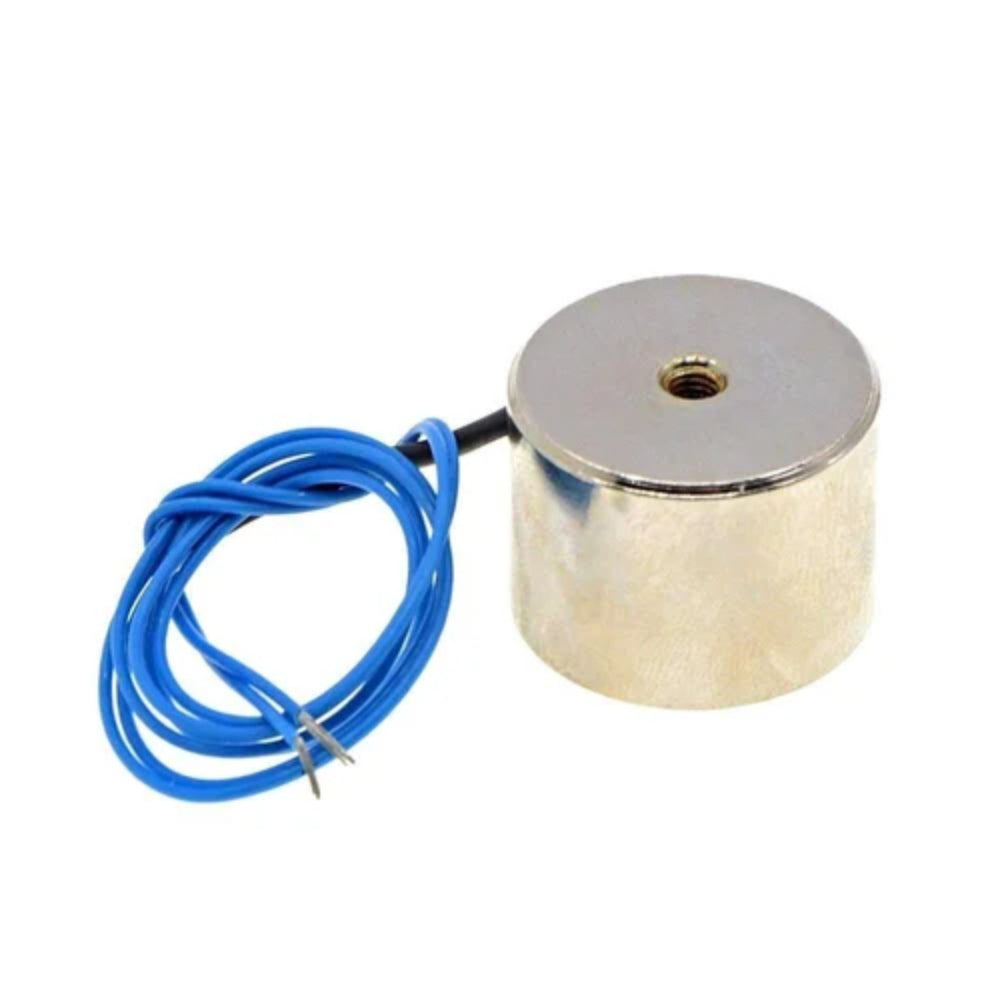

![Side view of 40×20 mm 5 V industrial strong electromagnet]()
![40×20 mm 5 V 30 Kg strong electromagnet mounted in automation setup]()
![40×20 mm 5 V 30 Kg strong electromagnet front view]()
![Side view of 40×20 mm 5 V industrial strong electromagnet]()
![40×20 mm 5 V 30 Kg strong electromagnet mounted in automation setup]()
-36%
40x20mm 5V 30Kg 3W Circular Strong Industrial Electromagnet Lifting Magnet
Available:In Stock
- Product SKU: LGSO035
₹ 729
₹ 1,149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
40×20mm 5V strong electromagnet for industrial lifting
This 40×20mm strong electromagnet delivers a strong holding force of 30 Kg while operating on a low 5 V DC supply with 20mm solenoid. Consuming only 3 W of power at 0.6 A current, it uses an optimized electromagnet coil to ensure efficient performance in demanding industrial environments. Compared with a typical 20mm solenoid, this design offers higher lifting capacity and better stability for precise automation tasks. The chrome-plated metal body adds durability and corrosion resistance, making it ideal for robust operational conditions. The 300 mm wire length and 20mm solenoid M5 mounting option allow secure and flexible installation in automation systems, robotics, and magnetic locking applications.Key Features
- High lifting strength up to 30 Kg from a compact strong electromagnet design
- Low-voltage 5 V DC operation with a high-density electromagnet coil
- Efficient 3 W power consumption for energy-conscious systems
- Durable chrome-plated metal housing for long-term reliability
- Flexible wiring with 300 mm wire for easy routing in panels
- Compact industrial form: 40×20 mm body comparable to a 20mm solenoid footprint
Applications
- Industrial automation and gripping systems where a strong electromagnet is required for vertical lifting
- Robotic manipulators and pick-and-place systems needing precise magnetic control
- Magnetic door locking and access control security solutions
- Material handling and conveyor-based automation where a 20mm solenoid may be underpowered
- Custom engineering and DIY industrial builds that benefit from a compact electromagnet coil assembly
Advantages
- Strong force-to-size efficiency makes this strong electromagnet ideal for compact machinery
- Reliable performance in continuous-duty tasks compared to many standard 20mm solenoid units
- Easy integration into compact equipment as a drop-in upgrade over a 20mm solenoid module
- Long service life due to durable construction and a well-designed electromagnet coil and housing
Disadvantages
- Voltage-specific: Works only with 5 V DC supply
- High current draw (0.6 A) may require a stable, well-sized power design
- May heat up during extended continuous use, as with any strong electromagnet in heavy-duty service
Specifications
- Rated Voltage: 5 V DC
- Holding Force: 30 Kg
- Power Consumption: 3 W
- Current: 0.6 A
- Diameter: 40 mm
- Height: 20 mm
- Wire Length: 300 mm
- Material: Metal
- Finish: Chrome
- Shape: Round
- Mounting: M5 screw hole
- Weight: 145 g
Drawing
Package Includes
- 1 × 40×20 mm 5V 30 Kg 3 W Industrial Lifting Electromagnet
