50 x 25 x 20mm DC 12V 25kg 2.5W Thick Rectangular Industrial strong Electromagnet with 5mm Mounting Hole

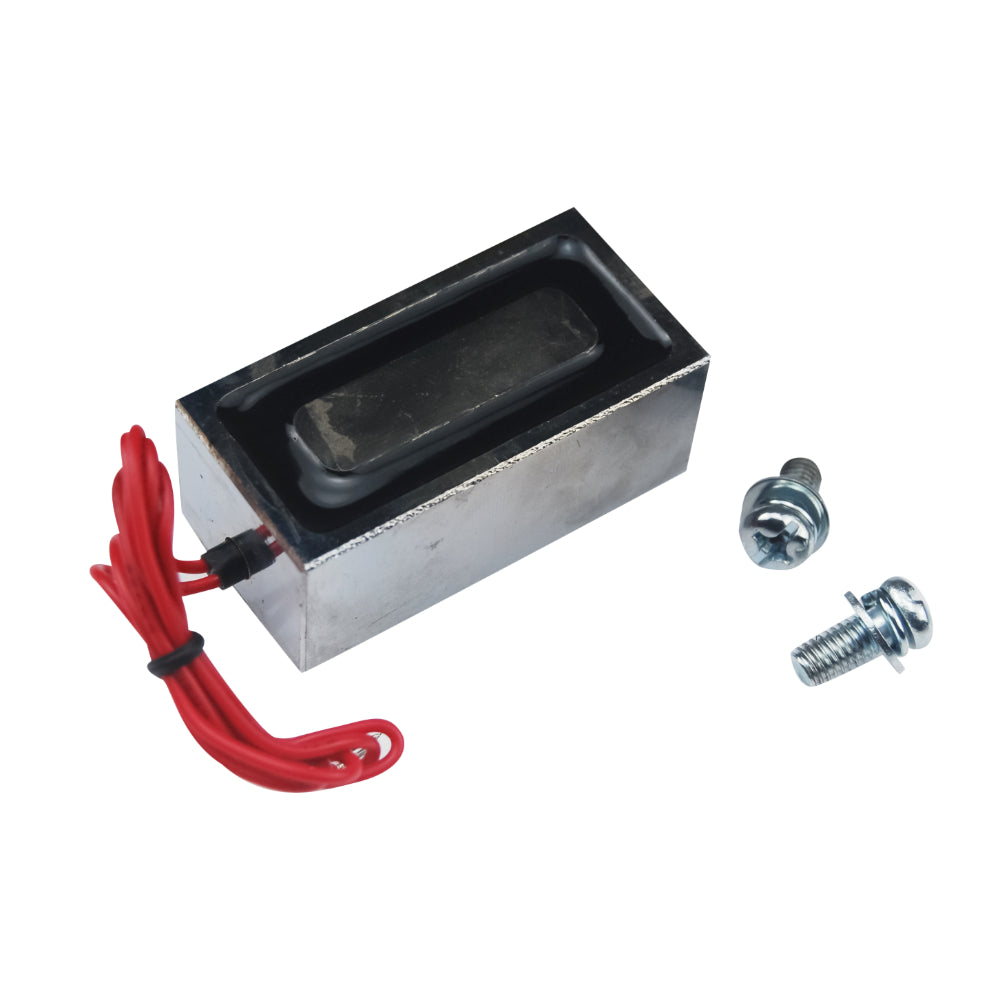

![Front view of 50×25×20 mm 12 V industrial electromagnet]()

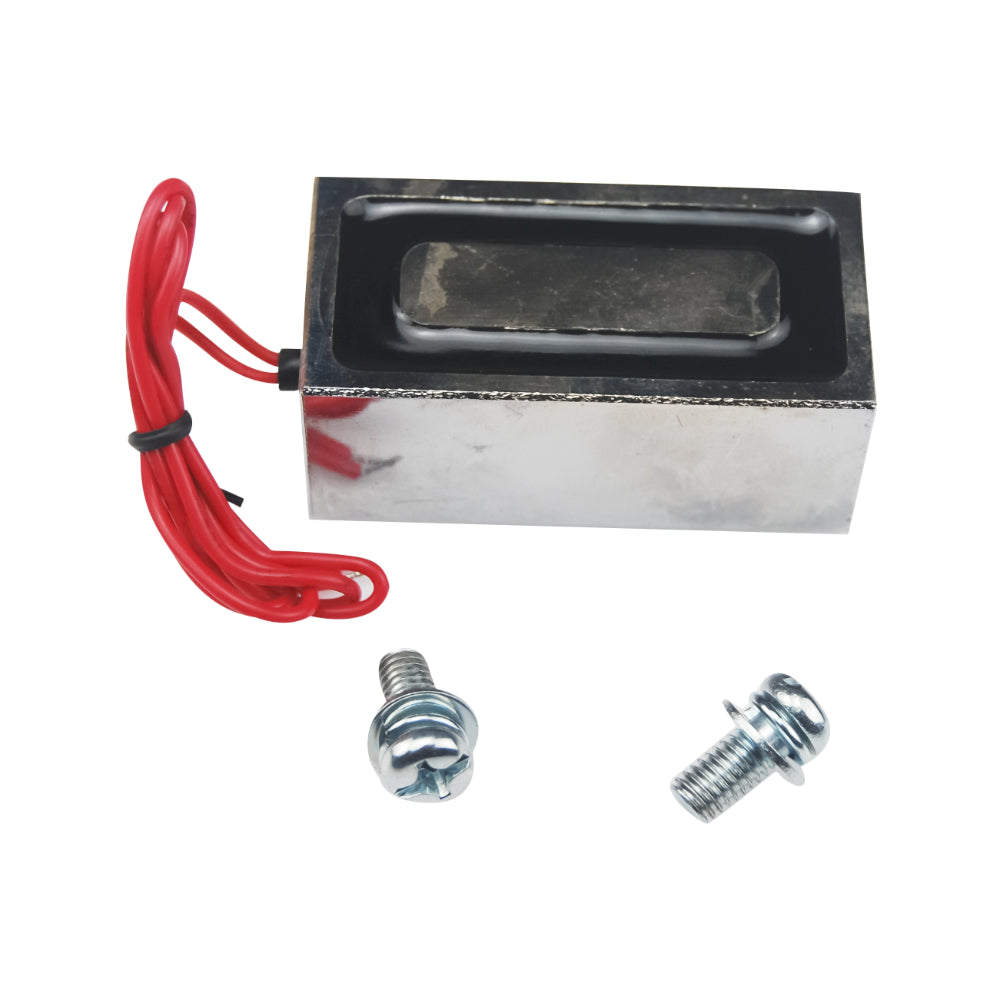

![Side view of 50×25×20 mm 12 V 25 Kg electromagnet block]()

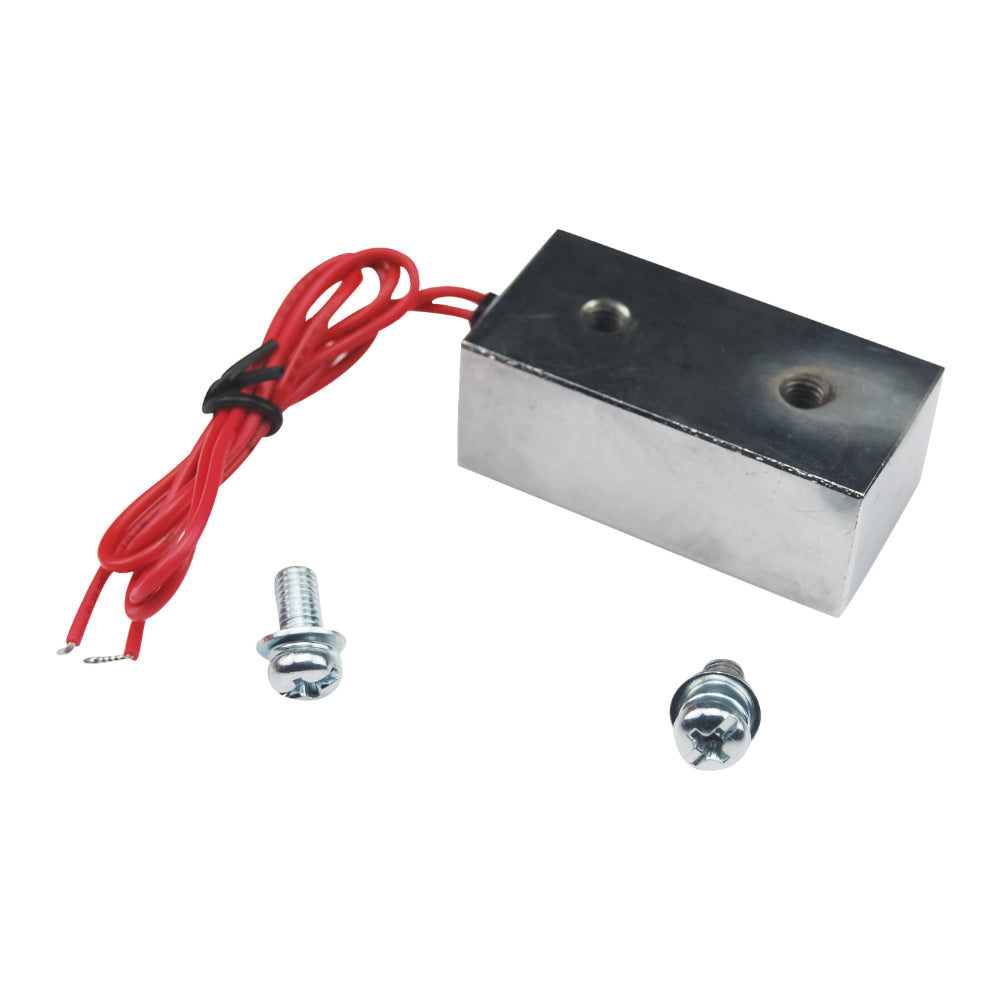

![Bottom view showing dual 5 mm mounting holes of 12 V electromagnet]()
![Front view of 50×25×20 mm 12 V industrial electromagnet]()
![Side view of 50×25×20 mm 12 V 25 Kg electromagnet block]()
![Bottom view showing dual 5 mm mounting holes of 12 V electromagnet]()
-36%
50 x 25 x 20mm DC 12V 25kg 2.5W Thick Rectangular Industrial strong Electromagnet with 5mm Mounting Hole
Available:In Stock
- Product SKU: LGSO045
₹ 2,299
₹ 3,599
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
50×25×20mm 12V Industrial Electromagnet for Solenoid Door Lock Use
This 50×25×20 mm thick rectangular electromagnet is engineered for heavy-duty use, delivering a robust 25 kg holding force on a 12V DC supply. With a well-wound electromagnet coil, it can serve effectively when used as a solenoid door lock module — ensuring reliable magnetic holding for doors or gates. At just 2.5W power consumption, the solenoid door lock remains energy-efficient while delivering strong magnetic performance. Its sturdy metal build and compact dimensions allow easy integration into cabinets, security doors, or industrial enclosures. Additionally, two 5 mm mounting holes spaced at 25 mm center distance make installation fast and secure.Features
- 25 Kg holding strength — ideal for heavy-duty magnetic locking or holding tasks
- Low power consumption — efficient electromagnet coil draws minimal energy while maintaining strong force
- Durable metal housing — built to withstand industrial environments and frequent use
- 300 mm wire for flexible wiring and integration into existing control systems
- Dual 5 mm mounting holes for secure installation, making this unit suitable as a solenoid coil actuator
Applications
- Automation systems where a magnetic hold is needed — perfect when implemented as a solenoid door lock
- Security and access-control mechanisms requiring reliable locking via electromagnet
- Material handling, conveyors, and storage systems needing strong magnetic holding force
- Robotic fixtures or assemblies where a compact solenoid coil magnet ensures repeatable hold & release
Advantages
- High strength-to-size ratio — strong magnetic holding in compact form factor
- Energy-efficient design thanks to optimized electromagnet coil, reducing operational cost
- Durable construction — reliable long-term performance in industrial or security setups
- Compact and easy to install — mounting holes and wire length provide flexibility
- Versatile use — especially suited as a robust solenoid door lock or magnetic actuator module
Disadvantages
- Requires a stable 12V DC supply, which must be managed properly
- Although 25 kg holding force is strong, extremely heavy loads may require larger electromagnets
Technical Details
- Rated Voltage: 12V DC
- Holding Force: 25 Kg
- Power Consumption: 2.5W
- Length: 50 mm
- Width: 25 mm
- Height: 20 mm
- Wire Length: 300 mm
- Material: Metal
- Shape: Rectangular
- Current: 0.22A
- Mounting: 2× M5 screw holes
- Hole Spacing (Center Distance): 25 mm
Dimensions & Drawing
Physical Attributes
- Length: 50 mm
- Width: 25 mm
- Height: 20 mm
- Material: Metal
- Wire Length: 300 mm
- Shape: Rectangular
- Weight (gm): 143
Package Includes
- 1 × 50×25×20 mm 12V 25 Kg 2.5W Industrial Electromagnet with 5 mm Mounting Holes
