60 x 30 x 25mm DC 12V 40kg 5W Thick Rectangular Industrial strong Electromagnet with 5mm Mounting Hole

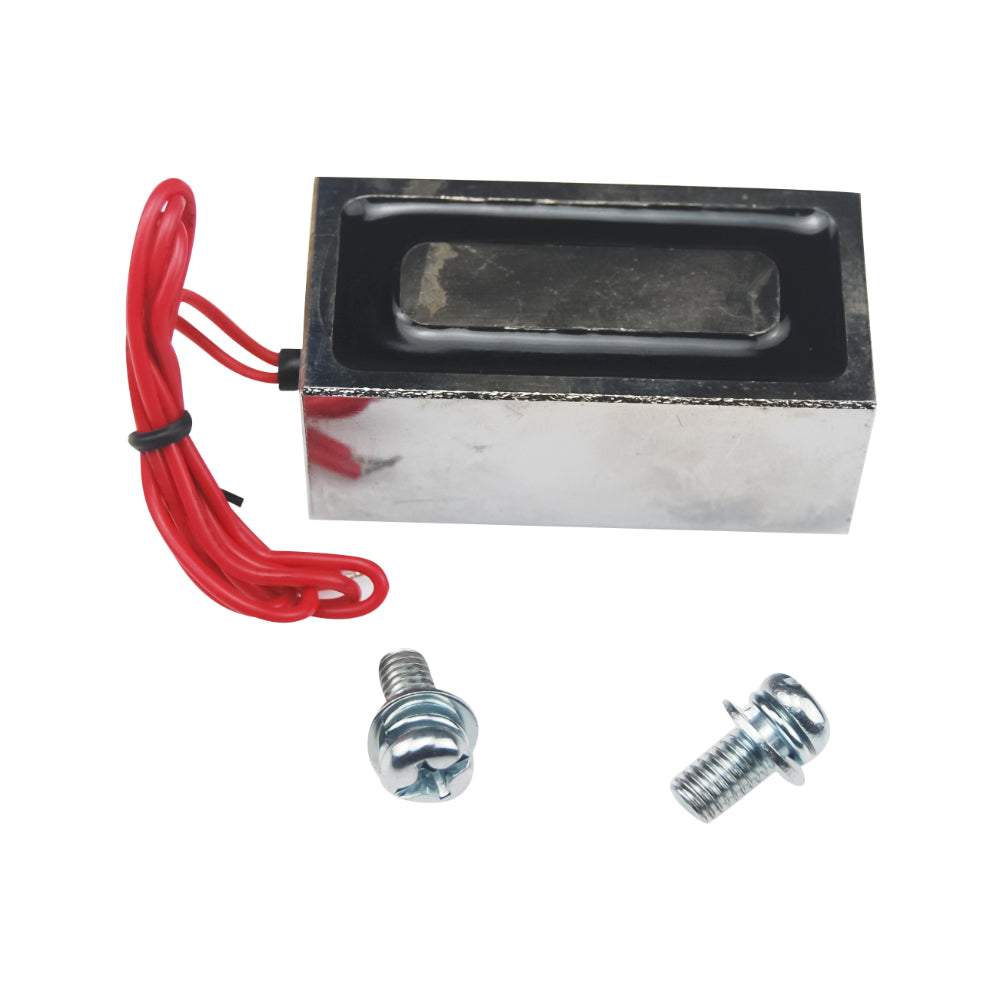

![12 V 40 kg industrial electromagnet – front view]()

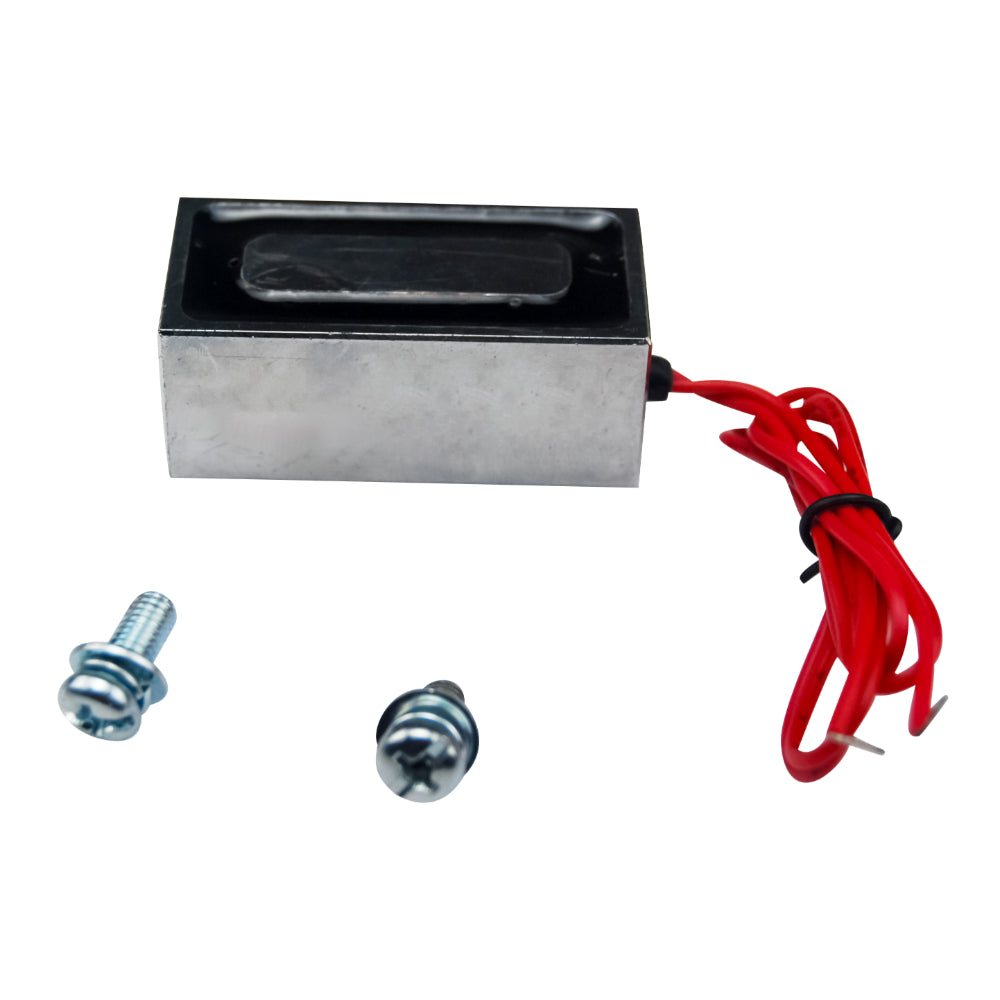

![Side view of 60×30×25 mm rectangular electromagnet with mounting hole]()

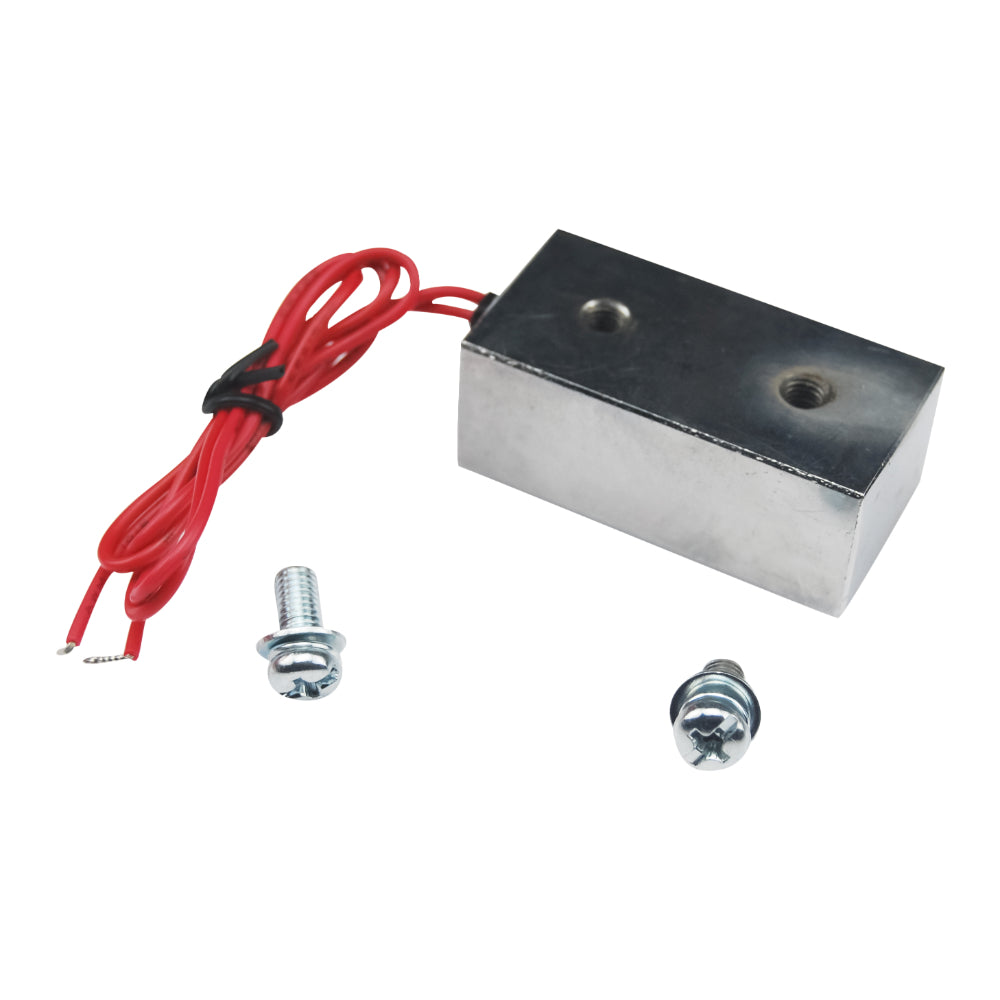

![Detail of 5 mm mounting hole on industrial electromagnet]()
![12 V 40 kg industrial electromagnet – front view]()
![Side view of 60×30×25 mm rectangular electromagnet with mounting hole]()
![Detail of 5 mm mounting hole on industrial electromagnet]()
-38%
60 x 30 x 25mm DC 12V 40kg 5W Thick Rectangular Industrial strong Electromagnet with 5mm Mounting Hole
Available:In Stock
- Product SKU: LGSO047
₹ 3,099
₹ 4,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
60×30×25 mm 12V Thick Rectangular Industrial Electromagnet
This 60×30×25 mm thick rectangular electromagnet is perfect for industrial environments, offering a solid 40 kg holding force on a 12V DC supply with efficient 5W power consumption linear push solenoid. Because an electromagnet is designed to generate magnetic force only when energized, you get reliable magnetic holding exactly when needed — making it ideal for automation, lifting, and material handling systems. Its rugged metal body ensures durability, while the compact shape and dual 5 mm mounting holes spaced 30 mm apart enable easy, secure integration into machines or fixtures.Key Features
- High holding force up to 40 kg — suitable for heavy-duty tasks
- Power-efficient operation: just 5W at 12V DC
- Durable rectangular metal housing for harsh industrial use
- 300 mm wire for flexible installation
- 2×M6 mounting holes with 30 mm center distance for secure mounting
Applications of coil for solenoid
- Automation systems requiring strong magnetic holding or lifting
- Industrial magnetic locking and access control mechanisms
- Material-handling conveyors and storage automation
- Robotic systems needing precise magnetic actuation and secure grip
Advantages
- Strong 40 kg holding capacity in a compact form
- Energy-efficient 5 W coil, suitable for continuous use
- Robust metal construction for long life in industrial conditions
- Easy installation thanks to standardized mounting layout
- Versatile for multiple automation, lifting, and holding tasks
Disadvantages
- Requires stable 12V DC supply for proper operation
- Current draw (≈ 0.42 A) should be considered in low-capacity systems
Technical Details
- Rated Voltage: 12V DC
- Holding Force: 40 Kg
- Power Consumption: 5 W
- Length: 60 mm
- Width: 30 mm
- Height: 25 mm
- Wire Length: 300 mm
- Material: Metal
- Shape: Rectangular
- Current: 0.42 A
- Mounting: 2×M6 screw holes
- Hole Spacing (Center Distance): 30 mm
Dimensions
Physical Attributes
- Length: 60 mm
- Width: 30 mm
- Height: 25 mm
- Material: Metal
- Wire Length: 300 mm
- Shape: Rectangular
- Weight (gm): 268
Package Includes
- 1 × 60×30×25 mm DC 12V 40 Kg 5 W Thick Rectangular Industrial Electromagnet with 5 mm Mounting Hole
