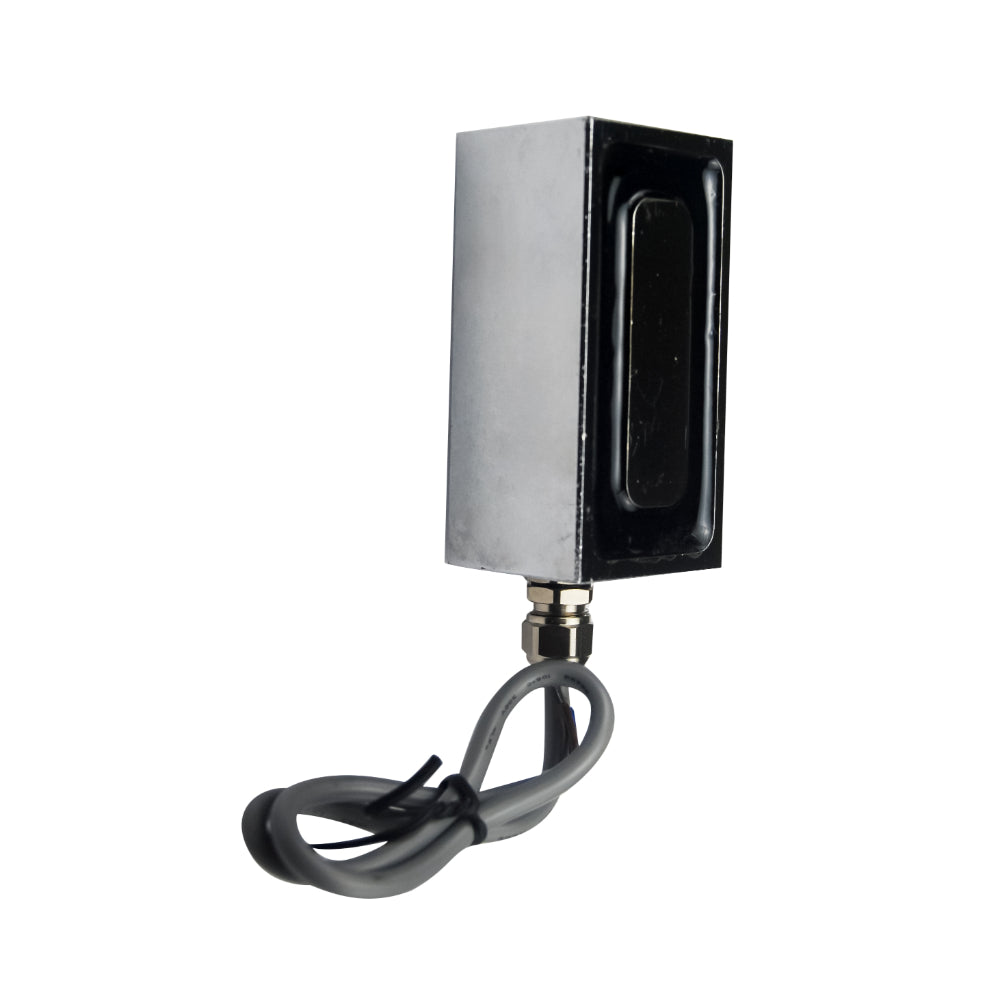

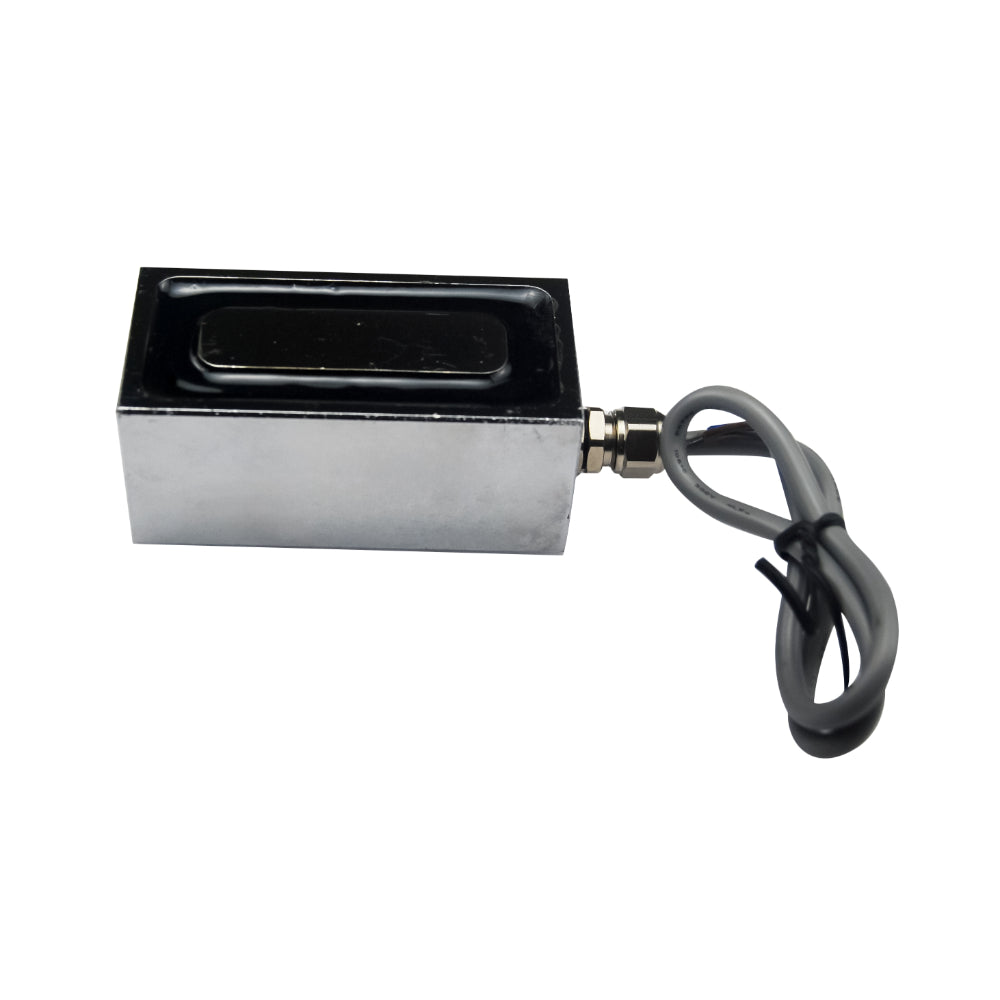

70 x 35 x 30mm DC 24V 80kg 7.5W Thick Rectangular Industrial strong Electromagnet with 7mm Mounting Hole

70×35×30 mm 24V Thick Rectangular Industrial Electromagnet

Features

• 80 kg strong holding force for industrial lifting
• Energy-efficient 7.5 W power usage
• Heavy-duty metal housing engineered for durability
• 300 mm cable enables flexible installation

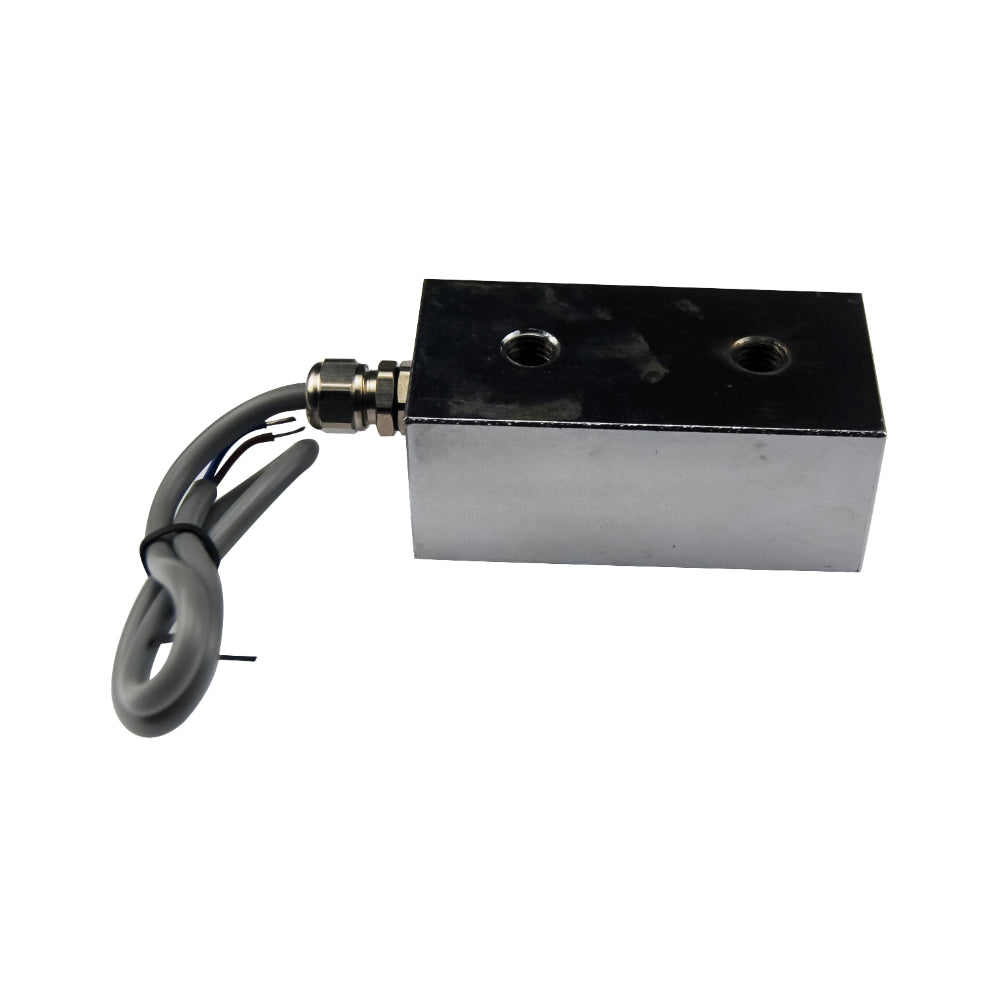

• 2×M8 mounting holes (7 mm) with 35 mm spacing for secure attachment

Applications

• Automation systems needing magnet electricity based heavy holding
• Security devices like electromagnetic locks using electromagnet coil mechanisms
• Material handling on conveyors and automated storage requiring strong magnetic grip
• Robotics using long stroke push pull solenoid or integrated magnet assemblies

Advantages

• 80 kg capacity ensures high performance under magnet electricity
• Efficient magnetic strength with only 7.5 W required
• Designed for continuous-duty industrial environments
• Compact size allows easy integration into tight layouts
• Compatible with electromagnet coil and long stroke push pull solenoid systems

Disadvantages

• Requires a stable regulated 24V DC supply
• 0.32A current draw must be considered in low-power designs

Technical Details

• Rated Voltage: 24V DC
• Holding Force: 80 Kg
• Power Consumption: 7.5 W
• Length: 70 mm
• Width: 35 mm
• Height: 30 mm
• Wire Length: 300 mm
• Material: Metal
• Shape: Rectangular
• Current: 0.32 A
• Mounting: 2×M8 screw holes
• Hole Spacing (Center Distance): 35 mm

Dimensions

Physical Attributes

• Length: 70 mm
• Width: 35 mm
• Height: 30 mm
• Material: Metal
• Wire Length: 300 mm
• Shape: Rectangular
• Weight: 447 gm

Package Includes

• 1 × 70×35×30 mm DC 24V 80 Kg 7.5 W Rectangular Industrial Electromagnet with 7 mm Holes
